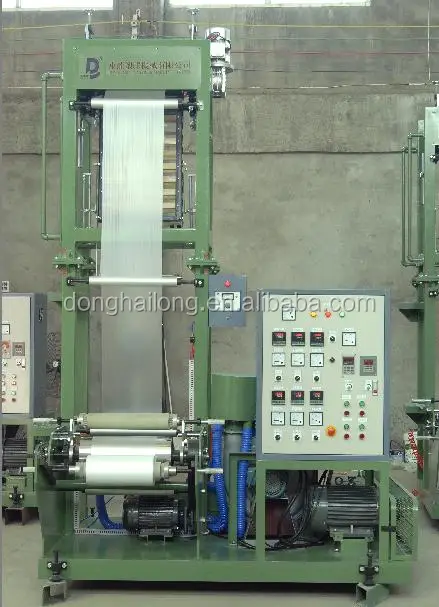

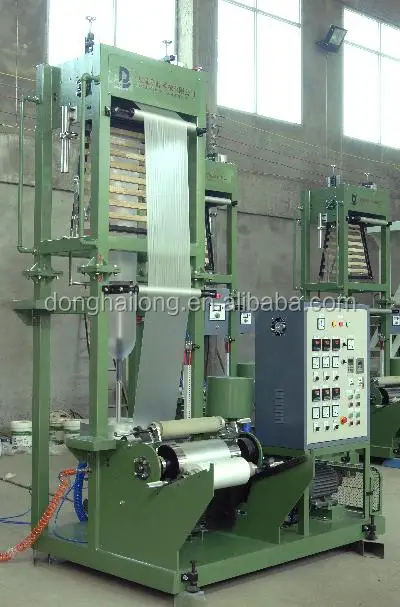

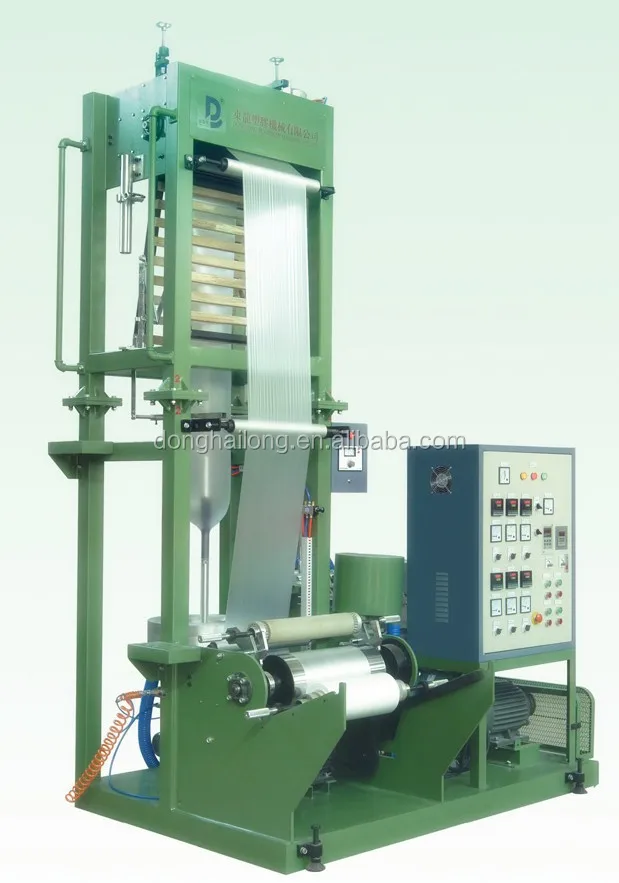

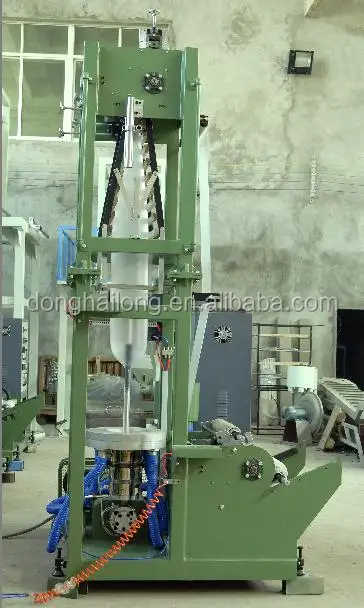

400mm Mini film blowing machine SJ35 film blowing machine extruder

Product Overview

Description

Company Information

1.Our company Founded in 1994.have their own factories, foreign trad companies Has rich experience in Plastic Machinery (Plastic Film Blowing Machine,Plastic Bag Making Machine,Plastic Recycling Machine,Plastic Stretch Film Machine,Plastic Cast Embossed Line)
2.Qualitycontrol:welcome to visit our factory and supervise the machine production process whenever you want. We also will realize a strict quality control on our machines.
3.In the past five years,We delay the delivery rate remained at 5%

4OEM and Engineers available to service machinery overseas

Main technology parameters:

Model No.:SJ35-FMS500P

1)Layer number:one layer

Max.Flim Width:400mm

Film Thickness:0.008-0.10mm

Raw Material:HDPE

Output:20kg/h

2)EXTRUDER

Screw Diamter:Φ35mm

Screw L/D:28:1

Heater Capacity:8.9kw

Driving Motor:5.5kw

3)DIE:

Die Diameter:Φ30mm,Φ

Heater Capacity:3.45kw

Cooling Blower:075kw

4)Haul-off:

With embossing roller(HDPE)

Driving Motor:0.75kw

Take-up Speed:10-70m/min

Winder Drive Motor:1.5kw

Temperature Control:5 units

Whole Power With Total Machine:About 21kw

Shape size:(L x W x H)3.5X2.5X3.0M

Weight:about 1.5t

Design and specification are subject to change without any notice!
