30 50tpd wheat flour processing equipment price rye wheat flour meal roller miller

Product Overview

Description

 20-200T/D complete set of wheat flour milling equipment/ wheat complete plant for wheat

 flour processing equipment price





Adopting the advanced process flow, the complete set of flour milling machineries have different configuration models with different throughput stretches from 20T/D to 200T/D.

Our wheat flour milling machines/plant includes clean part, flour milling part and packing part.





1, The cleaning part of wheat flour milling plant:



Beating → screening →   destoner → magnetic separator →   dampening



To ensure the flour quality and the working life of the mill by removing the impurities in the wheat before go to mill



(The cleaning room adopts three sifting, two scouring, two de stoning,  one wheat washing and drying, a magnetic separation, two times dust removing, four lifting,  this technology has the advantage of dust good cleaning effect, high efficiency, low power consumption, good effect of dust removing and no flying )



 a. wheat cleaning machine



We employ one set of versatile cleaner which emerges separating, destoning, scouring and screw conveying into a single whole which can provide clean wheat ready to be wetted.



b. wheat washing machine



Wheat get from versatile cleaner will be washed and cleaned further in this washer &destoner machine. And wetting tank should be made by concrete which will be better for getting optimum moisture condition before milling.



2, The flour milling part of wheat flour mill plant:



Milling → sifting



 Include different number of mill and sifter to mill the wheat and separate the flour and bran



(1) Mill: mill the wheat to break the integrity by the roller moving

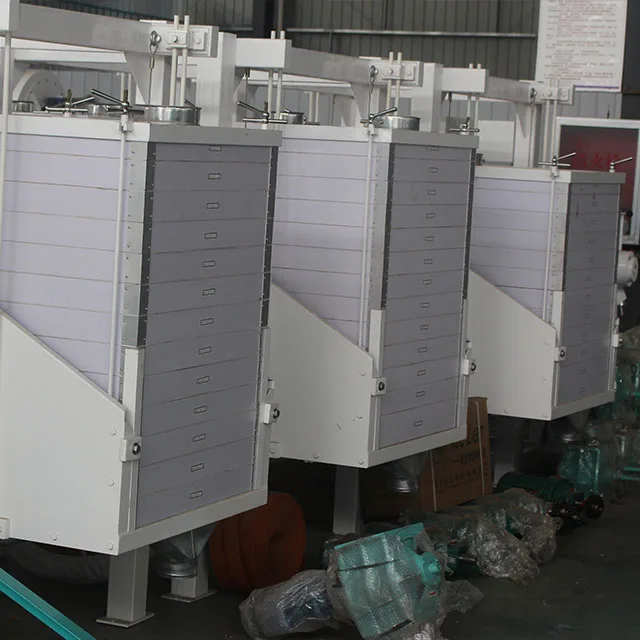

(2) Sifter: to separate the flour, bran and semolina to ensure flour quality.



(The milling part adopts 4 skin, 4-wick and 1-residue, four sets outside sieve grading screen, one bran finisher, flour  sifting use three double-bin plan sifting, thus has the advantage of high product efficiency, easy maintenance, flour milling machine adopts roller milling, synchronous belt  driving, high productivity, low noise, no flying dust and easy maintenance.



a. Milling part



We employ two sets of 6F2240 single roller mill and four sets of drum sieve to grind and grade flour. We can get wheat four in one go.



b. Bag filter



We fix a 36holes bag filter in this line to collect dust generated in the whole process so workshop can be clean enough



3, packing part of wheat flour milling machine:



The packing part is totally automatic; it can be designed according to requirement and machinery capacity:





Model	Dimension of workshop L*W*H(M)	Power (kw)	Production capacity(t/24h)	Extraction rate
6FYDT-8	13*5*4.5	33	8	Total extraction rate of grits and flour >80%
6FYDT-15	20*7*5	75	15-18
6FYDT-20	20*7*65.5	90	20-24
6FYDT-30	24*7*6.8	90	28-32
6FYDT-50	28*9*7.5	130	48-52



Output Index:
      special grade flour     about 65%-75%(Adjustable)
      standard grade flour   about 80%(Adjustable)

1. Produce type: special grade No. 1 flour, special grade No. 2 flour, standard flour, middling products;

2. Power consumption: 60 kwh/ton wheat;

3. Yield: Special grade No.1: 65%, Special grade No.2: 75%, standard flour: 80%, midding   flour: 3-5%, bran: 15-20%;



Final product quality parameter:

1. Fineness of the flour: 80-150 mesh

2. Magnetic metal content: not more than 0.003g/kg;

3. Sand content: less than 0.002%;

4. Water content: moisture: 13.5-14.5;

Advantages:
1. Turnkey project 20T-200T/D complete flour milling machinery.
2. Advanced technology support and customized design.
3. Thorough crafts and rational allocation.
4. Dust-free design and low power consumption.

Note: we can also design the horizontal structure for you.
