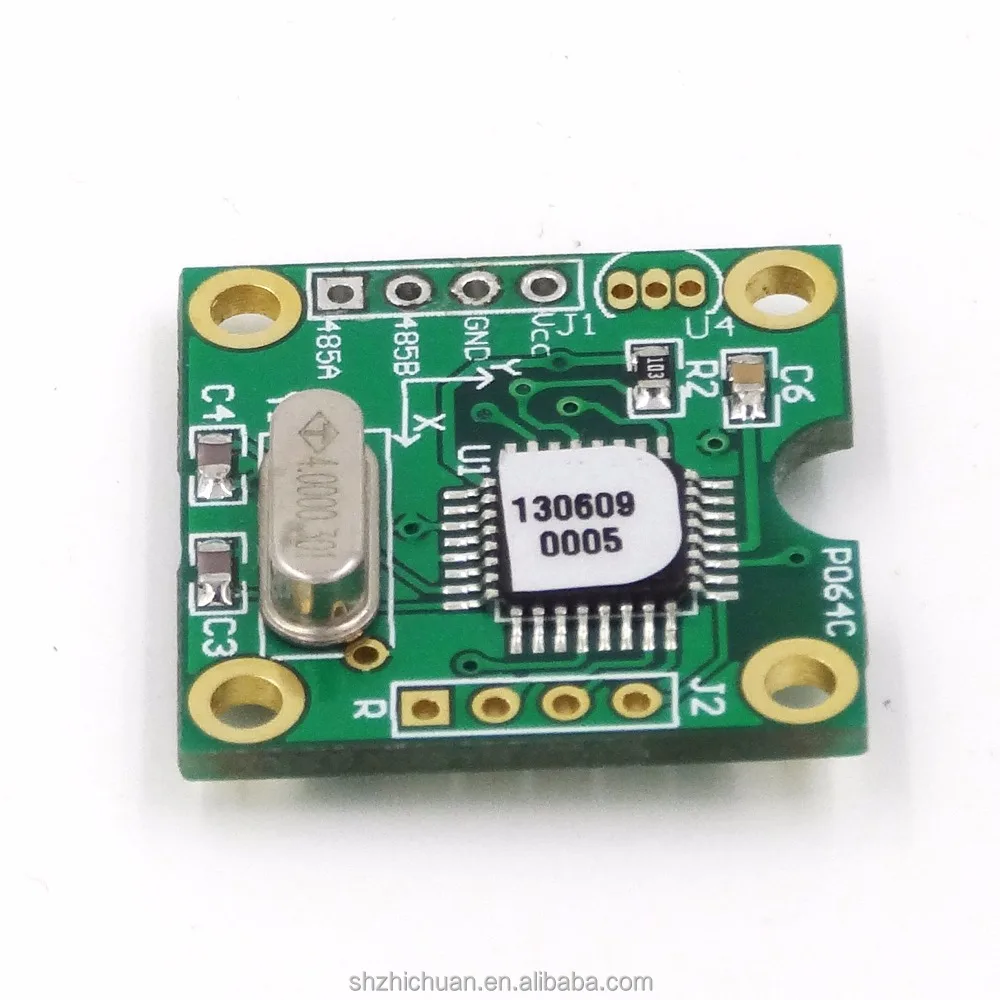

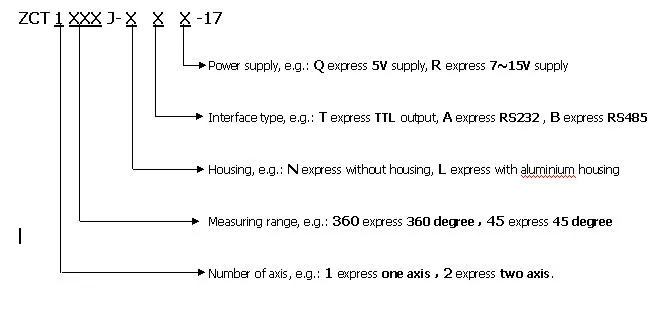

Part number introduction of our TTL inclinometer tilt switch module for solar tracker (ZCT1360J-NBQ-17)
What is Specifications of our Low Cost Biaxial Slope Transducer tilt switch module for Aerial Lifts ?
Item
Condition
Min.
type.
Max.
Unit
Operating parameter
Supply voltage
@5V
4.8
5.0
5.2
V(DC)
@7~15V
7
12
15
V(DC)
Quiescent current
@5V
25
mA
@7~15V
35
mA
Performance parameter
Measuring range
Single axis
0
360
°
Resolution
0.1
°
Accuracy
RMS
±0.5
°
Zero temperature drift
-25~+85°C
±0.03
°/°C
-40~+85°C
±0.05
°/°C
Output frequency
3
Hz
Others
Operating temperature
-40~+85
°C
Protection grade
IP67
Housing size
46*41*15.2
mm
PCB size
25.4*25.4
mm
Definition of connection and module size of our TTL inclinometer tilt switch module for solar tracker (ZCT1360J-NBQ-17)
Our Services
1.Experienced staffs answer all your questions in fluent English.
2.Customizde design is available.OEM productsare welcomed.
3.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers
Company Information
We are the manufactureof tilt sensor and inclinometer in shanghai china.Our sensor is based on MEMS technology. As a professional manufacturer of tilt sensor in China, we can provide following service for you:
1. Good quality product
2. On-time delivery
3. Custom- order service
4. Competitive price
Certificate:
What is application of our Cheap Level Sensor for Solar Tracker?
