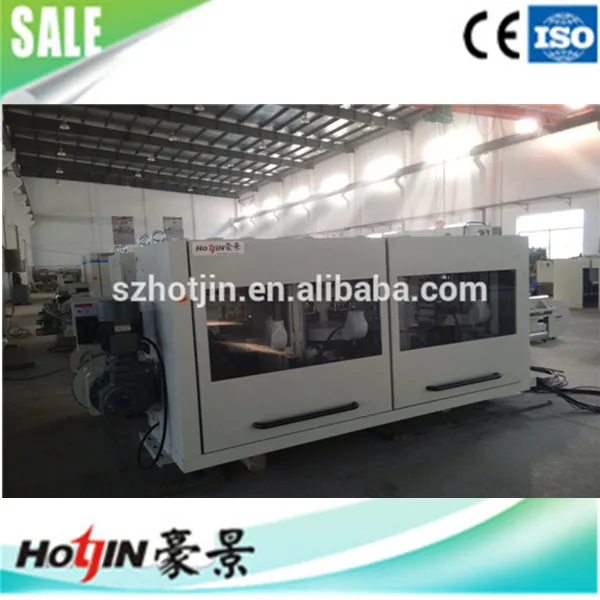

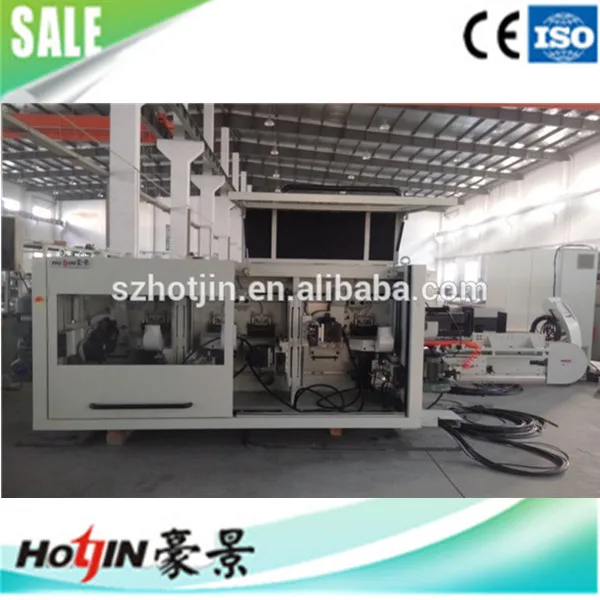

laminate flooring double end tenoner milling machine
laminate flooring double end tenoner milling machine
laminate flooring double end tenoner milling machine
laminate flooring double end tenoner milling machine
laminate flooring double end tenoner milling machine
laminate flooring double end tenoner milling machine

laminate flooring double end tenoner milling machine

Share on (60194087555):


Price:

Quantity:


Product Overview

Description



HOTJIN




HOTJIN




production line explanation：

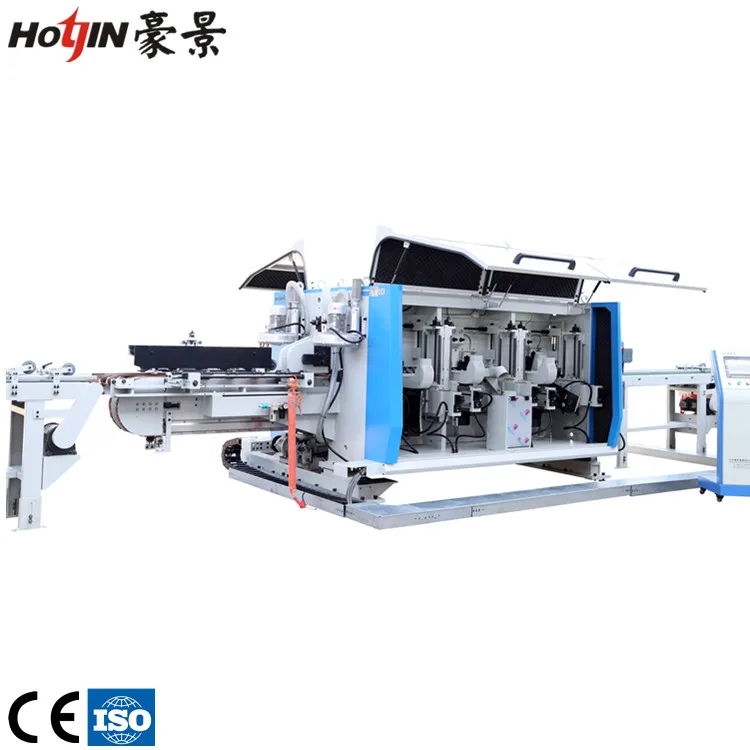

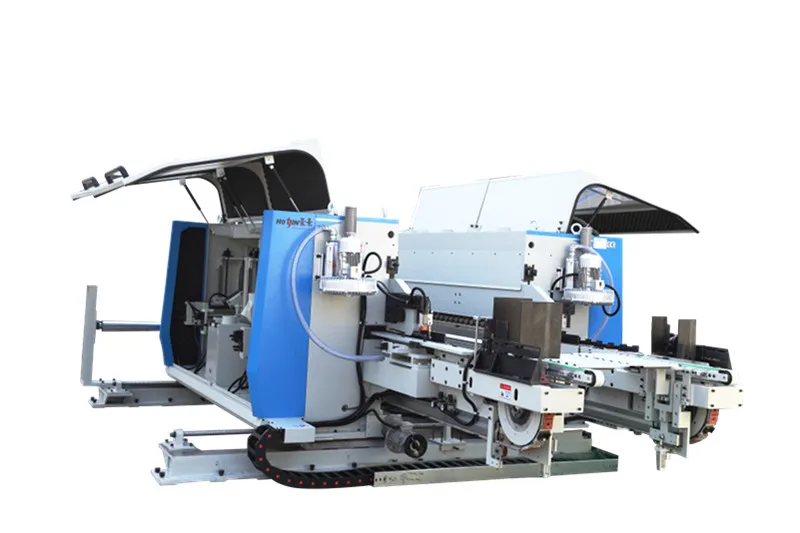

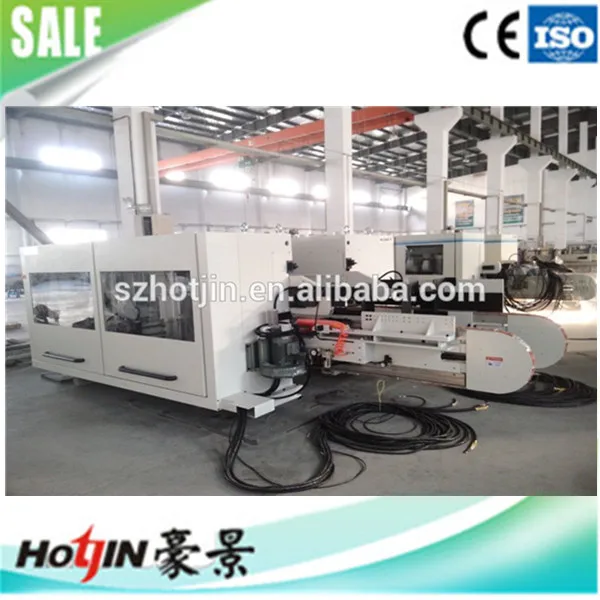

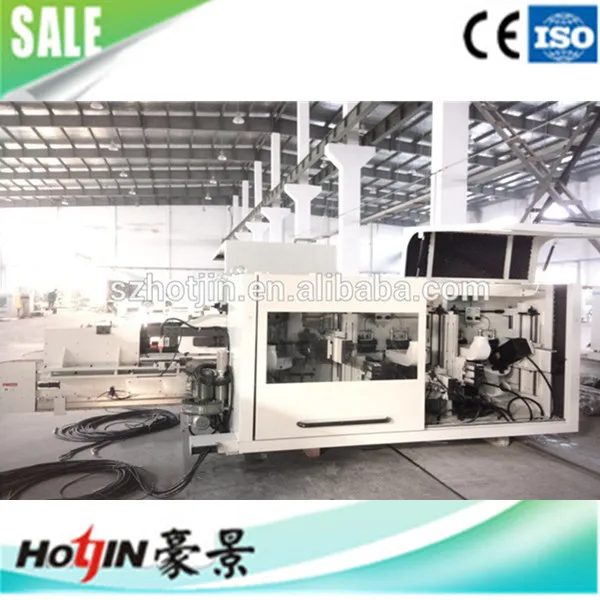

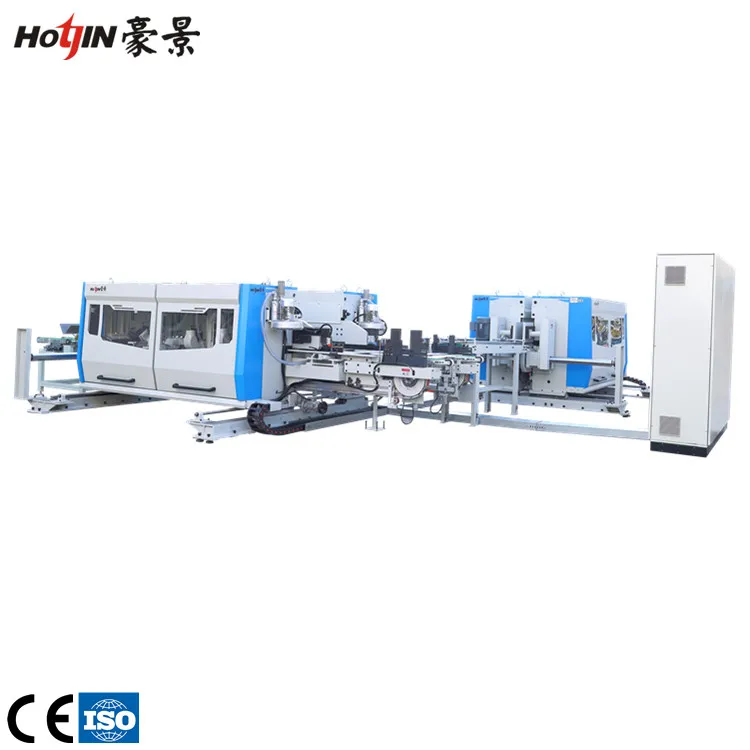

Flooring double end tenoner production line Hotjin FPR, That is our company new heavy-duty DTE series, it adopts the whole frame structure,upper pressing belt use active, stable performance and reliable quality, this
machine process capability is improved greatly.



Technical parameters
A．Floor size： Length：400-1500（2500）mm
Width：120-400（600）mm
Thickness：6-25mm
B．Speed of production line：80-100 m/min
C．Direction of production line：Right
D．electric control：Working voltage: 380V，50Hz
Control voltage: 220V，50Hz &24V (DC)
Total power: 163KW
E．Air Pressure： 0.6-0.8Mpa
Air capacity： 3 m³/h
F．Equipment’s color：
Main body： RAL7035 greyish white
Lines of body： RAL5012 light blue
Warning color： RAL1016 LY.yellow
G．Capacity count：


Floor spec.
800X125X12mm
1200X195X8mm
800X400X12mm
Finished product area
0.1㎡/piece
0.234㎡/piece
0.32㎡/piece
Day/year
300
300
300
Shift/day
2
2
2
Time/shift
7.5h
7.5h
7.5h
production speed
70pcs/min
70pcs/min
60pcs/min
efficiency coefficient
70%
70%
70%
Capacity/day
13230000pcs/year
13230000pcs/year
11340000pcs/year
about 1,300,000㎡/year
About3,000,000㎡/year
About3,600,000㎡/year


 Feeding rolling table---front
Function: Positioning and separating, separate many pieces board and then feed into next workstage one piece by one piece.
1．Length：2400mm
2．Width：100-400mm
3．Speed：adjustable，40-100m/min
4．Motor power：1.1KW


Longitudinal double end tenoner（Model: DTE6/06/10D+2K(K.Z）
Function: It used in the forming processing of the long side of plate, is six stations 10 shafts. One station is space, double chain. K series use L type chain pad, Z series use narrow chain and narrow chain pad.

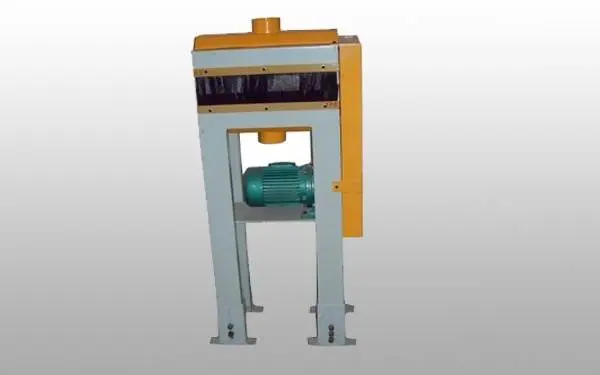

Longitudinal brushing machine
（Model: SGP400）
Function：It use to brush dust on workpiece surface after longitudinal grooving.
1．Width：400mm
2．Height：1100mm
3．Power：1.1KW
4．Weight：100KG


Feeding rolling table---center(Model:G2)
Function：convey.
1．Length：2400mm
2．Width：400mm
3．Speed：adjustable，40-100m/min
4．Motor power：1.1KW
5．Weight：200KG


Transverse double end tenoner（Model: DTH6/15/10D+2K）or（Model:DTH6/25/10D+2K）
Function：DTE series machine, it used in the forming processing of board’s two short sides, it uses six stations, install 10 shafts, has a space station.








Pre-sale

●Provide the information in time at customer requirement and make reasonable proposals and budgeting

●Give technical support for the customer's renovation of old facilities for free

●Provide service and support to the customer's other equipments

In-sale

●On-site planning for the customers by professional engineer

●Valuable advice and recommendations on the purchasing of other auxiliary accessories

●Free training for operators

After-sale

●For all sold prodcts ,provide one-year free door to door service,lifetime keep-up and maintenance service

●All-around keep-up,transportation and transformation of equipment

●Provide production and technical advisory service

























Name：SUZHOU HOTJIN PRECISION MACHINERY CO.,LTD
Add：58 Pusha rd.,Puzhuang Industrial Park ,Wuzhong District,Suzhou city, Jiangsu province, China.
Tel：+86-512-66520585
Fax：+86-512-66520585
Post code：215105
Website：//www.hotjin.com.cn and //www.szhotjin.en.alibaba.com
