Product Overview
Description
Free Software 13.56MHz ISO18092 NFC Card RFID Reader Writer
Product Description
Free Software 13.56MHz ISO18092 NFC Card RFID Reader Writer
Introduction

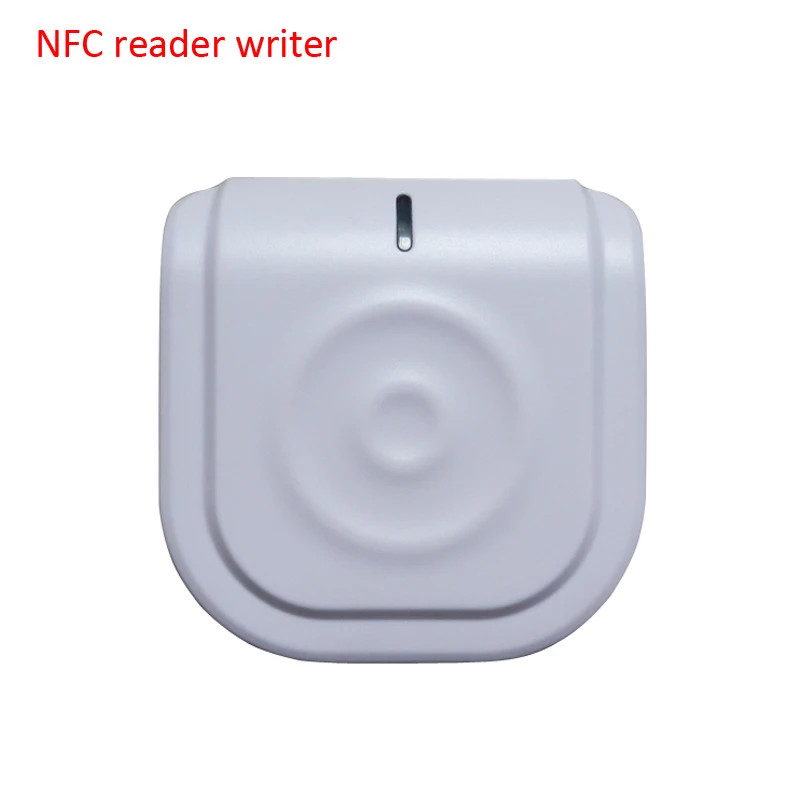

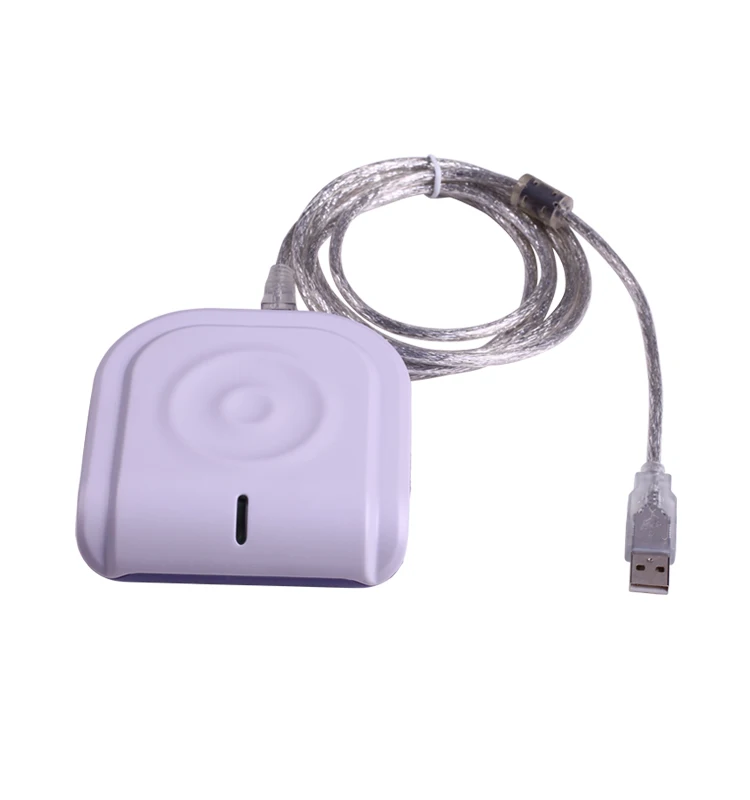

RF-530 NFC contactless reader-writer can read ISO14443A/ B , ISO18092 standard cards. It connects the PC machine and associated devices through RS232 or USB interfaces. We offer free drivers, DEMO and SDK for testing and programming. It is desktop portable designed and widely used in different NFC card/RFID card application systems.
Specifications:
Free DEMO and SDK for testing and programming !!!
Standard | ISO/IEC 14443-A/B, ISO 18092 |
Support Card | MI-FI S50/ FM11RF08/MI-FI S70/Ultralight/Desfire /Ntag203/Ntag213/Ntag216 /Felica etc |
Frequency | 13.56MHz |
Baud Rate | 9600-115200bit/s(Configurable, default 9600) |
Power Supply | 9V or POE |
Operating Range | 1~5cm according to the tag |
Interface | DC 5V(±5%) |
Indication Light | LED , BUZ |
Working Temperature | -10℃ to +70℃ |
Storage Temperature | -20℃ to +80℃ |
Reader size | 100*100*27mm |
Package size | 165*125*52mm |
Interfaces
Model | Interface |
RF530-U-N | USB-UART |
RF530-S-N | RS232 |
Applications
l Identification
l Access control, PC access
l Offline ticketing
l Customizing cards
l Payment
RUIFAN RF-530 series RFID reader can be ISO14443A or ISO14443A+ ISO15693 or ISO15693 or ISO14443A+ISO18092 (NFC model) standard, pls feel free to contact with us for our reader catalogue, thanks

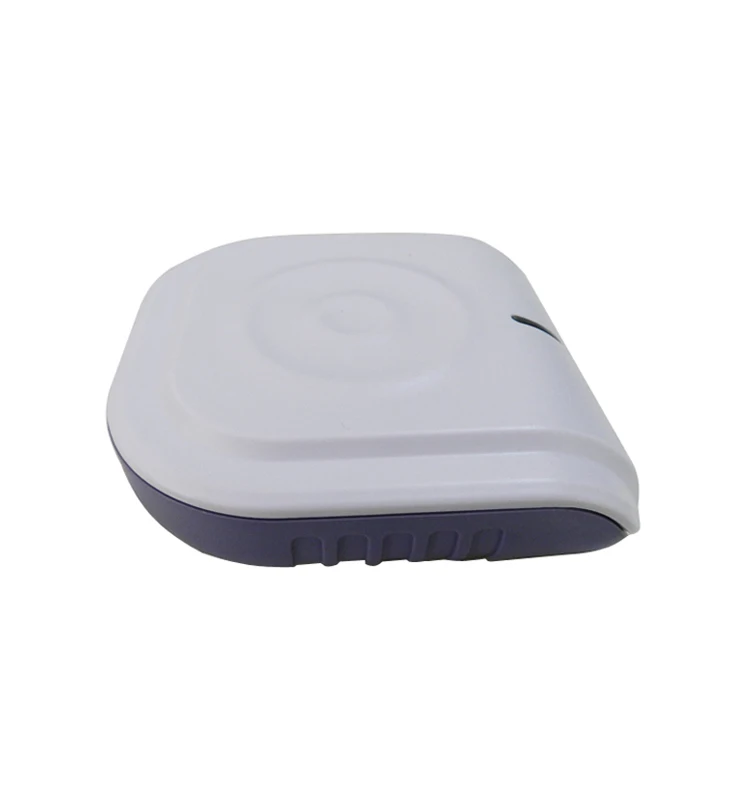

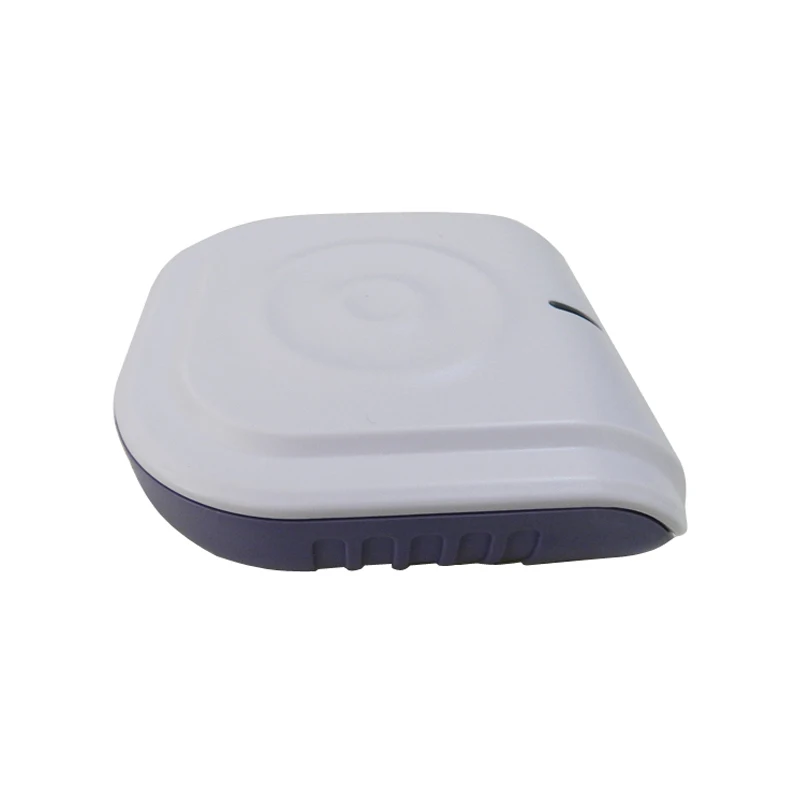

Fashion Cover & Portable Size & Easy Operation NFC Reader Writer

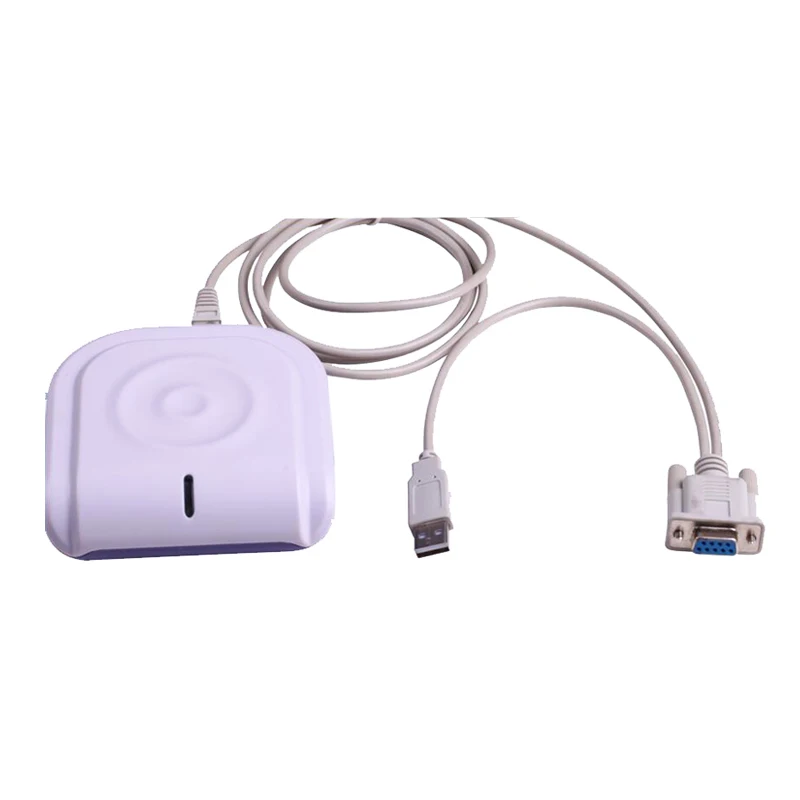

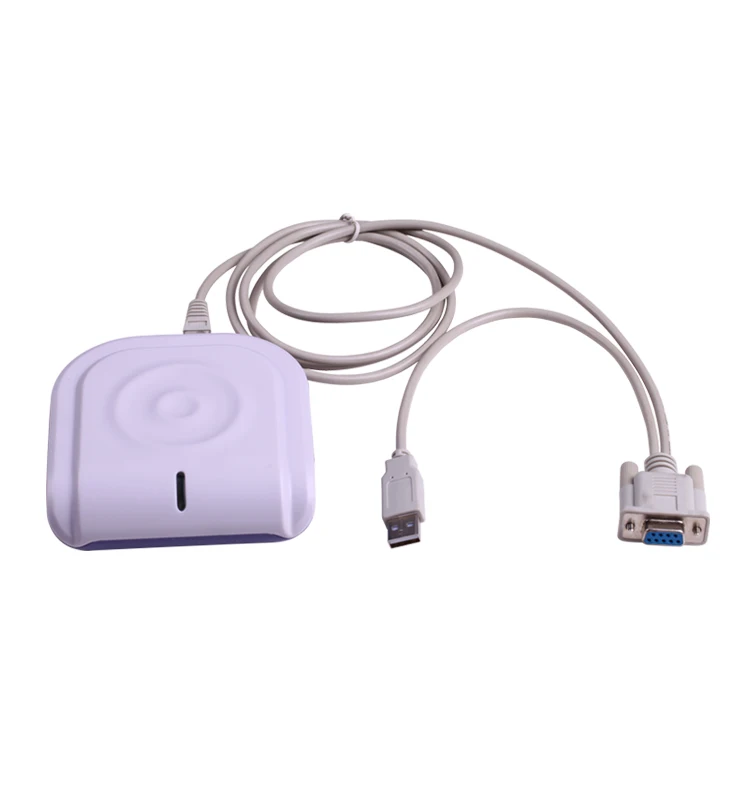

Output--USB or RS232 or TCP/IP+WIFI(POE)

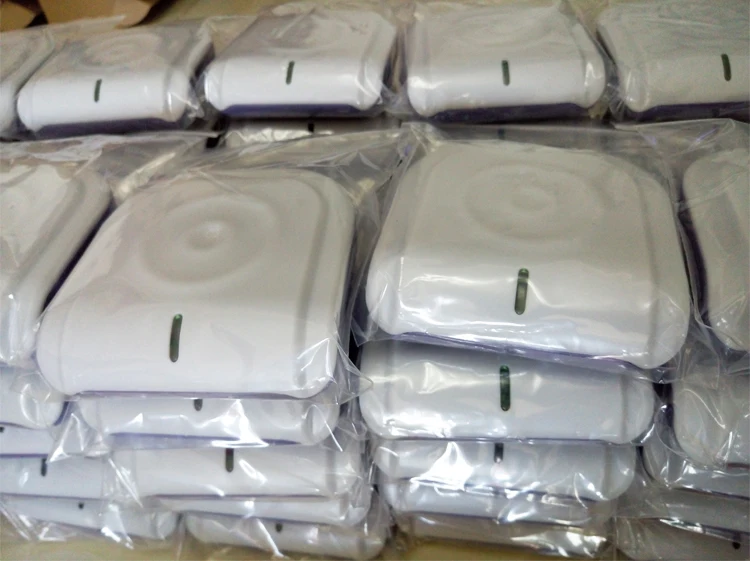

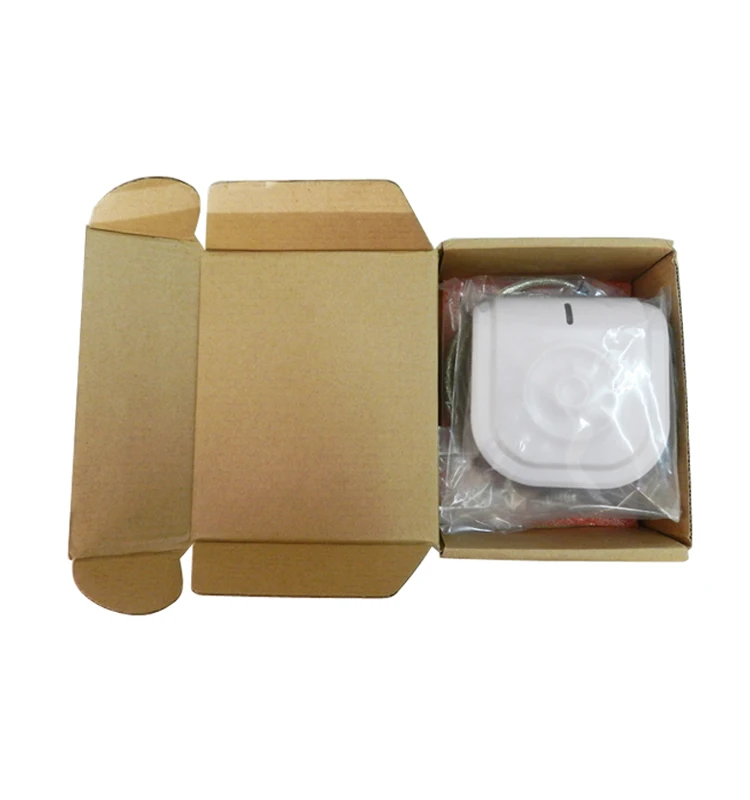

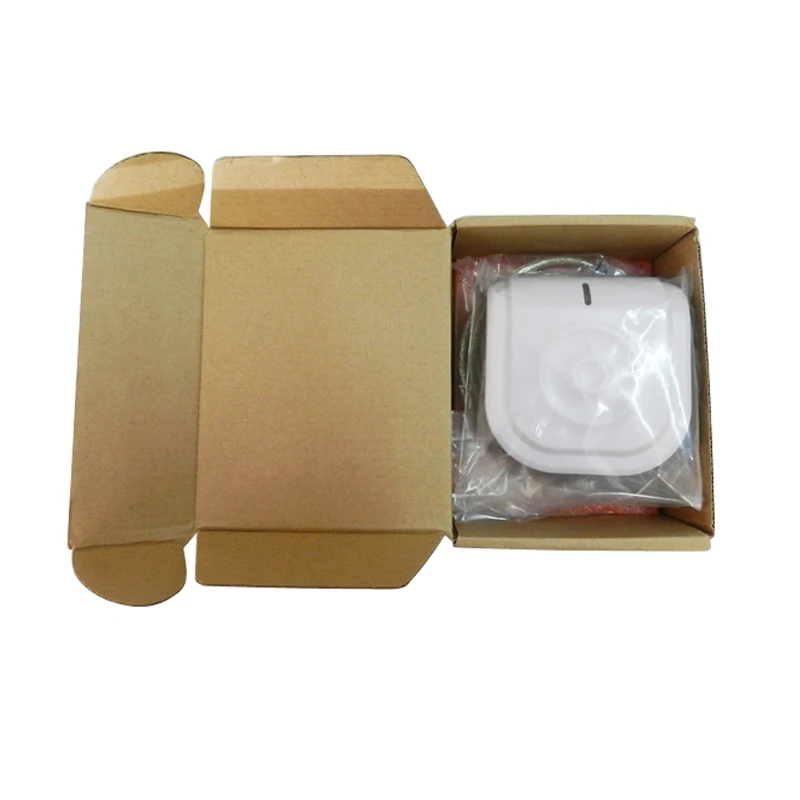

Individual Box For Each Reader

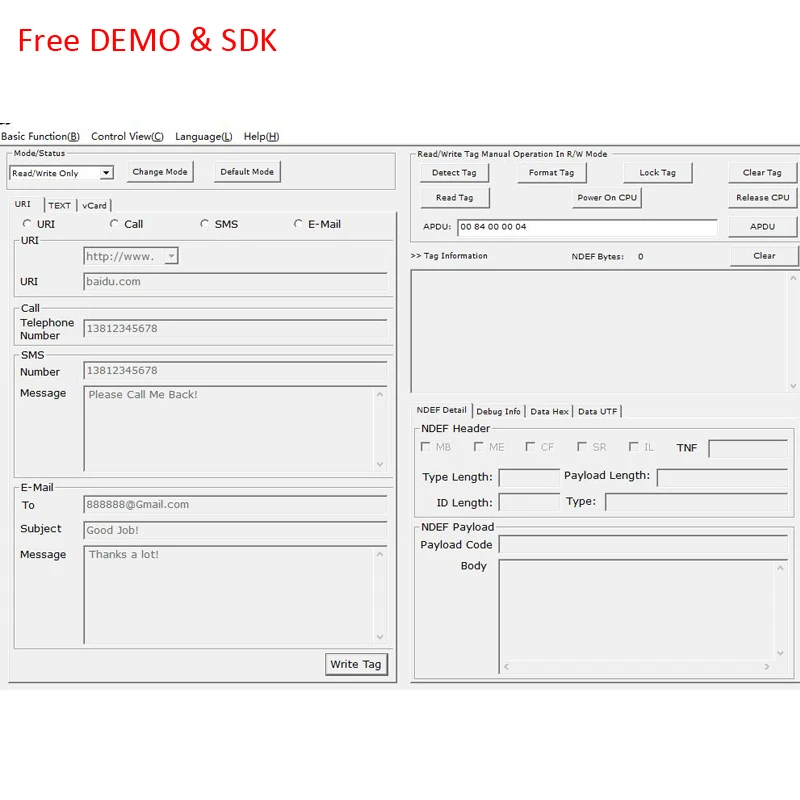

Free DEMO and SDK for Testing and Developing
Application--Issuing Cards for E-payment system, access control, member system etc.
