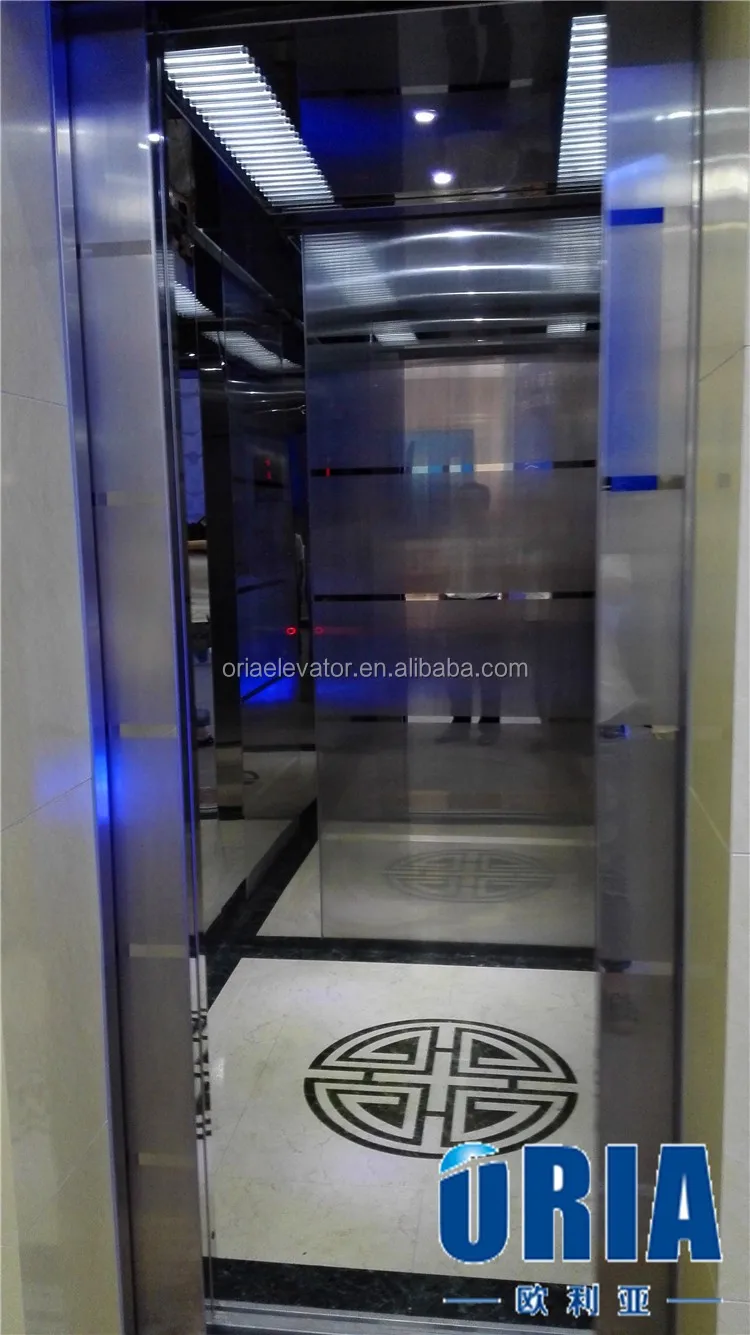

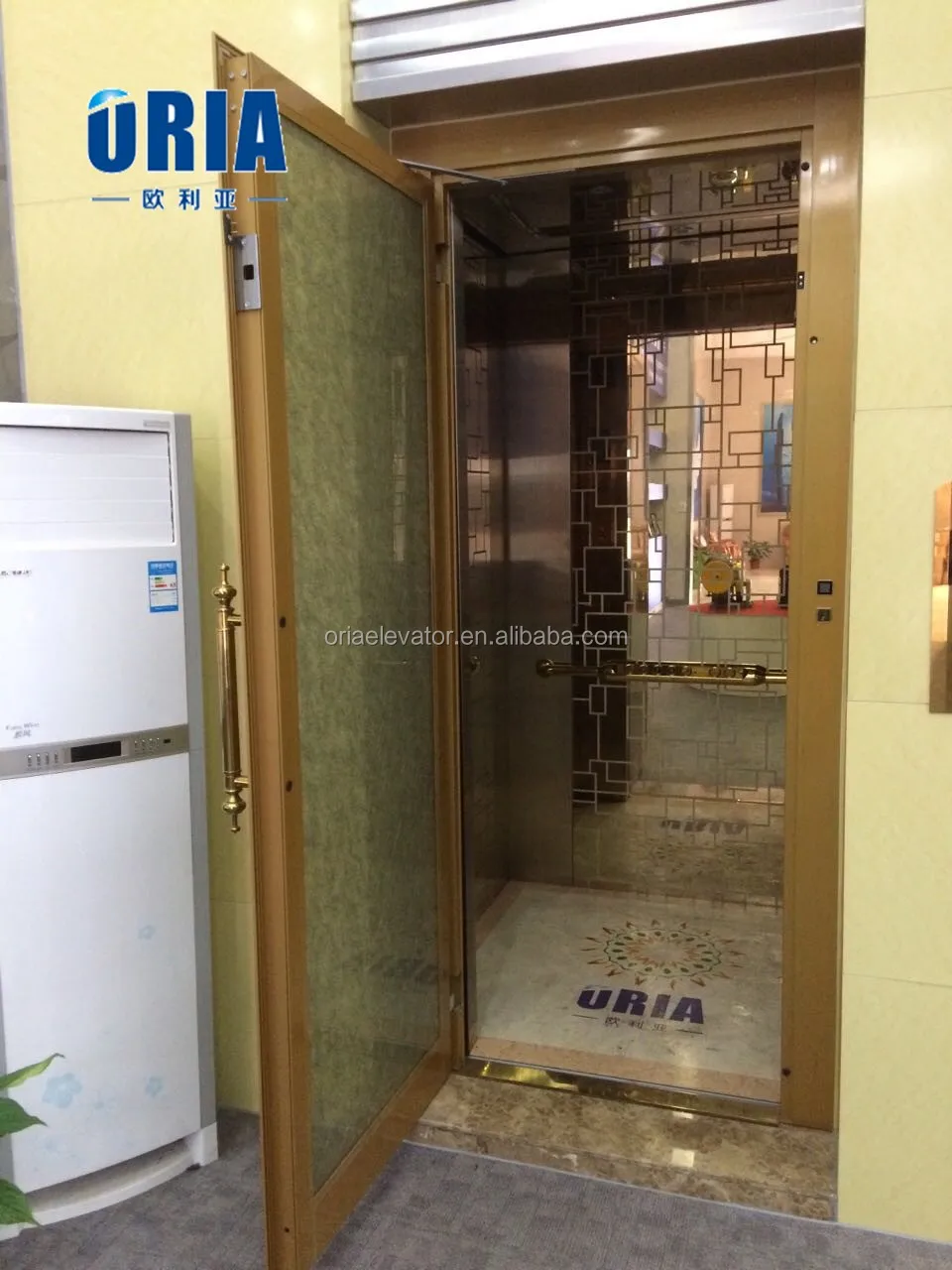

Modern 4 Person High Quality Passenger Lift Hydraulic Home Lift for Apartments AC Drive Type
- Category: >>>
- Supplier: Huzhou ORIA Elevator Co. Ltd.
Share on (60194187143):
Product Overview
Description
ORIA Home Lift
Product Description
lQuick Delivery
lOne-Stop Elevator system Provider
lWell-designed,comfortable and safe
lDigital tractor driving,flexible micro computer control and vvvf control are adopted.
ORIA express machine roomless elevator are acquainted with the environmental protection ideas.It saves the energy,decreases the consunmption.It brings about the less construction area and raises th design freedom.It thoroughly shows the green humane characteristics.Compareed with the equal load rating geared lifts,it saves 25% of the electric energy and 10% of the machine room set forth by the traditional lifts.It supplies the infinite invention possibilities in the limited space of the modern architectures.
Specification
| Load(kg) | Person | Speed(m/s) | Door Opening(mm) | Cabin Size(mm) | Shaft Size(AH*BH) | Pit Depth | Head Room Height(mm) |
| 450 | 5 | 0.50 | 700*2100 | 1150*1100 | 1700*1800 | ≥ 1500 | ≥ 3500 |
| 630 | 8 | 1.0-1.5 | 800*2100 | 1300*1250 | 1850*1900 | ≥ 1500 | ≥ 3500 |
| 800 | 10 | 1.0-1.75 | 800*2100 | 1500*1300 | 2050*1950 | ≥ 1500 | ≥ 3500 |
| 10 | 1.0-1.75 | 900*2100 | 1500*1300 | 2050*1950 | ≥ 1500 | ≥ 3500 | |
| 1000 | 13 | 1.0-2.5 | 900*2100 | 1600*1500 | 2150*2150 | ≥ 1500 | ≥ 3500 |
| 1250 | 16 | 1.0-2.5 | 1000*2100 | 1750*1600 | 2300*2250 | ≥ 1500 | ≥ 3500 |
| 1600 | 21 | 1.0-2.5 | 1100*2100 | 2050*1700 | 2600*2450 | ≥ 1500 | ≥ 3500 |
| We can also desgin according customer requirement for Gearless Sightseeing Elevator | |||||||
Standard Configuration
| Gearless&Machine Room / Gearless&Roomless / Geared&Roomless | ||||||||
| Power Supply: 380V | ||||||||
| Main Frequency: 50Hz | ||||||||
| Light Curtain: Weco | ||||||||

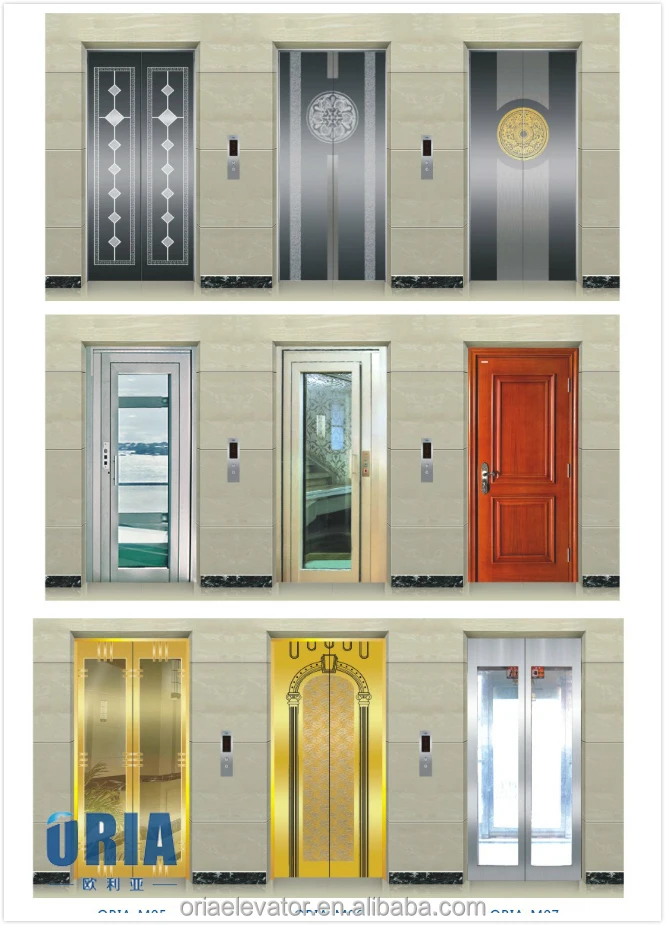

| Landing Door Type: Central/Left/Right | ||||||||
| Wing Board: Hairline finish | ||||||||
| Car Floor Decor: Customer Require for Gearless Sightseeing Elevator | ||||||||

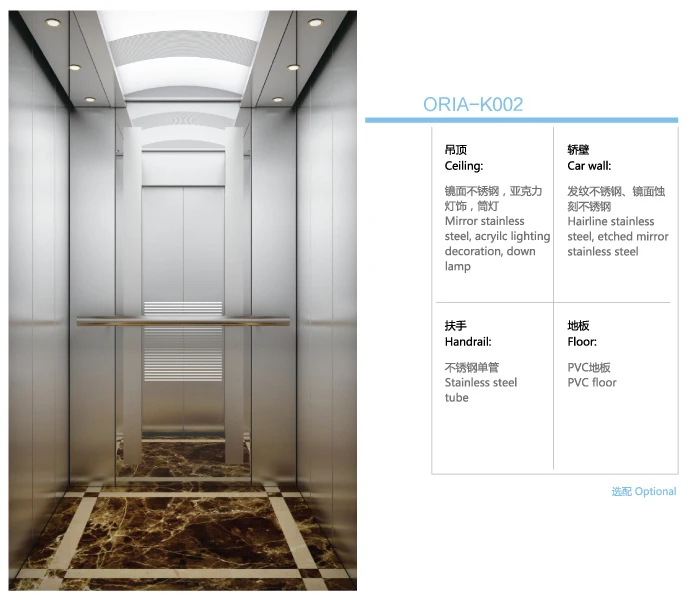

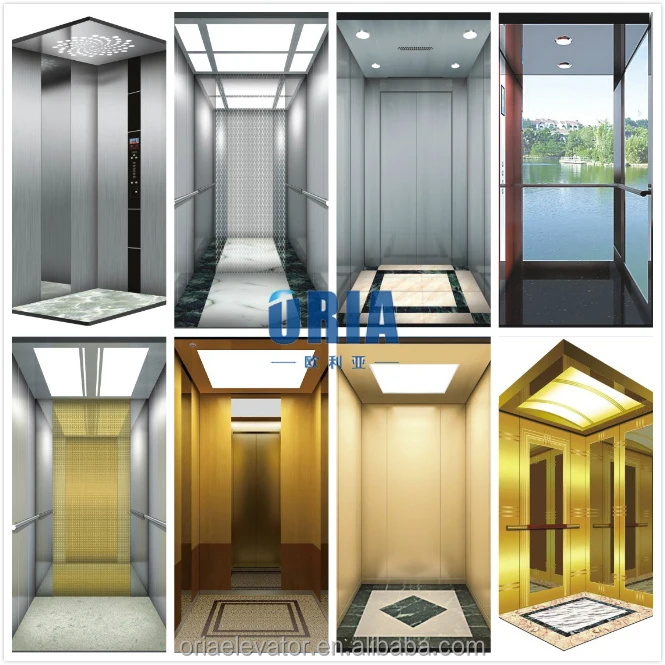

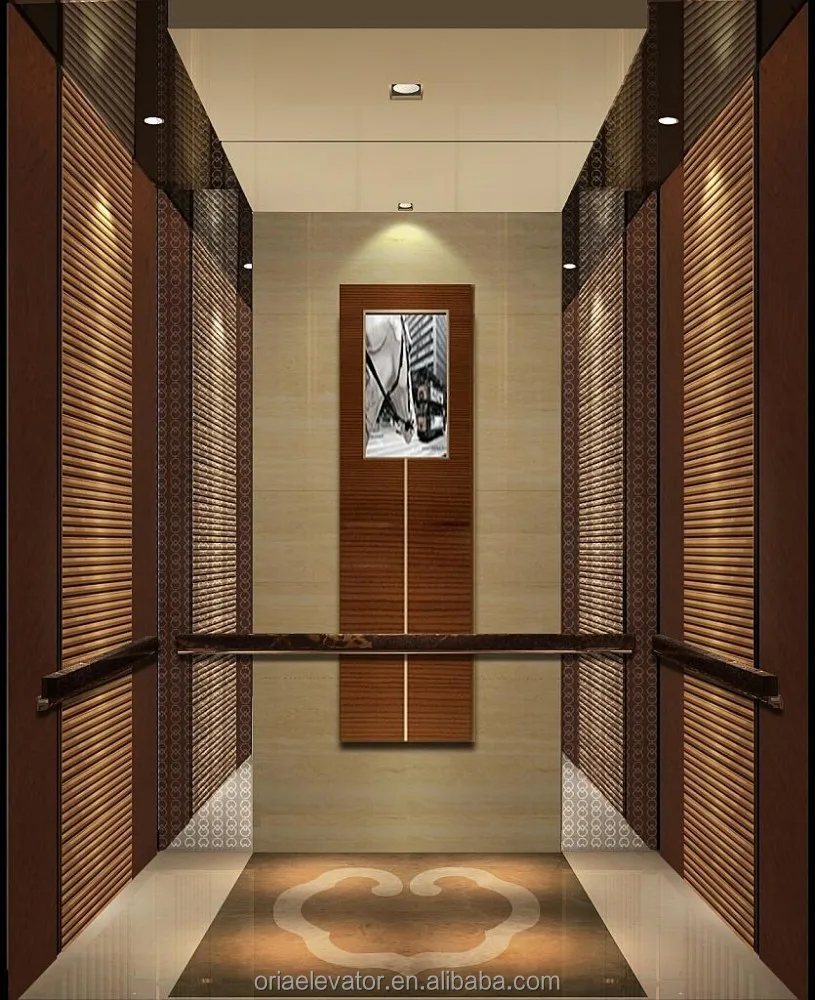

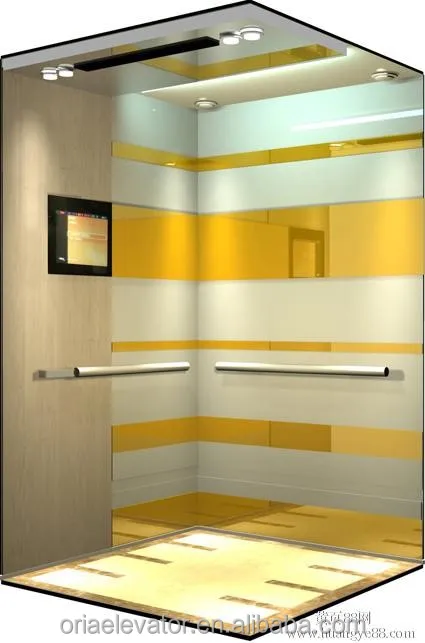

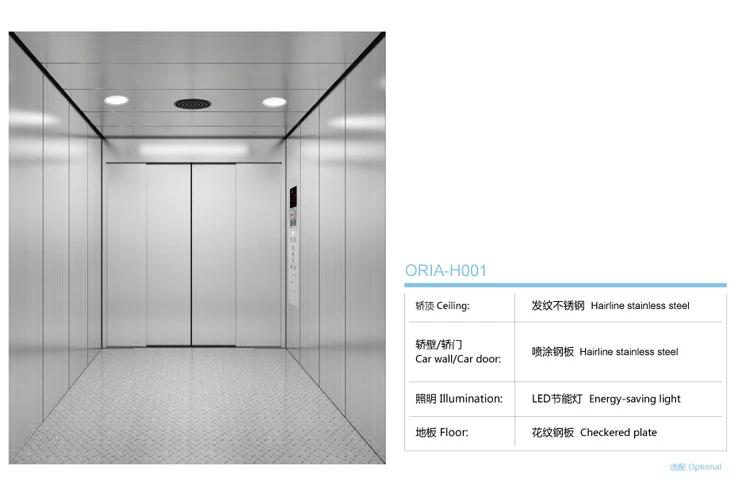

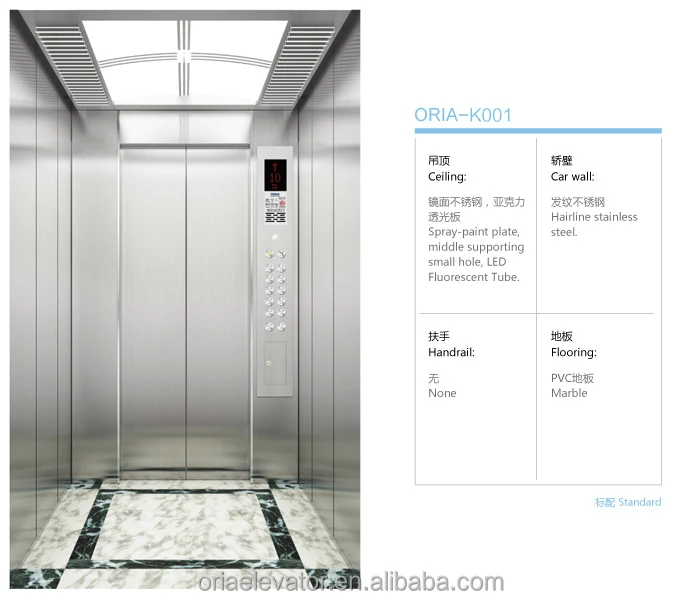

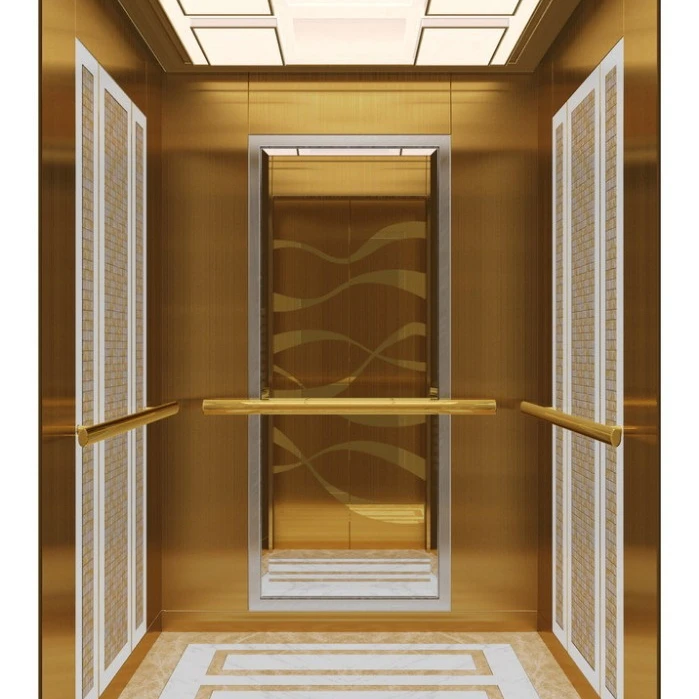

| Car Deco: Stainless steel Hair line/Painted | ||||||||

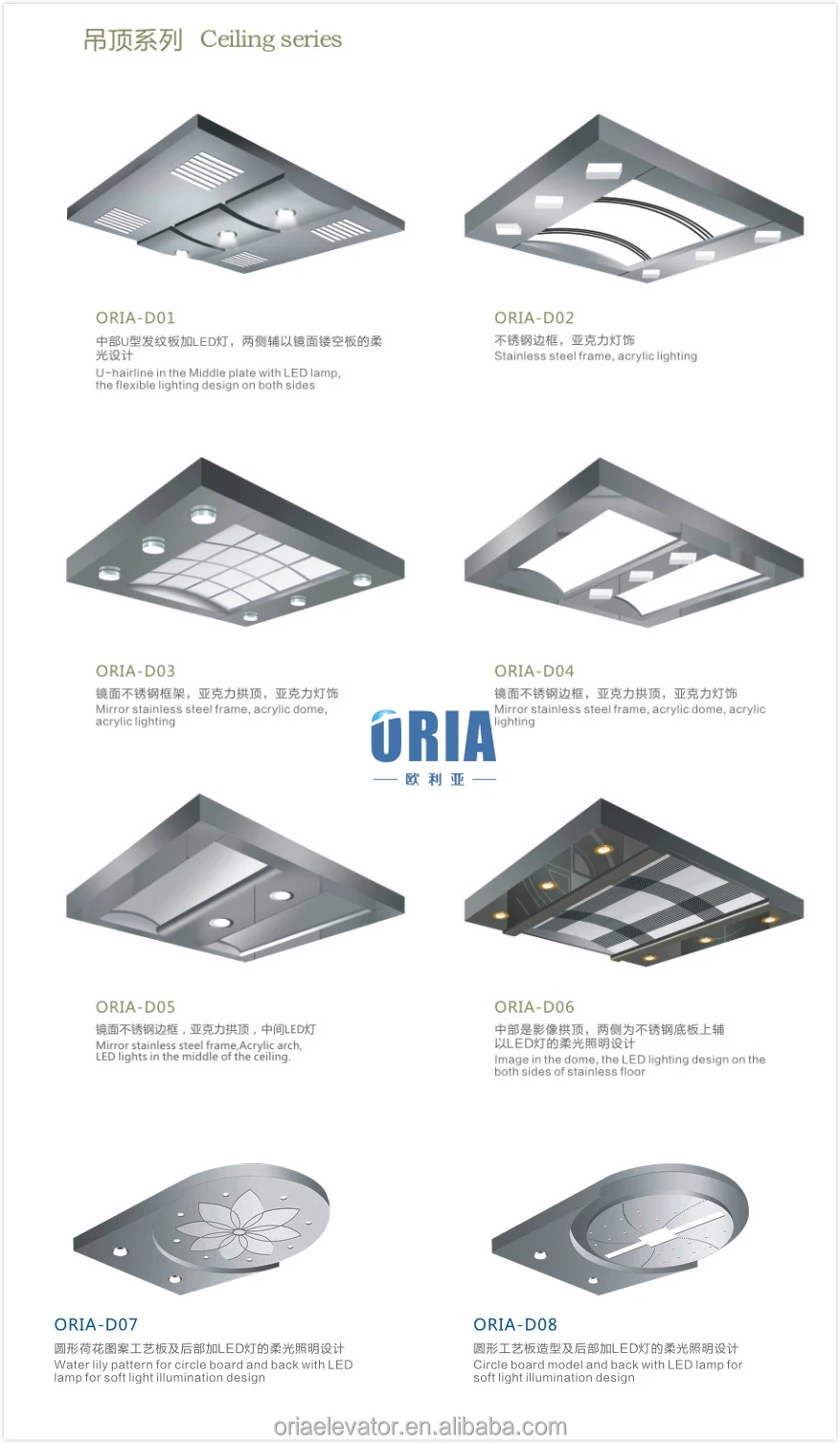

| Celling: According Type or Customer Requirement | ||||||||
| Car Side and Car back: Center board: Mirror finished, Hairline finish |
Key Function
| Car Fan | ||||||||
| Fire man switch | ||||||||
| Pre-opening doors | ||||||||
| Arrival Gong in Car(COP) | ||||||||
| Emergency light in Car | ||||||||
| Antomatic return to parking floor from any floor | ||||||||
| Overload Protection: If the load of elevator is over weight,the overload indicating lamp will light and warming.The elevator won't move if the door have not closed. | ||||||||
| Emergency Iiiumination of Car: If the power of illumination is broken,the emergency lamp inside car will be lighted automatically. | ||||||||
| Function of Energy Saving: If the elevator is not operated,the illumination and fan inside car will be autoomatically turned off. | ||||||||
| Anti Nuisance: If exceeding 3 interior calling inside car when elevator load is below setting value,the system will delete all calling and re-select floor. | ||||||||
| Arrival Chime: when the elevator runs before stop at the floor,the clock will be sounded to remind passenger that the elevator will stop at the floor. | ||||||||
| Internal Communication: If the elevator is in abnormal state,the persons in car,at car roof and bottorm pit can communicate with machine room or control room. | ||||||||
| Inspection and Diagnosis for Faults: When fault occurs,the system of elevator can automatically diagnose the causation of fault,and store the information into systerm for maintenance personnel call. | ||||||||
| Self-Diagnosis Function of Call Button: When the call button in an floor is on for long time,the system will neglect the call request of this floor. | ||||||||
| Over-Speed Protection: When the running speed exceeds rated speed due to fault,the electrical and mechanical protection functions will be started to prevent car running from excess of up and down range |
We offer a range of options
Company Information

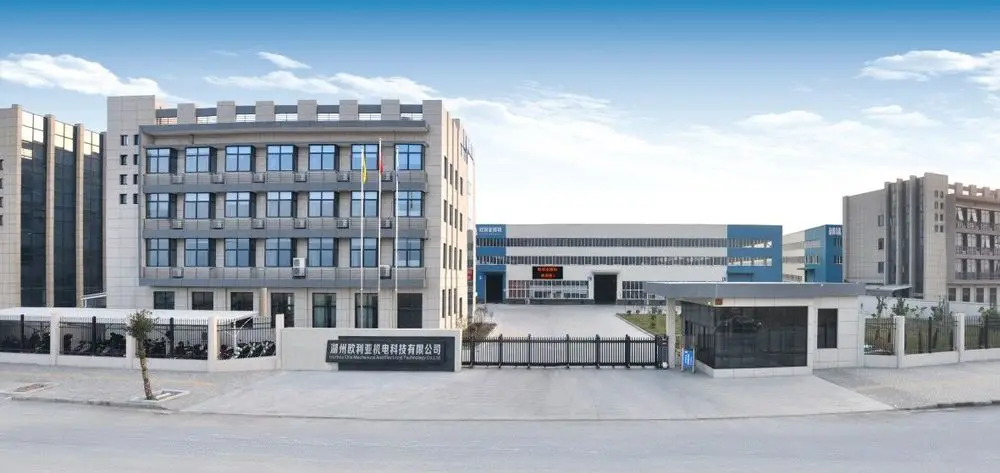

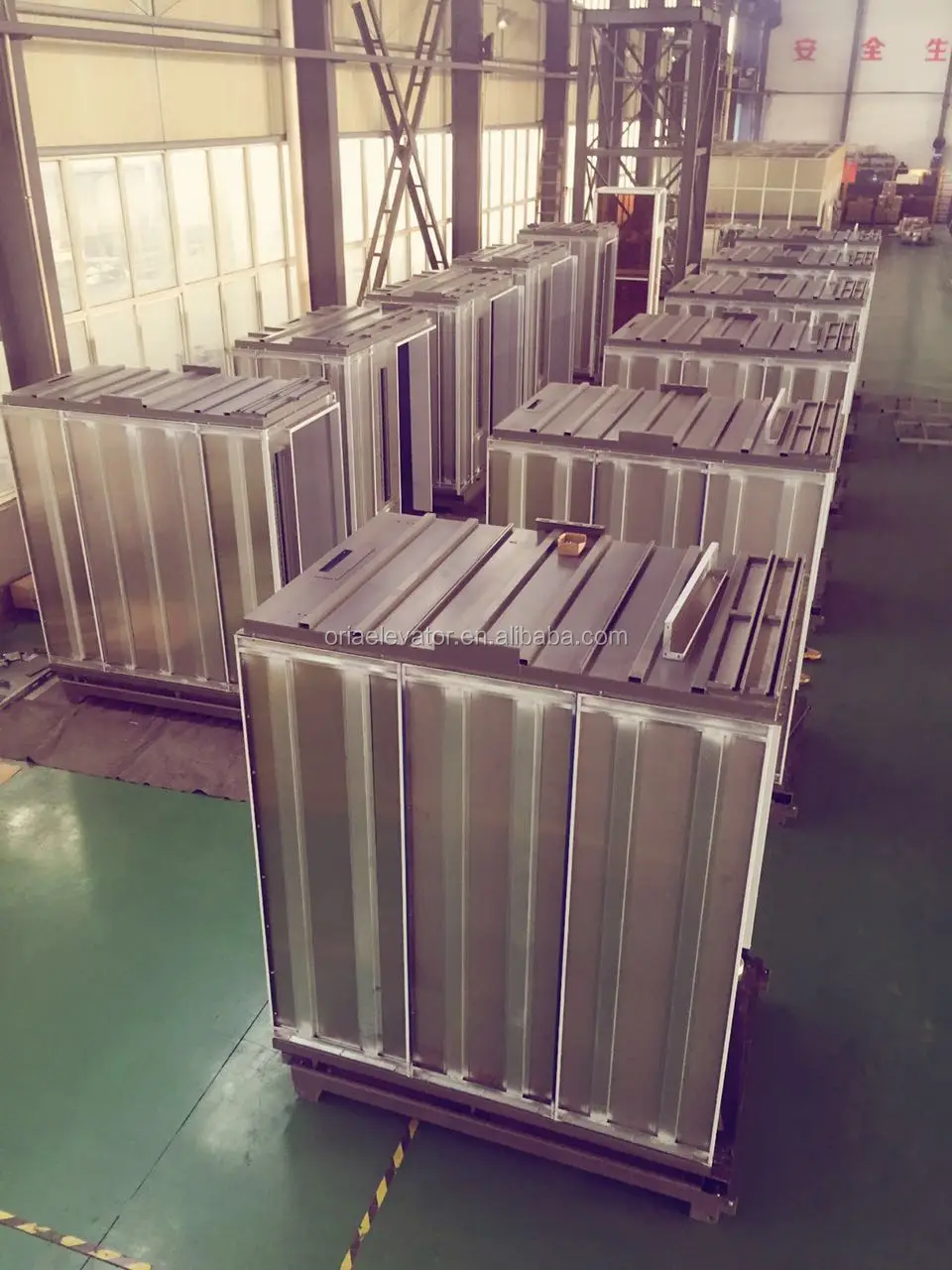

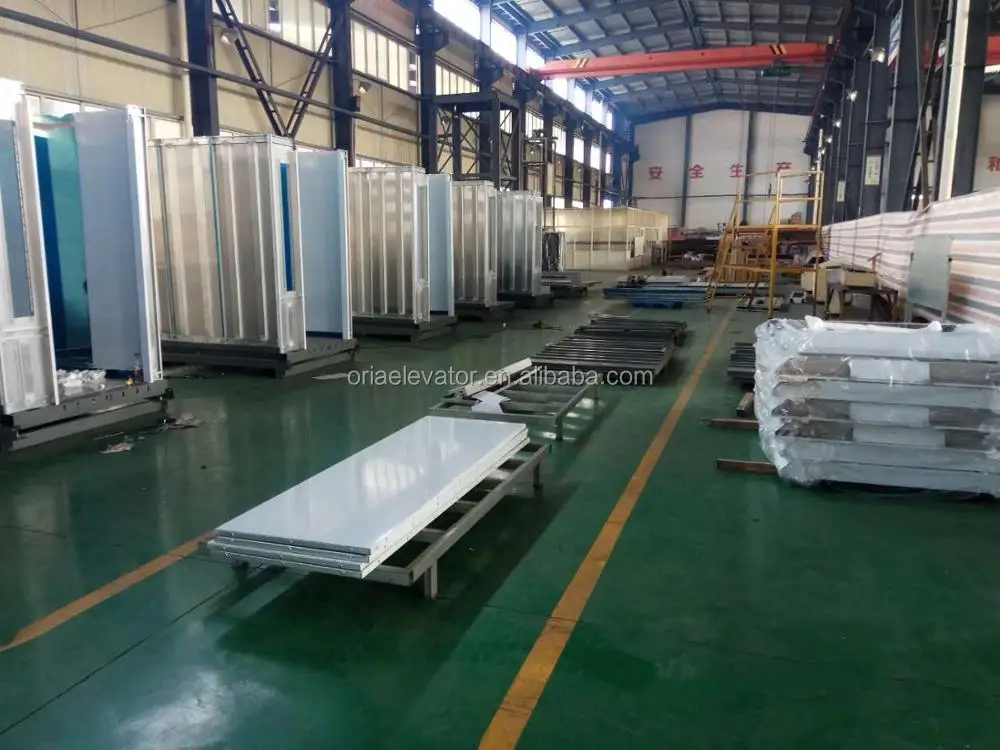

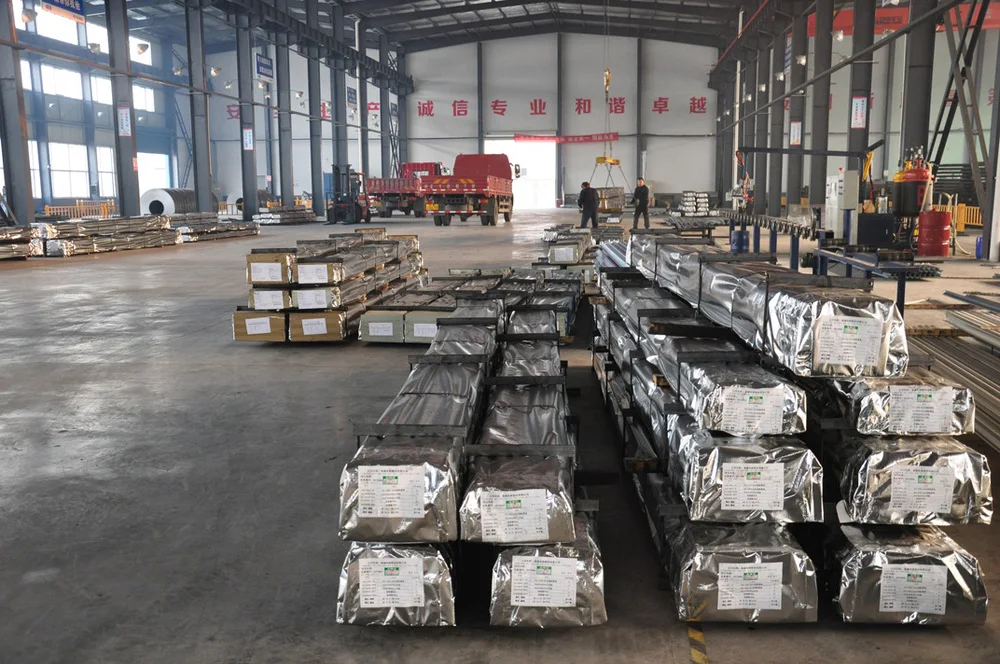

ORIA elevator is located in the Yangtze River Delta Economic Zone, a great business town – Zhili, which is near the scenic Tai Lake. The enterprise is near Shanghai, Zhejiang and Anhui G50 highway, G318 and the Grand Canal with convenient transportation. The floor space is more than 25 thousand square meters, and the total output is 5,000 units/ year. With a standardized manufacturing center, a research centers, a remote service center, and a test tower platform, the company develops well.
ORIA comes from our company's value: Original, Rapid, International, and Asian.
cturingindustry, which can offer the best service for woide customers.
