Commercial high capacity wafer biscuit machine production line

Product Overview

Description





Wenva biscuit production line with high quality and full technical solutions and competitive price! Usig for all kind of hard and soft dough forming biscuist,soda and laminating biscuit forming.Full automatic  controlled.



Hard biscuit production line is one mulitfuntional biscuit production line for hard dough forming biscuits.The soda biscuit need good laminator and high requested for the tunnel oven.Different  working width 620mm,800mm and 1000mm line for option. Different capacity can be design as customer request,full automatic controlled,and high quality with competitive price.

Model	Oven resource	Oven length	Cpacity
620	Gas, Electricity	50m	500-630kgs/h
800	Gas, Electricity	60m	750-1000kgs/h
1000	Gas, Electricity	60m	880-1100kgs/h
1200	Gas, Electricity	60m	1000-1250kgs/h

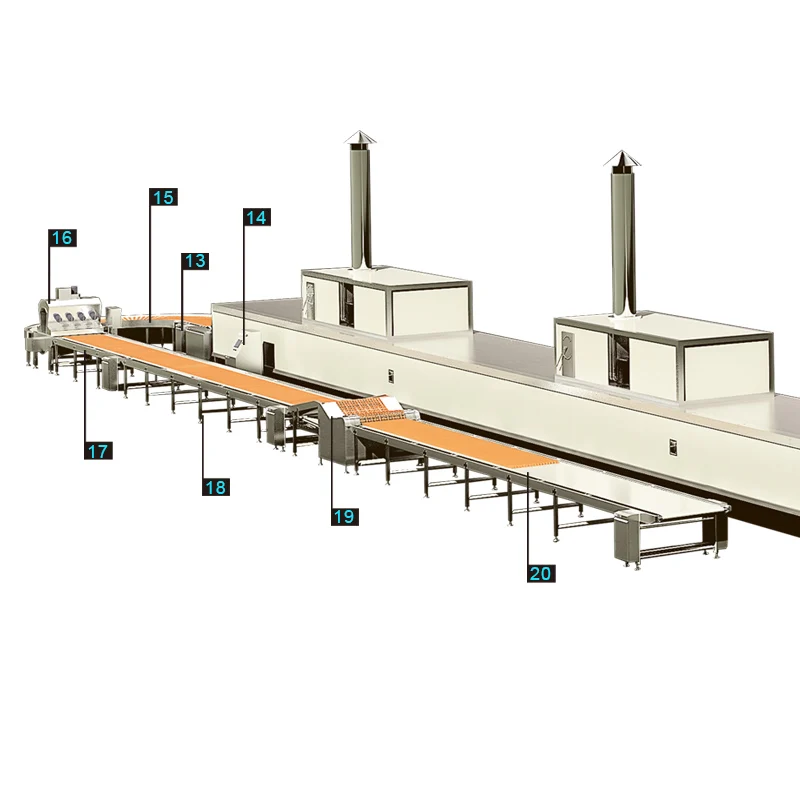

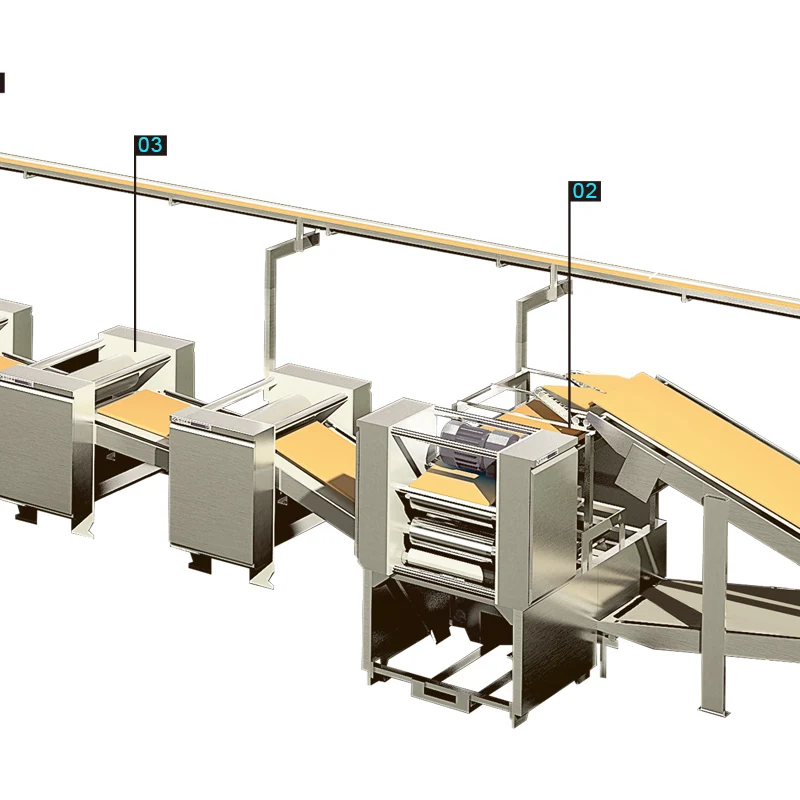

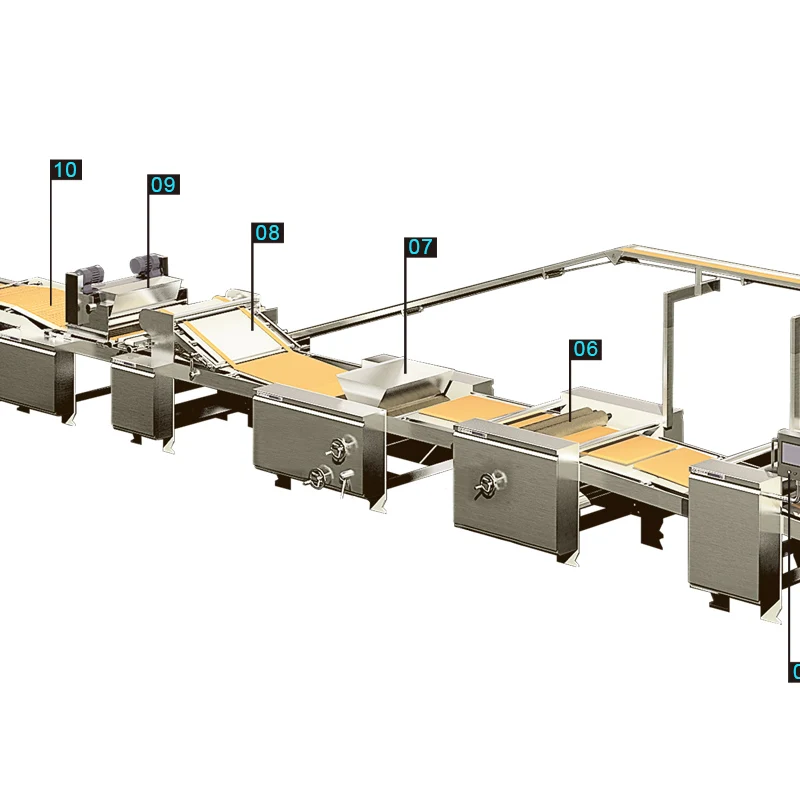

CONSIST OF:

Horizontal dough mixer, 250kg/batch, vertical dough mixer 500kg/batch

Automatic dough tipper and feeding system

Three-roll combination sheeter for feeding and sheeting dough

Laminator for overlapping dough to sheeting on gauge rolls, included cream spreading machine.



GAUGE ROLLS:

Rotary cutting machine for hard biscuit forming

Scrap collection and return system

Rotary moulder for soft biscuit forming

Salt/sugar spreading machine

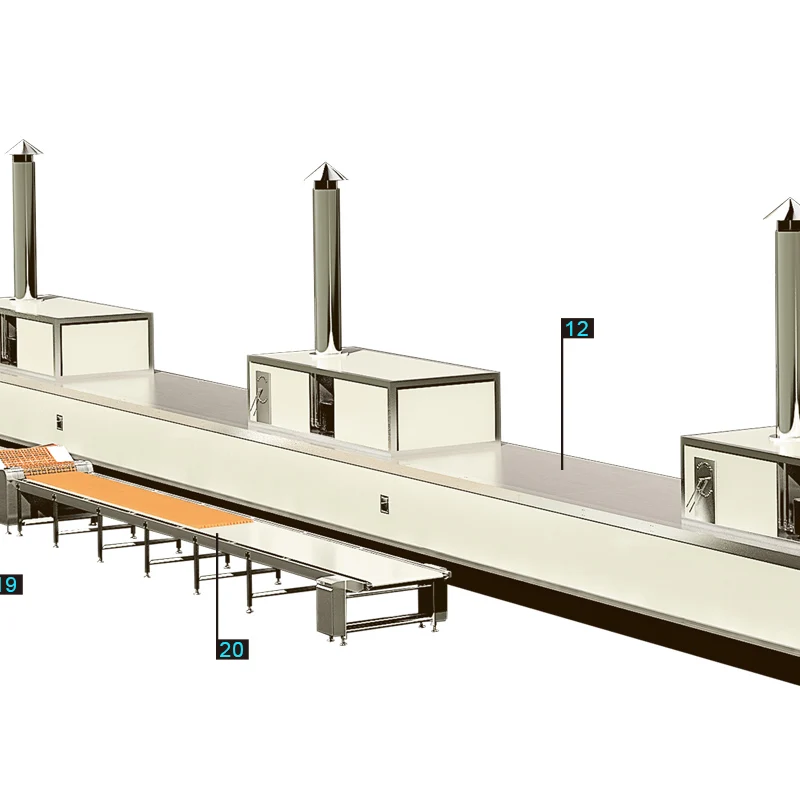

Tunnel oven, electric, indirect diesel oil or gas fried for option, length can be design as per capacity.

Oil spraying machine

Turning machine 180degree or 90degree design as per the plant length

Cooling conveyor

Biscuit stacking machine

Additional equipments: Biscuit sandwiching machine, flow or vertical packaging machine, Cream mixer., etc



PRODUCTS PICTURES:
