HT171A 6.5HP Multifunction Chinese Power Motocultivador Tiller

Product Overview

Description

HT171A 6.5HP Multifunction Chinese Power Motocultivador Tiller

Each set is equipped with one pair of 3pieces, 4 groups dry land blade,3.50-6 wheel, 170FB gasoline engine.

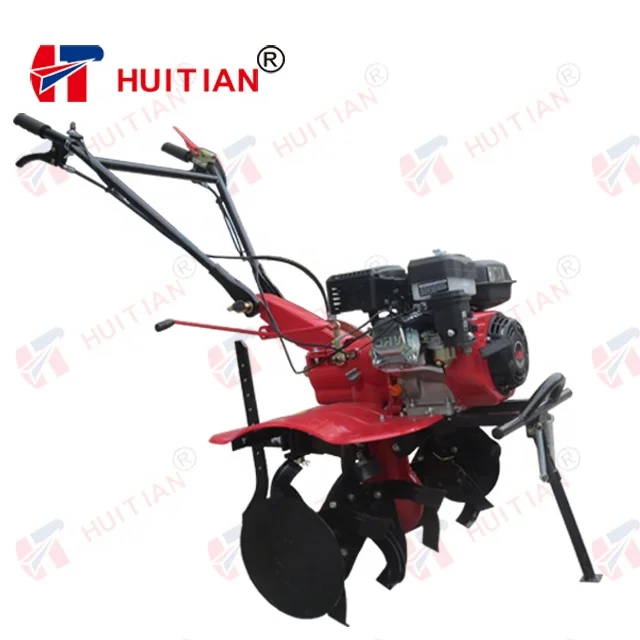

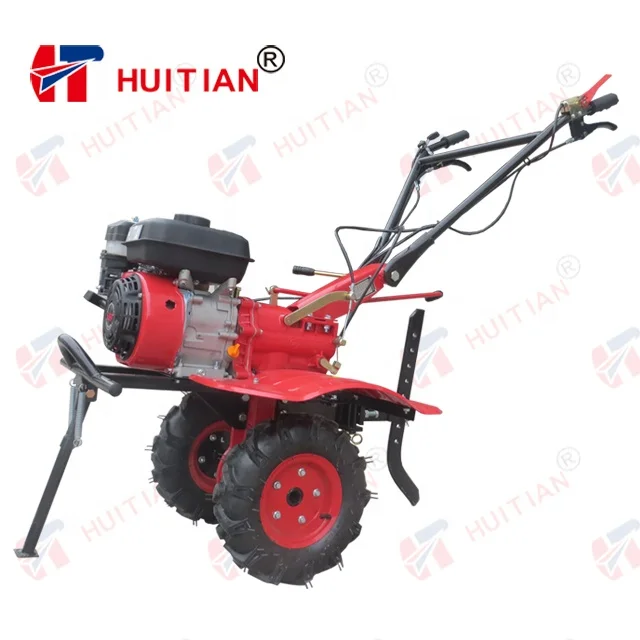

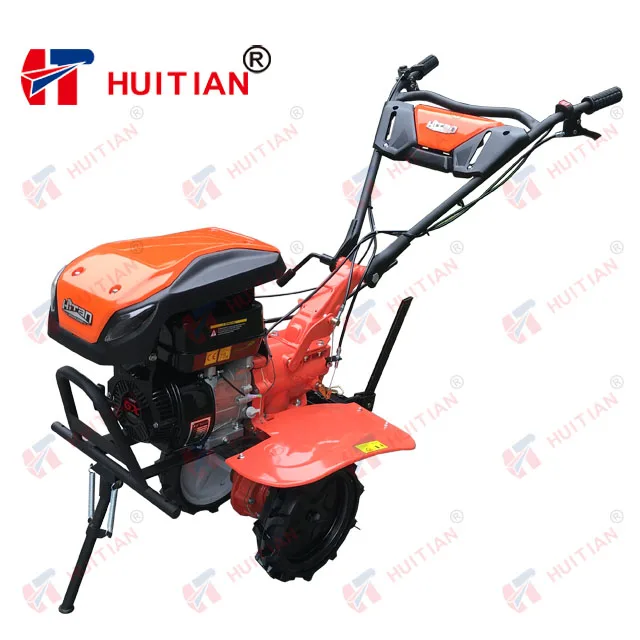

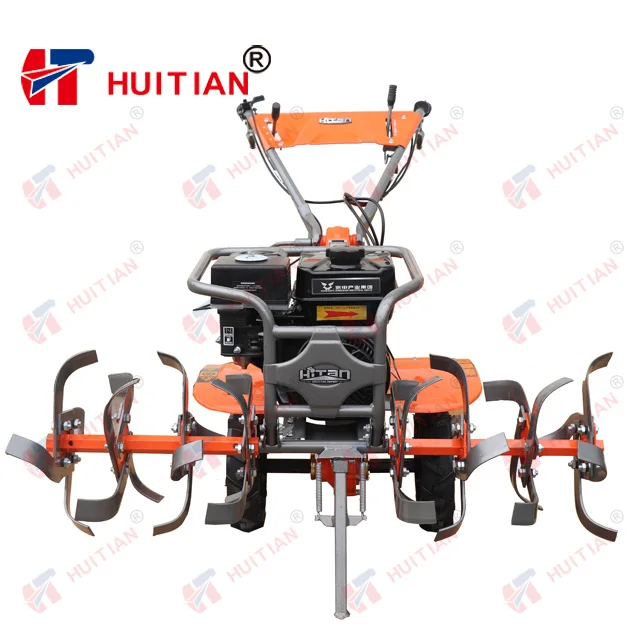

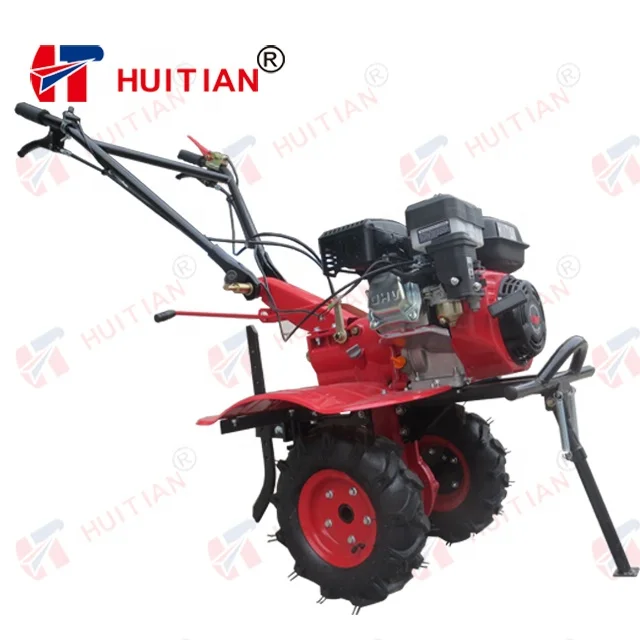

                        Product show

1.What is the specifications of garden rotary tiller?

Model		HT171A
Tiller	Transmission	Gear driving, straight concection
	Clutch	wet friction plate
	Gear Shifting	-1,0,1,2
	Tilling Depth(mm)	150~300
	Tilling Width(mm)	500~1050
	Productivity(m2/h)	≥400
	N.W./G.W.(kg)	76/88
	Dimension(mm)	1600 × 850 × 800
Tyre & blade	Tyre size	3.50-6
	Blade	HT-5(standard); optional refer to blades series
Engine	Engine Model	HT170FB
	Engine Type	single cylinder, 4-stroke, air-cooled, OHV,gasoline
	Bore x stroke(mm)	70×54
	Compression Ratio	8.5:1
	Fuel consumption(g/kw.h)	395
	Fuel Tank Capacity(L)	3.6L
	Displacement(ML)	210
	Max power	6.5hp(4.5kw)/3600
	Starting	Manual start; electric start(optional)
Packing	20’ GP/40'HQ capacity(sets)	104/208
	Packing dimension(mm)	850×460×790
	Package material	Carton box with iron frame/ wooden box

2.How is the application of soil texture?

Sandy land, grass land ,dry land ,paddy land,soft land ,sloppy land,vegetable and garden land,hilly land  and orchard soil and so on.

3.How about assembly line?

Firstly,assemble the shift gearbox;

Secondly,assemble the walking box;

Thirdly,assemble the chasis;

Fourthly,assemble gasoline engine and handle bar to the farm machinery;

Fifthly,assemble the wheel of tiller machinery.

4.What is the process of packing?

First,put farm machinery into the carton box with iron frame;

Second,close the carton ,and then bundled it with woven belt;

Third , with the forklift into the container;

Fourth,when all farm machineries in the container,waiting for departure.
