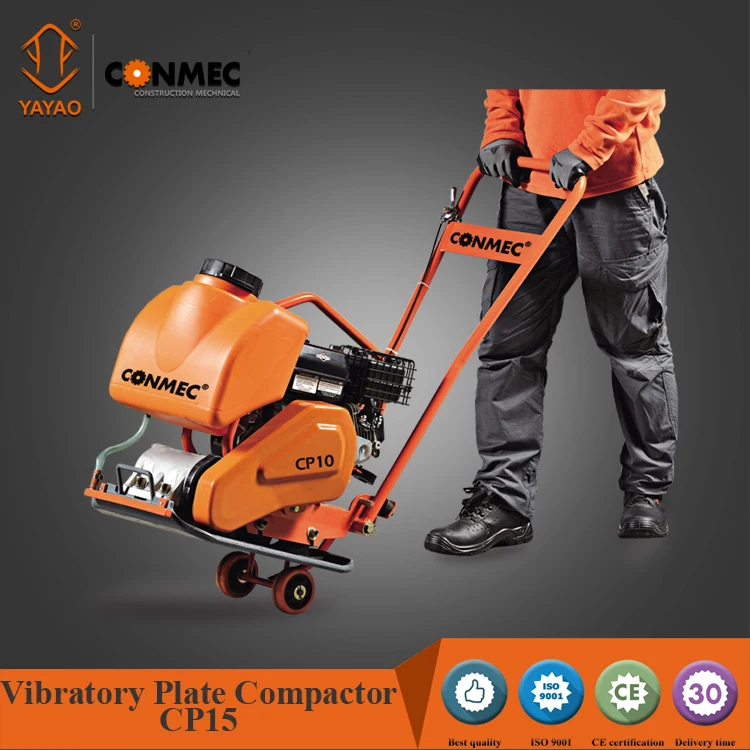

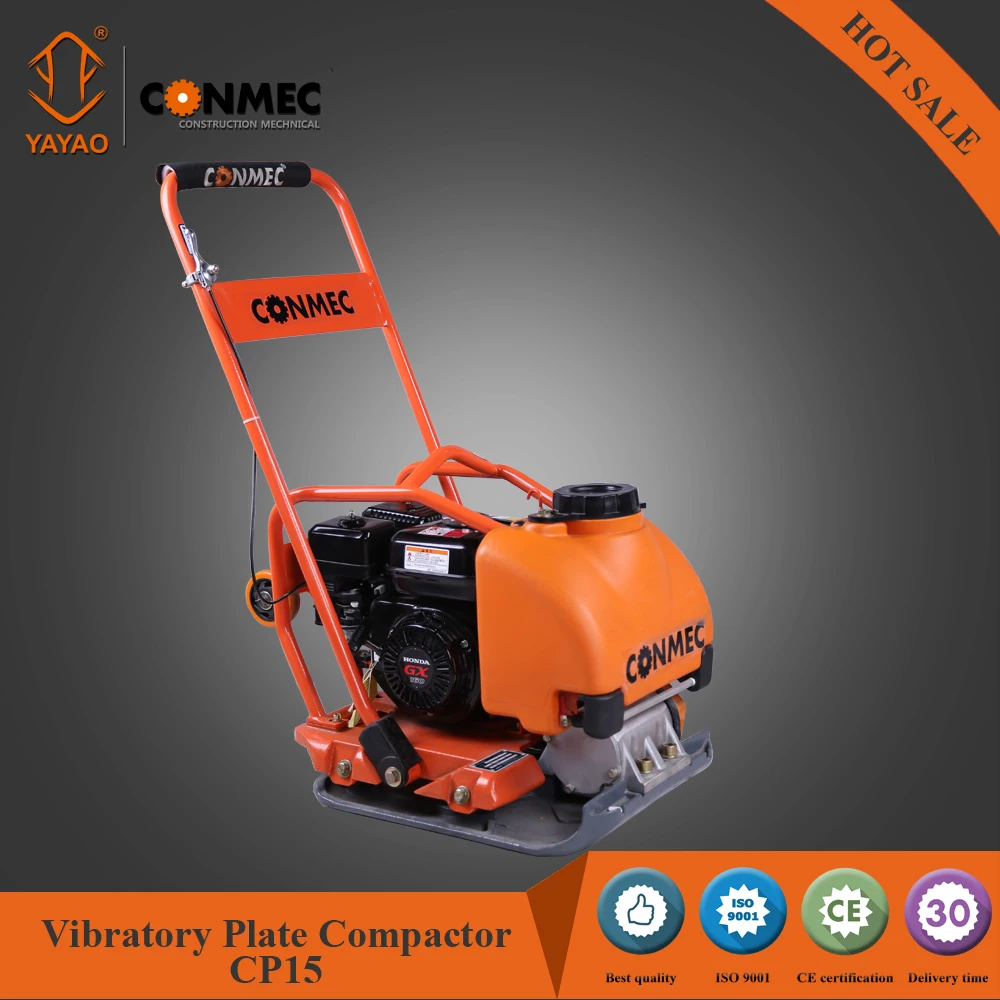

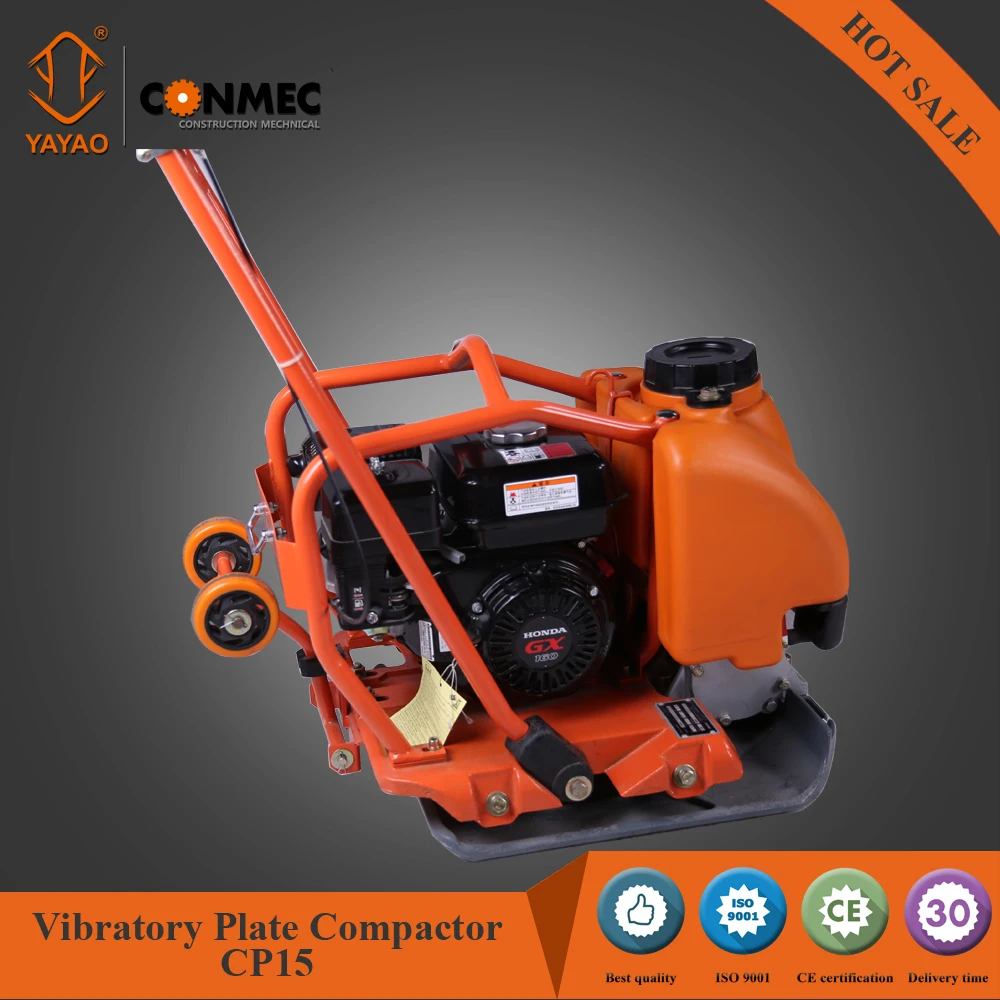

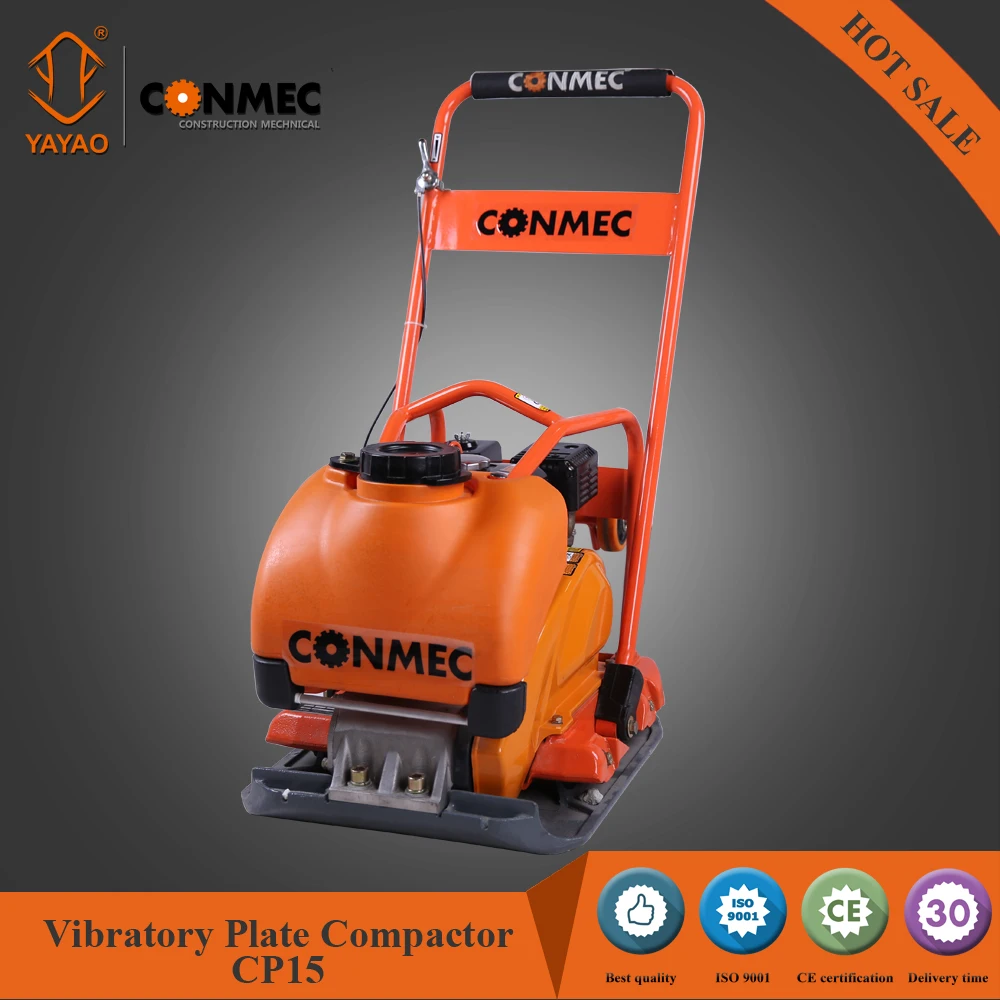

Vibrating Plate/Flat Compactor CP15 Series with 13kN

Product Overview

Description

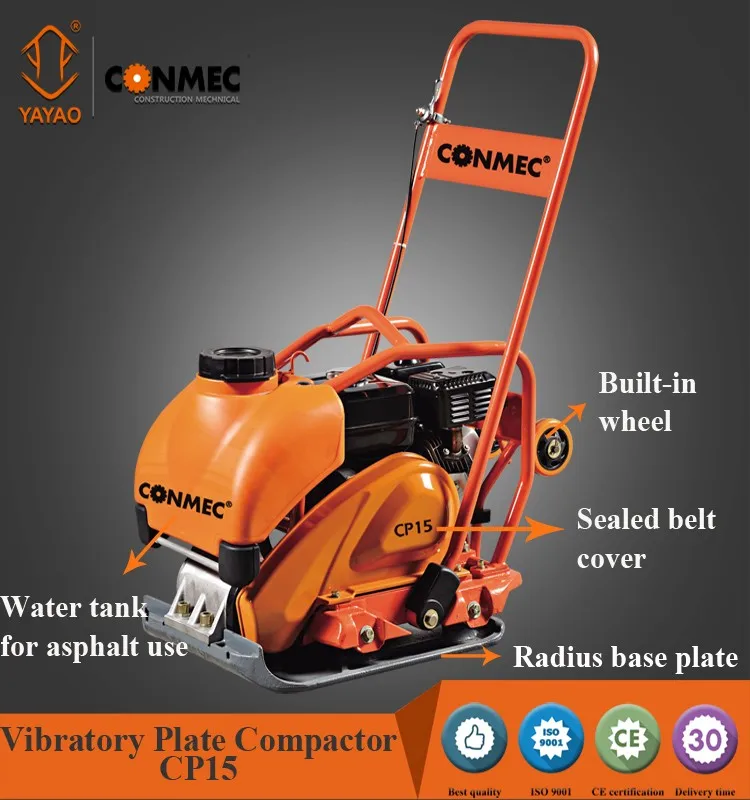

 1. Features:
a. Ductile iron base plate provides better durability
b. Open plate provides self cleaning
c. Radius base plate for easy access to corners
d. Centrally located lifting bar allows easy transportation
e. Sealed belt cover to prevent sand and soil in
f. Built-in wheel for easy transportation



2. Technical Specification

Model	CP15-1	CP15-2	CP15-3	CP15-4
Engine Type	Chiese Diesel KM170F	Chinese Petrol Engine	Robin EX17	Honda GX160
Power kw(hp)	3.1(4.2)	4.8(6.5)	4.2(5.7)	4.0(5.5)
Weight kg(lbs)	107(235)	97(212)	97(212)	97(212)
Frequency rpm	5500
Centrifugal Force kN	13
Travel Speed cm/s (in/s)	40(16)
Compaction Depth cm(in)	30(12)
Efficiency m2/hr(ft2/hr)	660(7100)
Plate size cm (in)	53*50(21*20)
Water Tank Capacity L	12



 3. Option:
    Built-in Wheel
    Water Tank
    Rubber Mat
    Throttle Control



4. application:

      CP15 series Vibratory Plate Compactor are ideal for smaller jobs such as the levelling of ground prior to laying paving bricks or concrete flagstones in th sand, gravel and mixed soils in narrow trenches and along foundations,walls and abutments.



5. Compactor Series:





6.Main prducts we supply



 7. Company Introduction

Conmec Engineering Co., Ltd.,a leading manufacturer of concrete finishing equipment for over 10 years,is an enterprise combine manufacture\import agents\scientific R&D and professional services.We offer a full complement of equipment for the entire light construction machinery.
Main products include concrete cutter series,edging/walk-behind/ride-on power trowel series,vibratory truss screed,surface finishing screed,etc. Products are equipped with international famous brand engines such as Honda(Japan),Kohler(US),B&S(US) and Robin(Japan), all having excellent performance and quality.
By providing perfect technical support and adhere to the spirit of "quality, reputation, services, adherence", we have won high reputation from customers at home and abroad.





8.Show Room

9.Trade Shows
1/Canton Fair  2012.10

2/Bauma China  (Dec. 27-30,2012)
