High Quality Antistatic Air Flow Raised Access Floor in all steel used for computer room,data center

Product Overview

Description

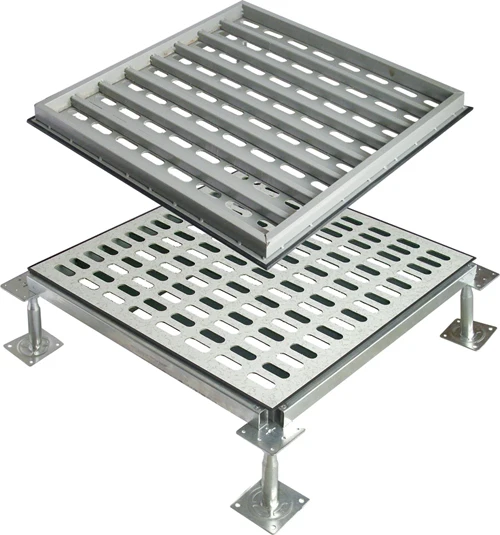

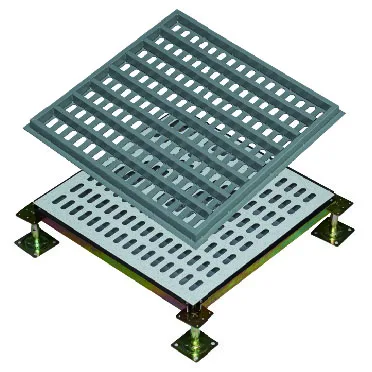

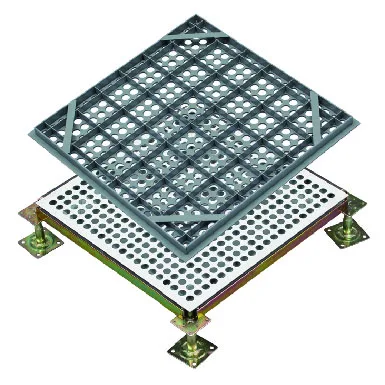

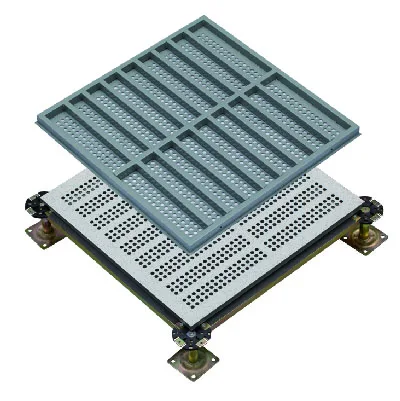

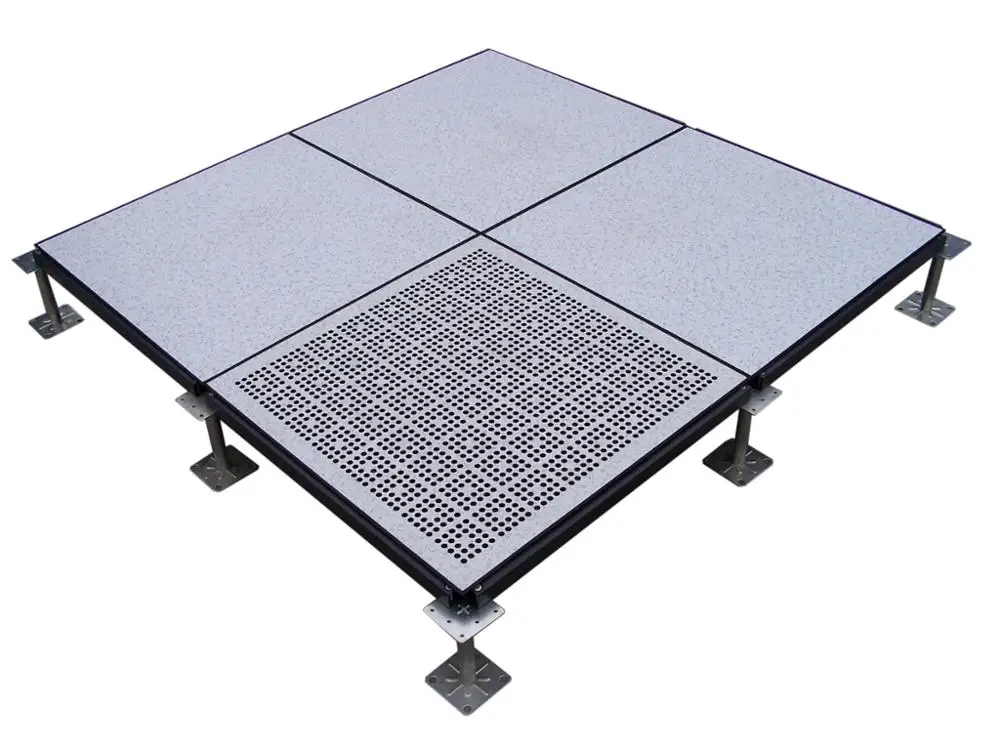

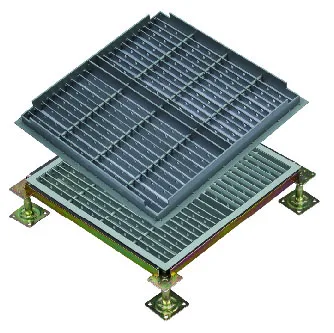

High Quality Antistatic Air-Flow Raised Access Floor in Steel used for computer room,data center



Introduction of products

      Full steel, HPL or PVC punched tile, surface punched panel which is SPCCID hard steel of Shanghai = Bao manual welding for he bottom square tube, origination domestic. Imported paint, conductive rim, pedestal,stringer are pressured forming with steel, lead screw could adjust height.V

Application

      All manner of computer room,network service room monitor control center,electronic worshop,clean room,dustless chamber etc and occasions which require on antiststic and air conditioning.

Technical Specification

International	Size	Fire  performance	Concentrated  load			Impact  load	Ultimate  load	Uniform load	Rolling  load
			(LB)	(N)	(Kg)				10/ Times	10000/ Times
FS220	600*600*35	A	≥220	≥980	≥100	≥148	≥2940	≥4860	979	783
FS440	600*600*35	A	≥440	≥1960	≥200	≥295	≥5880	≥9272	1985	1566
FS662	600*600*35	A	≥662	≥2950	≥301	≥445	≥8850	≥12500	2946	2356
FS1000	600*600*35	A	≥1000	≥4550	≥453	≥670	≥13350	≥23000	4450	3560
FS1250	600*600*35	A	≥1250	≥5560	≥567	≥720	≥16680	≥16680	5560	4450
