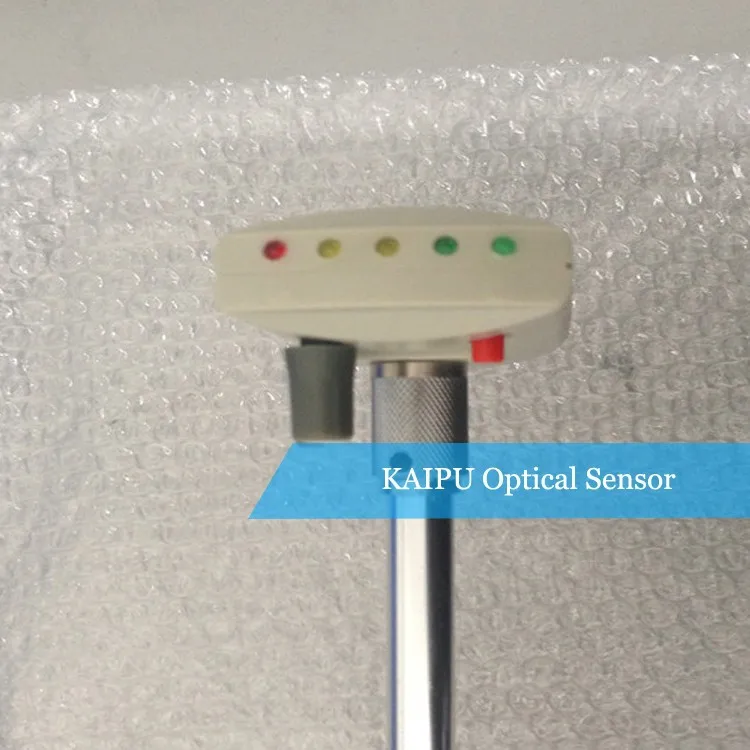

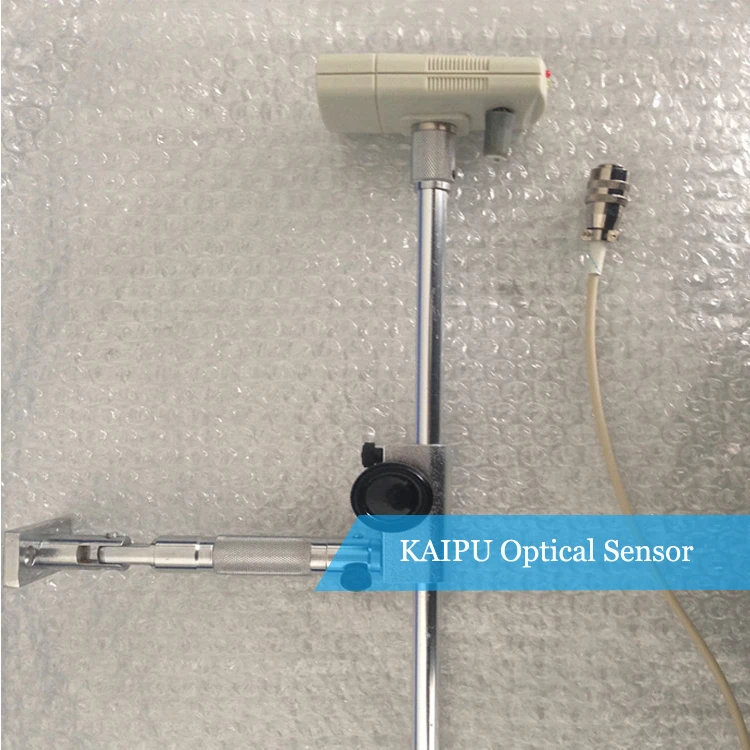

Kaipu optical sensor for energy meter test bench

Product Overview

Description

Technical Parameters:



1.  Operating Voltage:DC 4.5-6V

2.  Operating Current:≤ 70mA (Follow Parameters are test for 5 V power source)

3.  Power Consumption:≤ 0.35W(No-Load)

4.  Sampling Distance:10~50mm

5.  Output Signal:High Voltage≥ 4.5V(No black mark)

                                 Low Voltage≤ 0.2V(Have black mark)

6.  Output Current:3 mA ~ 5mA

7.  Anti-jamming:Incandescent light≤ 1000 lx

                                 Sunlight≤ 1500 lx

8.  Outer Dimensions:80mm×50mm×23mm
