Automatic EVA Injection Single Color Moulding Machine Short Rain Boot Sole Sport Sole Servo Motor Making Machine
- Category: >>>
- Supplier: Jinjiang Kclka Machine Manufacture Co. Ltd.
Share on (60194853163):
Product Overview
Description

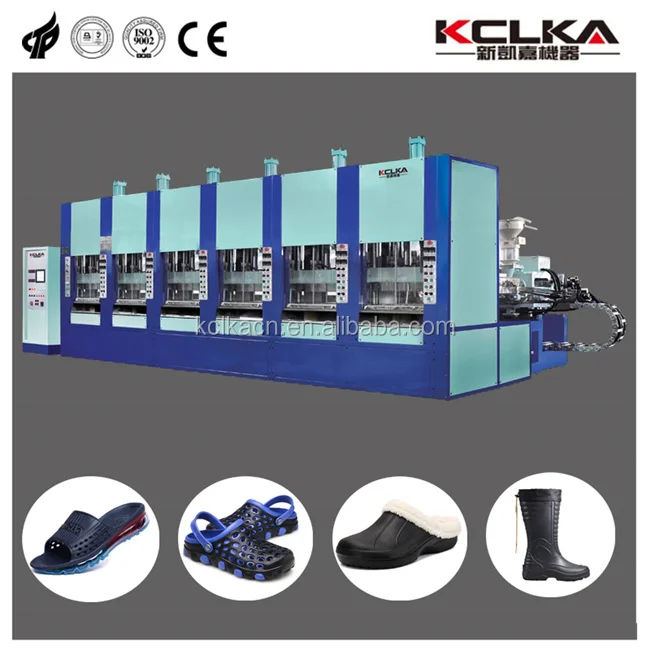

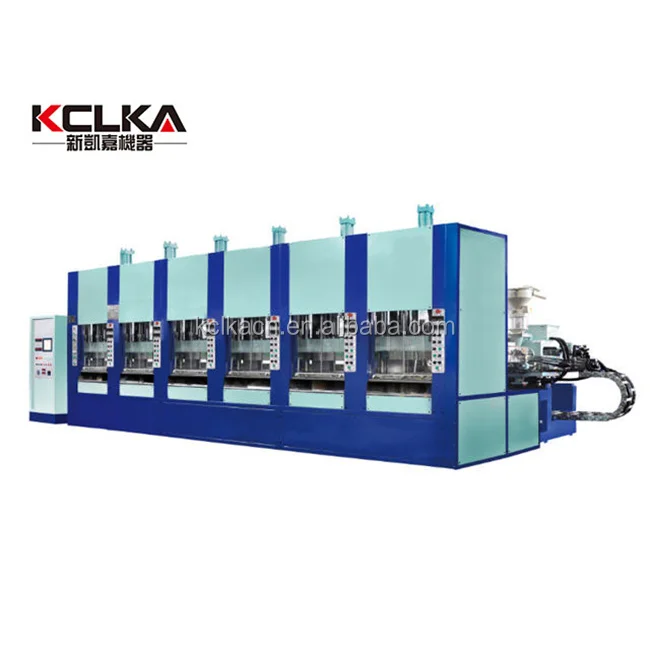

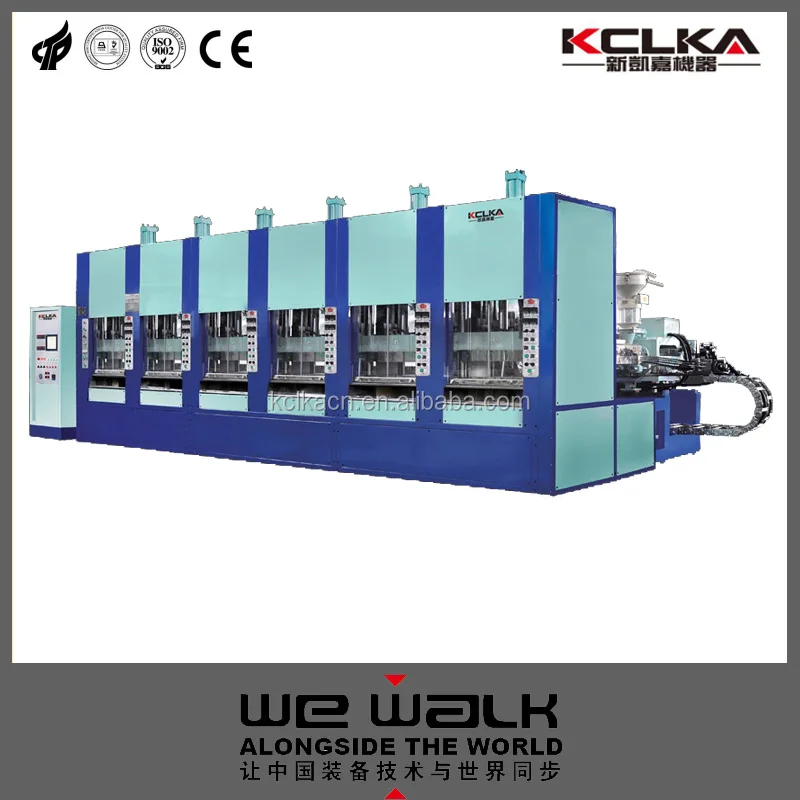

EK3-6E2: Full-Automatic Foam EVA shoe Injection Molding Machine
Technical Description
Mould Closing System | Unit |
|
Work Stations |
| 6 |
Clamping Force | kg | 180 |
Mould-Opening Stroke | mm | 350 |
Standard Thickness of Mould | mm | 100-210 |
Mould Plate Size | mm | 2(290*550) |
Height of Injection Nozzle | mm | 65 |
Method of Heating |
| electric |
Heating Power | kw | 8.04 |
Injection System |
|
|
Injectors | set | 2 |
L/D Ratio of Screw |
| 23 |
Diameter of Screw | mm | 65 |
Max Injection Capacity | cc | 920 |
Injection Pressure |
| 1100 |
Injection Speed | cm/sec | 10 |
Rotating Speed of Screw | r.p.m | 0-190 |
Temperature Control | section | 4 |
Electricity Consumption |
|
|
kw | 19.6 | |
Motor for Injector Moving | kw | 1.5 |
Heating Board of Mould | kw | 76.8 |
Hydraulic System | kw/50hz | 40.5 |
Vacuum Pump | kw | 2.2 |
Cooling Fan of Barrel | HP | 1 |
Total Electricity | kw | 150 |
Oil Tank Size | L | 1000 |
Machine Weight | kg | 23800 |
Machine size | mm | 6500*4500*2800 |
