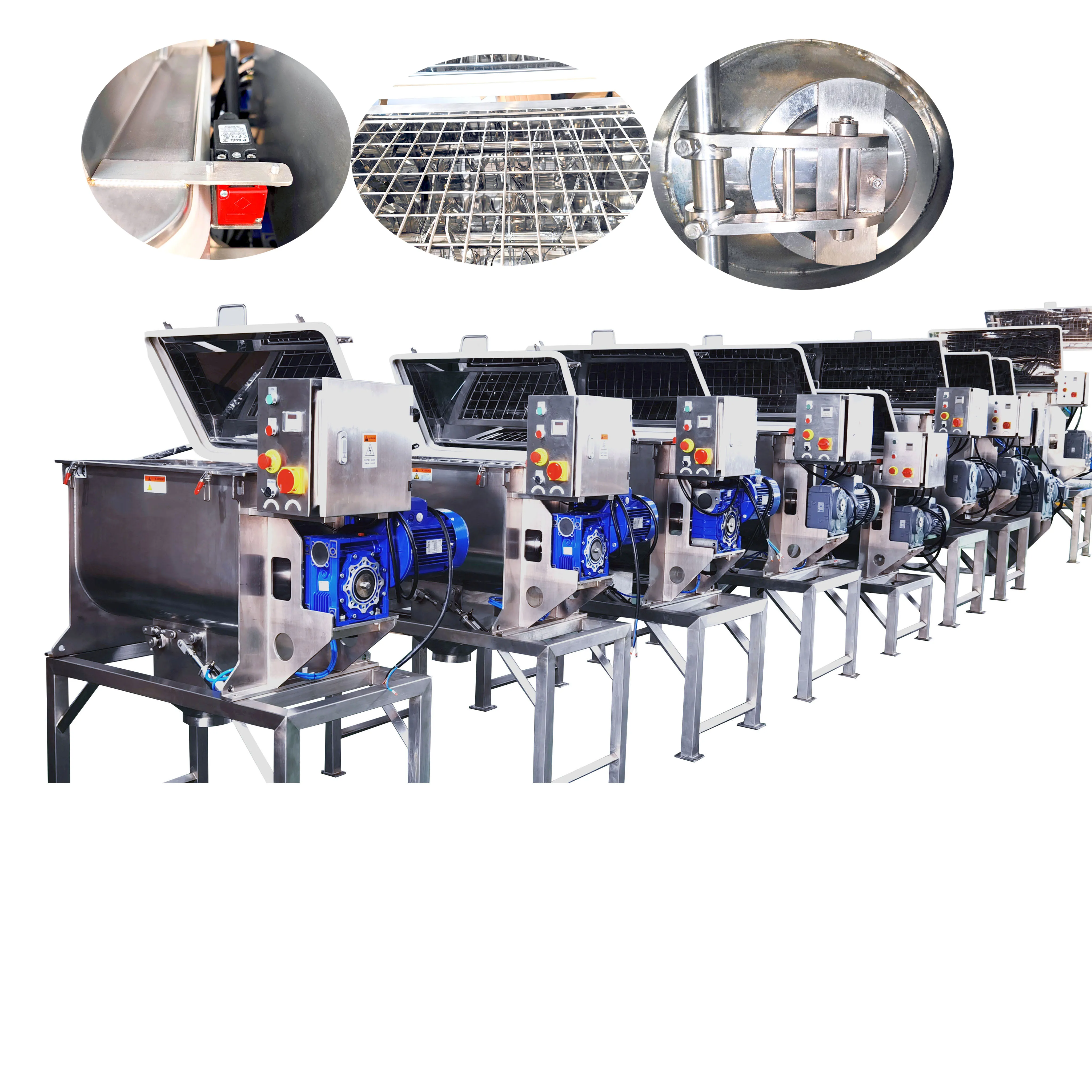

250L High Quality Stainless Steel Spices Flour Coffee Food Industrial Mixer Washing Paint Powder Mixer Blender
- Category: >>>
- Supplier: Shanghai Tops Group Co. Ltd.
Share on (60194882228):
Product Overview
Description
Products Description

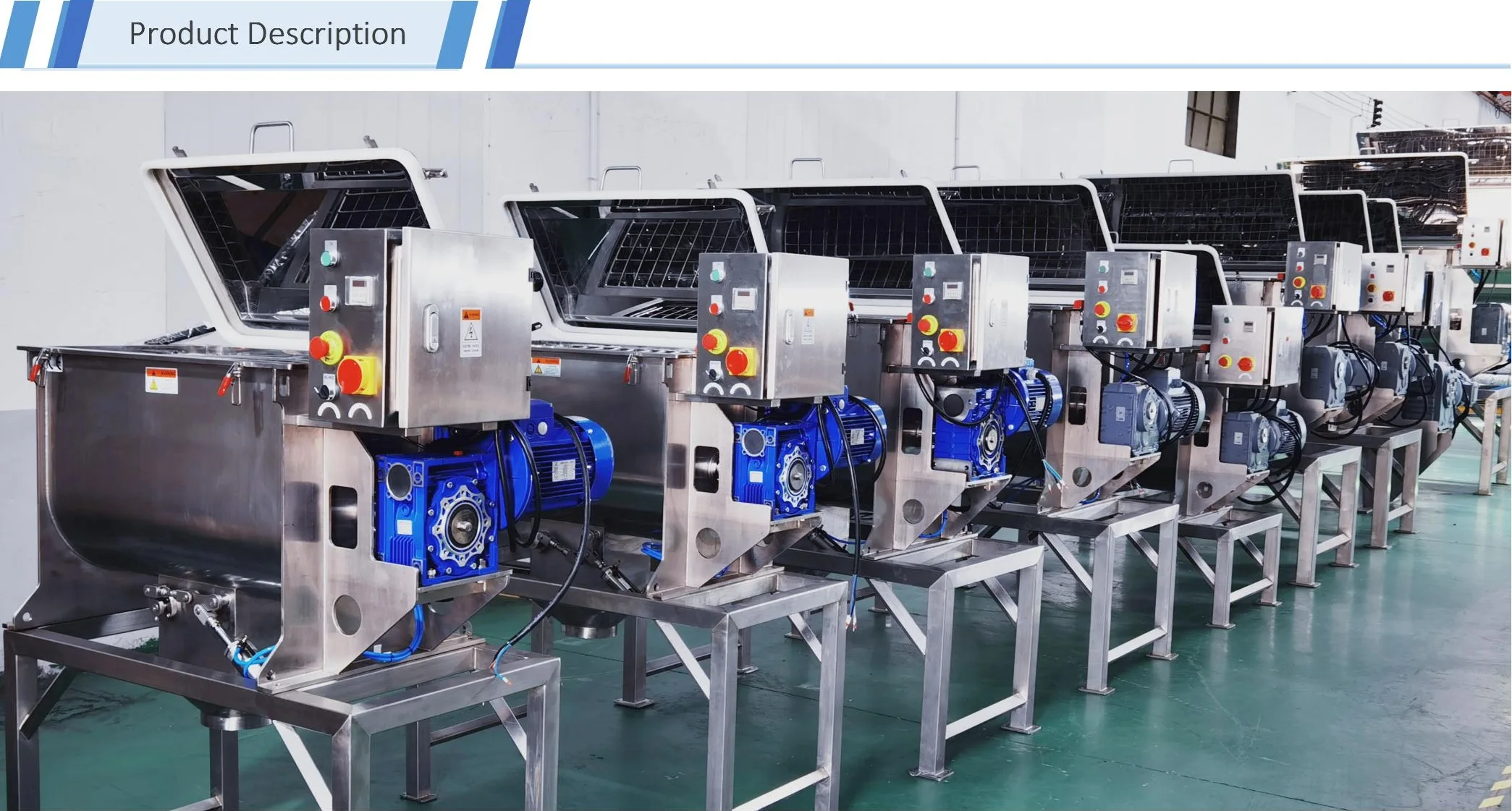

TDPM Series Double Ribbon Blender
Horizontal double ribbon blender is used to mix different powder, powder with liquid spray, powder with granule etc. Under the special design, the double ribbon agitator makes the material to get a high effective convective mixing in short time.

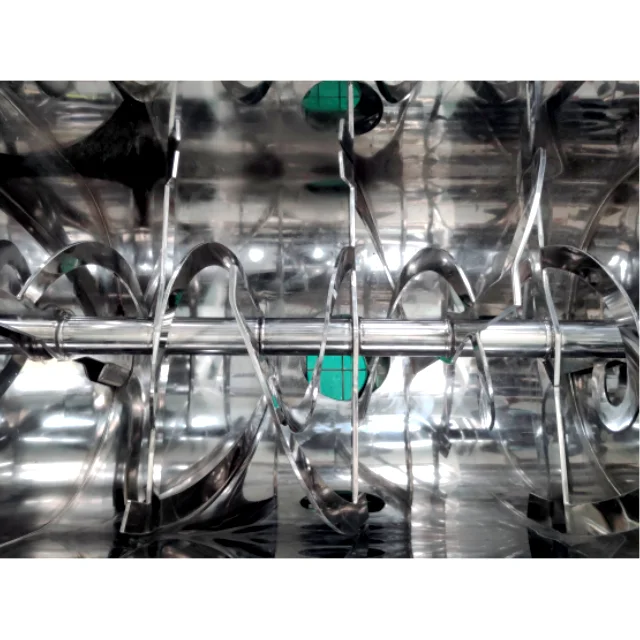

The outer ribbon brings material from sides to the center.
The inner ribbon pushes material from the center to sides.

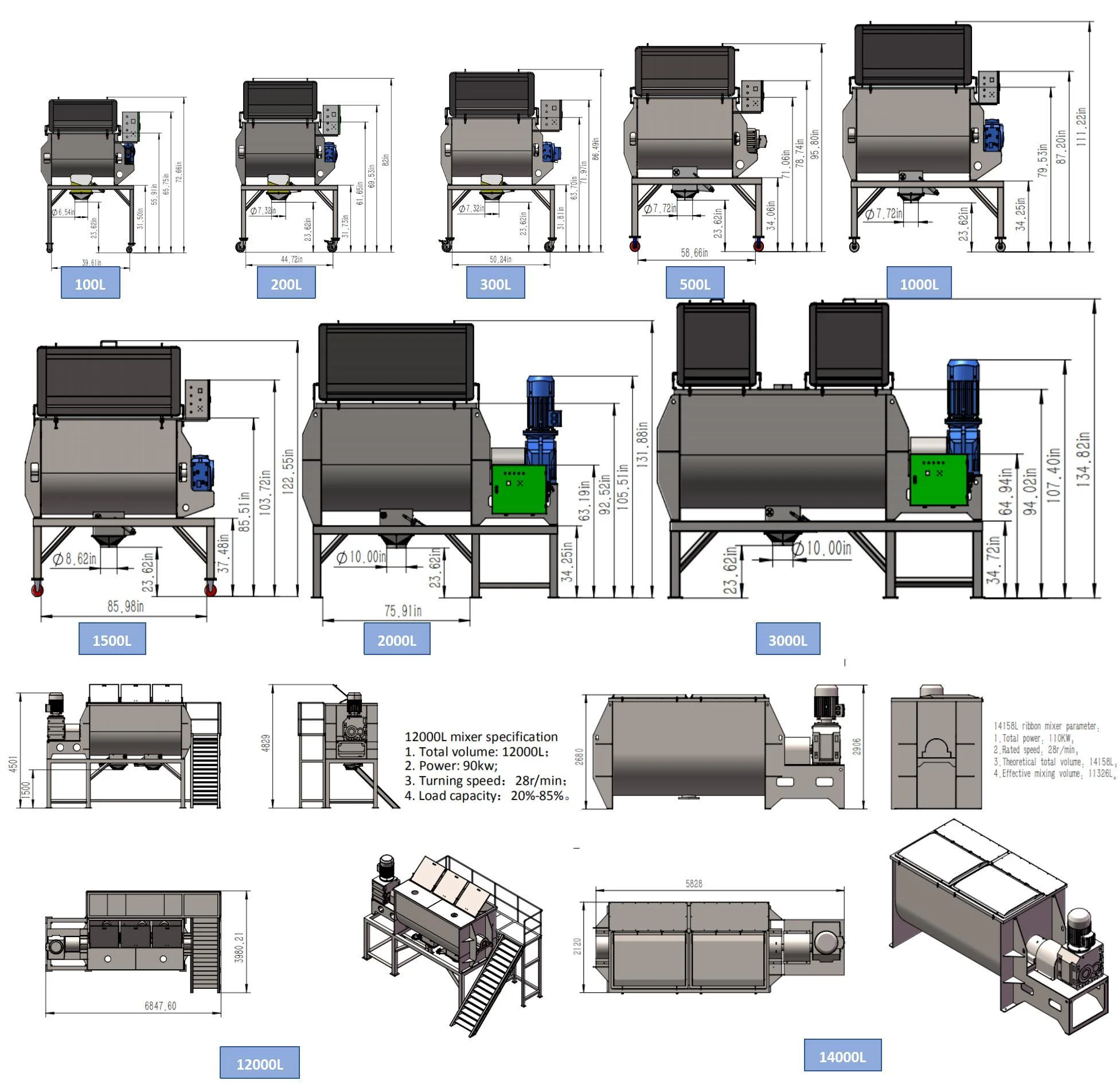

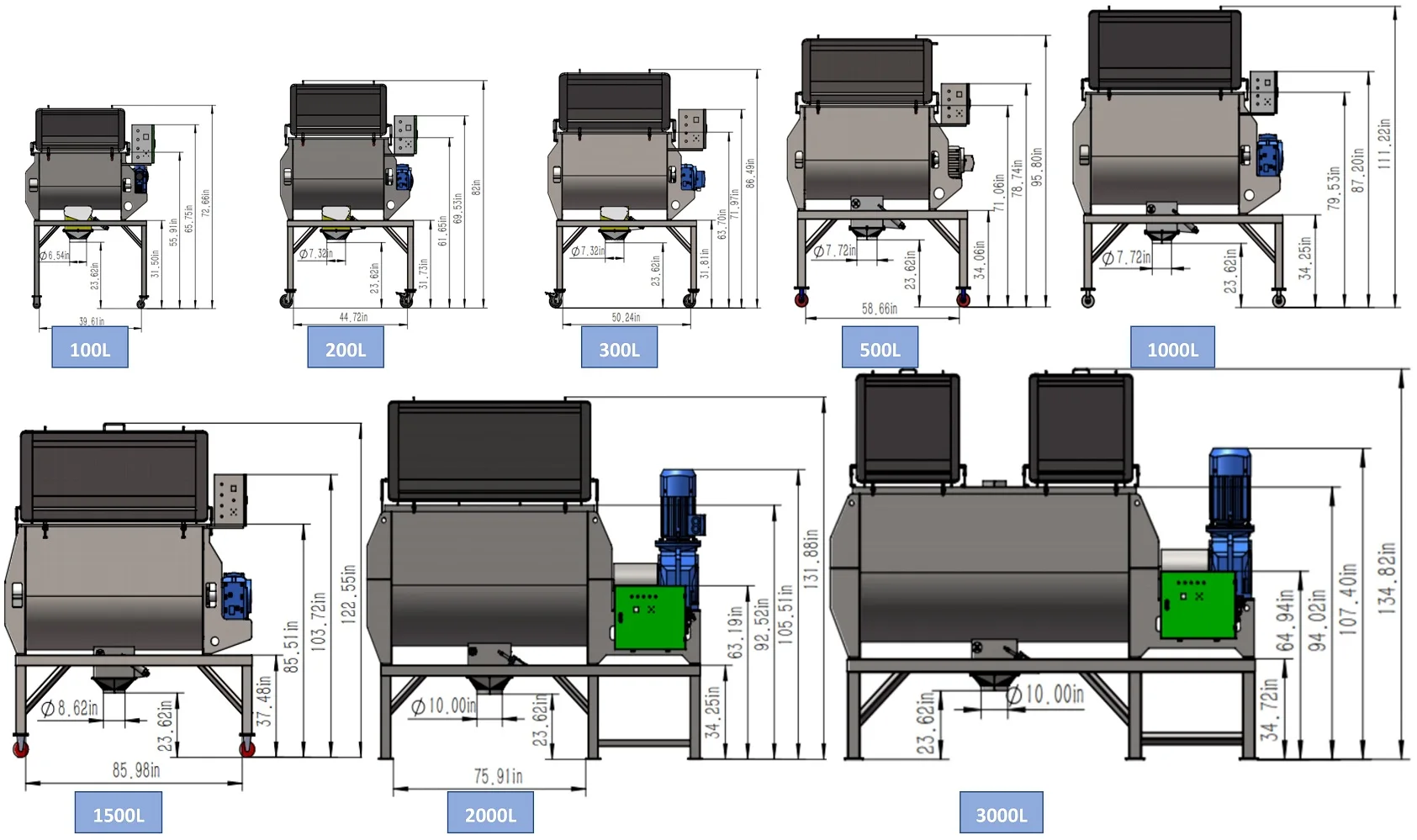

Main parameters
Model | TDPM 100 | TDPM 200 | TDPM 500 | TDPM 1000 | TDPM 1500 | TDPM 2000 | TDPM 3000 | |||||||
Capacity(L) | 100 | 200 | 500 | 1000 | 1500 | 2000 | 3000 | |||||||
Volume(L) | 140 | 280 | 710 | 1420 | 1800 | 2600 | 3800 | |||||||
Loading rate | 40%-70% | |||||||||||||
Length(mm) | 1050 | 1370 | 1773 | 2394 | 2715 | 3080 | 3744 | |||||||
Width(mm) | 700 | 834 | 1100 | 1320 | 1397 | 1625 | 1330 | |||||||
Height(mm) | 1440 | 1647 | 1855 | 2187 | 2313 | 2453 | 2718 | |||||||
Weight(kg) | 180 | 250 | 500 | 700 | 1000 | 1300 | 1600 | |||||||
Total Power(KW) | 3 | 4 | 7.5 | 11 | 18.5 | 22 | 30 | |||||||
Notes: Please inquire the sales if you need other capacity. | ||||||||||||||
Details

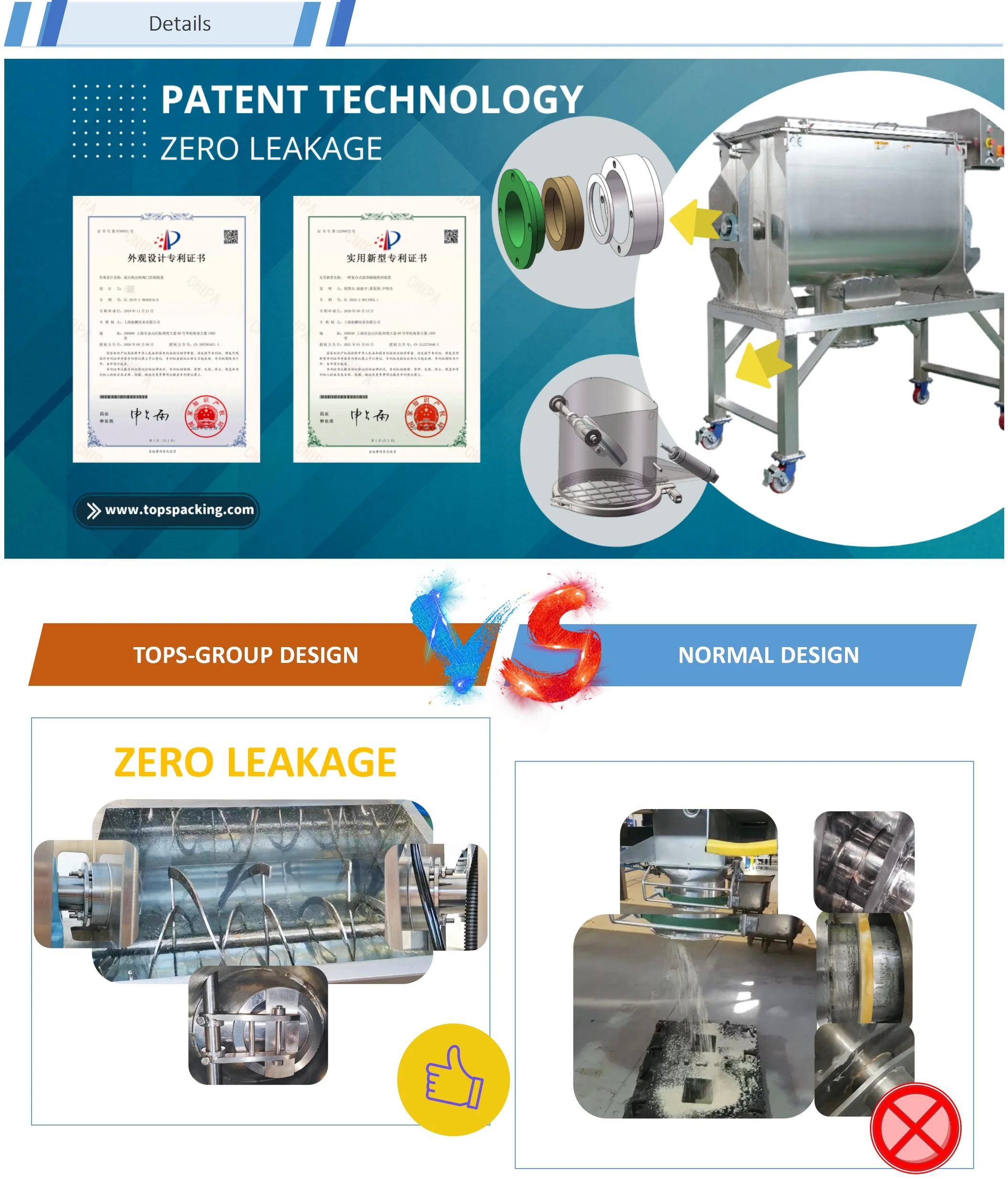

PATENT TECHNOLOGY: Water test to make sure ZERO LEAKAGE. Leakage at shaft sealing and discharge.

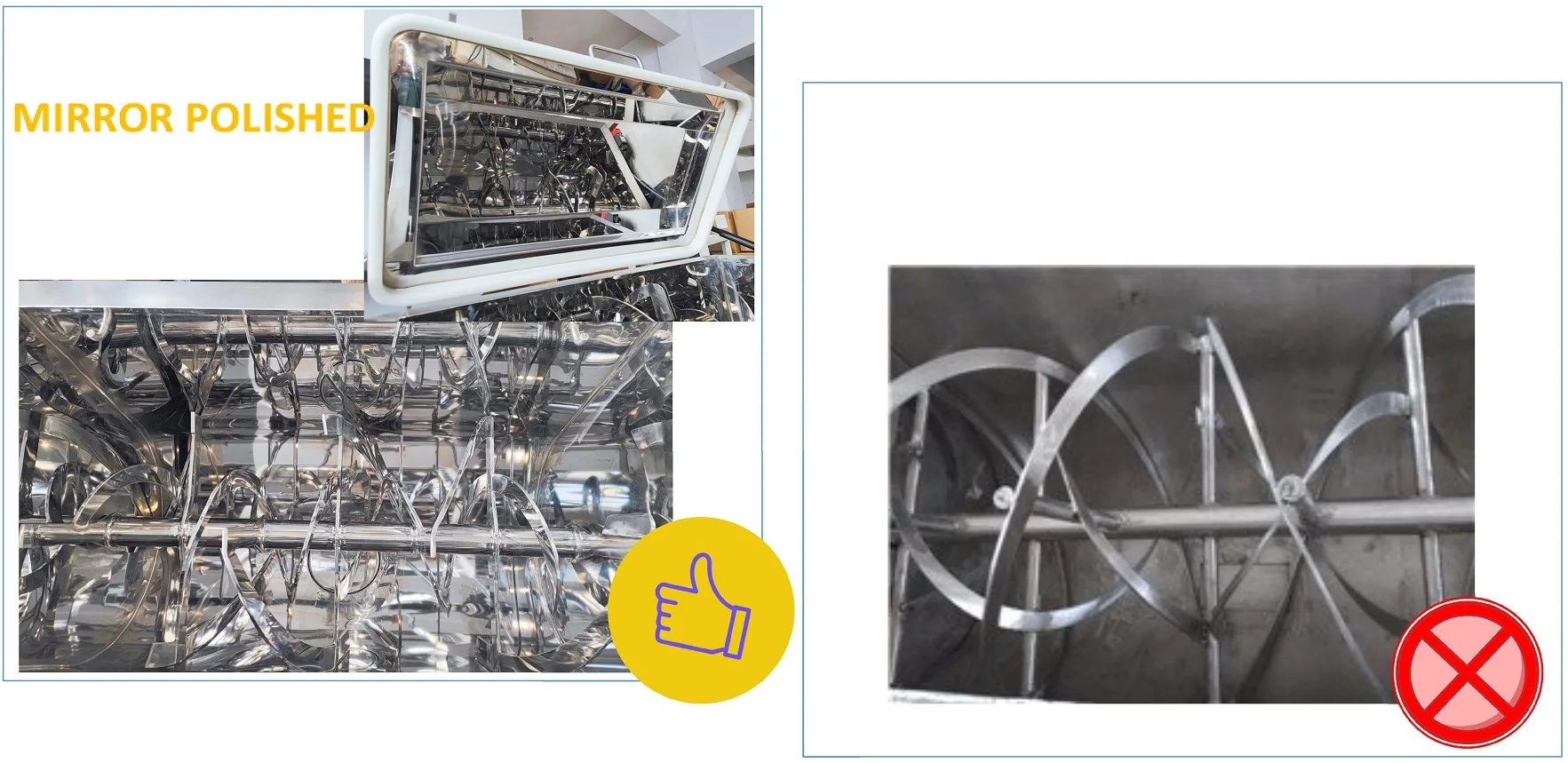

EASY CLEANING, food-grade standard. Powder hiding in gap and go bad, will pollute fresh materials.
EASY CLEANING, food-grade standard. Powder is difficult to clean, will pollute fresh materials.

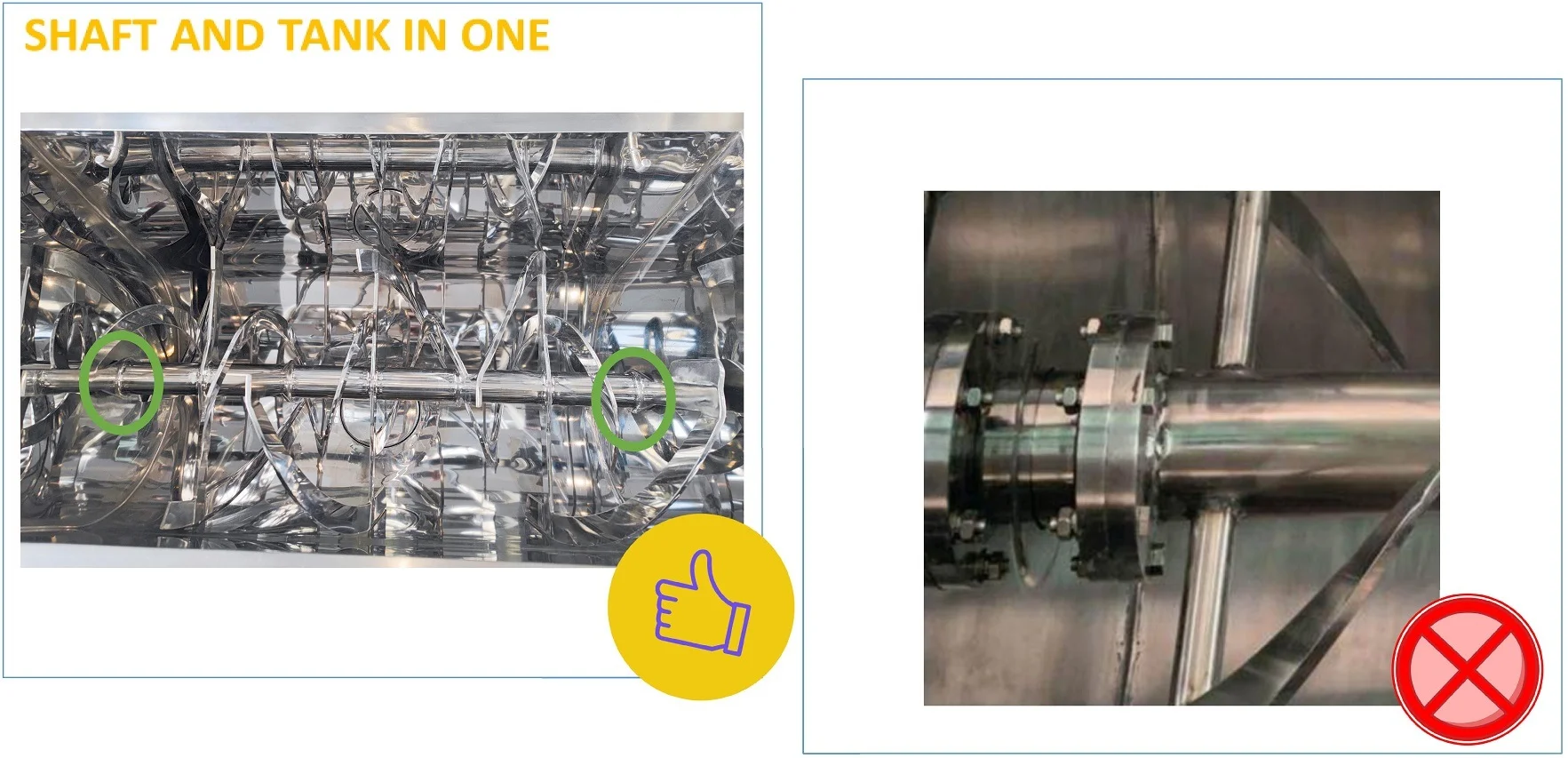

No any nut inside the tank. It has tick that loosing nuts fall into material.

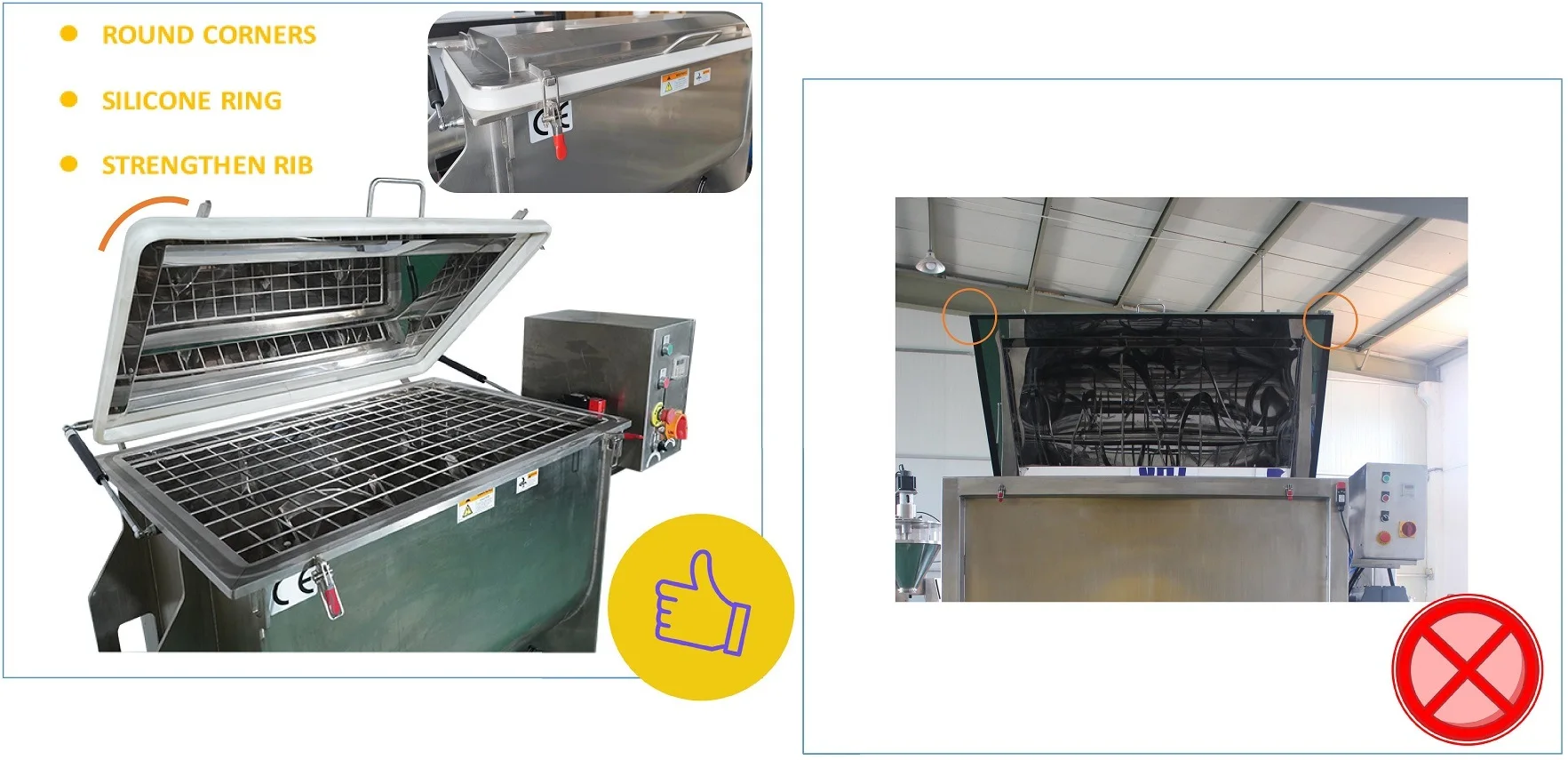

PROTECT OPERATOR, GOOD SEALING, LONGER USING LIFE. Might hurt workers, bad sealing, short using life.

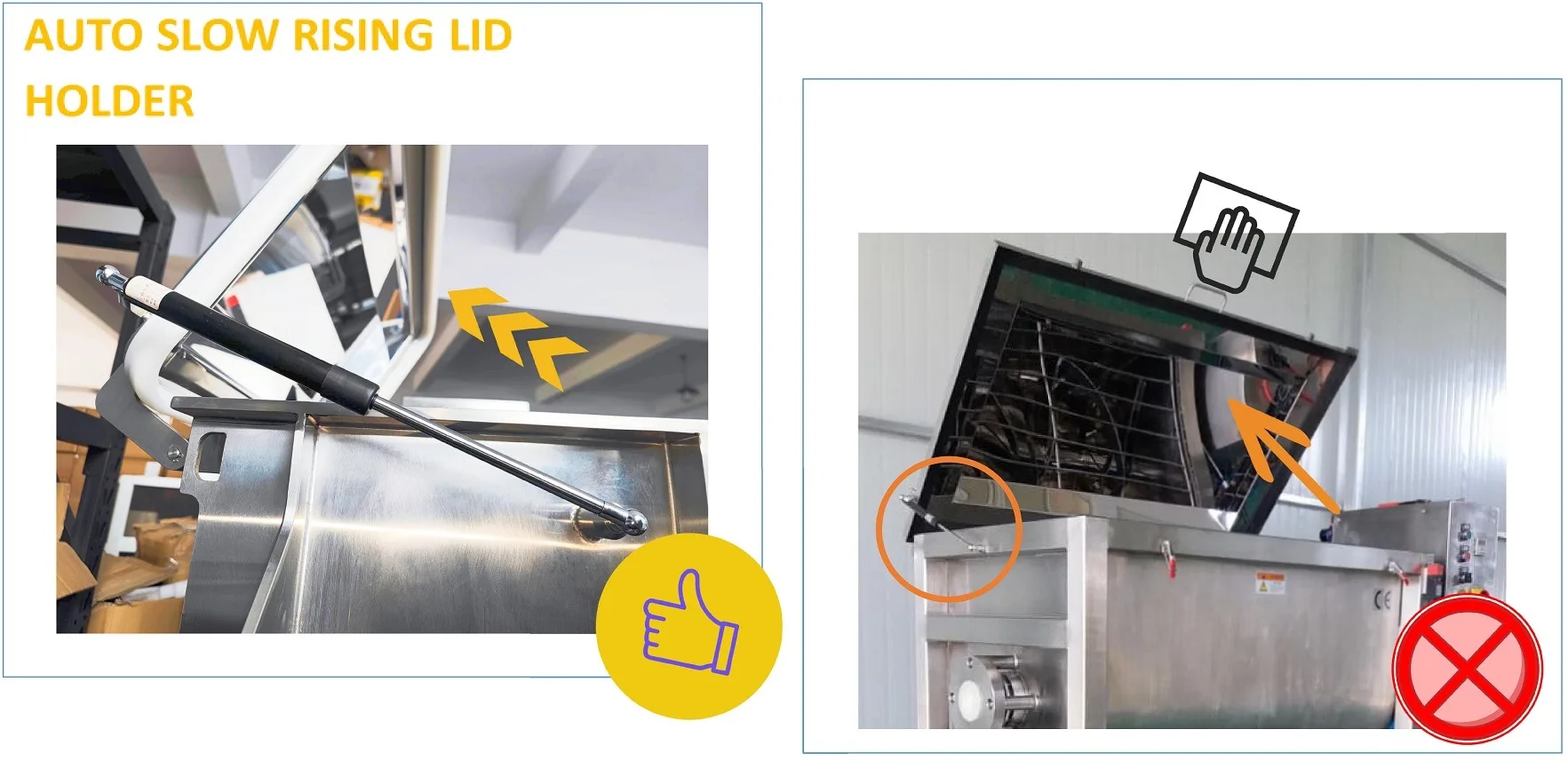

PROTECT OPERATOR, LONGER USING LIFE. Operator might hurt by falling lid. Needs manual hold.

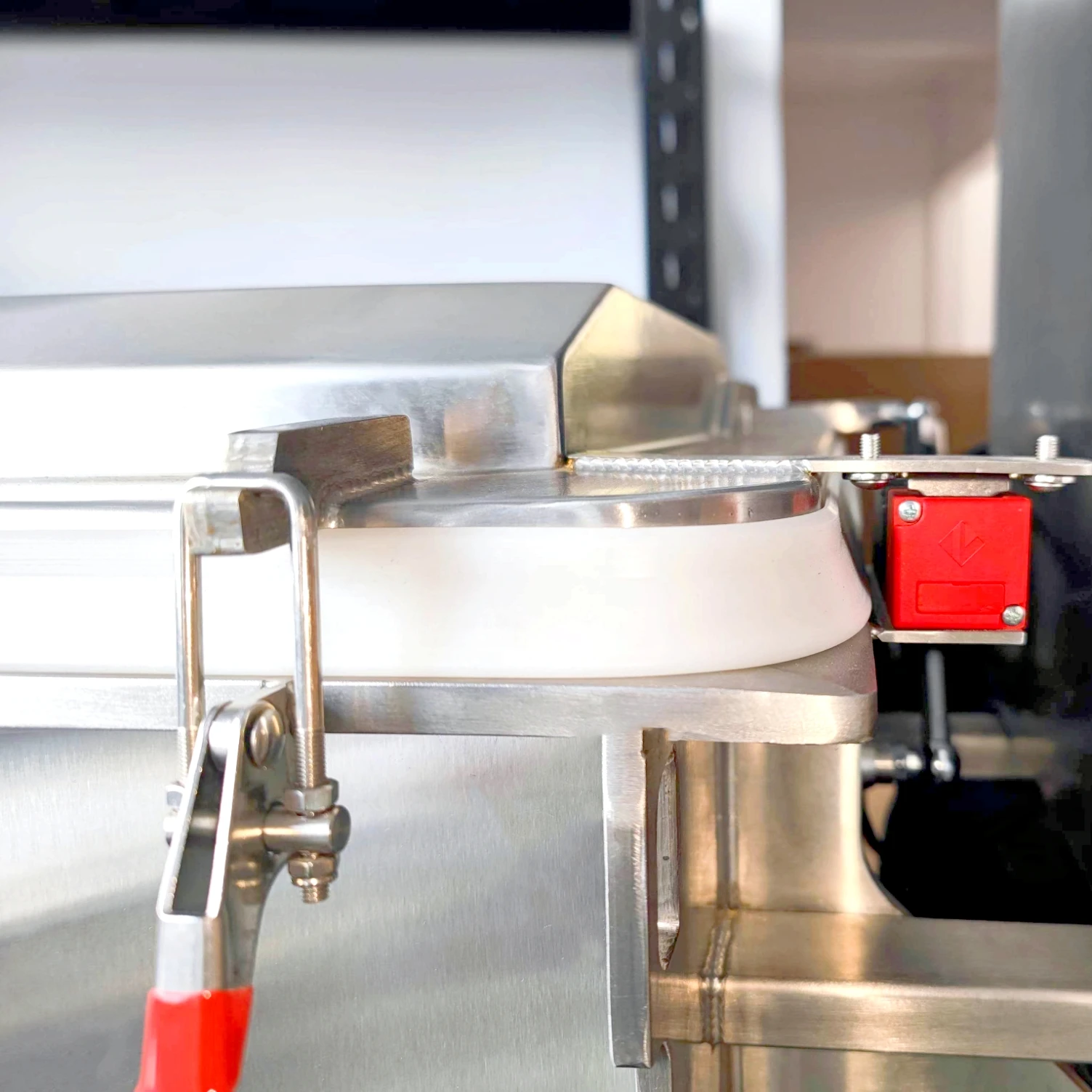

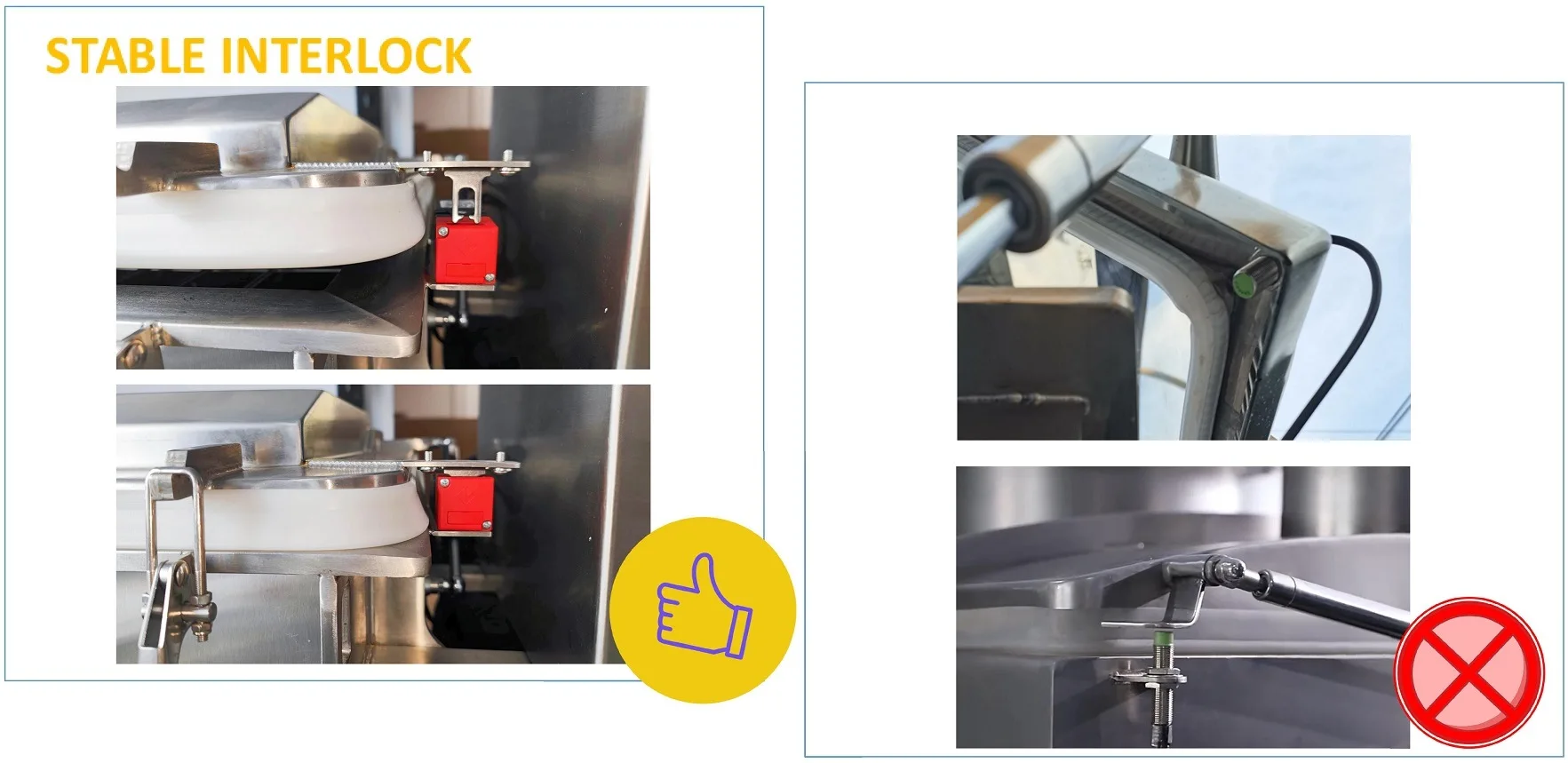

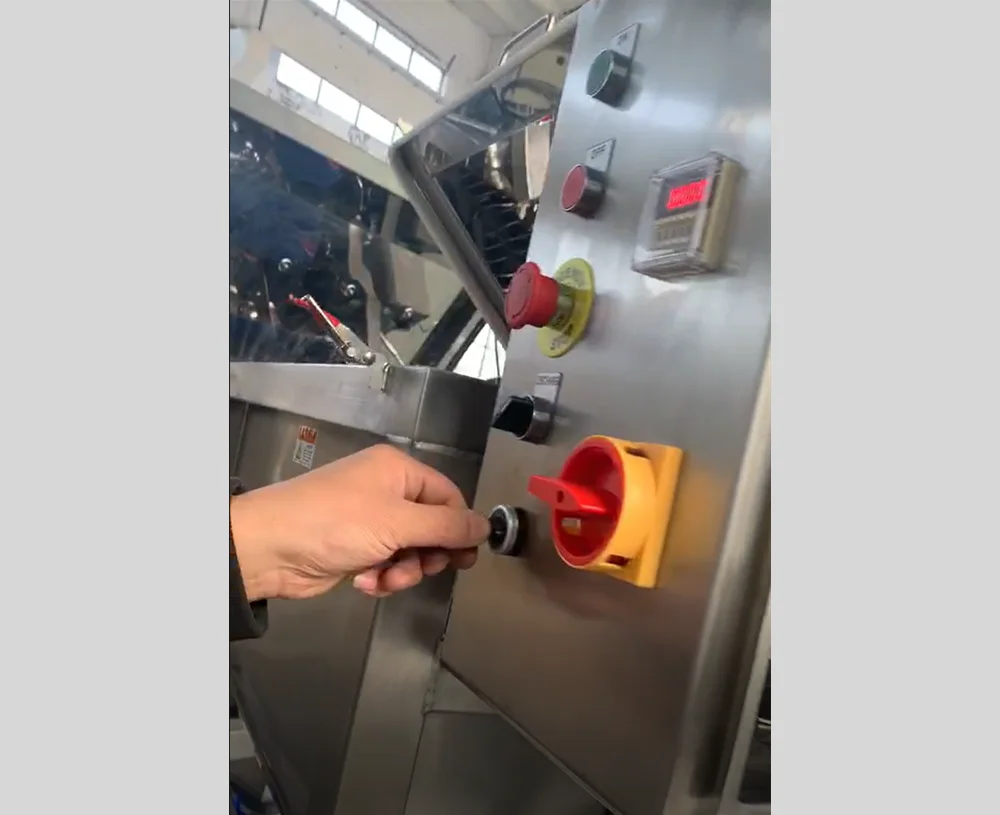

STABLE INTERLOCK, protect operators. Sensor interlock may failure to detect when powder stick on it.

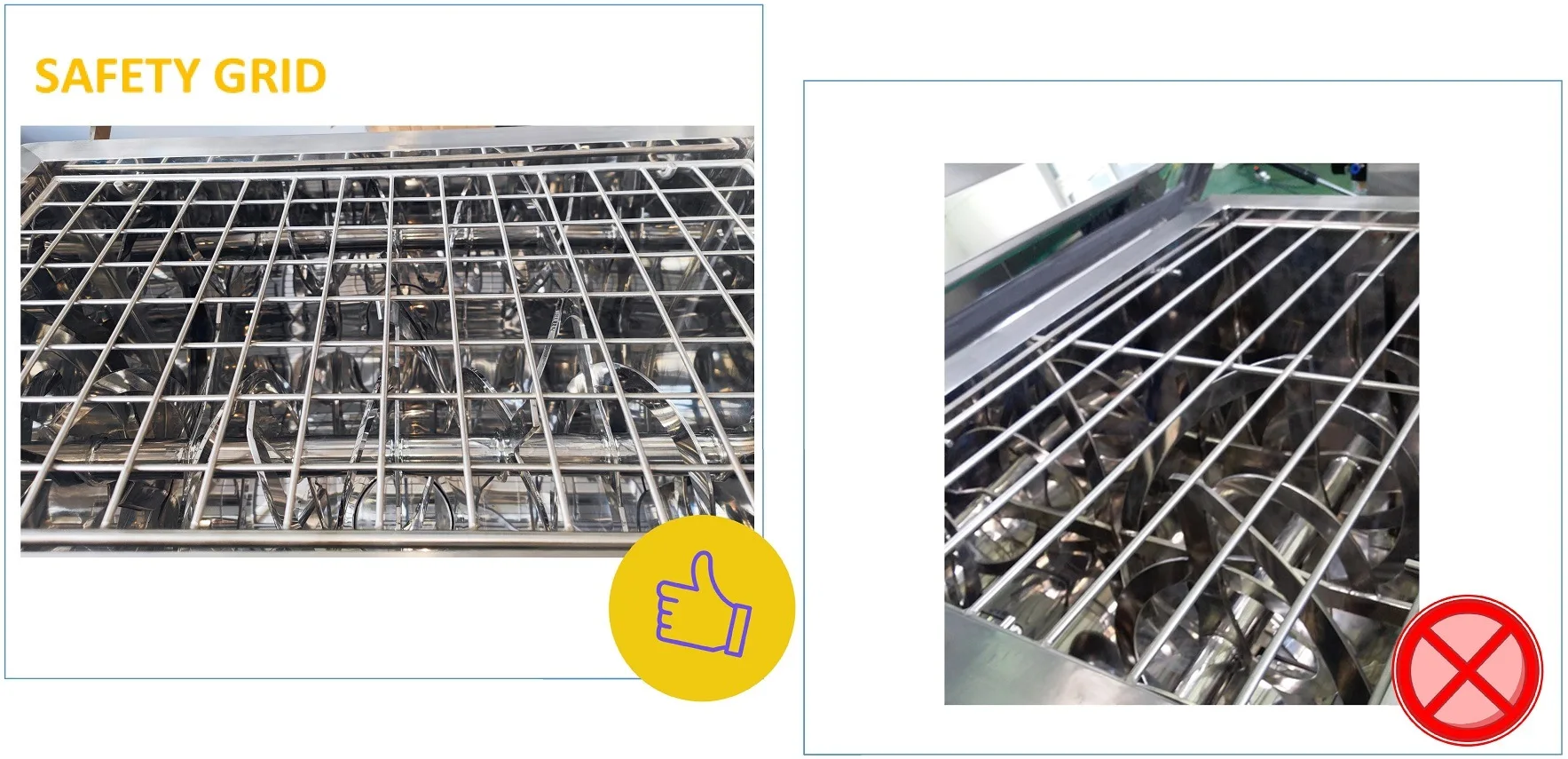

Densely grid brings EASIER MANUAL LOAD, and SAFER. Less safe.

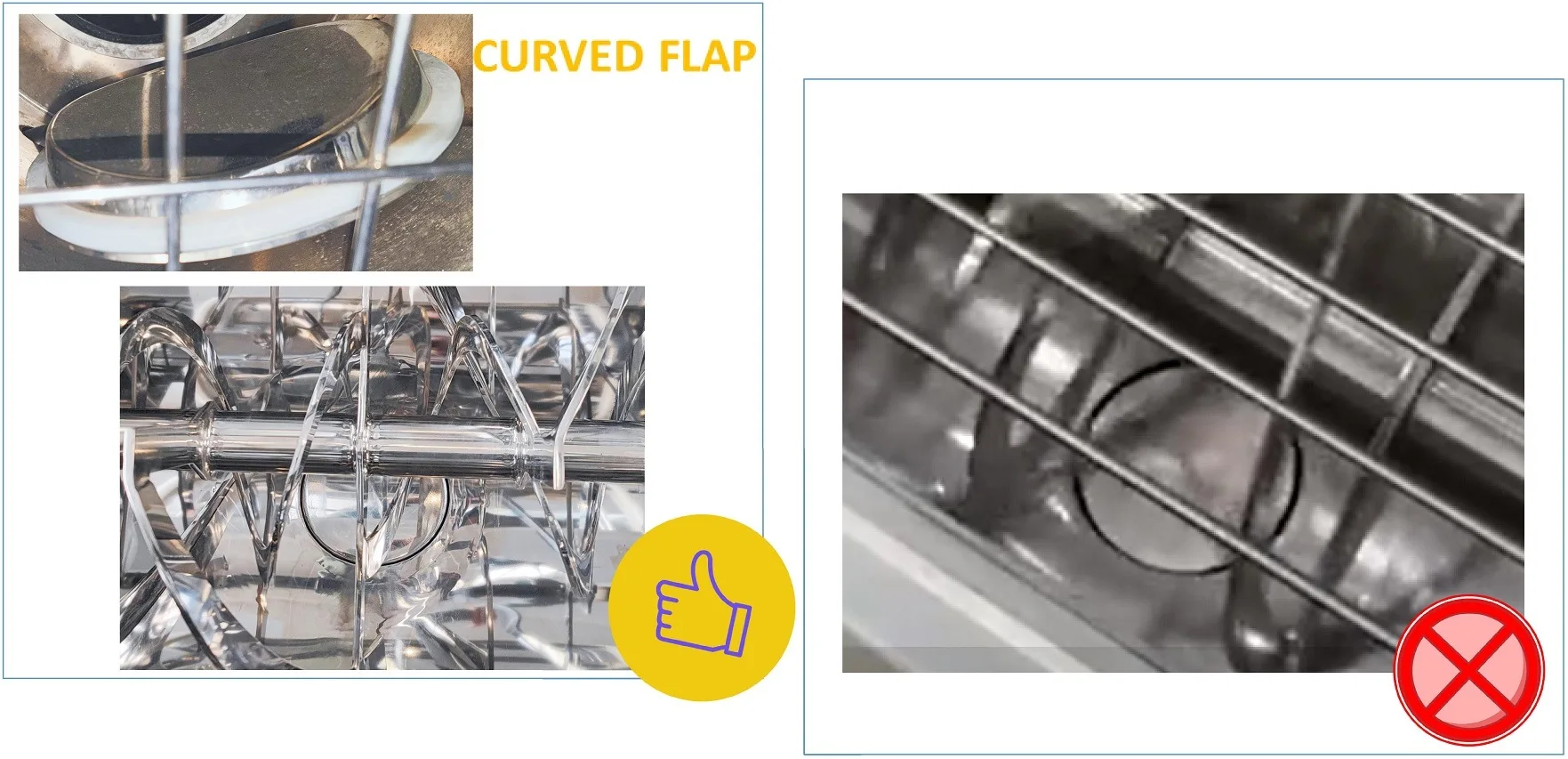

GOOD SEALING, NO MIXING DEAD ANGLE. Dead mixing angle, leakage problem.

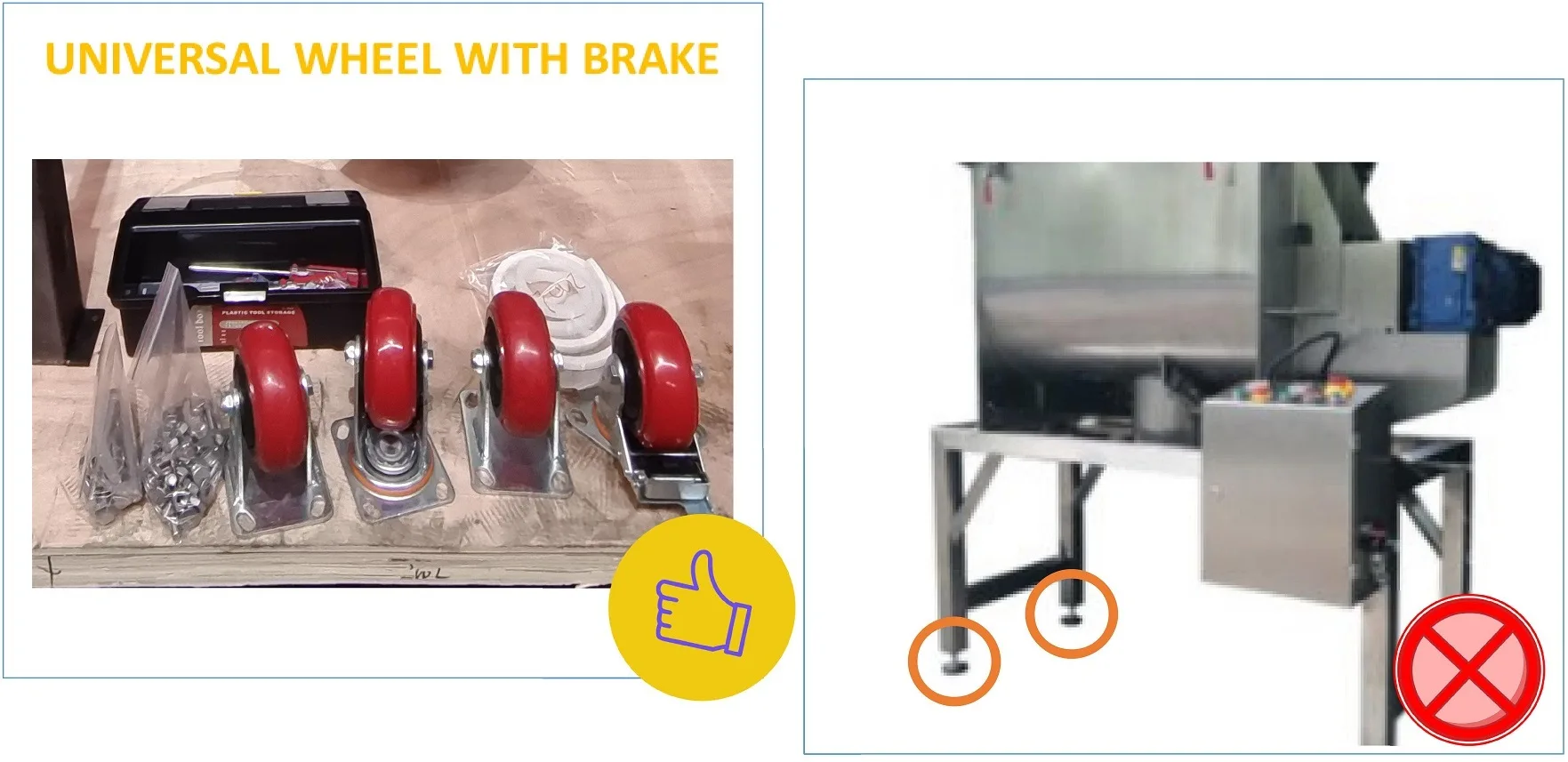

CONVENIENT TO BE MOVED. Are not able to be moved.

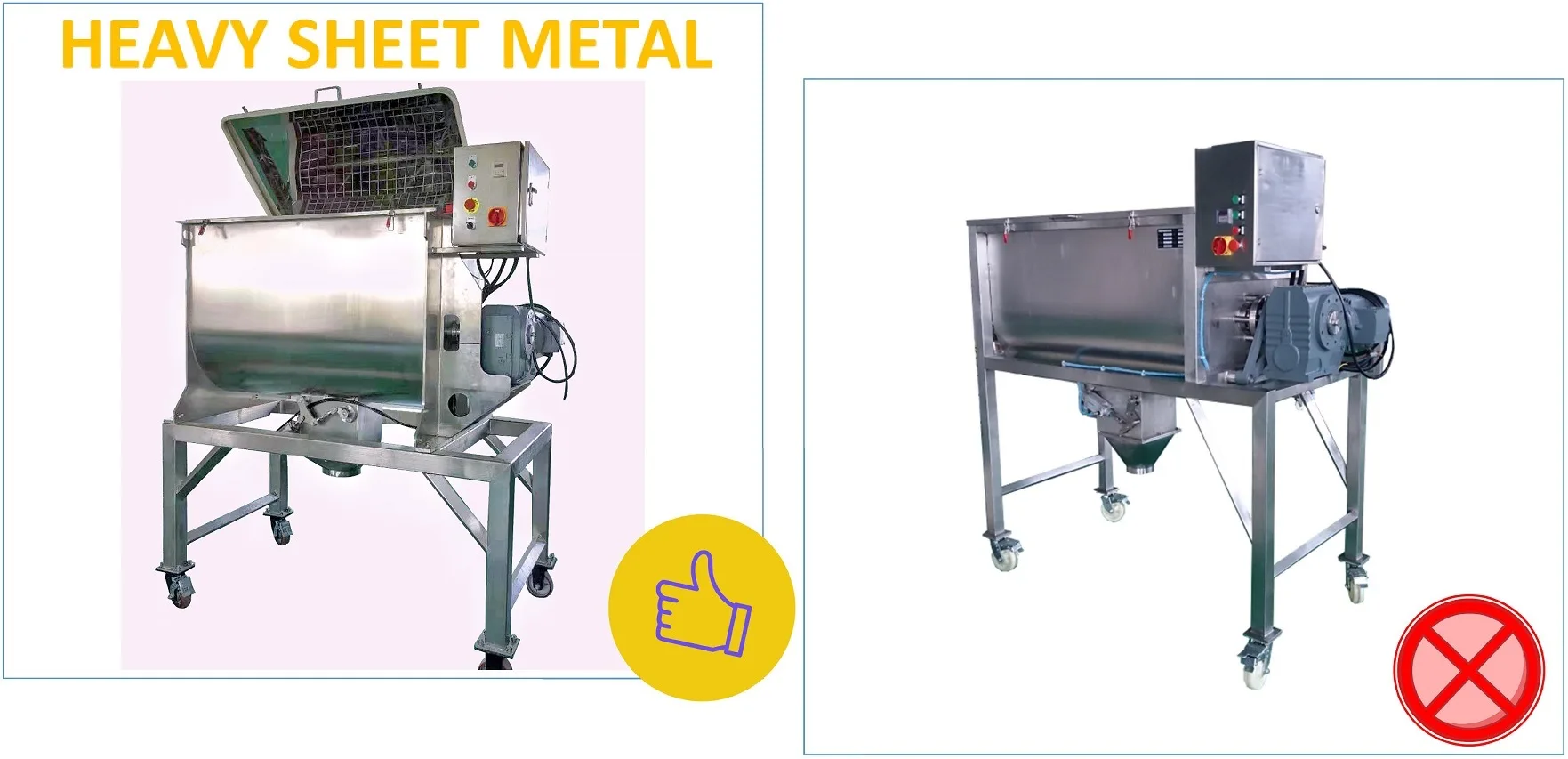

HEAVY SHEET METAL construction. Not heavy industry design.

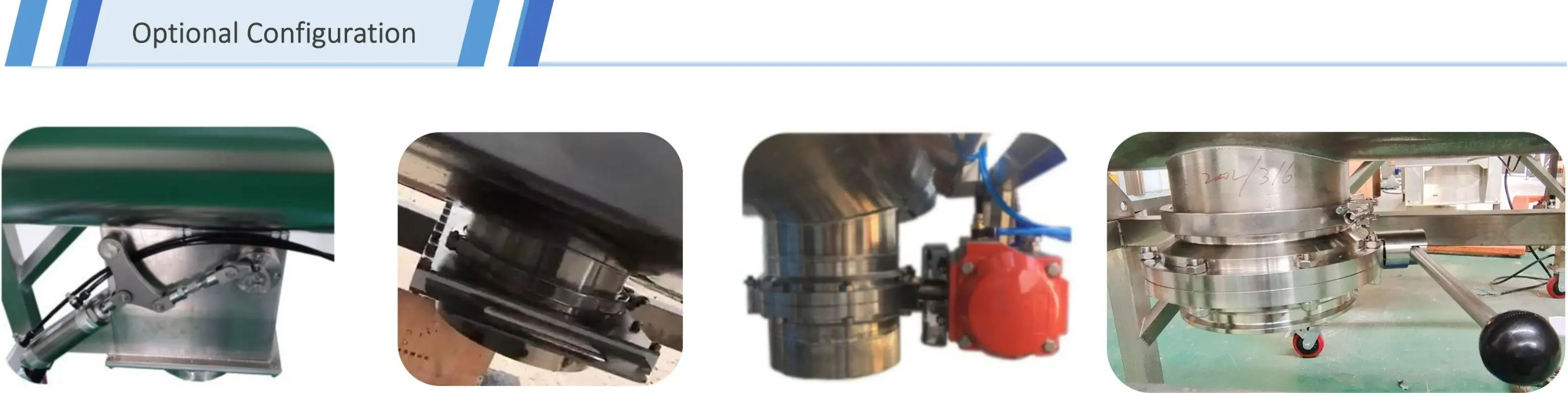

pneumatic square flap valve manual slide valve pneumatic butterfly valve manual butterfly valve
jacket heating/cooling weighing system spray dust collector

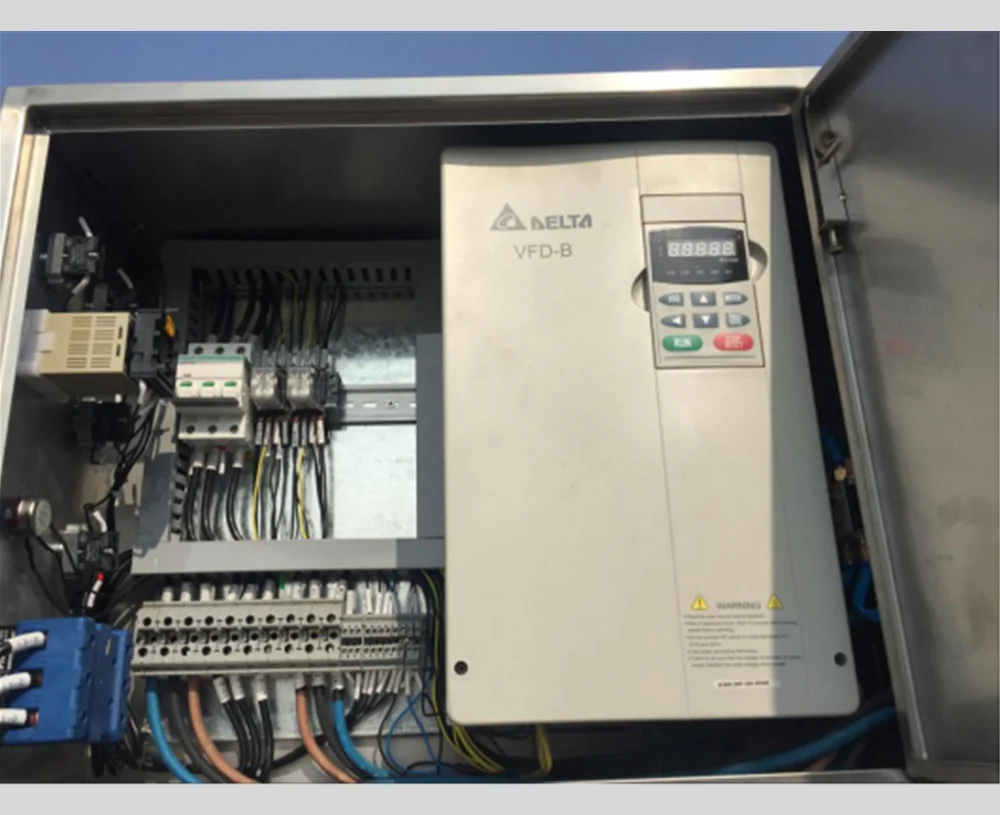

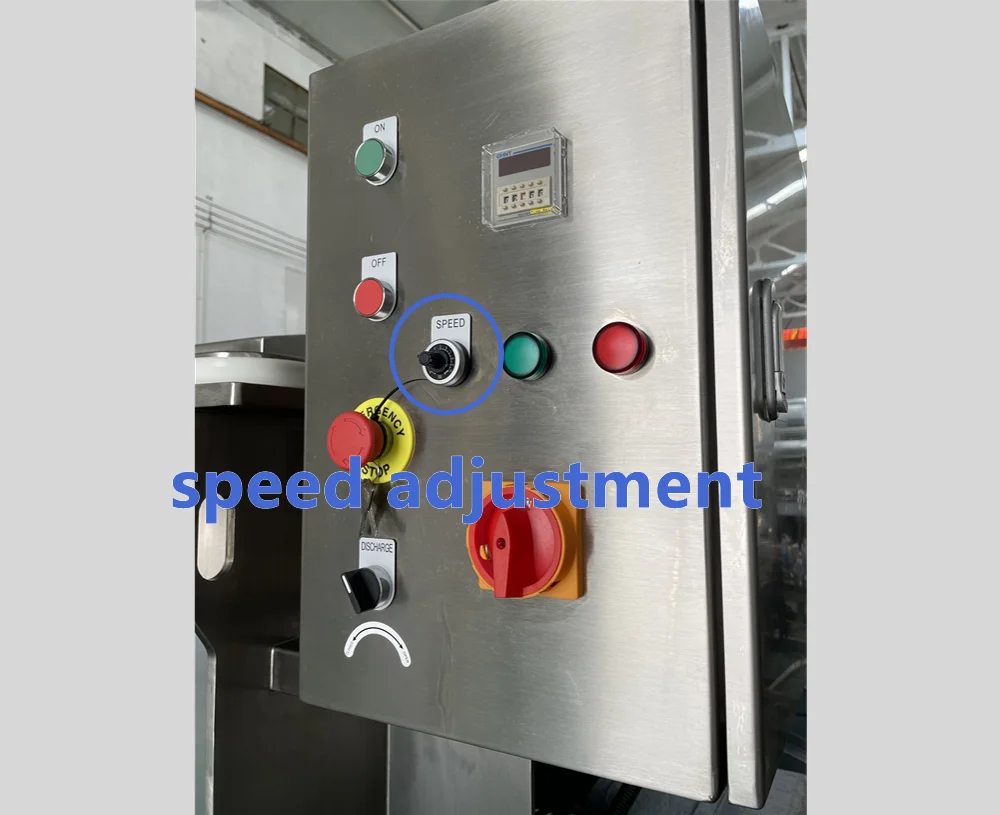

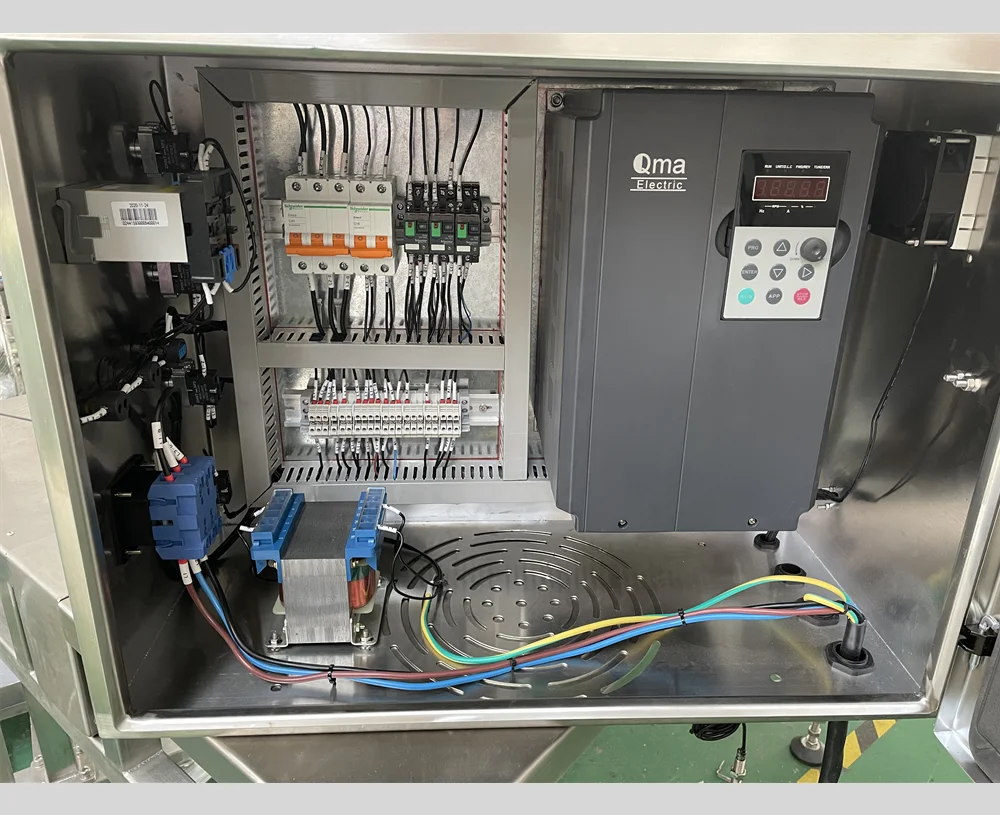

Install a frequency convertor to make speed adjustable

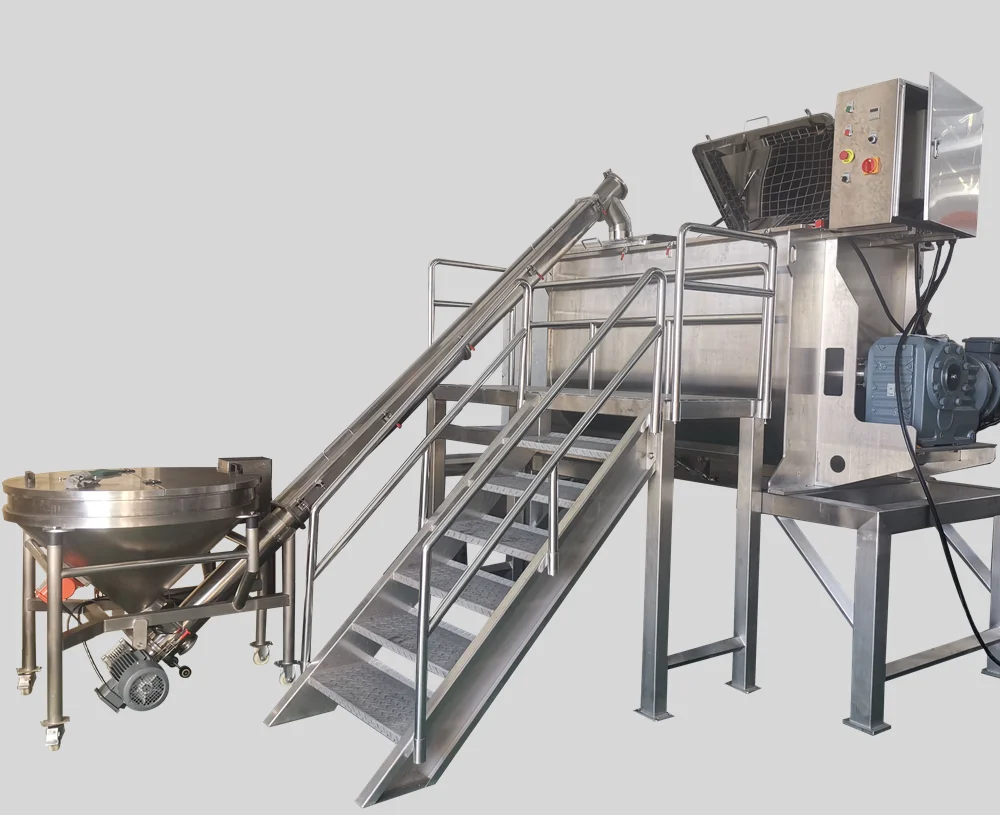

Different loading system: manual with platform and ladders, automatic with screw conveyor.

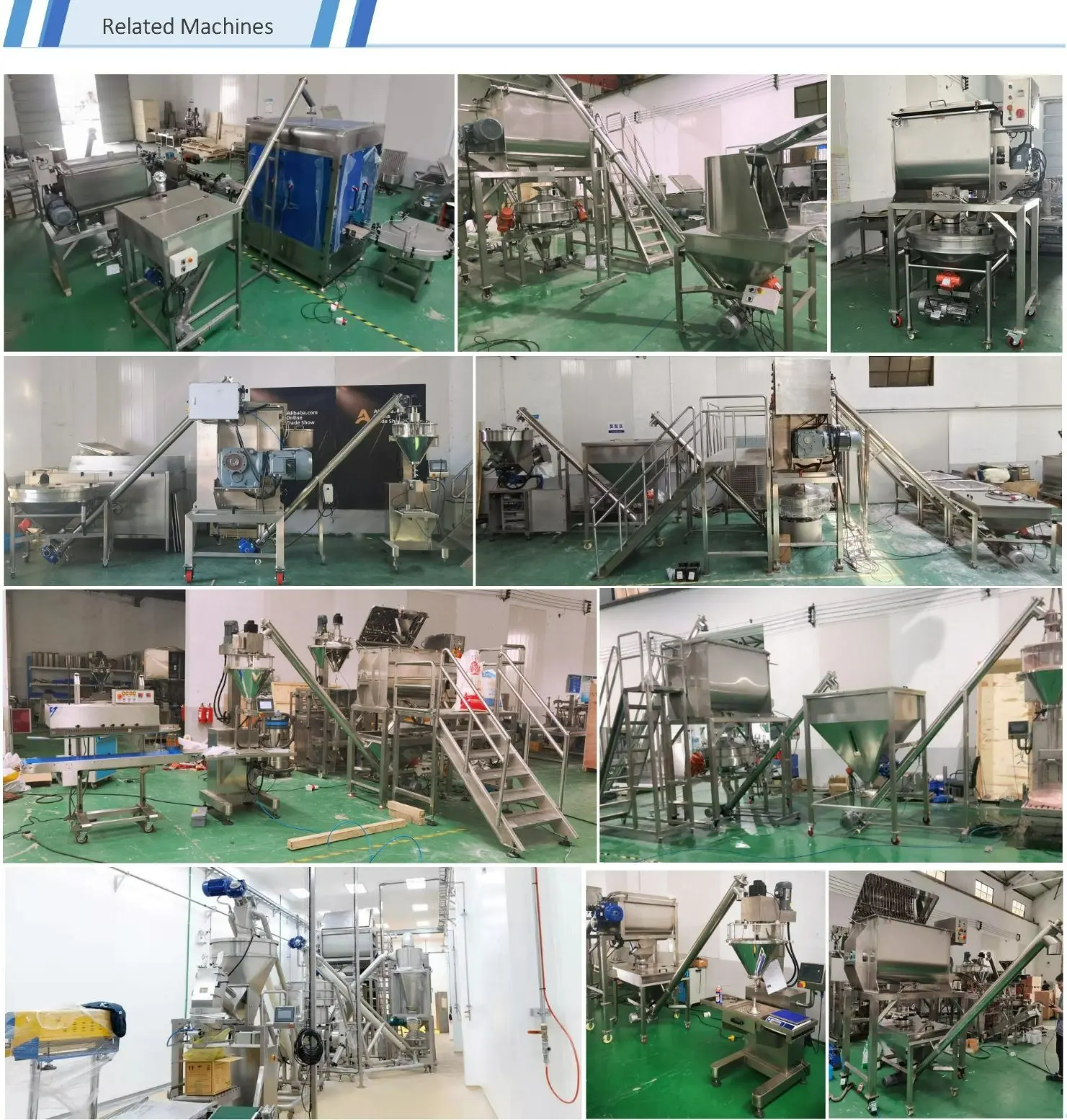

Related Machines

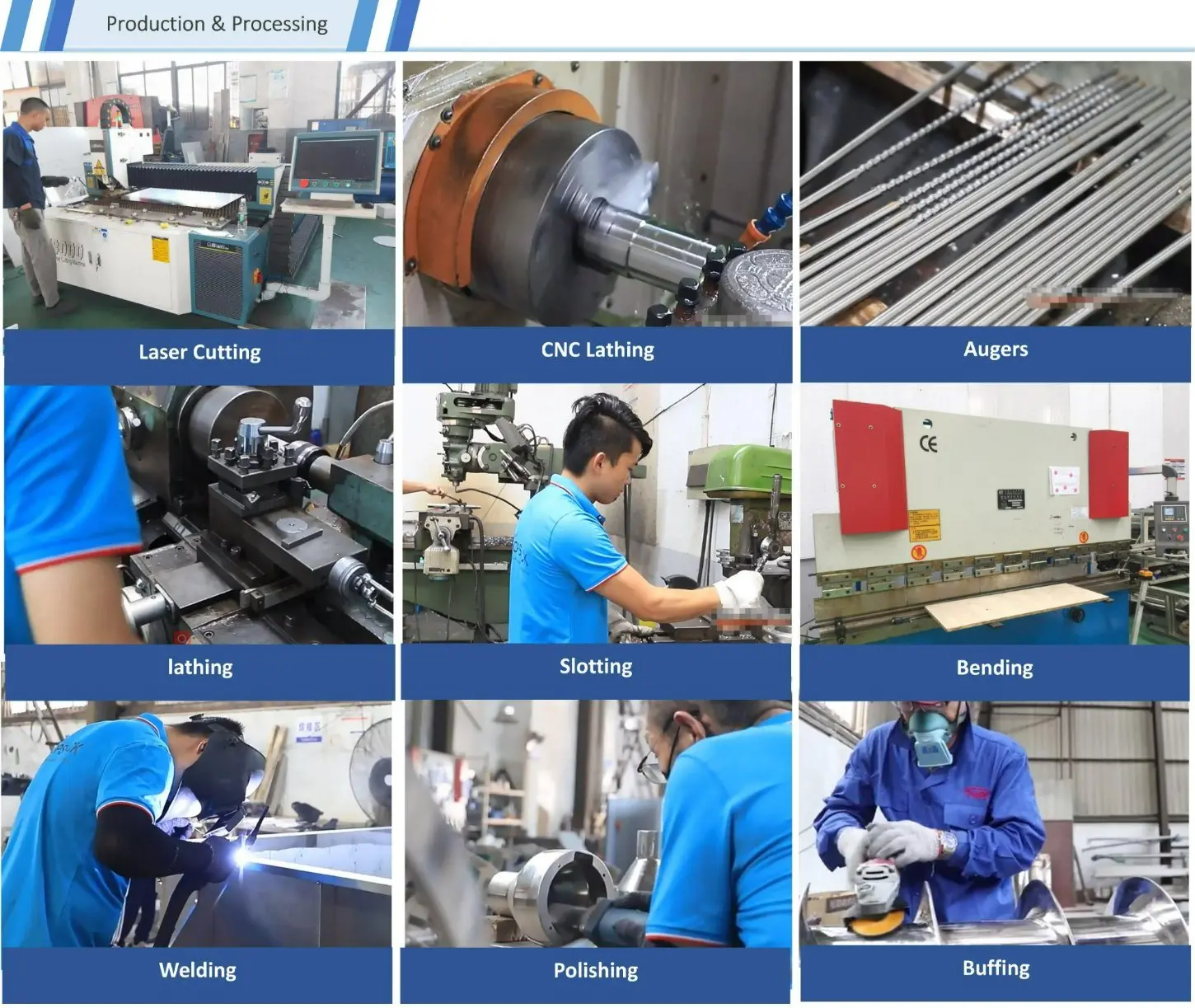

Production & Processing
PACKAGE & SHIPPING
About Us
FAQ
1.Are you a ribbon blender manufacturer?
Shanghai Tops Group Co., Ltd is one of the leading ribbon blender manufacturers in China, who has been in packing machine industry for over ten years.
2.Does your powder ribbon blender have CE certificate?
Not only the powder ribbon blender but also all our machines have CE certificate.
3.How long is the ribbon blender delivery time?
It takes 7-10 days to produce a standard model.
For customized machine, your machine can be done in 30-45 days.
For customized machine, your machine can be done in 30-45 days.
4.What’s your company service and warranty?
■TWO YEAR warranty, ENGINE THREE YEARS warranty, life-long service (Warranty service will be honored if the damage is not caused by human or improper operation)
■Provide accessory parts in favorable price
■Update configuration and program regularly
■Respond to any question in 24 hours Site service or online video service
For the payment term, you can choose from following terms:
L/C, D/A, D/P, T/T, Western Union, Money Gram, Paypal
L/C, D/A, D/P, T/T, Western Union, Money Gram, Paypal
For the shipping, we accept all term in contract like EXW, FOB, CIF, DDU etc.
5.Do you have the ability of design and propose solution?
Of course, we have professional design team and experienced engineer. For example, we designed a bread formula production line for Singapore BreadTalk.
6.What products can ribbon blender mixer handle?
Ribbon blender mixer can handle all kinds of powder or granule mixing and is widely applied in food, pharmaceuticals, chemical etc.
7. How do industry ribbon blenders work?
Double layer ribbons which stand and turn in opposite angels to form a convection in different materials so that it can reach a high mixing efficiency.
Our special design ribbons can achieve no dead angle in mixing tank.
Our special design ribbons can achieve no dead angle in mixing tank.
The effective mixing time is only 5-10 minutes, even less within 3 min.
8.How to select a double ribbon blender?
Choose a suitable model
Ribbon blenders have the effective mixing volume. Normally it is about 70%. However, some suppliers name their models as total mixing volume, while some like us name our ribbon blender models as effective mixing volume. You need to calculate the suitable volume according to your product density and batch weight.
For example, manufacturer TP produces 500kg flour each batch, whose density is 0.5kg/L. The output will be 1000L each batch. What TP needs is a 1000L capacity ribbon blender. And TDPM 1000 model is suitable.
For example, manufacturer TP produces 500kg flour each batch, whose density is 0.5kg/L. The output will be 1000L each batch. What TP needs is a 1000L capacity ribbon blender. And TDPM 1000 model is suitable.
Ribbon blender quality
Shaft sealing:
test with water shows the shaft sealing effect. Powder leakage from shaft sealing always troubles users.
Discharge sealing:
test with water also shows the discharge sealing effect. Many users have met leakage from discharge.

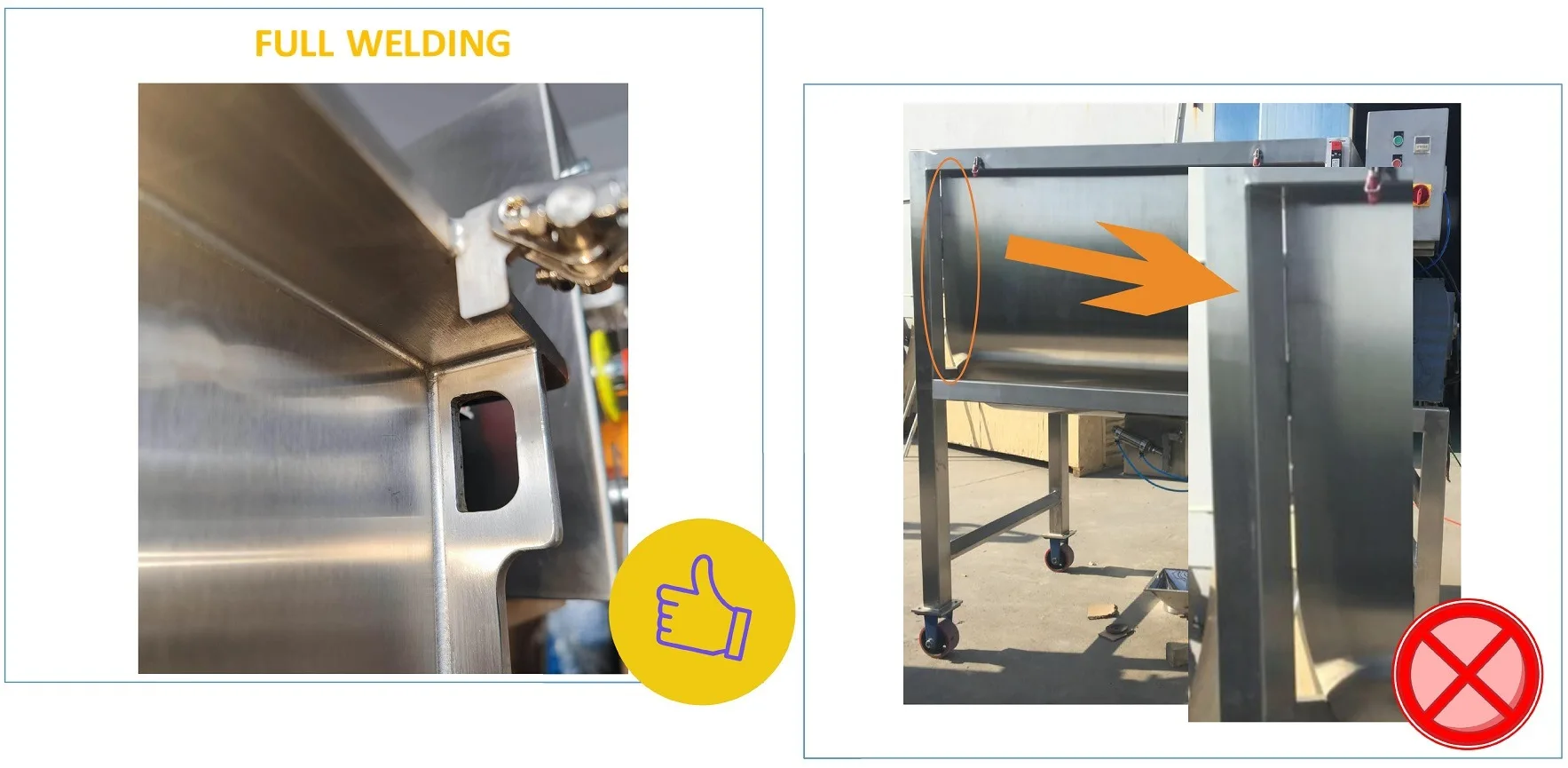

Full-welding:

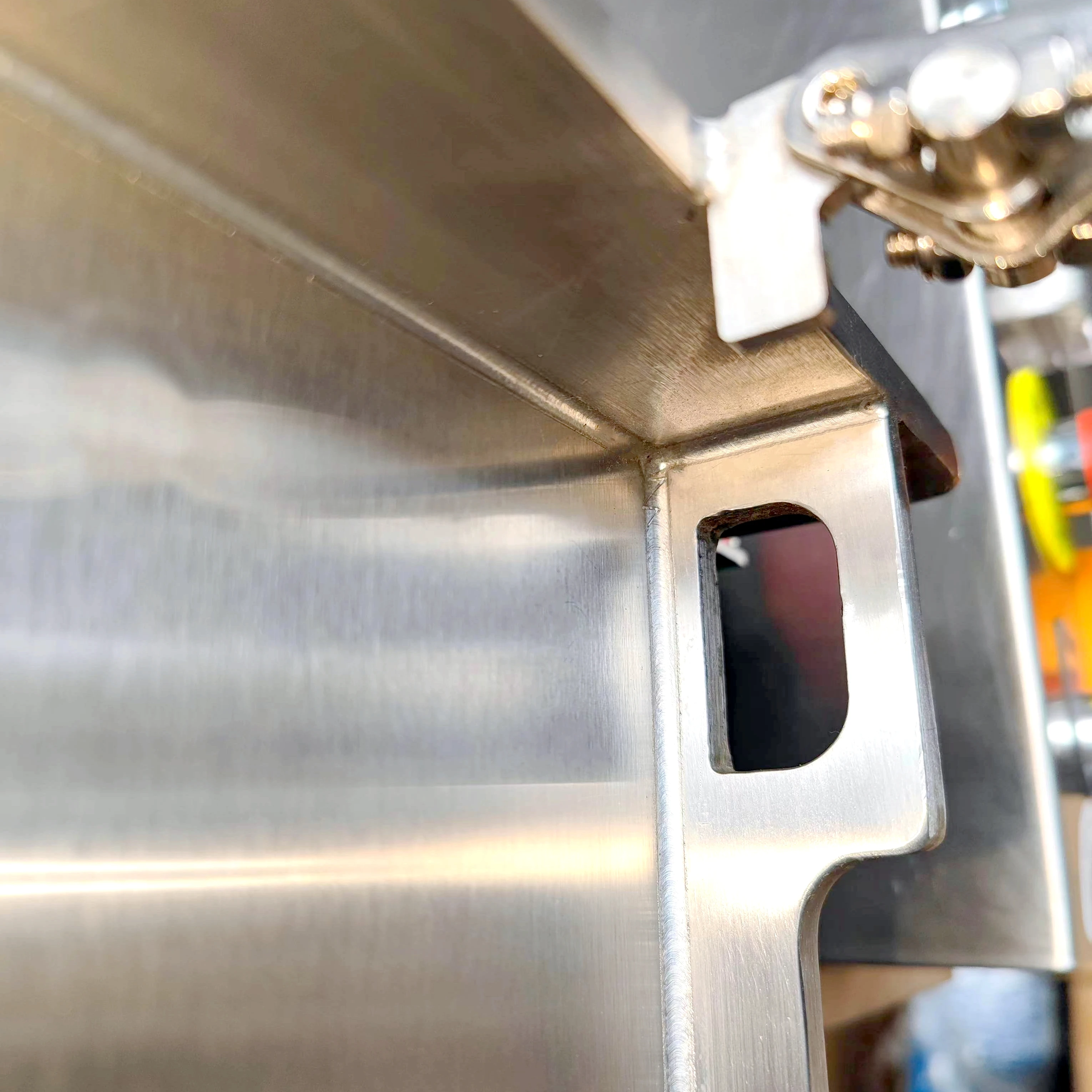

Full welding is one of the most important part for food and pharmaceutical machines. Powder is easy to hide in gap, which may pollute fresh powder if residual powder goes bad. But full-welding and polish can make no gap between hardware connection, which can show machine quality and usage experience.
Easy-cleaning design:
A easy-cleaning ribbon blender will save much time and energy for you which is equal to cost.
