CK6185E cnc lathe machine in Dalin
- Category: >>>
- Supplier: Shandong Pulute Machine Tool Co. Ltd.
Share on (60195066377):
Product Overview
Description

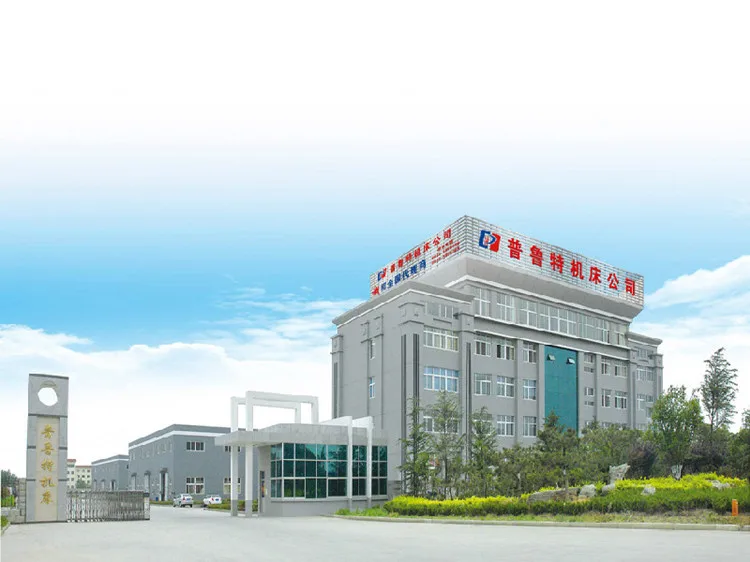

COMPANY INTRODUCTION
Shandong Pulute Machine Tool Co., Ltd. was established in 2008, specializing in the production of CNC lathes, machining centers,gantry and other CNC machine tools. The company has more than 200 employees, covers an area of 120,000 square kilometers, and has 5 workshops. The average monthly output is more than 180 machines, and the annual sales are more than 140 million CNY.
Machining center assembling workshop
Machining center assembling workshop
cnc lathe assembling workshop
cnc lathe assembling workshop
Plastic spraying and splash metal guard workshop
Machining workshop
FIRE FIGHTING TRAINING AND DRILLS
Fire fighting drill 1
for office building employees
Fire fighting drill 2
for employees in machining shop
Fire fighting drill 3
for employees in two assembling shops
MORE THAN 200 STAFFS
The regular meetings, the excellent employees, the sanitation cleaning, the safety knowledge test etc in SHANDONG PULUTE MACHINE TOOL CO., LTD
PACKING AND DELIVERY
There is the professional packing and delivery team in SHANDONG PULUTE MACHINE TOOL CO., LTD.
CERTIFICATES AND HONORS
Since PULUTE company was founded in the year of 2008, Shandong Pulute Machine Tool Co., Ltd. has won many honorary certificates every year.
SOME OF CUSTOMERS
SPECIFICATION AND CONFIGURATION OF CK6185E CNC LATHE

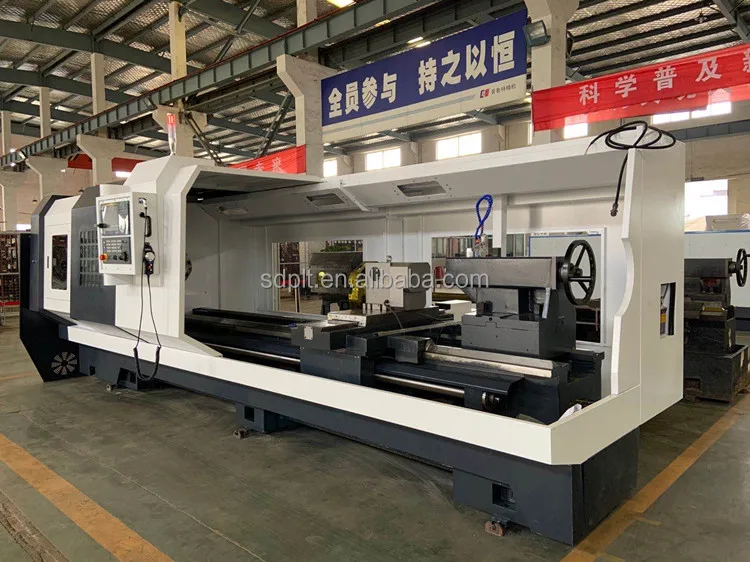

CK6185E cnc lathe machine in Dalin
processing capacity | max. swing over bed | 850mm |
max. swing over cross slide | 500mm | |
max. processing length | 1000/1500/2000/3000mm | |
X axis travel | 450mm | |
Z axis travel | 1100/1600/2100/3100mm | |
spindle | spindle transmission type | mechanical three-step, infinitely in step |
spindle speed | 10-85/40-350/110-850 rpm | |
spindle nose | C11 | |
spindle taper | 120/1:20 | |
spindle motor | 11kw | |
X and Z axes | ball screw diameter and pitch on X axis | 3205 |
ball screw diameter and pitch on Z axis | 5010/5010/6310/6310 | |
feeding motor torque on X axis | 10 N.m | |
feeding motor torque on Z axis | 15/22/22/30 N.m | |
X/Z axis rapid traverse | 4/5 m/min | |
X/Z axis repeatability | +/-0.005mm | |
processing accuracy | processing accuracy | IT6-IT7 |
work piece surface roughness | Ra 1.6 | |
tail stock | tail stock quill diameter | 100 mm |
tail stock quill traverse | 250mm | |
tail stock quill taper | MT6# | |
others | cutting tool size | 32X32 mm |
machine dimension | 3500/4000/4500/5000x2000x2000 mm | |
N.W. | 4100/4500/5100/5800 kgs |
MAIN ADVANTAGES

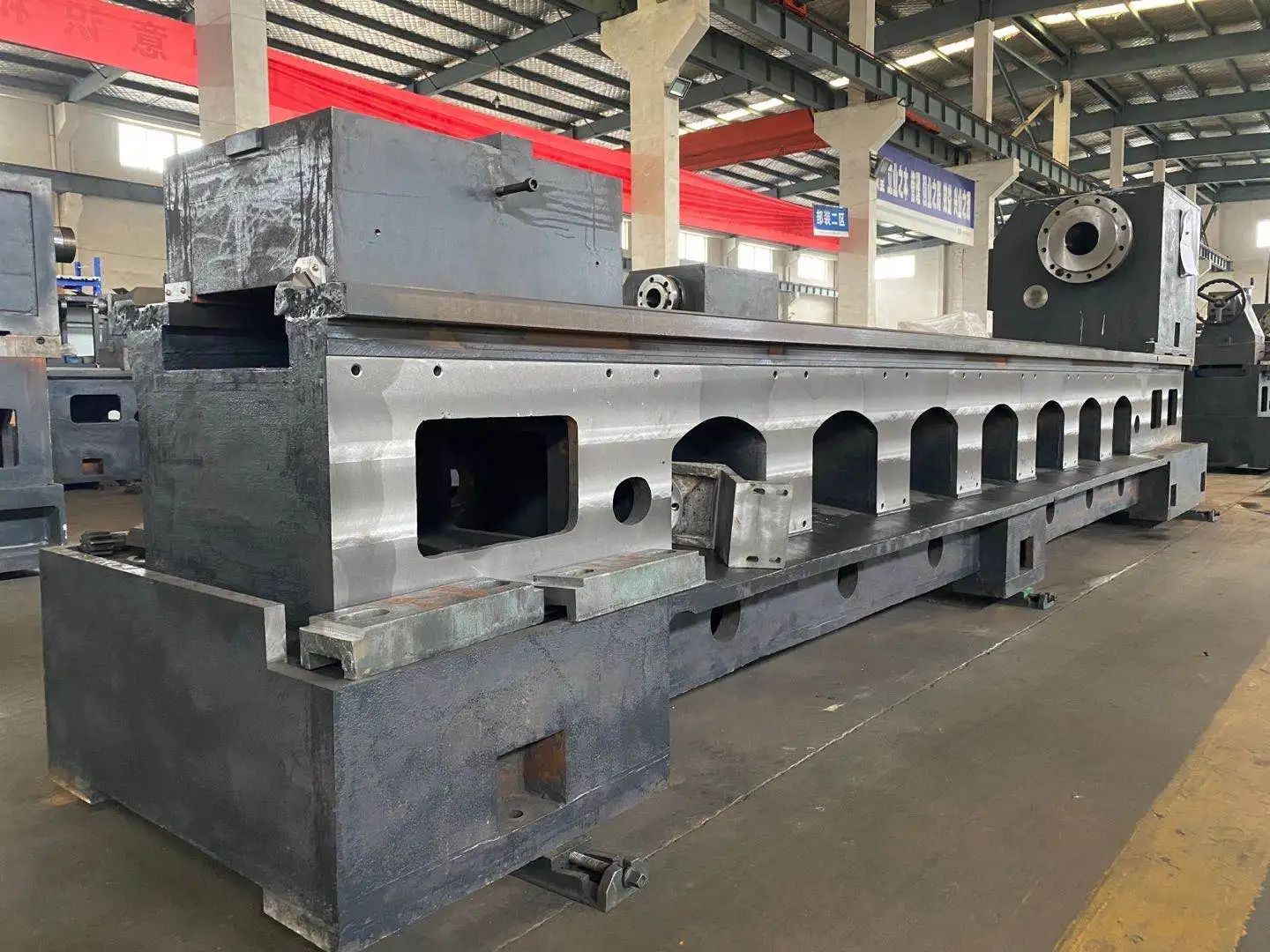

ONE-PIECE TYPE
machine bed is ONE-PIECE TYPE casting, very suitable for heavy duty work. guide hardness is more than 50-degree HRC.
MECHANICAL THREE STEPS
Spindle speed is mechanical THREE STEPS,variable frequency infinitely speed in each step.
GEAR BOX
Spindle has gear-box with huge torque, very suitable for heavy duty work.
BED WIDTH 600MM
the width of machine bed is 600 mm.
103 mm spindle bore
Spindle bore 103 mm as standard, 130 mm as optional.

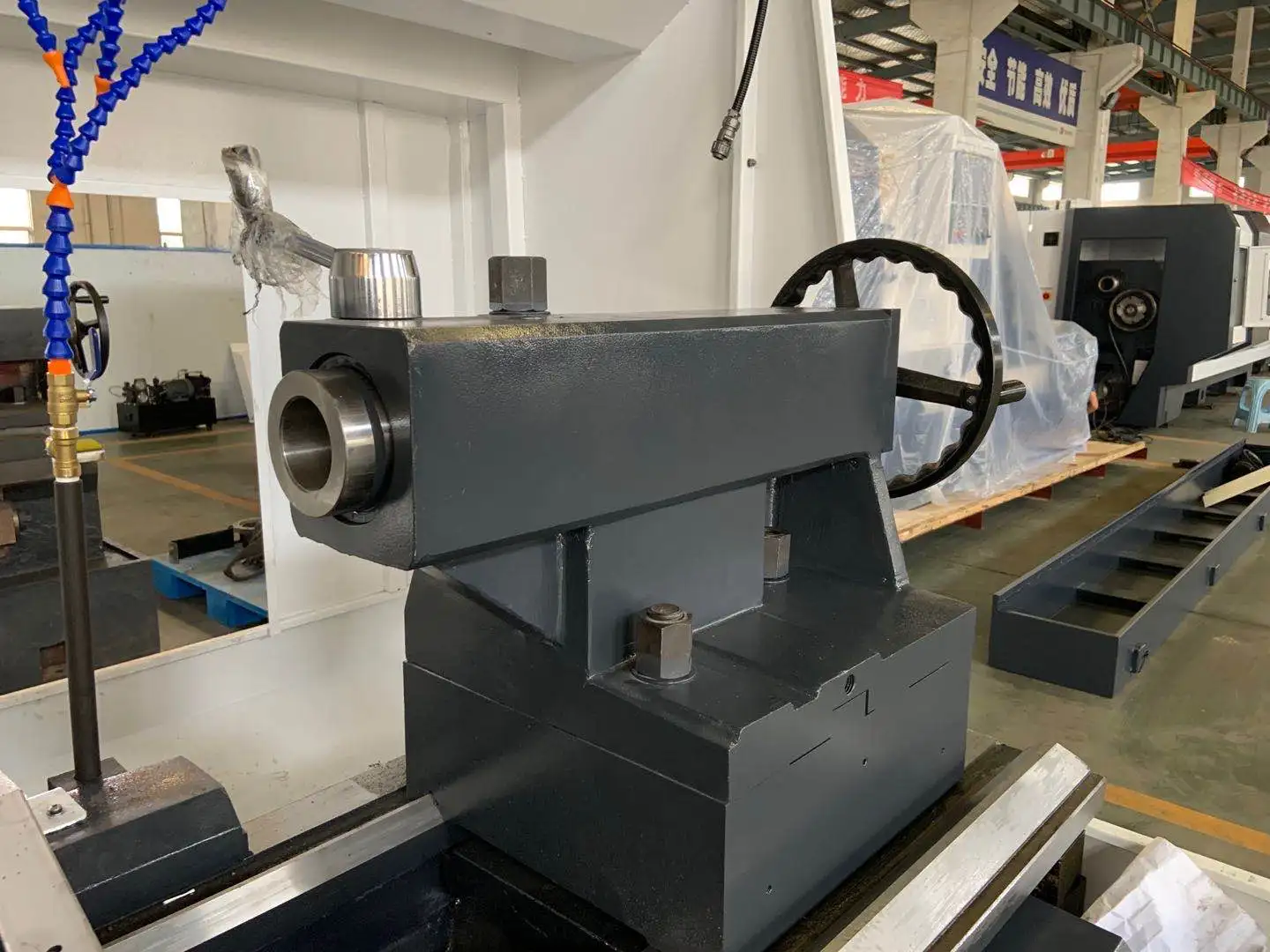

manual tail stock as standard
hydraulic tail stock is optional

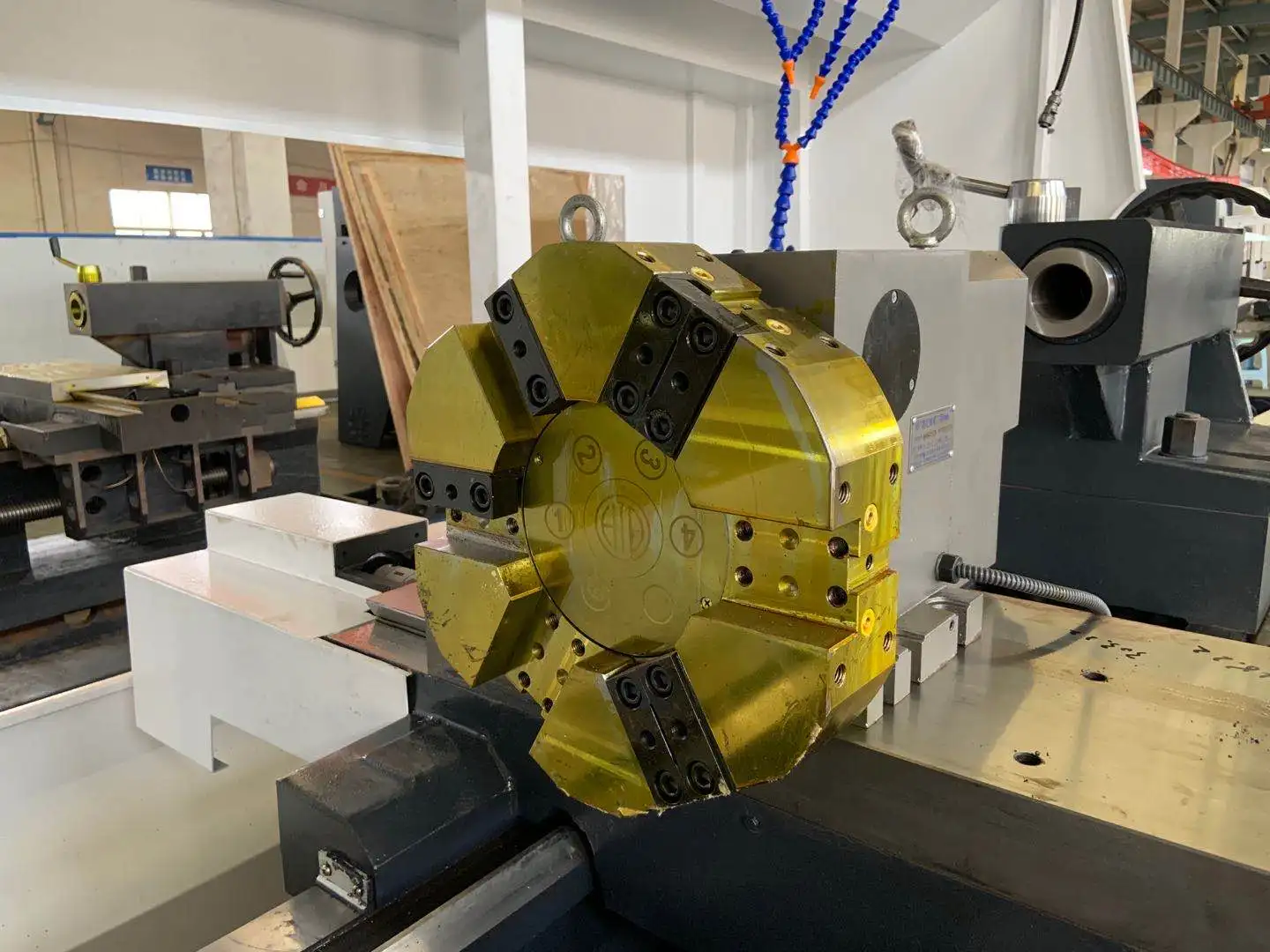

400 mm manual chuck as standard
hydraulic chuck is optional.
4 station electric turret as standard
6 or 8 station turret is optional.

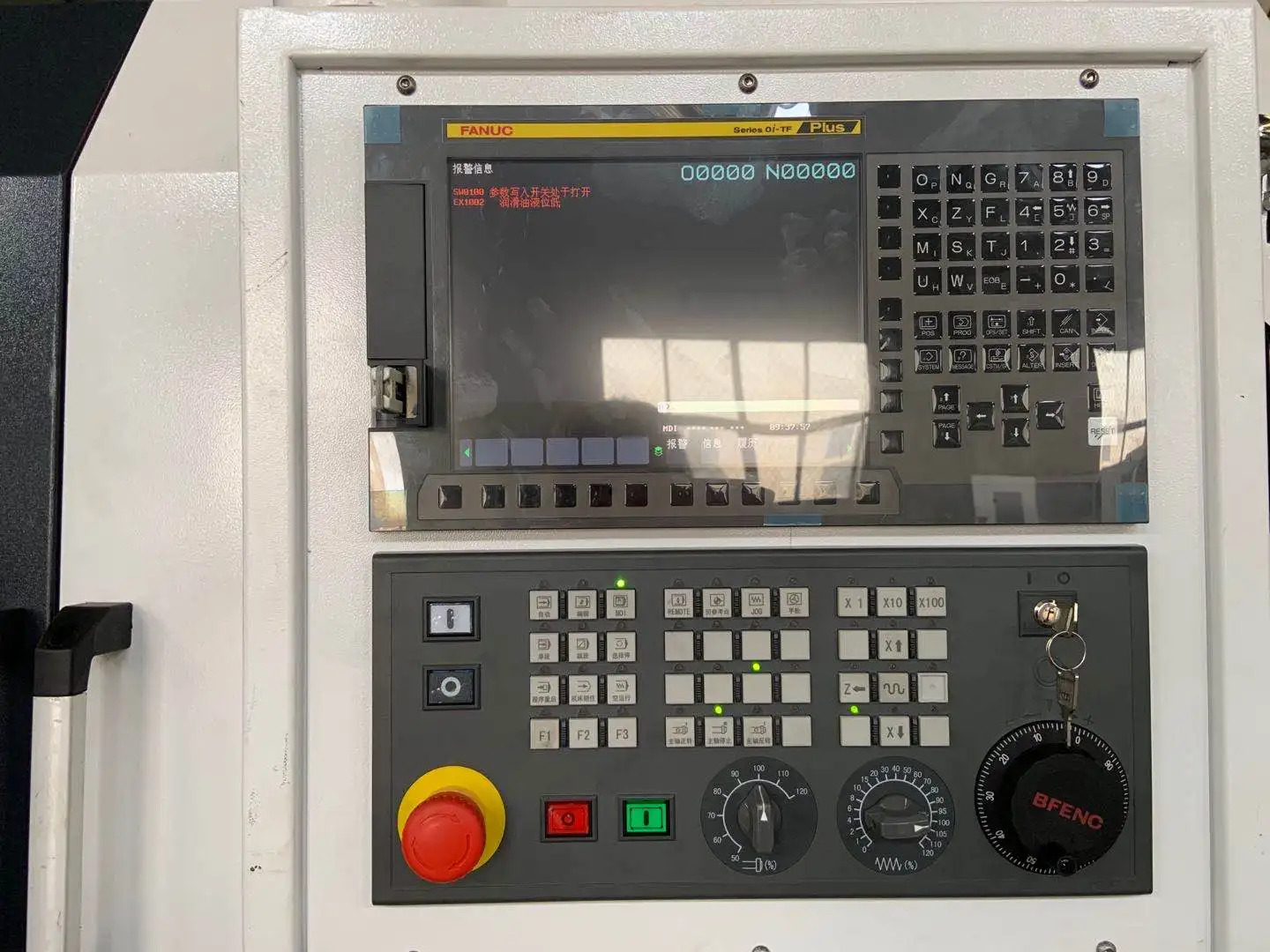

GSK NC controller as standard
Siemens 808D and 828d, Fanuc 0i TF, Mitsubishi E80 and M80, Fagor 8055, Syntec 6TA and 21TA, etc are optional.
WELCOME TO OUR FACTORY SINCERELY.
