Product Overview

Description



mini radio transceiver RS232/RS485/RS422 wireless IP  communication

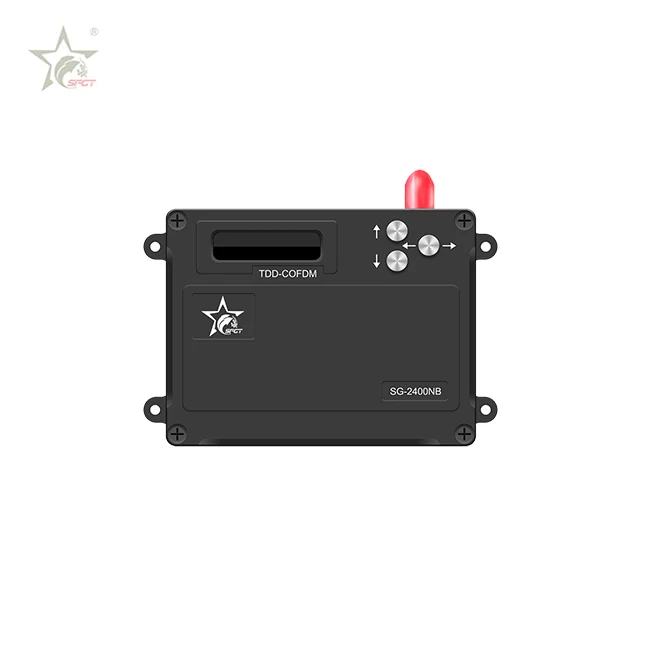

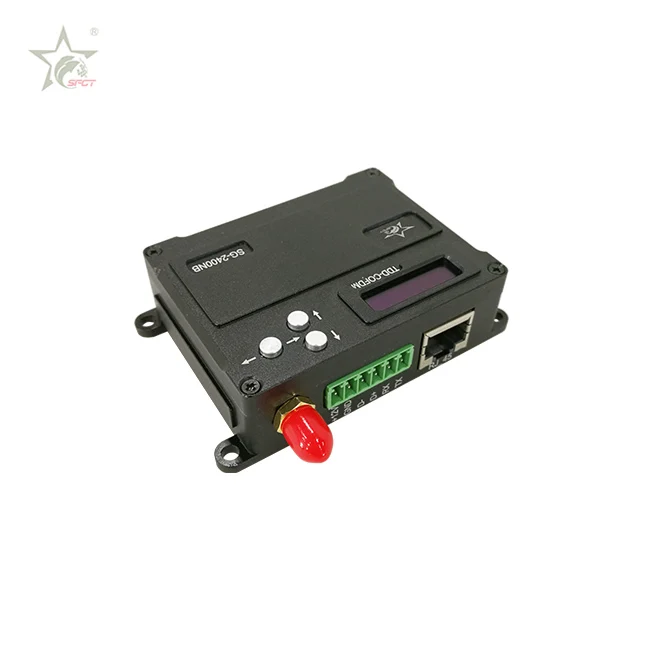

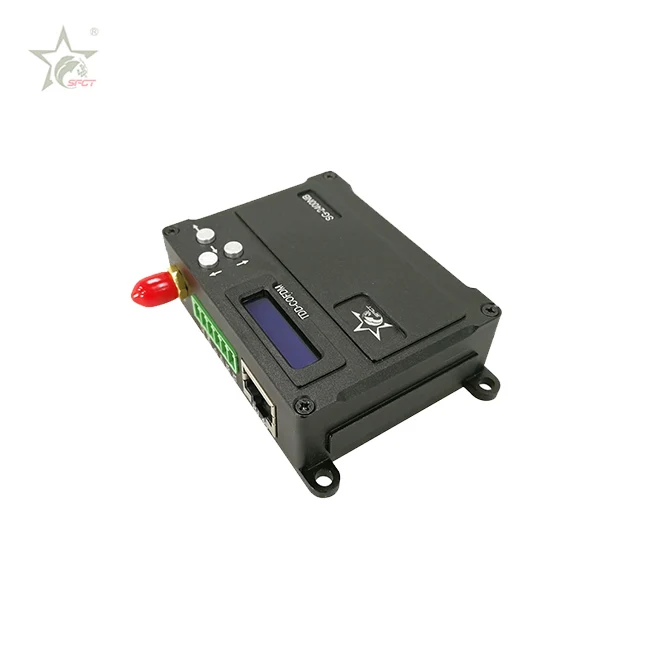

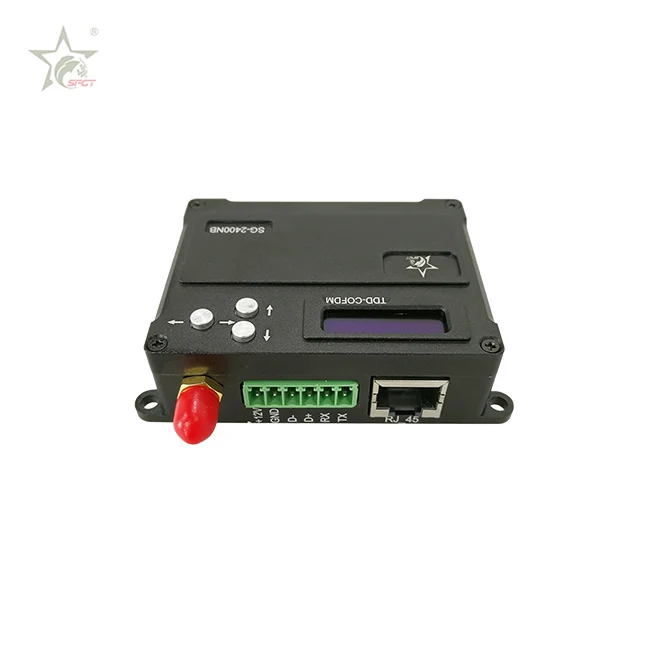

  SG-2400NB

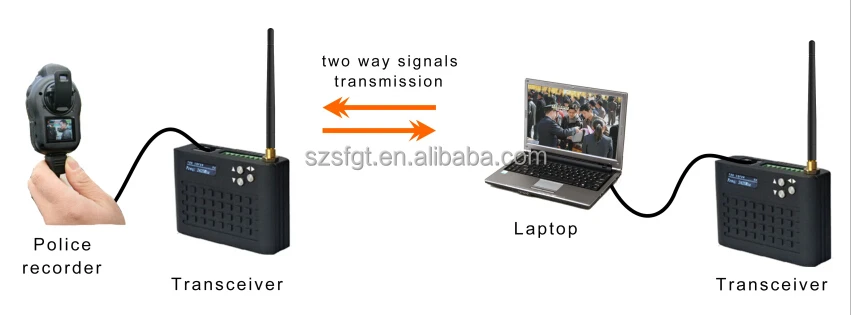

    SG-2400NB TDD_COFDM is our latest designed ultra-small digital wireless transmission equipment, which uses the advanced processing technology and leading division COFDM modulation combine to provide a perfect two-way encryption (encryption support AES_128bits) network data transfer channel and two way signal transmission. Effectively achieve real-time, anti-multipath, high-speed mobile data, voice, image duplex transmission and network building function.











Features:





#Can up to 6.5Mbps data streaming,adaptivedynamic stream allocation technology.



#TDD-COFDM modulation



#Support PTP&PMD network technology



#Support LOS/NLOS high speed moving transmission.



#Offer standard RS-232/RS-485/RS-422 and RJ45 data modes.



#High standards of military-grade applications;



#Up to 1080P resolution;



#Small volume,light weight, Portable and convenient , aluminum outer-casing with good heat dissipation;



#Good quality OLED digital paneldisplay, concise and simple operation panel.



#User can adjust the frequency,rf bandwidth,rf power and set up secret key ;



#Support network building,can be 4 or 8 slavers to 1 master working mode.







Specifications:



Model	SG-2400NB
Power supply	DC7V~17V
	6W consumption
Ethernet	10/100BaseT,Auto-MDI/X,IEEE802.3
	TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS
Output frequency	2405~2470MHz,in step 1MHz adjustable(Other frequencies can be customized)
Output rf power	30dBm(100-1000mW) adjustable
Bandwidth	4MHz/8MHz( adjustable )
Encryption mode	128bit AES(or 256bit AES)
Error correction mechanism	32bit of CRC,ARQ
Modulation	TDD_COFDM
Data modes	RS485/RS232/RS422 (adjustable)
Ethernet	RJ-45
Resolution	up to 1080P
Standard video format	PAL/NTSC(adjustable)
Parameter control method	Through OLED control panel to modify parameters
Working temperature	-40°C~85°C
Delay time	only 50ms

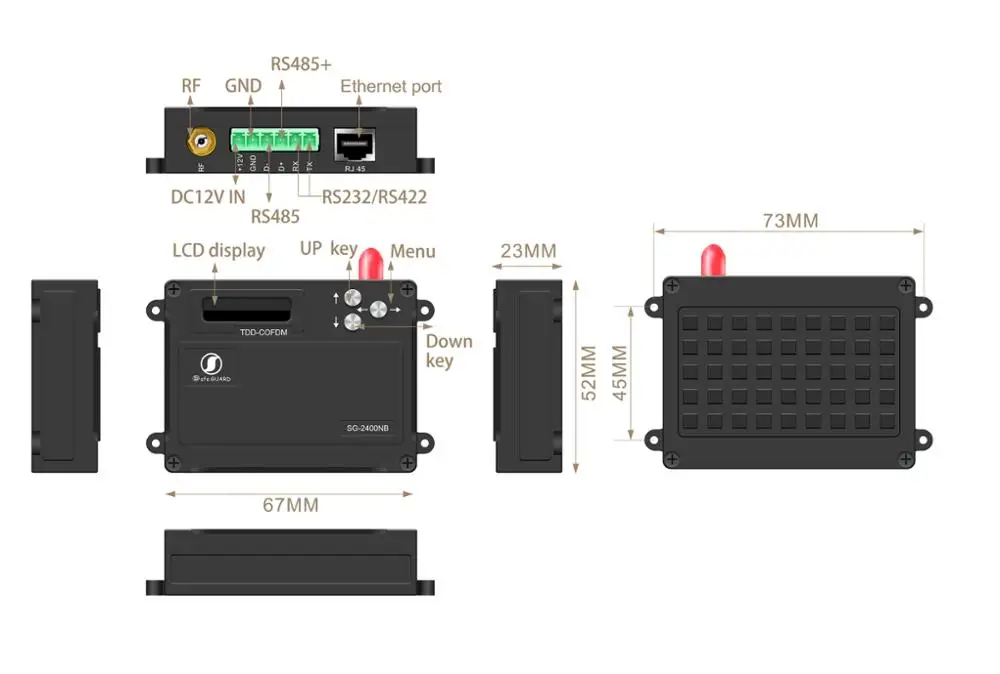

Dimension	67*52*23mm
Weight	122g

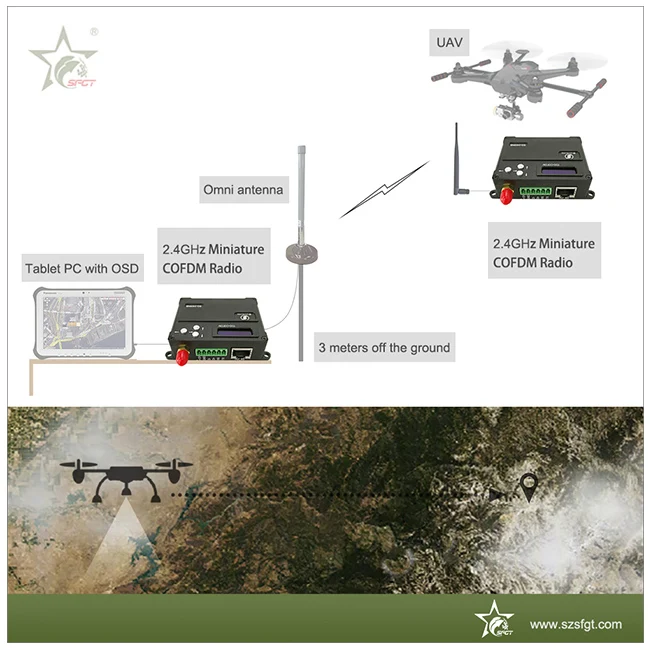

Product application:

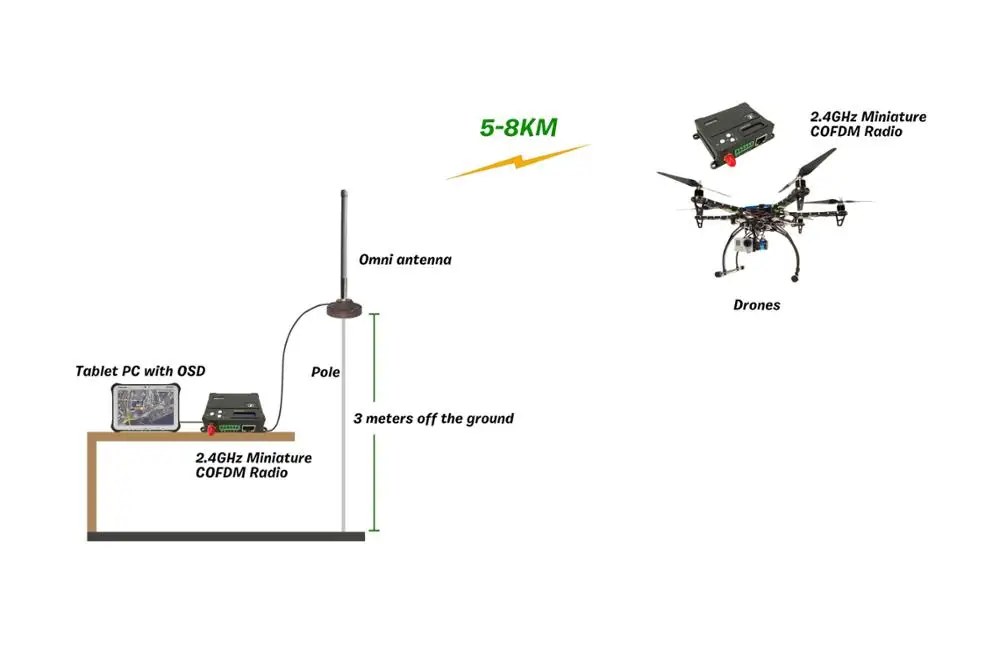

  It has advatange of small volume and light weight,especiallym widely used in UAV drone /Quadcopter/Octocopter/hexacopter applications such high-speed moving complex environment or for Law enforcement forces used  .



1) UAV shooting

2) Police Law enforcement
