Knife Sharpener Machine For Blade Surface
- Category: >>>
- Supplier: Ruian Koten Machinery Co. Ltd.
Share on (60195213075):
Product Overview
Description
Knife Sharpener Machine For Blade Surface
Product Description

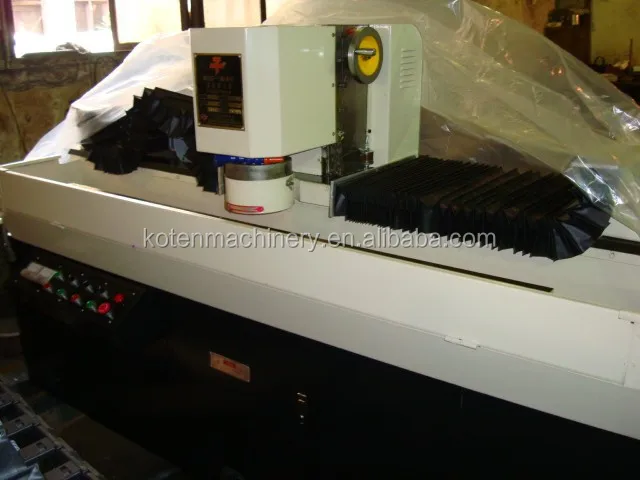

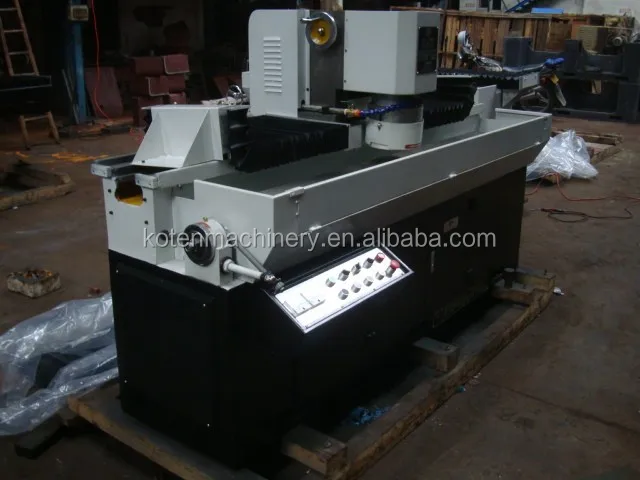

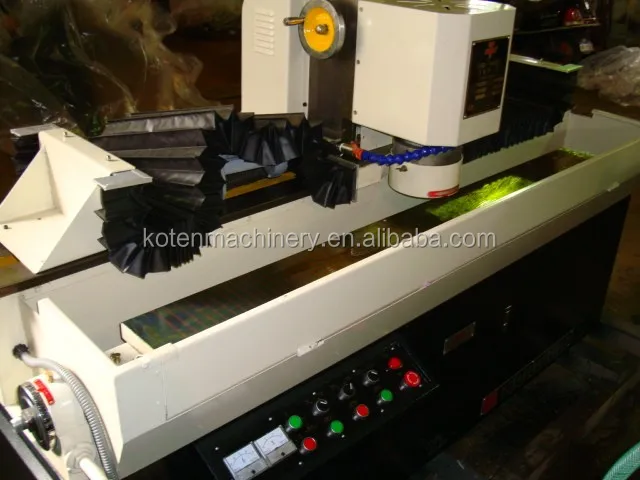

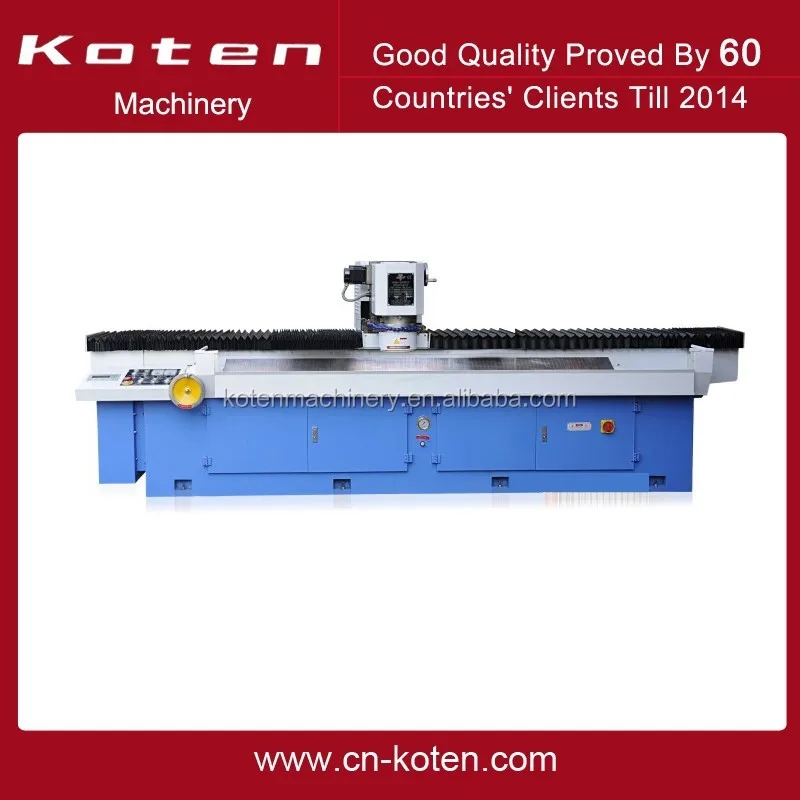

MSQ-A Knife Sharpener Machine For Blade Surface is nation-grade new product developed by our factory. It is applicable to grinding blades of imported Kolbus, Wohhenberg, Sulby, Bona and Snad. It is a renewal product for the advantages of small volume and energy-saving as well as sharp knife-edge at any angle grinded by this machine. Its technical standard has been up to the advanced level in 1990s at home and it has well received by the customers from Southeast Asia, Africaand Europe, etc., through further selling.
Main Specifications
| No. | Description of Knife Sharpener Machine For Blade Surface | Specification & Type | ||
| MSQ-1650A | MSQ-2200A | MSQ-2700A | ||
| 1 | Max. grinding length | 1700mm | 2200mm | 2700mm |
| 2 | Size of grinding wheel | 200X100X100 | ||
| 3 | Width of grinding blade | 180mm | ||
| 4 | Rotation angle of worktable | ± 90° | ||
| 5 | Moving speed of grinding-head | 4.5M /minute | ||
| 6 | Grinding-Head Motor Power | 3KW | ||
| 7 | Grinding Motor Speed | 145rpm | ||
| 8 | Feed Motor Power | 0.55KW | ||
| 9 | Cooling Motor Power | 125W | ||
| 10 | Grinding Wheel Attached specification | |||
| A. Type and Code | White corundum WA Cup type | |||
| B. Hardness | K | |||
| C. Granularity | 46# | |||
| 11 | Overall dimensions | 220X85X145cm | 270X85X150cm | 350X90X150cm |
| 12 | Machine Weight | 950kg | 1100kg | 1800kg |
| No. | Description | Specification Type | ||
| MSQ-1650B | MSQ-2200B | MSQ-2700B | ||
| 1 | Max. grinding length | 1700mm | 2200mm | 2700mm |
| 2 | Size of grinding wheel | 200X100X80 | ||
| 3 | Width of grinding blade | 180mm | ||
| 4 | Rotation angle of worktable | 0~± 90° | ||
| 5 | Moving speed of grinding-head | 4.5-6.5M/minute | ||
| 6 | Grinding-Head Motor Power | 3KW | ||
| 7 | Grinding Motor Speed | 145rpm | ||
| 8 | Feed Motor Power | 650W/850W | ||
| 9 | Cooling Motor Power | 125W | ||
| 10 | Grinding Wheel Attached specification | |||
| A. Type and Code | White corundum WA Cup type | |||
| B. Hardness | J | |||
| C. Granularity | 46#-60# | |||
| 11 | Overall dimensions | 220X85X145cm | 270X85X150cm | 320X90X150cm |
| 12 | Machine Weight | 1000kg | 1150kg | 1850kg |
Packaging & Shipping
Our Services
Every Knife Sharpener Machine before shipping will be tested again and again by our engineer in order to keep the machine with good quality, our sales teams also will check the machine again before packaging as a second quality confirmation.
