Haokai 10x5 Tandem/Dual Axle Cage Trailer B105TC

Product Overview

Description

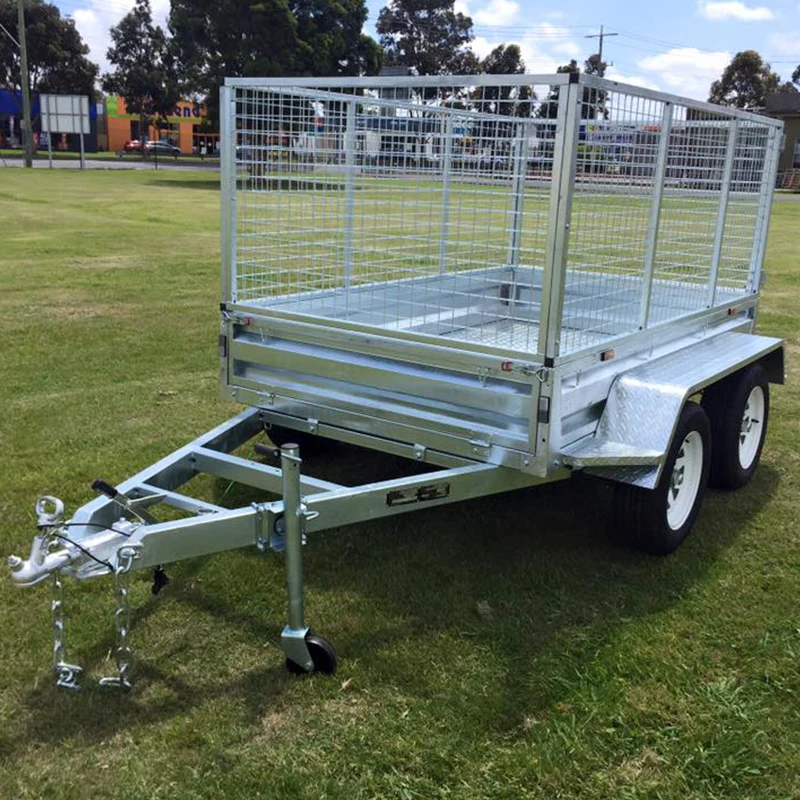

Haokai 10x5 Tandem/Dual-Axle Cage Trailer B105TC

WT-B85/105/125TC Tandem Cage Trailer Specifications

CE Approved Models	Trailer Overall Size(mm)	Box Size (mm)	Container Capacity
			20	40
B85TC	3730x1500x1500/1800	2480x1500x300	17pc	35pc
B105TC	4250x1500x1500/1800	3000x1500x300	15pc	30pc
B125TC	4850x1500x1500/1800	3600x1500x300	14pc	30pc

• Mesh Cage Depth: 600 or 900mm
• Trailer Sides: 1.2mm Ribbed Steel Plate Galvanized w/ Standard 300mm Depth
• Floor: 2.5mm Checker Plate
• Surface Finish: Hot-Dipped Galvanized
• Load Rating: 1500kg(Accurate Rating based on Size & Material Selection)
• Chassis & Drawbar: 40x30x2.5mm RHS, 100x50x3.75mm RHS

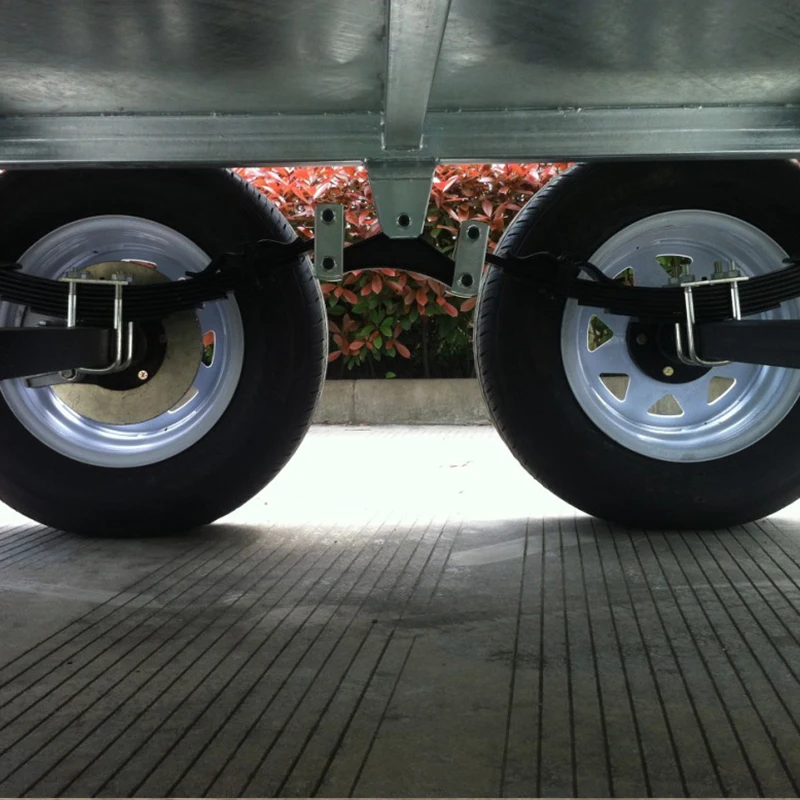

• Suspensions: Leaf Springs
• Axle & Brake System: Dual Axles; Electric or Mech Disc Brake w/Handbrake
• Wheels & Tyre:White Spoke Wheel,185/80 R14 e-mark & DOT Certified
• Coupling : Ball Coupling for Quick and Easy Release
• Jockey Wheel U Bolt Mount
• Tailgate: Drop Down Rear Tailgate with Slip On-Off Hinges
• Light & Plugs: Rear-Mounted Tailights, 5 or 7 -Pin Round or Flat Plug e-Mark & DOT Certified

WT-B85/105/125TC Tandem Cage Trailer Options

• Box Size & Color Personalization Available
• H/D RHS for Chassis
• H/D Round Axle w/ Matching Suspension
• Floor Options: Timber, Plywood, Treadplate Iron/Steel, Ribbed Iron/Steel Plate
• Rear Drop Legs, Front Drop Down Tailgate
• Canopy, Spare Tyre Carrier or Tool Box
• Reflectors and Side Clearance Lights
• Add-On Utility Frames & Racks
