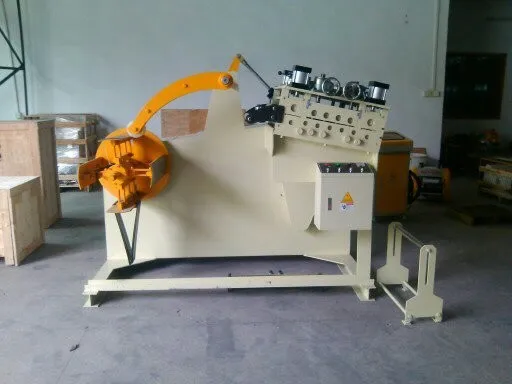

Haiwei manual decoiler straightener 2 in 1 machine
- Category: >>>
- Supplier: Dongguan City Haiwei Intelligent Equipment Incorporated Company
Share on (60195859307):
Product Overview
Description

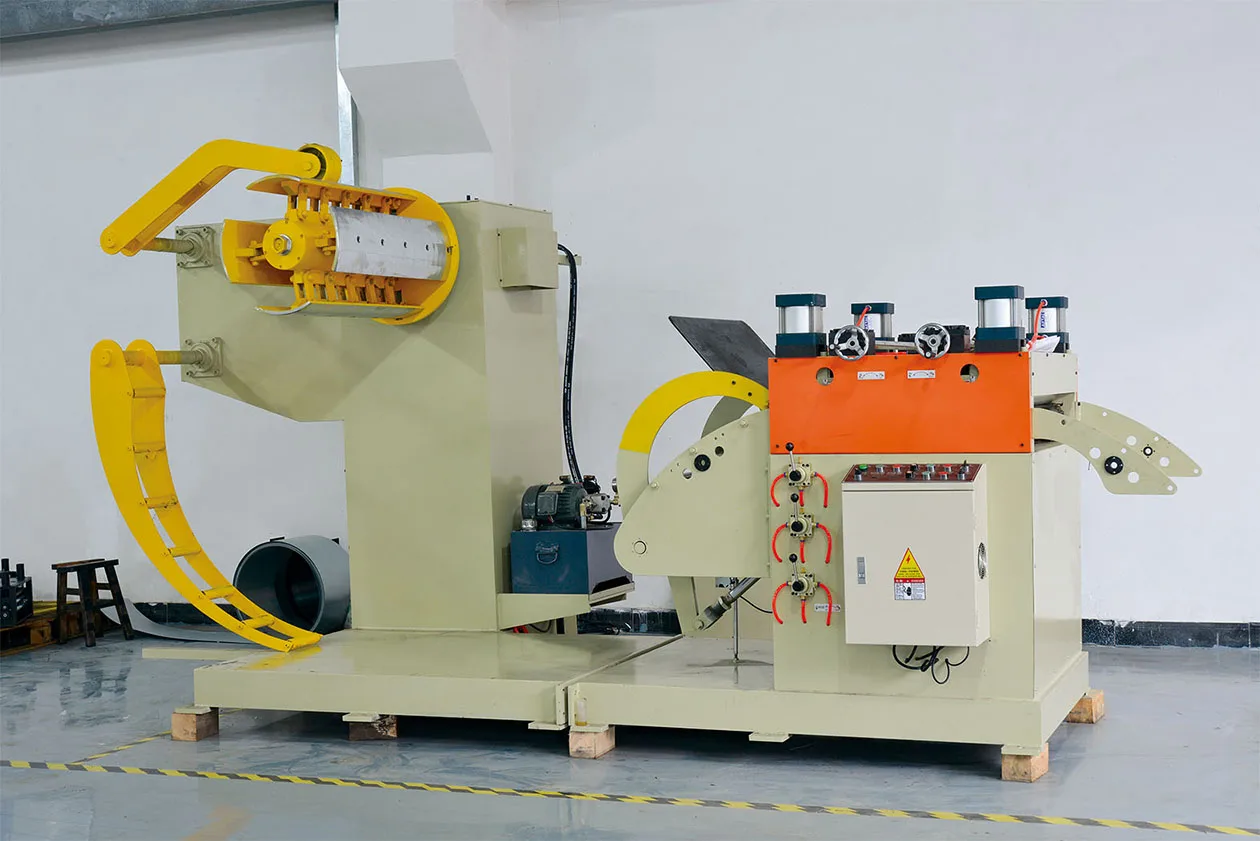

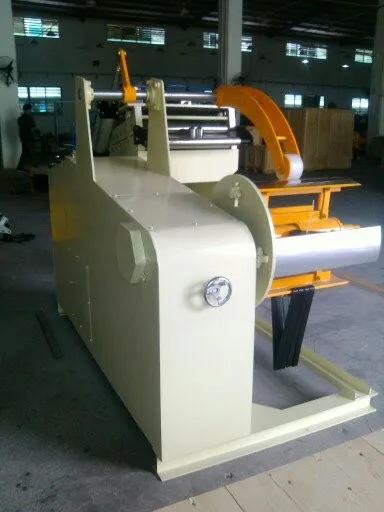

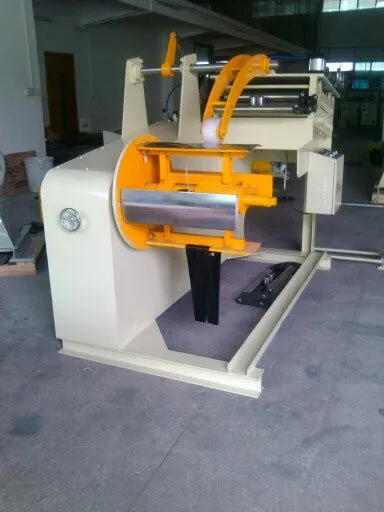

Haiwei nanual decoiler straightener 2 in 1 machine for stainless steel coil GL-400A

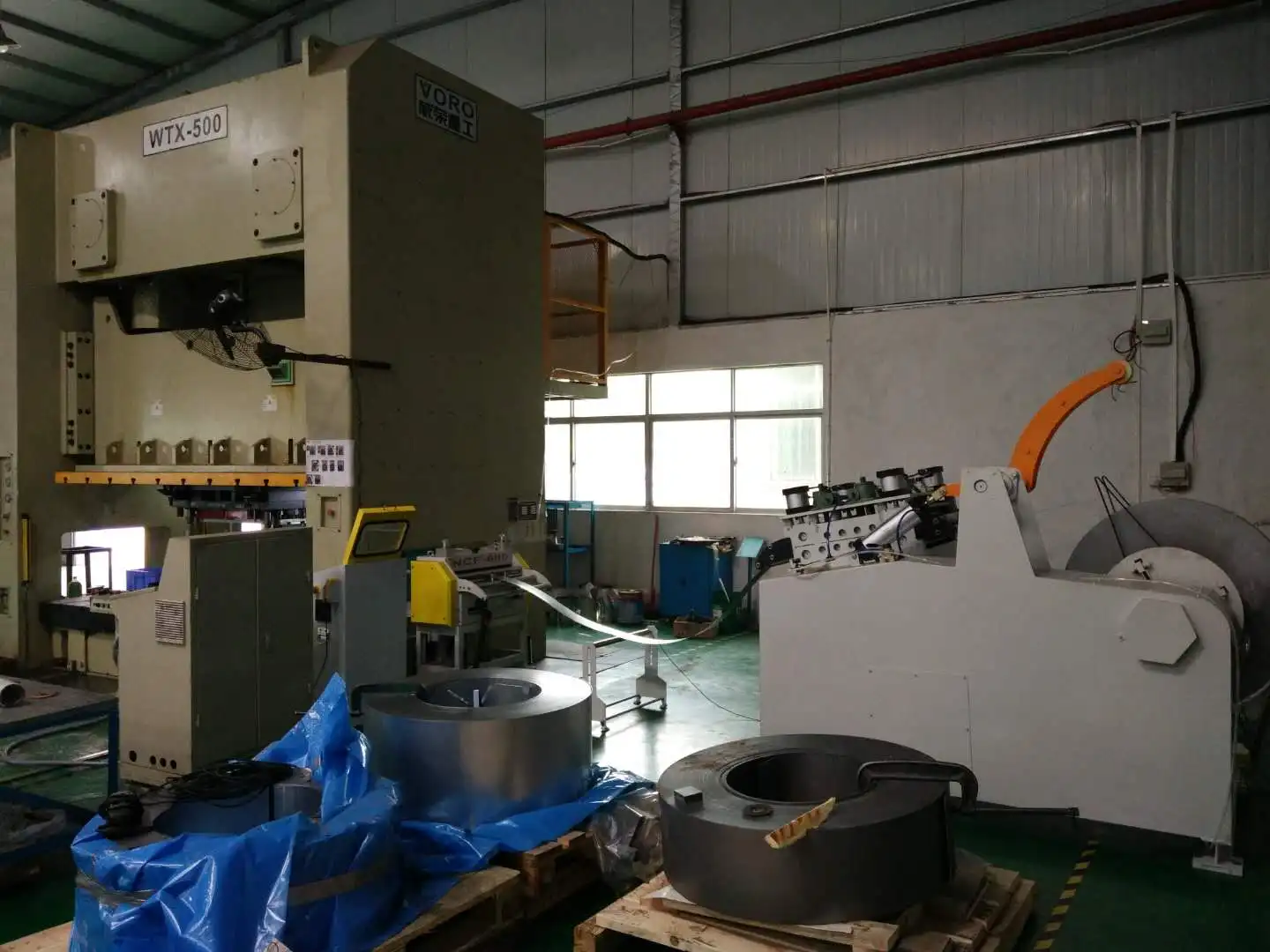

If add NCF-400 servo feeder, the GL-400A model 2 in 1 decoiler straightener make a 400 model coill feed line for power press, it's mainly suitable for less than 4.5mm thickness metal coil, such as low carbon steel, Galvanized steel, Aluminum, Brass etc.
Product Description
GL-A series machine main specification
Specification of manual decoiler & straightener 2 in 1 machines| Model | GL-200A | GL-300A | GL-400A | GL-500A | GL-600A |
|---|---|---|---|---|---|
| Material width(mm) | 200 | 300 | 400 | 500 | 600 |
| Material thickness(mm) | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 |
| Speed Reducer | 1/30 | 1/30 | 1/30 | 1/30 | 1/30 |
| Motor(HP) | 2 | 3 | 3 | 5 | 5 |
| PowerAC | AC 3-Phase 380V | AC 3-Phase 380V | AC 3-Phase 380V | AC 3-Phase 380V | AC 3-Phase 380V |
| Feeding roller | Φ98*2 Φ120*2 | Φ98*2 Φ120*2 | Φ98*2 Φ120*2 | Φ98*2 Φ120*2 | Φ98*2 Φ120*2 |
| Leveling roller | Φ60*7 | Φ60*7 | Φ60*7 | Φ60*7 | Φ60*7 |
| Coil inner diameter(mm) | 450-530 | 450-530 | 450-530 | 450-530 | 450-530 |
| Coil outer diameter(mm) | 1200 | 1200 | 1200 | 1200 | 1200 |
| Material weight(kg) | 1000 | 1500 | 2000 | 3000 | 3000 |
Machine main feature

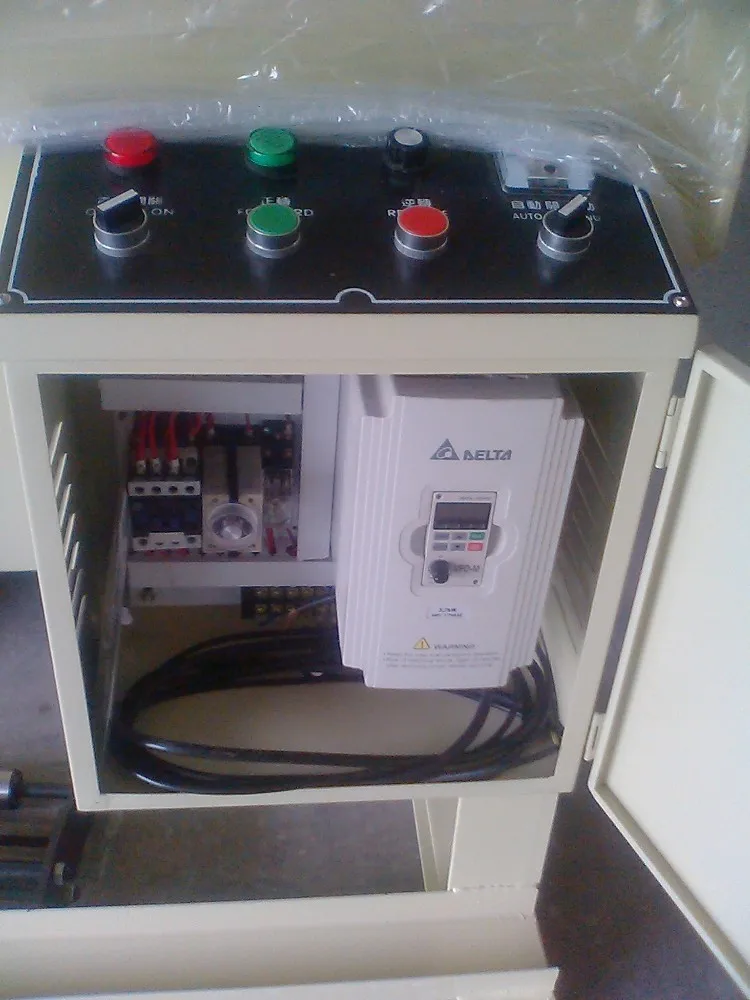

1. The control box equips with Schneider low voltage electronic components, Siemens servo motor and do on, fault less, long service life;
2. Suitable for a wider range of material thickness 0.5-4.5mm against. space-saving time and reducing the cost of production.
3. Volume expansion of the use of hydraulic device , antomatic control feed, safe, human-saving.

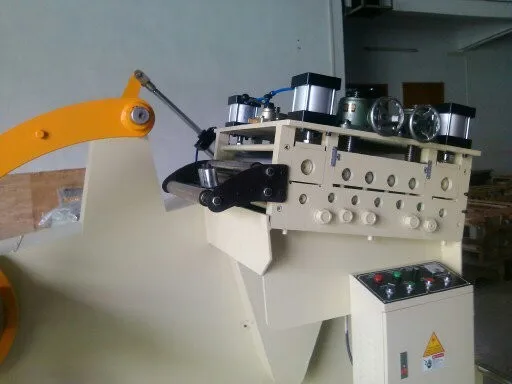

4. The machine adopts big air cylinder pressing material, straightening adjustment adopts synchronous worm gear, easy to operate and adjust.
5. Maintenance and managemaent are simplified, and to strengthen the safety of the operator is operating
6. All rolls are made of solid bearing steel, have all been quenched, hard-chrome plated, high-hardness, strong resistance to abrasion long service life
7. The machine with a thick binder table device works well
8. We can design and manufacture of special specification which depends on your requirements.
Other similar machine
(1). metal sheet straightener with decoiler for thin material( metal thickness range: 0.5-3.0mm, material width range: 200-600mm)
(2). Precision metal sheet straightener with decoiler( metal thickness range: 0.2-1.0mm, material width range: 200-500mm )
(3). Thick metal coil use straightener with decoiler machine( metal thickness range: 1.0-6.0mm, material width range: 200-600mm )
Machine package term
All our machines needed to be delevered by ocean will be packed by fumifation free plywood case, and the case protects machines free of dampness, moisture, rust etc and strong enough to stand shock, rough handle.
Company Information
Dongguan City Haiwei Intelligent Equipment Incorporated Company(Former name: Dongguan City Haiwei General Machinery Co., Ltd) is a professional manufacturer of peripheral equipment of press machine that integrates design, manufacturing, sales, service and trade. Our products included many kinds of automatic press feeder machine, such as NC servo roll feeder, 3 in 1 uncoiler straightener feeder, zigzag feeder, cut to length line, heavy decoiler, 2 in 1 uncoiler straightener and so on.
Why us?-Our core advantages
1. All our products were designed & manufactured and sold by ourself, we have engineer department with more than 10 design & reseach engineers and workshop. So machine quality is assured and price is factory price.
2. All our product was designed % manufactured on the basis of Europen standard, all 3 in 1 uncoiler straightener feeder adopt Siemens servo drive and control system, programmable and reliable.
3. After sales service is assured. For big project, we can provide overseas installation & debugging service, our engineers can speak English, so there is no barrier at communication.
4. Our main market is overseas market, so we are expanding overseas market and setting local agent overseas to provide perfect after-sales service.
Company Qualification and Honors
Foreign Customs Using Our Products
Foreign Customs Using Our Products
- Our Services
Guarantee And After-sale Service
1. The supplier provide free technical training and consulting services to the buyer.
2. One year guarantee for whole machine , the warranty period of equipment installation and debugging start after the two sides signed acceptance document date.
3.The warranty period of non users caused damage to the equipment, the supplier provides repair services and parts required free of charge.
4.. After the warranty period, the supplier promise to provide life-long service for customer, and provide the most preferential price of the required parts.
