PVC air blowing shoe machine india

Product Overview

Description

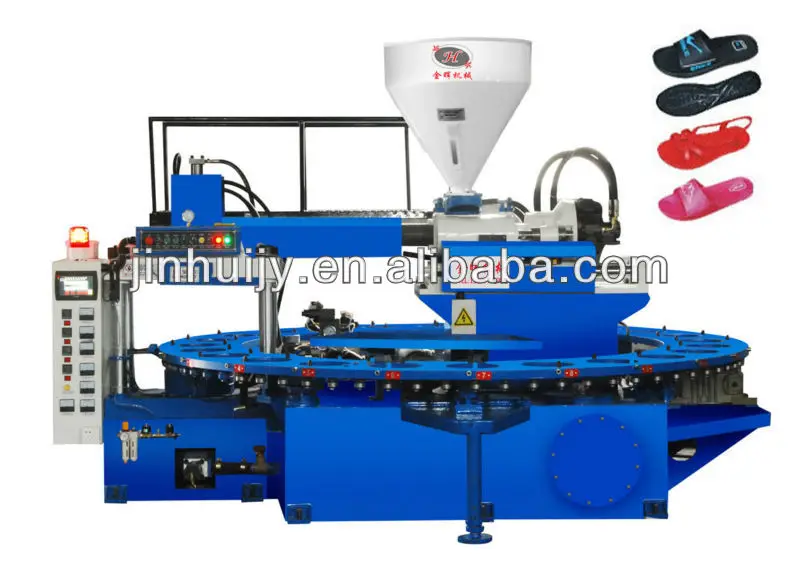

This machine is used to produce PCU slippers /PVC air blowing shoes .

1.PLC and touch screen from Taiwan, easy and simple for operation.

2.Huge injection volume quantity and strong mold clamping force to insure the good quality of the output.

3.The air blowing device will make sure the products much lighter,softer amd surface more bright, color more vivid. Compared to traditional production way, this way can save about 20%-35% of the material. Products almost as good as foam rubber.





Technical parameter:

Item	Unit	Measurement
Raw material	Kind	PVC,TPR
Workstation	Pcs	20,24,30
Diameter of bolt	mm	φ65,φ70
Turning speed of bolt	r.p.m	0-200
Max shot capacity	cm3	650,750
Rated injection pressure	Mpa	6
Mould clamping force	kn	600
Motor power	kw	18.5
Heater power	kw	10
Temperature control  section number	Point	4
Machine size	mm	4000×3600×2300
Machine weight	kg	About 5500

Certification
