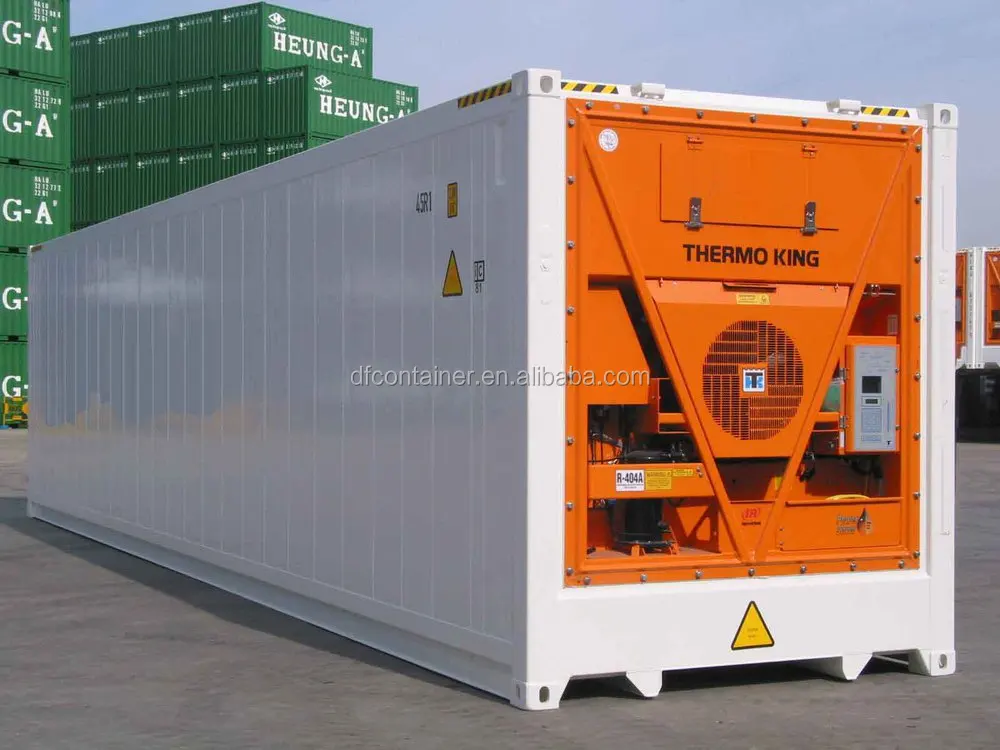

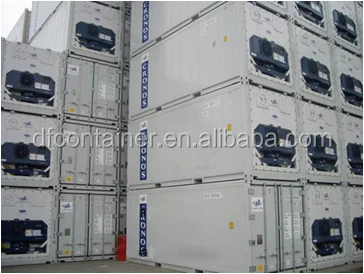

Thermoking Refrigerator Equipment Refrigerated Container 40ft
US $21400-$22200

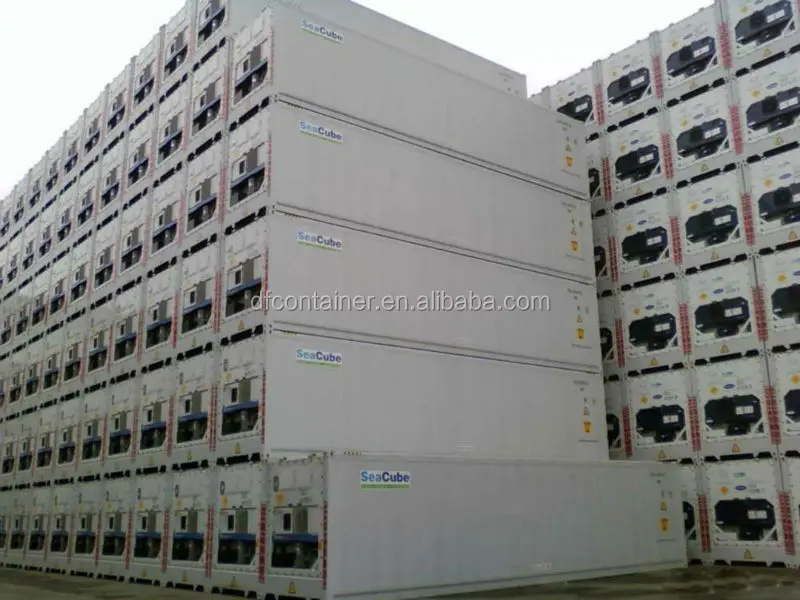

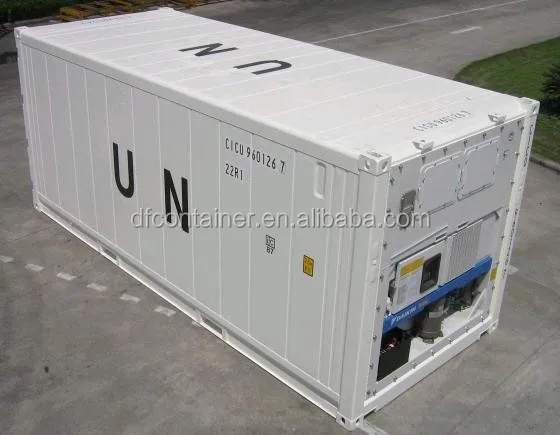

20ft 40ft HC reefer shipping container refrigeration marine container CSC class society certificate
- Category: Reefer Containers >>>
- Supplier: Qingdao Double-Friend Container Co. Ltd.
Share on (60196008681):
Product Overview
Description
product description
Standard and certificate:
Containers shall comply with following in their latest editions :
1) ISO/TC-104
668 | - | Dimensions and ratings(1993 edition) |
6346 | - | Coding, identification and marking(the third edition 1995) |
1161 | - | Specification of corner fittings(1990 edition/Cor.1.: 1990) |
1496/2 | - | Specification and testing thermal containers(1996 edition) |
3874 | - | Freight containers, handling and securing. |
6359 | - | Freight containers-Consolidated data plate |
2) The International Union of Railway (UIC) code 592 OR.
3) The Customs Convention on the International Transport of Goods(TIR).
4) The International Convention for Safe Containers (CSC).
5) Transportation Cargo Containers and Unit Loads Quarantine Aspects and Procedures by Commonwealth of Australia Department of Health. (TCT)
6) provide certificates from classification society (BV, ABS, GL, CCS, LR, KR).
The specifications of 40’ HC reefer containers:
1 Dimension
| External Dimensions | Internal Dimensions |
Length | 12,192 ( 0, -10 ) mm | 11,590 ( 0, -15 ) mm |
Width | 2,438 ( 0, -5 ) mm | 2,294 ( 0, -10 ) mm |
Height | 2,896 ( 0, -5 ) mm | 2,554 ( 0, -10 ) mm |

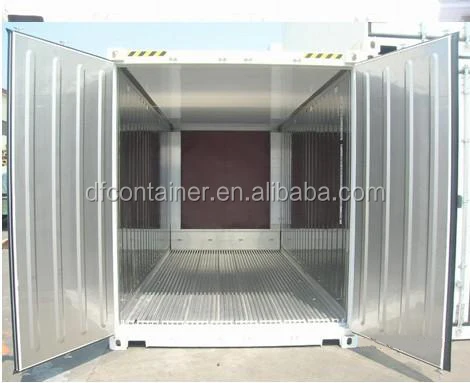

2 Door Opening
Width .................. | 2,290 ( 0,-5 ) | mm |
Height ................... | 2,569 ( 0,-5 ) | mm |
Cargo access height | 2,502 ( 0,-5 ) | mm |
3 Gooseneck Tunnel
Length .................. | 3,174 | mm |
Width .................. | 1,029 (+3, 0) | mm |
Height ................... | 120 (0, -3) | mm |
4 Inside Cubic Capacity
67.9 cu.m 2,398 cu.ft
5 Rating
Maximum Gross Weight .............. | 34,000 kg | 74,960 lbs |
Maximum Payload ............. | 29,300 kg | 64,600 lbs |
Tare Weight ............... | 4,160 kg | 9,170 lbs |
Tare Weight(incl. Unit 540KG) | 4,700 kg | 10,360 lbs |
Applications or special features:
1. ISO standard reefer container.
2. for sea, inland, and railway transportation.
3. convenient for loading, lifting, moving.
FAQ
1. Are you a factory or trading company?

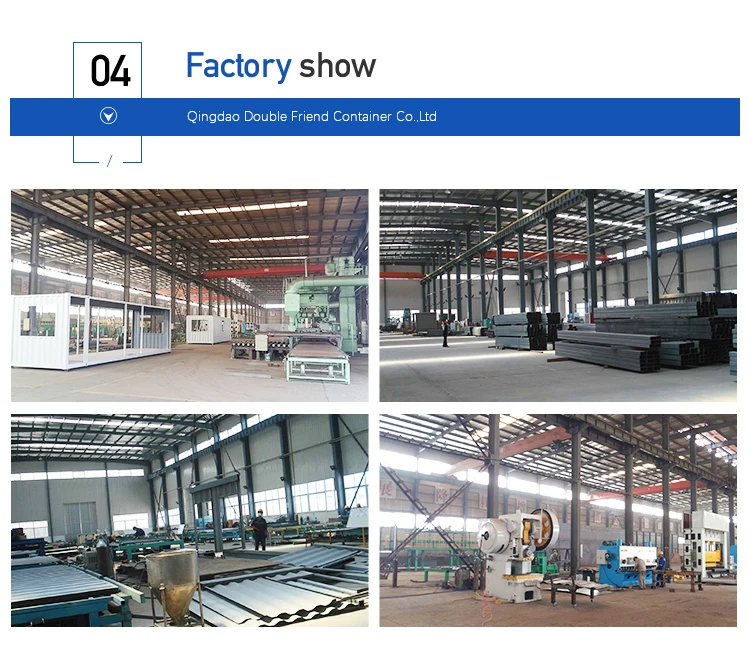

Qingdao Double Friend Logistic Equipment Co.,LTD. is a factory located in Qingdao, Shandong,China.
2.What's your delivery time?
Normal order delivery time is 2-30 days after recevie deposit.
Big order delivery time should confirm with order management dept.
3.What is your terms of payments?
Usually 30% deposit in advance, balance before shipment.
4.Do you provide on-site installation service?
We can provide installation services, detail please confirm with order management dept.
5.How do you guarantee the quality of the products?
Quality first, 100% strict quality checking before delivery.
6.How can I get the quotation of the project?
If you have drawing, we can offer quotation accordingly.
If you don't have design, we will design some drawings for your confirmation, and then offer quotation.
7.Can help to purchase the appliances and install inside?
We can help purchase some appliances if needed such as air conditioning, refrigerator, etc.Packed inside of the container and ship together.
