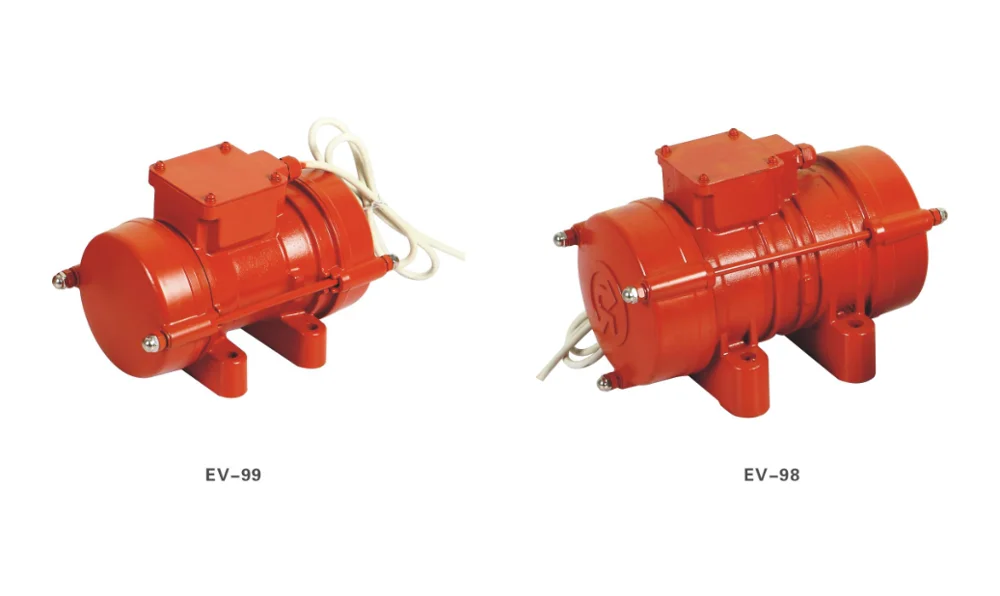

Russia type external external concrete vibrator

Product Overview

Description

•External vibrator (General-purpose vibrator) includes asynchronous electric motor with a shaft-circited rotor and unbalances mouted on the both ends of the shaft.
•Vibrator design provides for chatter stability of stator winding and mechanical strength of rotor shaft, bearing unit and unit parts.Electric motor stator is embedded into aluminum or cast-iron body  that features terminal box and reinforced fastening elements to vibrator gear.

•Rotor shaft rests upon bearings.Unbalance adjustable units are protected with shrouds.
•Terminal box features a terminal bolck to connest stator terminals to.
•Current-carrying cable.Centrifugal force and vibration range may be adjustd by means of changing unbalances positions.
•When electric motor rotor starts to rotate,circular vibrations of vibrator and the gear attached hereto arise.

 External vibrator-specification

Model	Number of poles	Voltage	Power	Frequency	Speed	Centrifugal force	Static moment	Weight
EV-99E	2	220V	0.5KW	50HZ	3000RPM	2.6-5.0KN	2.6-5.1KG.SM	14.5KG
EV-99B	2	42/380V	0.5KW	50HZ	3000RPM	2.6-5.0KN	2.6-5.1KG.SM	12KG
EV-98E	2	220V	0.9KW	50HZ	3000RPM	5.6-11.3KN	5.7-11.4KG.SM	20KG
EV-98B	2	42/380V	0.9KW	50HZ	3000RPM	5.6-11.3KN	5.7-11.4KG.SM	22.5KG
