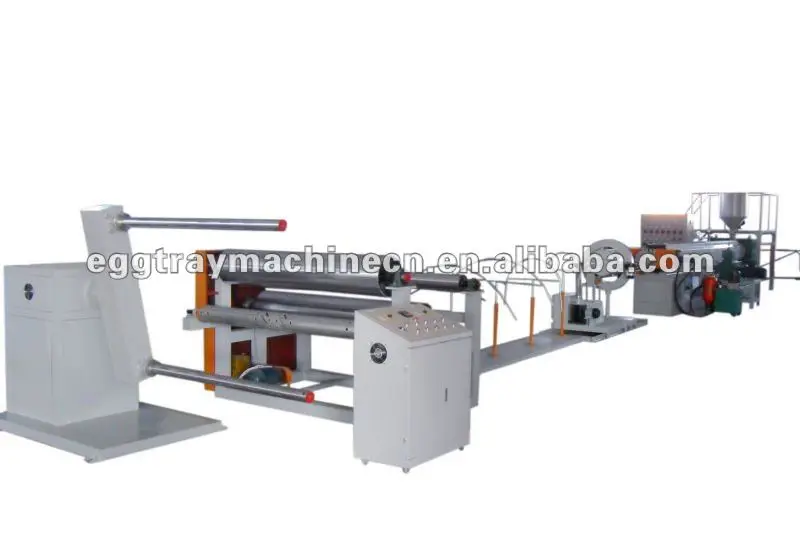

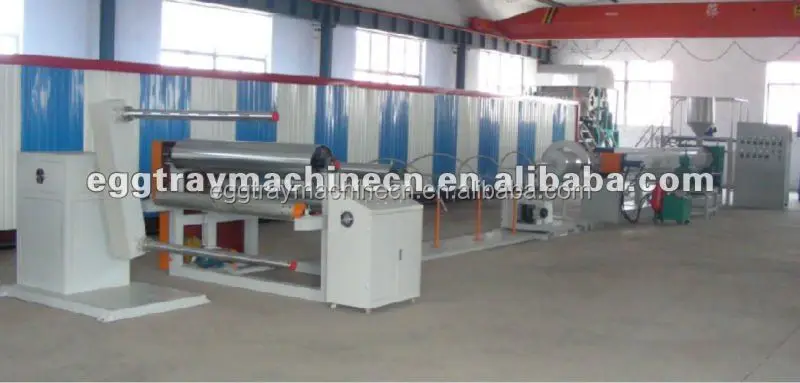

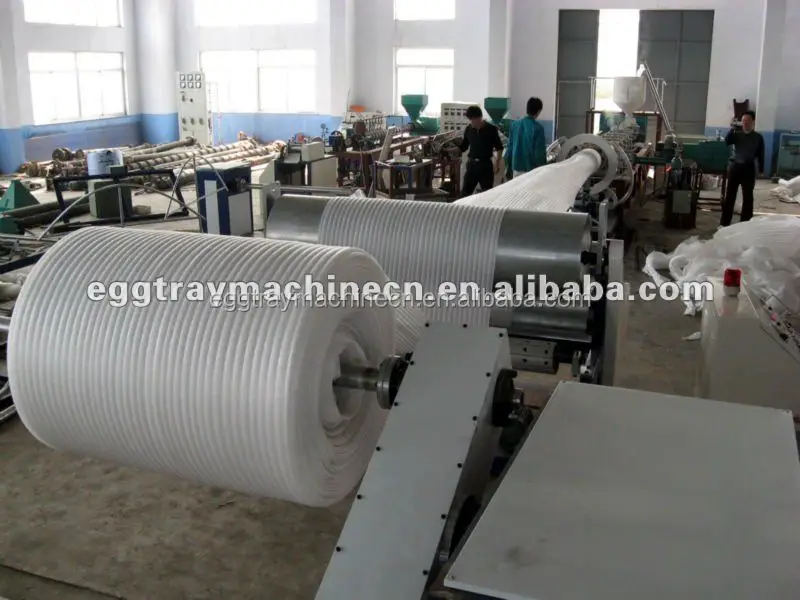

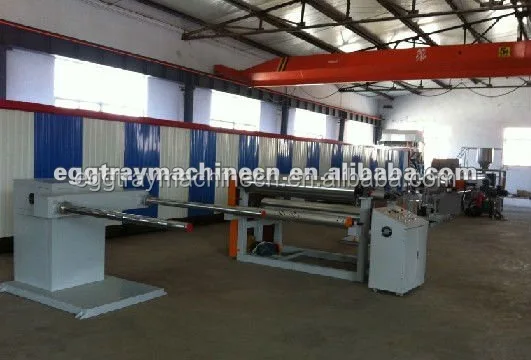

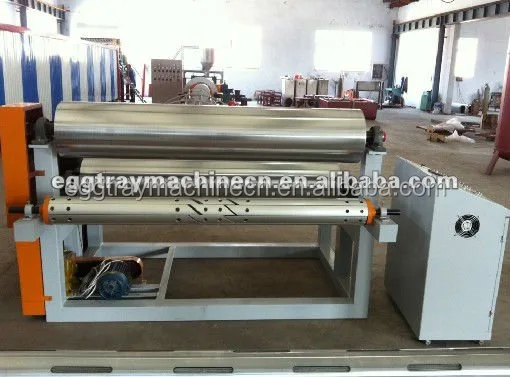

SH90 PE foaming machine

Product Overview

Description



product introduction:

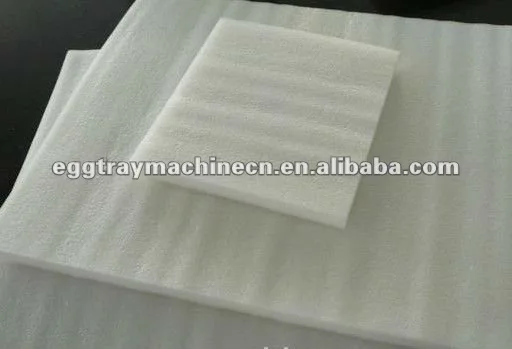

This PE pearl cotton foaming equipment can produce Polyethylene foam sheet, which is also named as pearl cotton. It is a kind of new-type packing material with the features of damp proof, shock proofing, sound insulation, heat preservation and good plasticity. It is an ideal substitute of traditional packing materials and used widely in the packing of electronic product, daily necessities, glass, pottery, electrical household appliances, furniture, hardware product, toy, etc.

It is widely used in the packing of food ,fruit ,advertising ,industrial products and so on .

This equipment adopts high speed hydraulic filter changer which has steady feature, can realize change the filter immediately without stopping the machine.

The foaming shaping machine adopts PLC control, touch screen operation, easily to operate.

main technical parameter:





Type		SH-90	SH-105	SH-120	SH-150	SH-170
Extruder		90/55	105/55	120/55	150/55	170/55
Screw rotate speed	r/min	5-45	5-45	5-45	5-45	5-45
Foam ratio		20-40	20-40	20-40	20-40	20-40
Product width	mm	1000-1500	1000-1800	1000-2000	1000-2000	1000-2000
Product thickness	mm	0.5-3.5	0.5-5.0	0.8-8.0	1.0-10.0	2.0-15.0
Cooling mode		Air-cooled, water-cooled
Installed capacity	kw	90	100	120	150	180
Dimension	mm	20000×2300×2200	23000×2300×2200	25000×2300×2200	30000×2300×2200	32000×2300×2200
