Hantek DSO1202E 5 in 1 6000 Counts DMM Digital FFT Spectrum Analyzer with Frequency Counter 200MHz 2 CH Handheld Oscilloscope
- Category: >>>
- Supplier: Hefei Vetus Electronic Technology Co. Ltd.
Share on (60196796518):
Product Overview
Description
Introduction
- Five in one: Oscilloscope/Recorder/DMM/FFT Spectrum Analyzer/Frequency Counter.
- IP-51 rated for dust, drip and shake proof to withstand harsh environments.
- Large fuse confirms to European Safety Standard.
- Battery indicator with easy-changed connect points. Selectable 18650 battery box for matching 18650 battery by yourself.
- Anti-theft lock hole, tripod fixed hole, hang rope, FLASH light that can be used in darkness.
- Replaceable BNC safety joints, and additional one set of joints.
- High bandwidth 70MHz-200MHz Oscilloscope, 1GSa/s sample rate, 2M Memory depth.
- 25Mz Arb. Waveform Generator, 200 Mesa/s DDS, 12 bit vertical resolution, easy for simulating transducer
- 6000 Counts DMM, AC/DC voltage, AC/DC current, resistance, break, capacitance, and diode function.
- FFT spectral analysis; Waveform Math: add, subtract, multiply and divide; X-Y mode; more than 20 automatic measurements; PASS/FAIL Check function, apply to engineering application.
- Abundant trigger function, double timebase sampling, easy to observe two waveforms in different frequency.
- Record and replay of more than 1000 waveforms.
- Large 5.6 inch TFT Color LCD Display; High Resolution(640*480)
- USB Host/Device 2.0 full-speed interface; support removable disk; WIFI/LAN Option, easy to control by PC or long-distance.
- Waveform data can be output in WORD,EXCEL, BMP, JPG as time and voltage.
Product Features
- High Bandwidth 200MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph.
- 2M Memory Depth.
- Large 5.6 inch TFT Color LCD Display; High Resolution(640*480); Dual-Window Design --More clear, More Detailed
- One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
- Easy-to-use pop-up menu with built-in multi-language help system.
- 32 Automatic Measurements.
- Waveform Math: Add, Subtract, Multiply, and Divide.
- Store and recall over.
- Automatic cursor tracking measurements.
- XY Mode.
- Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
- Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
- Pass/Fail function compares a stored waveform to an unknown input.
- Average Mode for smoothing waveforms.
- Square Wave Output (2V, 1kHz) for probe adjustment.
- USB Host/Device 2.0 full-speed interface; support removeable disk; LAN Option, easy to control by PC or long-distance.
- Dimensions (mm): 260(L)x220(W)x75(H), be carried easily.
Technical data
| Model | DSO1202E | |||
| Acquisition | ||||
| Sample Modes | Real-Time Sample | |||
| Acquisition Modes | ||||
| Normal | Normal data only | |||
| Peak Detect | High-frequency and randon glith capture | |||
| Average | Wavefom Average, selectable 4,8,16,32,64,128 | |||
| Inputs | ||||
| Inputs Coupling | AC, DC, GND | |||
| Inputs Impendance | 1MΩ±2% 20pF±3pF | |||
| Probe Attenuation | 1X, 10X | |||
| Supported Probe Attenuation Factor | 1X, 10X, 100X, 1000X | |||
| Maximum Input Voltage | CAT I and CAT II: 300VRMS (10×), Installation Category; CAT III: 150VRMS (1×) | |||
| Horizontal System | ||||
| Sample Rate Range | 1GS/s | |||
| Waveform Interpolation | (sin x)/x | |||
| Record Length | 2M | |||
| SEC/DIV Range | 2ns/div~2000s/div, in a 2, 4, 8 sequence | |||
| Sample Rate and Delay Time Accuracy | ±50ppm over any ≥1ms time interval | |||
| Scanning Speed Range | 2ns/div to10ns/div; (-4div×s/div) to 20ms; | |||
| Delta Time Measurement Accuracy (Full Bandwidth) | Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns); >16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200 | |||
| Vertical System | ||||
| Vertical Resolution | 8-bit resolution, all channel sampled simultaneously | |||
| Volts Range | 2mV/div to 100V/div at input BNC | |||
| Bandwidth | 200MHz | |||
| Rise Time at BNC( typical) | 1.8ns | |||
| Analog Bandwidth in Normal and Average modes at BNC or with probe, DC Coupled | ±400V(100V/div-20V/div); ±50V(10V/div-5V/div) ±40V(2V/div-500mV/div); ±2V(200mV/div-50mV/div) ±400mV(20mV/div-2mV/div) | |||
| Math | +, -, *, /, FFT | |||
| FFT | Windows:Hanning, Flatop, Rectamgular, Bartlett, Blackman; 1024 sample point | |||
| Bandwidth Limit | 20MHz | |||
| Low Frequency Response (-3db) | ≤10Hz at BNC | |||
| DC Gain Accuracy | ±3% for Normal or Average acquisition mode, 100V/div to 10mV/div. ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div. | |||
| DC Measurement Accuracy, Average Acquisition Mode | Measurement Type: Average of ≥16 waveforms with vertical position at zero Accuracy: ± (3% × reading + 0.1div + 1mV) when 10mV/div or greater is selected. Measurement Type: Average of ≥16 waveforms with vertical position not at zero Accuracy: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]. | |||
| Volts Measurement Repeatability, Average Acquisition Mode | Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient condition | |||

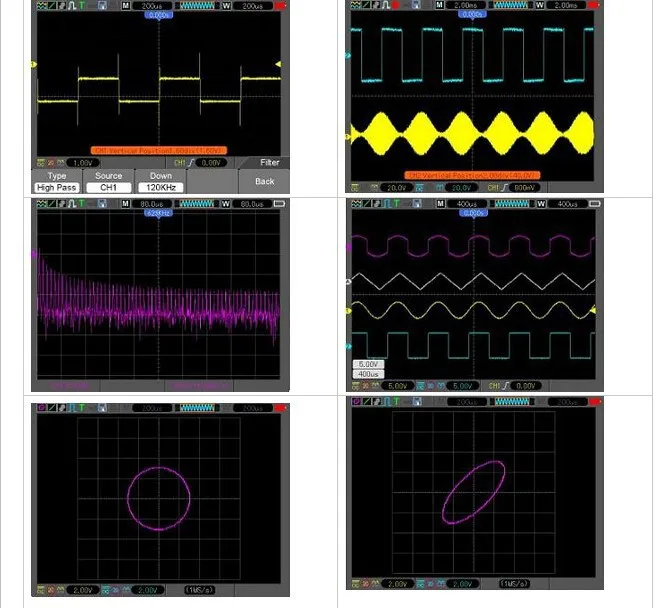

Function Picture

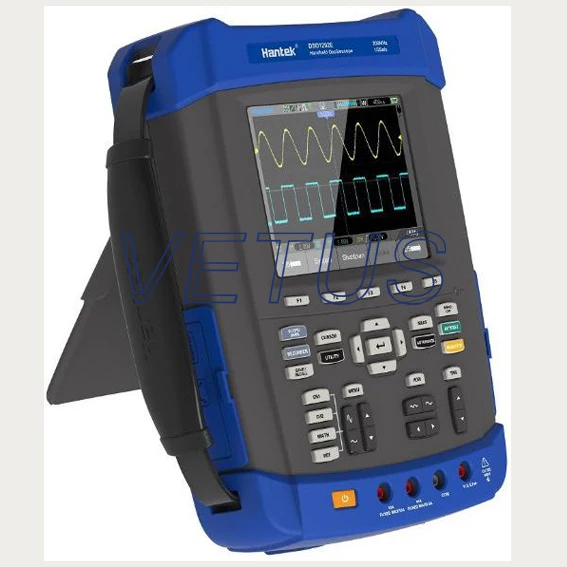

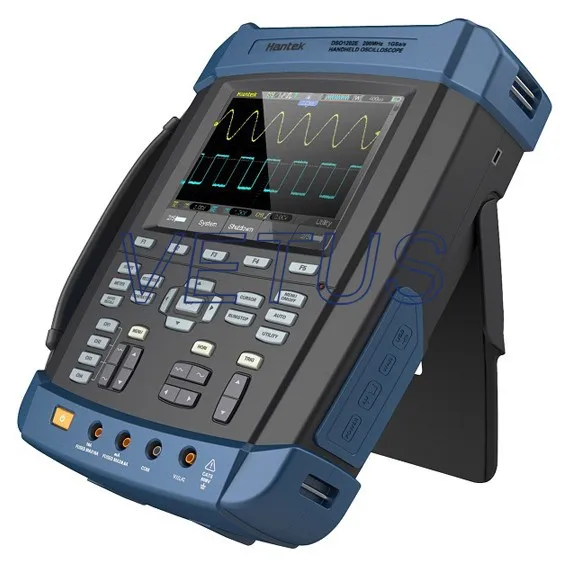

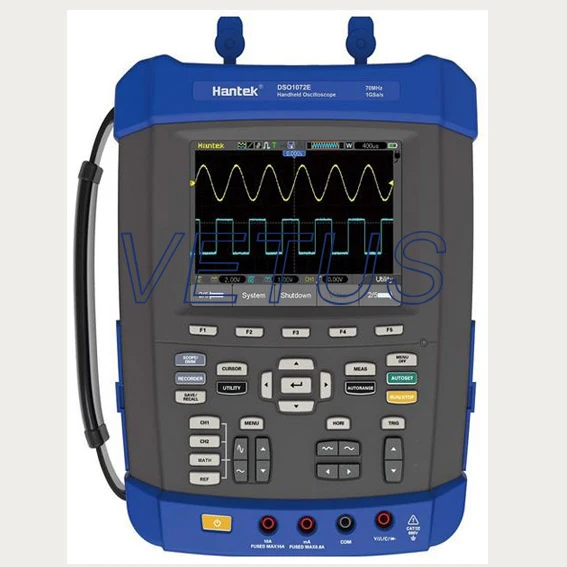

Product Picture
