Низкая цена, двухшнековый пластиковый экструдер, производственная линия для маточных пластиковых гранулирующих грануляторов

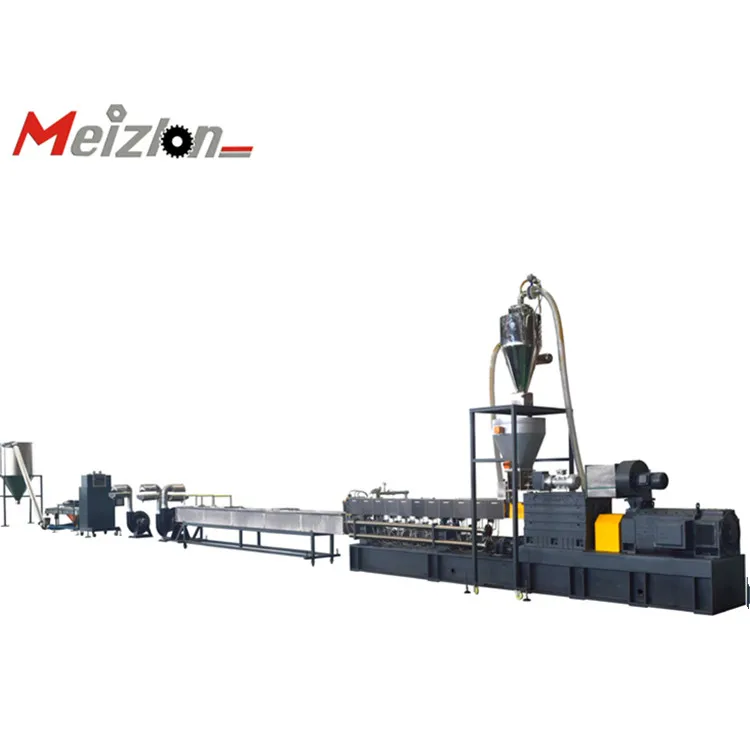

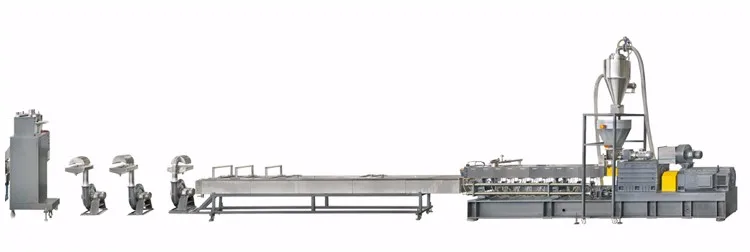

Low price twin screw plastic extruder machine production line for masterbatch plastic pellets granulating pelletizing

	>>Gearbox Reduction transmission: High torque gearbox Germany HENSCHEL / ZAMBELLO Reduction ratio: I = 2.5:1. Output power: P1 = 200 kW Input speed N1 = 1500 rpm
	>>Screw Screw Kneading block built on modular principle allows various L/D ratio of screw easily be changed to suit different material. Screw component made of high speed & wear-resisting steel.
	>>Barrel By means of the replaceable screw barrel sections, the processing sections is devided into individual zones. The barrels are heated electrically. In addition, the barrels are provided with longitudinal bores for cooling with water. Uniform temperature distribution, namely on the circumference of the eightshaped barrel bore, is achieved by a reverse forceflow temperature control circuit. Connections of pipes for temperature control are in groove-tongue design to balance alternating thermal stress and avoid leakage.

Application:
1.Fiber reinforcement:

   glass fiber, carbon fiber reinforced PP, PA, PBT, ABS, AS, PC, POM, PPS, PET, PPO, PSF, LCP,etc.
2.Ploymer blending :

   bleding of PC+ABS, PA+ABS,CPE+ABS,PP+EPDM,PA+SBS,etc.
3.Incorporation of fillers :

   CaCO3,Tale,TiO2,carbon black filled PE,PP,or EVA etc.
4.Cable Compounds:

   Cable sheath,cable insulation compounds of LDPE,HDPE,LLDPE,MDPE;

   Radiation-crosslinkable compounds ,optical fiber protection compounds ,

   Heat-shrinkable polymer compounds.
5.Special Compounds :

   PPR pipe compounds,PE compounds for crosslinked pipes,tobacco filter compounds, etc
6.High Concentration Color Masterbatches:

   PE,ABS,PS,EVA,PET,PP etc. With high concentration of pigments and other procrssing aids.
7.Masterbatches with Flame Retardants:

   PP,PA,ABS,EVA,PBT etc.with flame retardants and other additives.
8.Special Functional Masterbatches :

   Masterbatches with anti-static,anti-abcteria ,or other special functional fillers.
9.Masterbatches for Degradable Polymers:

   PP,PE,PS etc. Blended with high concentration of starch and other processing aids.

Jiangsu Meizlon Machinery Co.,Ltd which specialized in twin screw extruder over 20 years. Covering a construction area of 18000m³ and begining with a workshop of 2000m³, owns a professional thread-grinder, CNC boring machine, over 80 modern machine-tools.
Meizlon products are widely used in chemical industry such as high filler plastics, modified plastics, special plastics etc.
