Good performance portable ultrasonic calorimeter/heat meter
- Category: Flow Meters >>>
- Supplier: Q&T,INSTRUMENT,CO.,LTD.
Share on:
Product Overview
Description

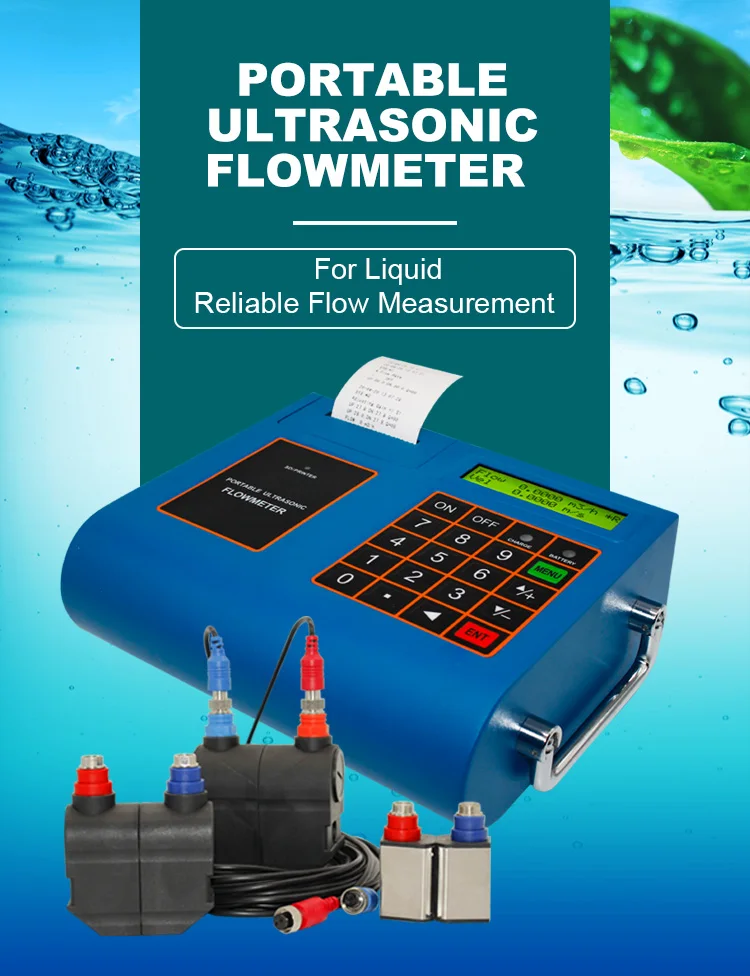

Good performance portable ultrasonic calorimeter/heat meter
| Items | Specifications |

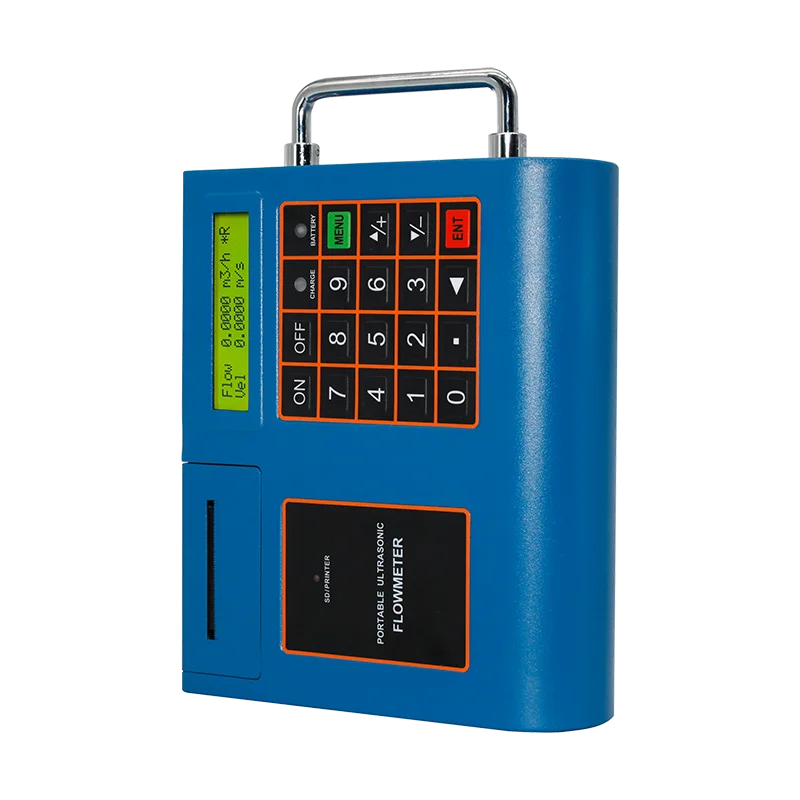

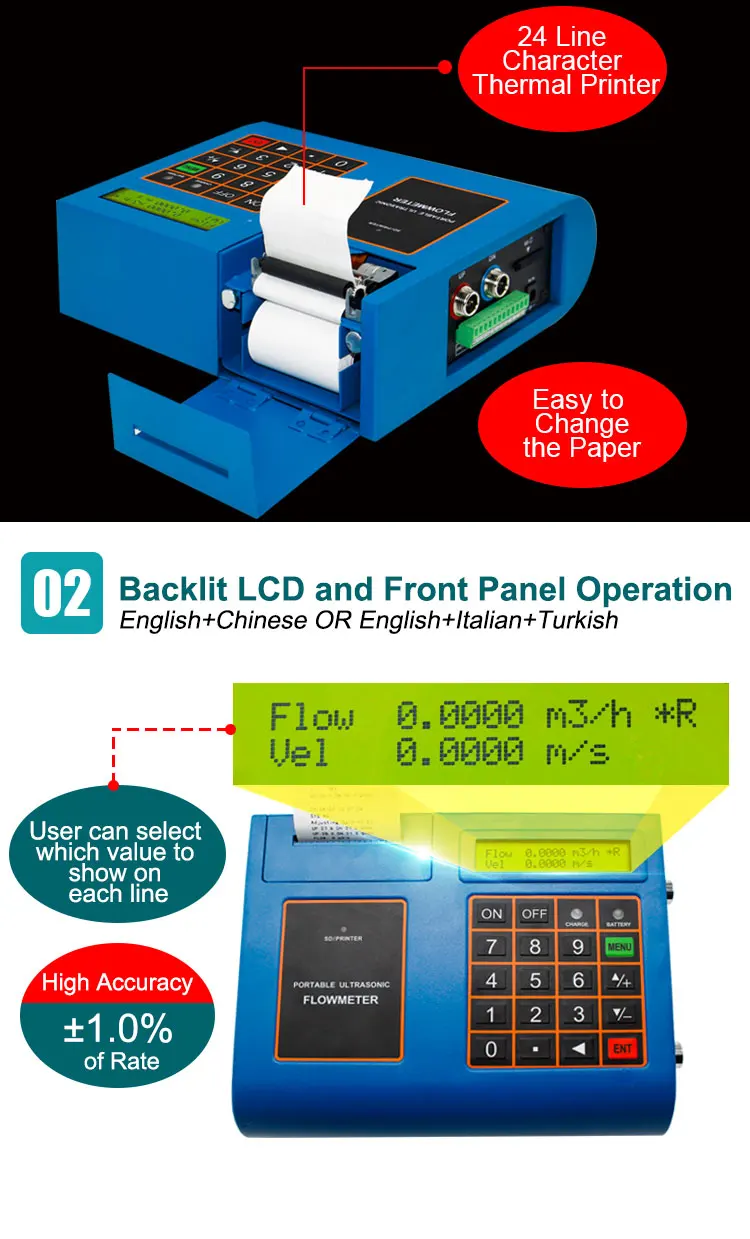

| Main Unit | 2 line x 20 character LCD with backlight |
| Working temperature:-20℃ - 60℃ | |
| Mini thermal printer with 24 line character output | |
| 4x4+2 pushbutton keypad | |
| RS485 serial port | |

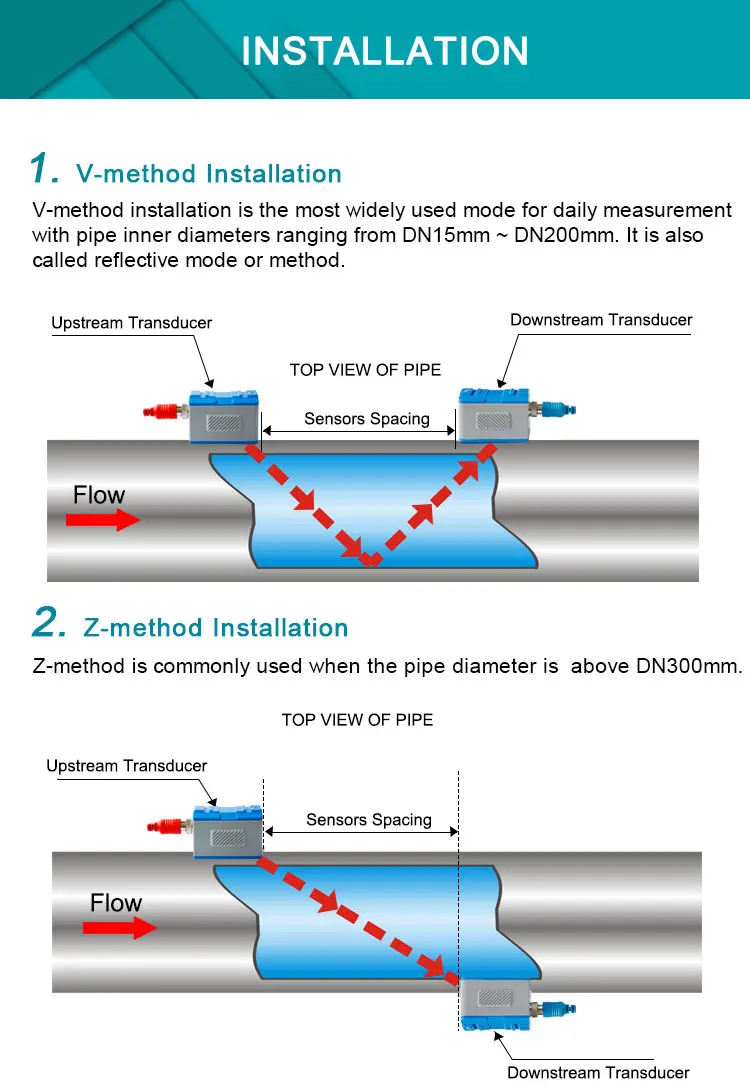

| Transducers | TS-1: small size transducer (magnetic) for pipe size: DN15-100mm, liquid temperature ≤110℃ |
| TM-1:medium size transducer (magnetic) for pipe size:DN50-1000mm, liquid temperature ≤110℃ | |
| TL-1: Large size transducer (magnetic) for pipe size: DN300-6000mm, liquid temperature ≤110℃ | |
| Liquid types | Water, sea water, industrial sewage, acid and alkali liquid, various oils etc. liquid which can transmit sound wave. |
| Flow velocity range | 0-±10m/s |
| Accuracy | Better than ±1% |
| Power Supply | Built-in rechargeable Ni-MH battery (for 20 hours operation) or AC 220V |
| Power Consumption | 1.5W |
| Charging | Intelligent charging with AC 220V. After charging sufficiently, it automatically stop and display green light |
| Weight | Net weight: 2.5kg (main unit) |

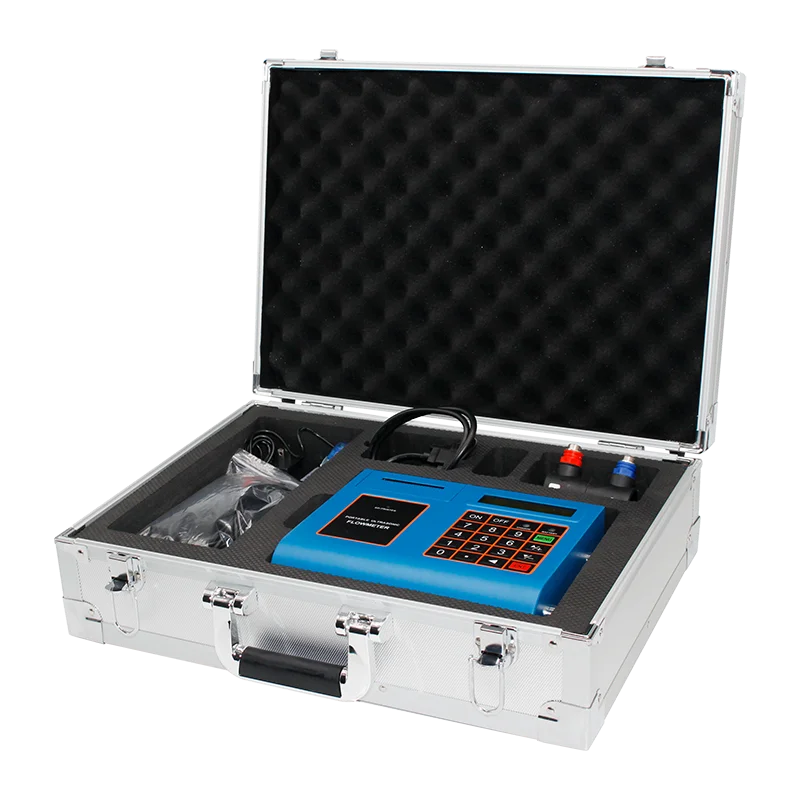

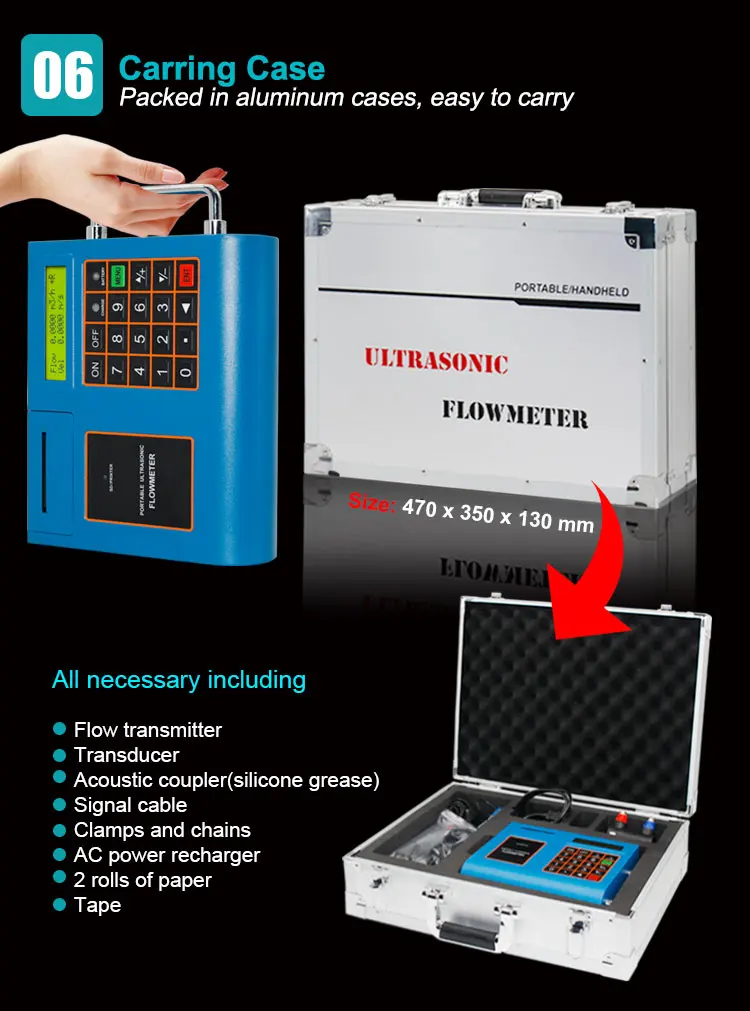

| Remarks | With a high strength carrying case suitable for normal and harsh environment |
