The best twin screw extruder price/rubber hose extruder machine

Product Overview

Description

The best twin screw extruder price/rubber hose extruder machine









 QINGDAO QISHENGYUAN MECHANICAL CO., LTD was located in beautiful Jiaonan the west coast of Qingdao city Shandong province China. Our company is specialize in Rubber machinery production enterprise with R & D, design, production, sales and service .

The company covers an area of 12000 square meters, construction area of 8000 square meters, with self import and export rights, and has passed the ISO9001:2008 & CE quality management system certification, Great Service is our mission. High Quality is our Obligation.
Our Company by virtue of years of production technology, We have rich experience technicians, We specialized produce Rubber two roll mixing mill machine, Rubber crusher mill machine, Rubber Kneader machine, rubber calender machine, rubber press vulcanizer machine, rubber refiner machine, waste tire recycling plants, Batch off cooling plants, rubber cutting machine, rubber strainer machine, Tires production line, Conveyor belt production line and so on.
We can design the machine as customer requires.

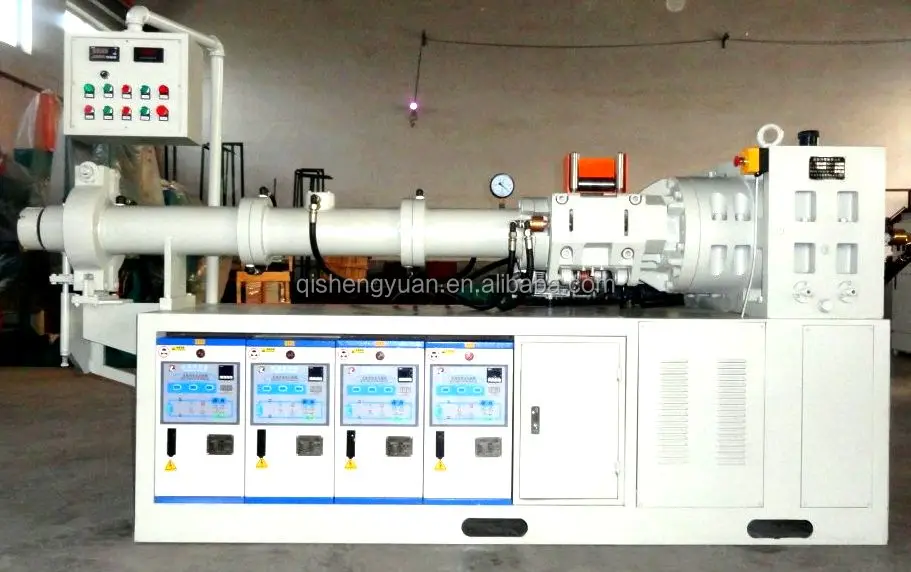

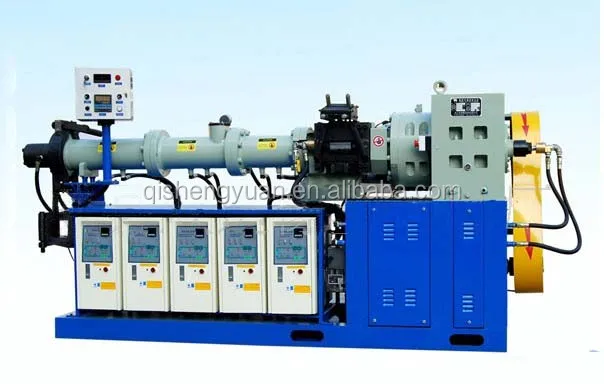

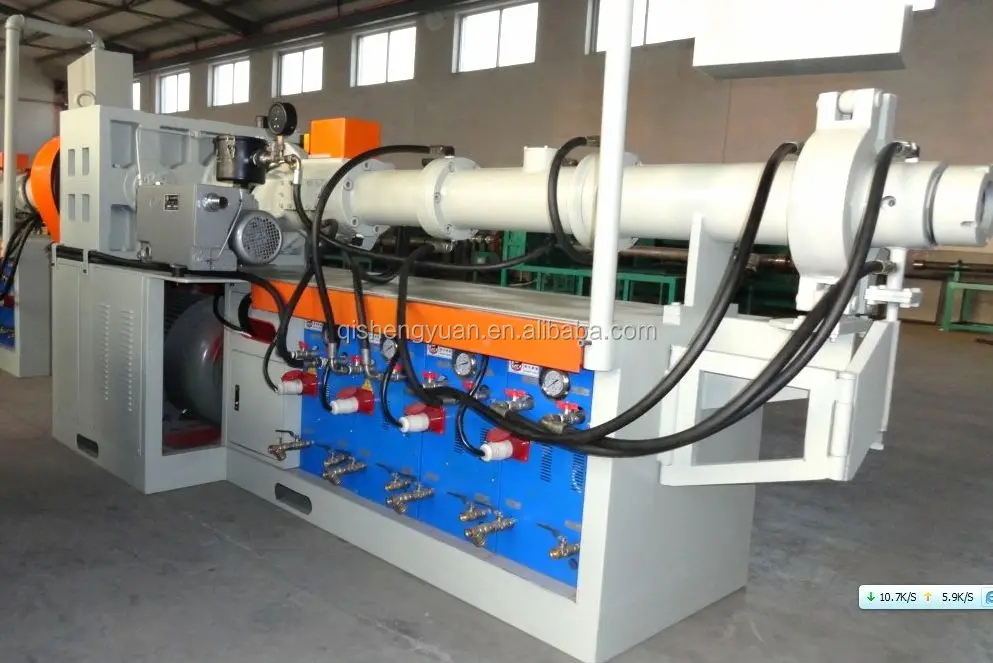

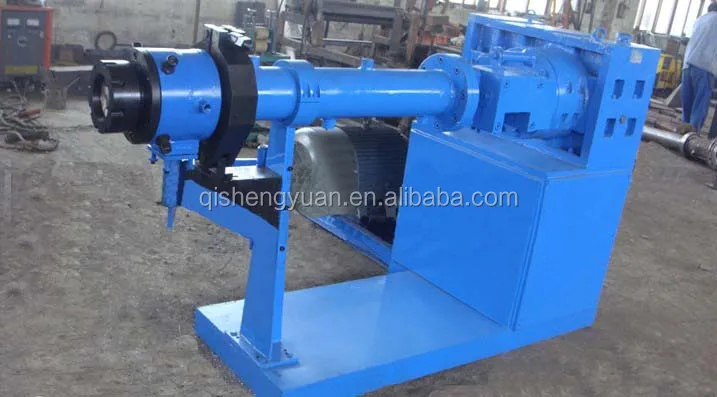

Cold feed rubber extruder

Pin Cold Feed Rubber Extruder is applicable to extruding tires of tread in radial tire and cross-ply tire preparation, extruding bead apex, covering rubber of electric wire, electric cable and rubber hose, extruding rubber board, slab, conveyer belting and rubber core. Also the extruder is widely used for feeding rubber on steal cord calendaring line, feeding rubber for radial tire’s airtight seal.



The material of all screw shafts and liners is 38CrMoAlA high-quality steel, the surface of them is processed by nitrogen treatment and the hardness HRC is 60-65. Their resistance to wear and corrosion is very good. The direct current motor is applied to infinite speed variation in transmission agent. Reduction is a hard tooth face cylinder gearwheel reducer. The transmission is stable and reliable. The agent has small volume and low noise.



The extruder uses the technology of room temperature feeding. Its advantages are high quality, high yield ability, high efficiency and energy conservation. Also the extruder can extruder rubber at low temperature, and is highly adaptable to processes of tires of rubber sizing material. The extruder is the first choice machine while technology innovating, process improving and equipment replacing in rubber industry.


















 Main technical Specification





Type	XJ-65	XJ-85	XJ-115	XJ-150	XJ-200
Screw diameter(mm)	65	85	115	150	200
L-dratio(mm)	4	5	4.8	4.4	4.4
Screw speed	20,27 35,47	27,40 53,80	20,30 46,60	27,81	22.4-67.2
Main motor power(kw)	7.5	17	22	13.3-40	25-75
Capacity(kg)	50-80	62-270	100-420	800	1500-2200
Overall dimension	1600*657*1208	2050*735*1275	2300*800*1370	3585*814*1470	4549*1140*1750
Weight	1500	2000	3300	4500	7200







Packaging Detail:	wooden case or pallet suitable for long distance ocean transport
Delivery Detail:	within 30days after receive the deposit







One year guarantee period, we could install and debug the machine in customer's plant.
We are testing equipments' manufacturer and production machines' service provider.
Our main testing instruments include:
Rotorless Rheometer with CE certificate, Mooney Viscometer with CE certificate, Tensile with CE certificate and other testing devices in rubber fields.



Welcom your contact Sincerely!
