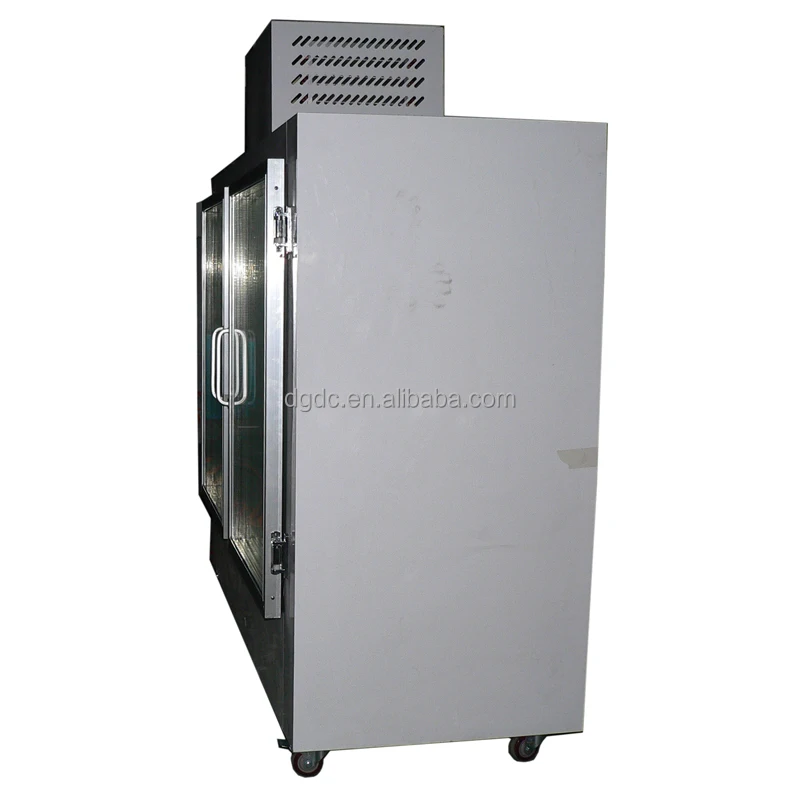

Gas Station Indoor Display Bagged Ice Storage Freezer With 2 Glass Door or Solid Doors

Product Overview

Description



Gas station bagged ice storage freezer  with 2 glass door or solid doors

specification of  bagged ice storage freezer

Model	DC-1000
Certificate	CE&Rohs
Temperature range	-12°C
Capacity(cubic feet)	100
Bag(8 Lbs)	320
Steel finish	Painted galvanized steel
Insulation	Polyurethane 80mm thick
Dimension(W*D*H)inch	90*35*80
Dimension(W*D*H)	2280mm*890mm*2030mm
Door type	Painted galvanized steel
Door size(W*H)inch	26*44
Door quantity	2 solid doors
Refrigerant	R404a
Cooling system	fan cooling
Compressor brand	Embraco
40ft container loading QTY	13 pieces

bagged ice storage freezer DC-1000 can be with two big solid doors or you can choose it with beautiful glass door. There is LED lighting for glass door ice storage bins.

Features of  bagged ice storage freezer  DC-1000:

1. Polyurethane insulation,painted galvanized steel

2. PU insulation door with stainless steel / painted galvanized steel/ embossed aluminum

3. Good quality door rubber with magnet

4. Good quality wheels.Or we can make without wheels, or with bullet feet.

5. Drainage hole on the bottom of the ice bin

6. Air cooled and direct cooling(copper pipe around the cupboard) optional

7. Voltage: 110V/60Hz, 220V/60Hz ,220V/50Hz

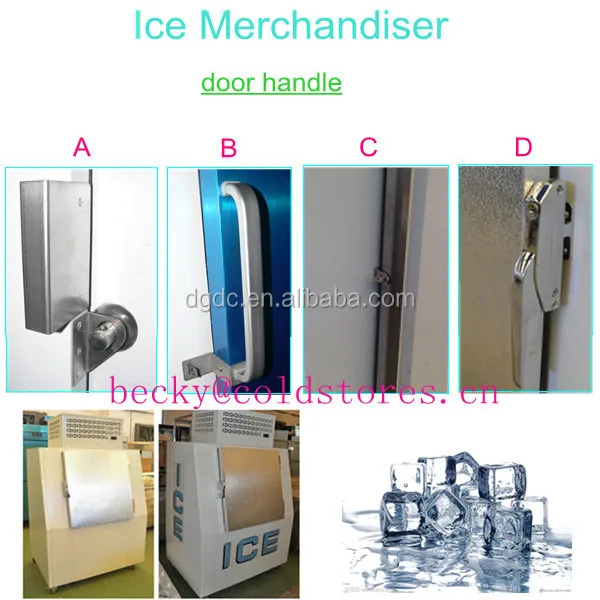

There are handles and locks optional for the bagged ice storage freezer :



For fan cooling bagged ice storage freezer  / ice merchandiser, we provide air flow to make the cold air even inside,and we provide bottom shelf to hold the ice to drain the water out from bottom drainage hole.

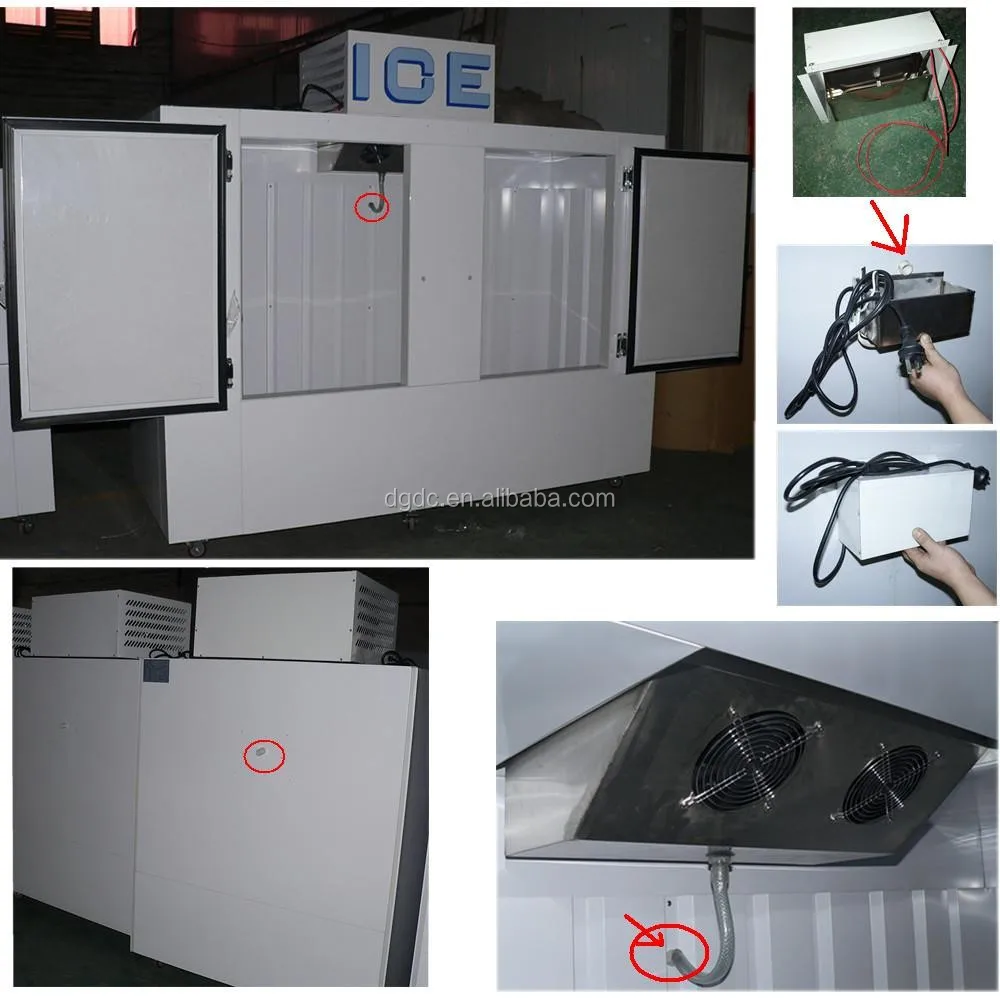

Evaporating water drain out through pipe and dry by heating copper tube at the back of the ice bag storage freezer.

We design "drop-in"condensing unit together with evaporator, easy take out whole refrigeration unit for test and  maintenance.

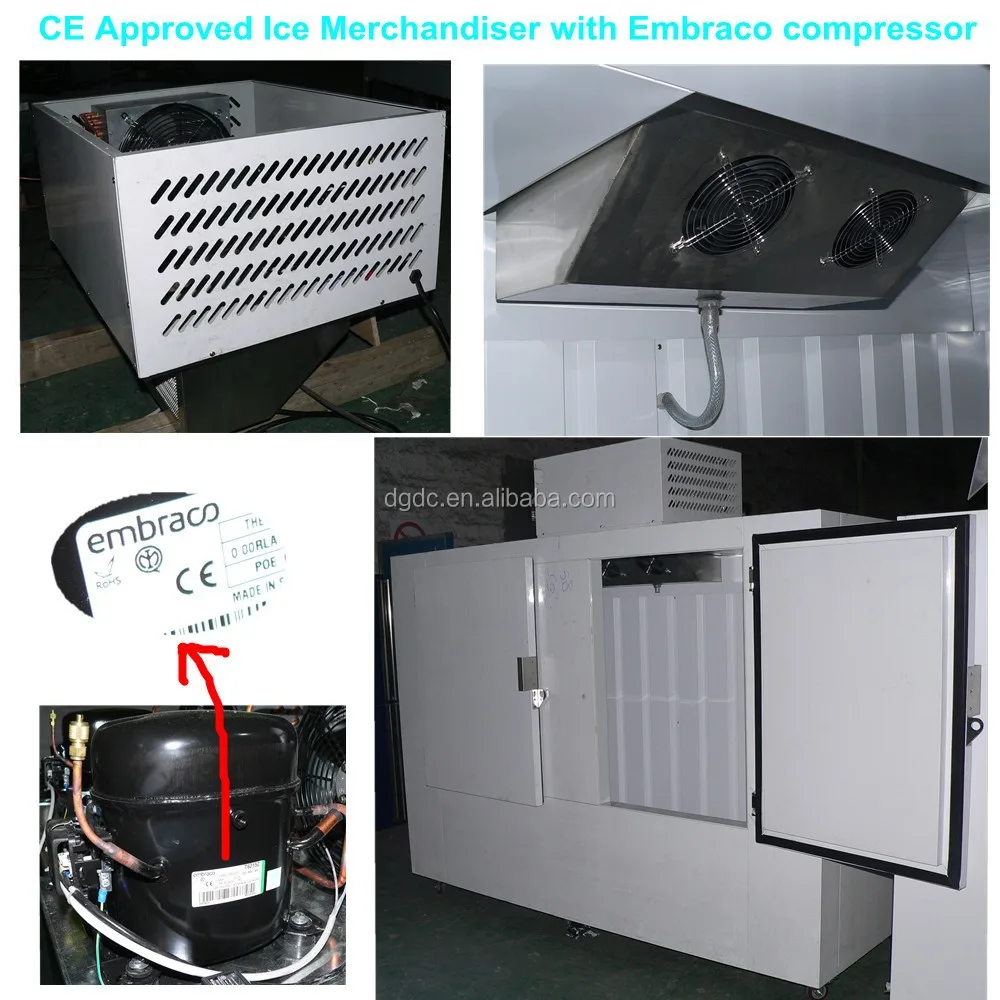

We usually use Embraco compressor, run with refrigerant R404a. If the ice storage bin is with fan cooling system, it is frost free.



We have bagged ice storage freezer / ice merchandiser for indoor use and outdoor use, digital temperature control(waterproof for outdoor use).

The voltage and plug can be changed to meet client's actual need.

The ice storage bin/ice merchandiser can stand without / with roller(with brake)or adjustable bullet feet.


bagged ice storage freezer /Ice merchandiser, we have many ice bin models with different capacity optional.

Temperature of the ice storage bins can be 0degree C/-5degree C/-12degree C/-18degree C.

The cooling system can be fan cooling or static cooling(Cold wall).

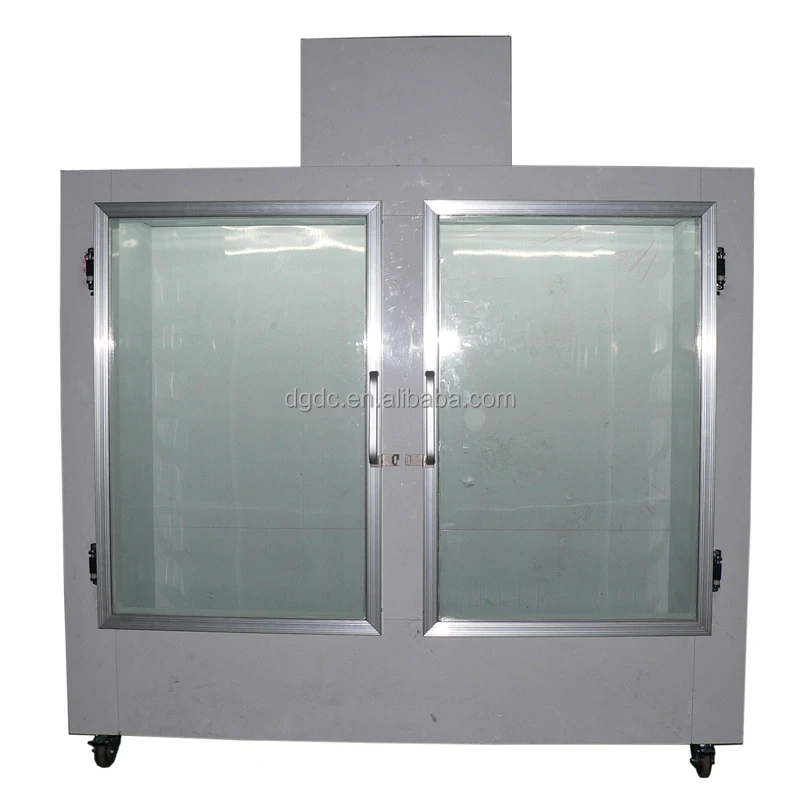

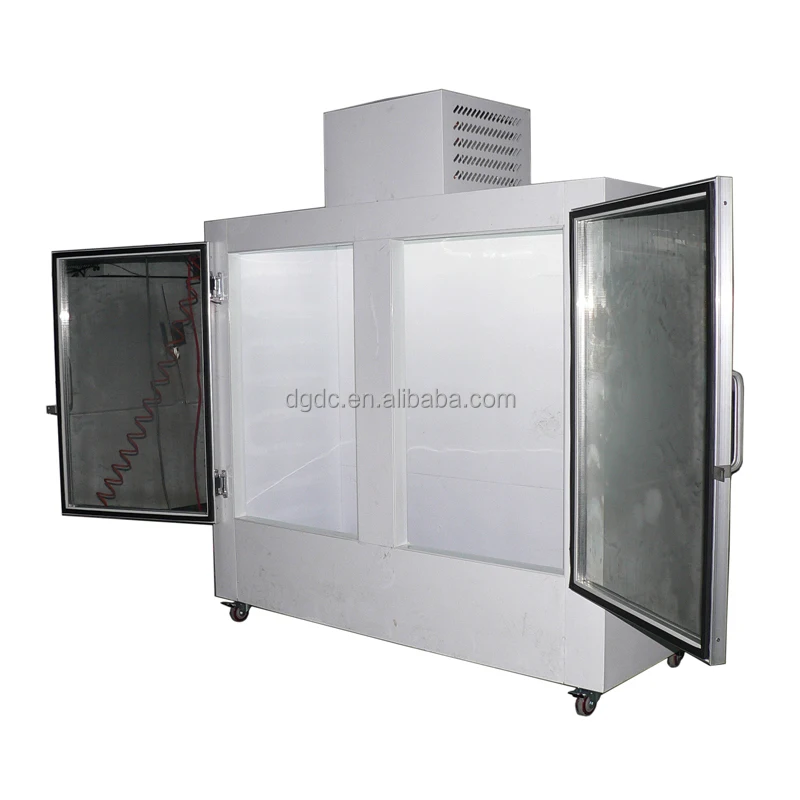

The door of the ice bins can be solid door or glass door.

The voltage can be changed as request.

We can asist you to make the logo artworks for the ice storage bin.



The bagged ice storage freezer  with different capacity:



Besides full assembled ice merchandisers, we also provide flat pack ice storage room for your option:
