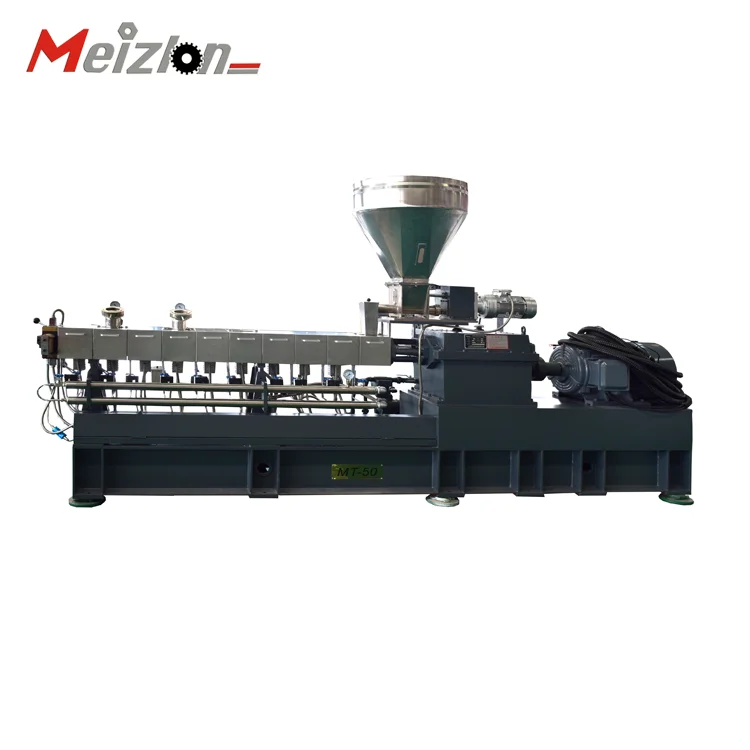

plastic granulator/twin screw extruder water ring pelletizing machine
- Category: Plastic Granulators >>>
- Supplier: Jiangsu Meizlon Machinery Co. Ltd.
Share on (60197177570):
Product Overview
Description
MT- SERIES TWIN SCREW EXTRUDER CAPACITY SHEET
MODEL | MT-20 | MT-26 | MT-36 | MT-40 | MT-50 | MT-65 | MT-75 | MT-95 | |
PROCESS | MATERIAL | CAPACITY | |||||||
Mixing modification | PE\\PP\\PS+SBS, PA+EPDM, PP+NBR; EVA+Silicon rubber | 2-10 | 10-40 | 30-80 | 50-150 | 100-180 | 160-280 | 300-500/700 | 700-1100 |
PE\\PA\\PC\\CPE+ABS; ABS+TPU; PBT+PET; PP+PE | 2-10 | 10-30 | 25-60 | 40-120 | 80-180 | 160-250 | 300-400/600 | 600-1000 | |
Filling modification | PE\\PP\\EVA+CaCO3, talcum powder, titanic powder ABS\\PC; PS+Aluminum hydroxide, magnesium hydroxide, antimony oxide | 2-10 | 10-30 | 30-60 | 50-120 | 100-200 | 200-400 | 300-550/700 | 700-1000 |
PP\\PA\\ABS+ferrous powder\\ sulphuric powder\\ceramic powder | 3-15 | 15-50 | 50-90 | 80-180 | 120-250 | 250-400 | 400-600/900 | 900-1200 | |
Functional masterbatch | PP\\PA\\ABS\\PBT+ fire retardant and other auxiliary agents: Flame retardant masterbatch | 2-10 | 10-40 | 30-60 | 50-120 | 100-180 | 200-300 | 350-450/800 | 800-1100 |
PE\\PP\\PS+starch: degradable masterbatch | 2-10 | 10-30 | 30-50 | 50-100 | 90-150 | 150-200 | 200-350/600 | 600-800 | |
PE+ antifogging agent\\stabilizer: dual-prevention masterbatch | 2-10 | 10-30 | 30-50 | 50-100 | 70-100 | 170-220 | 250/350/600 | 600-750 | |
PE\\EVA\\ABS+ carbon black: black masterbatch | 2-8 | 10-30 | 20-40 | 40-80 | 50-100 | 150-220 | 220-320/400 | 400-700 | |
Color masterbatch | PE\\PP\\ABS\\AS\\PA\\EVA\\PET+ pigment and additives | 2-10 | 10-40 | 30-50 | 50-100 | 80-150 | 150-250 | 250-350/500 | 500-750 |
Glass/carbon fiber reinforcing | PP\\PBT\\ABS\\AS\\PA\\PC\\POM\\PPS\\PET + long fibers\\staple fibers\\carbon fibers\\ crystals etc. | 1-8 | 10-50 | 30-80 | 50-120 | 100-180 | 180-300 | 250-450/550 | 550-900 |
Cable material | HDPE\\LDPE\\LLDPE\\MDPE\\EVA\\PVC\\PP\\etc. insulating cables, sheath cables; PE peroxide, Silane crosslinking cable, radiation crosslinking cable | 2-8 | 10-30 | 20-80 | 40-120 | 80-180 | 150-300 | 250-450/500 | 500-900 |
Special material | EVA melt adhesive, polyurethane, fluorin rubber, fluorine plastics, PP cigarette filtering material and TPR sole material |
| 20-100 | 40-150 | 40-200 | 100-350 | 150-500 | 450-1100 |
|
Reaction extruding | Polyamide condensation, Melt polymerization of polyamide, polyamide polyethene-adding, polycarbonate condensation |
| 15-35 | 30-80 | 80-150 | 180-250 | 250-400 | 450-700 |
|
Exhausting and volatilization | chlorinatedpolypropylene (CPP), super absorbent resin, chlorosulfonated polyethylene |
| 10-40 | 20-60 | 50-100 | 80-200 | 120-300 | 200-500 |
|
Powder coating | Polyester, epoxy, Acrylic lipids, Polyurethane, acrylics |
| 80-120 | 100-200 | 180-280 | 350-480 | 600-780 | 1200-1400 |
|
Suitable for:
--Polymer blending & filling modification
--Engineering polymer & glass fiber reinforcement
--Universal color masterbatch, functional masterbatch
--Special material, powder coatings
--Reactive extrusion, degassing & devolatilization

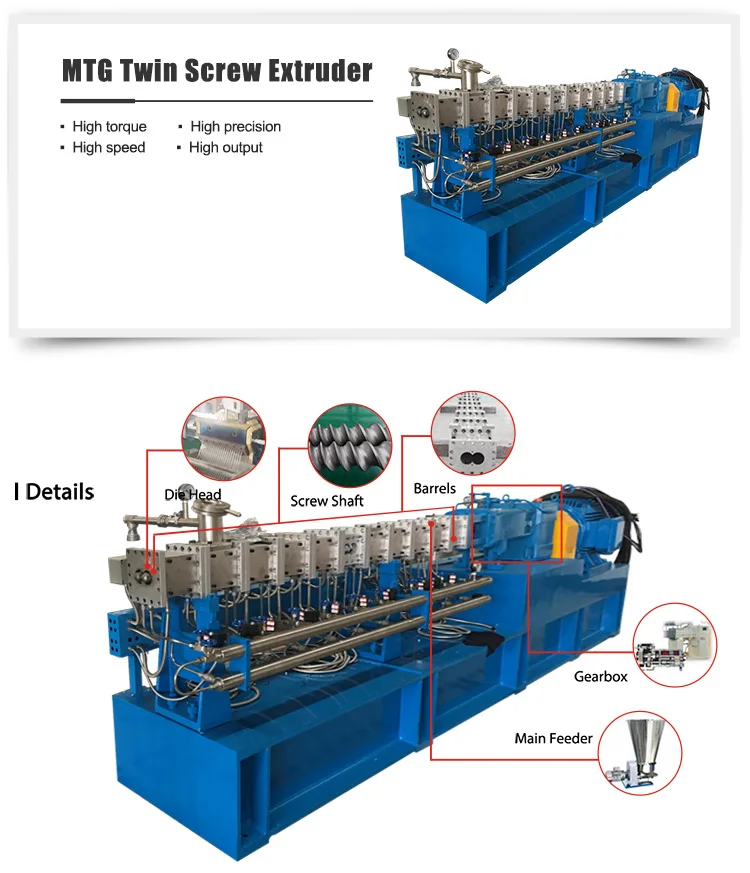

>Gearbox
Parallel & tri-axial structure and dual rack drive system. Gear and shaft made of fine quality material, SKF bearing oil-immersion lubricating system, low oil position & overpressure alarming system. High rotating speed high torque high yield.

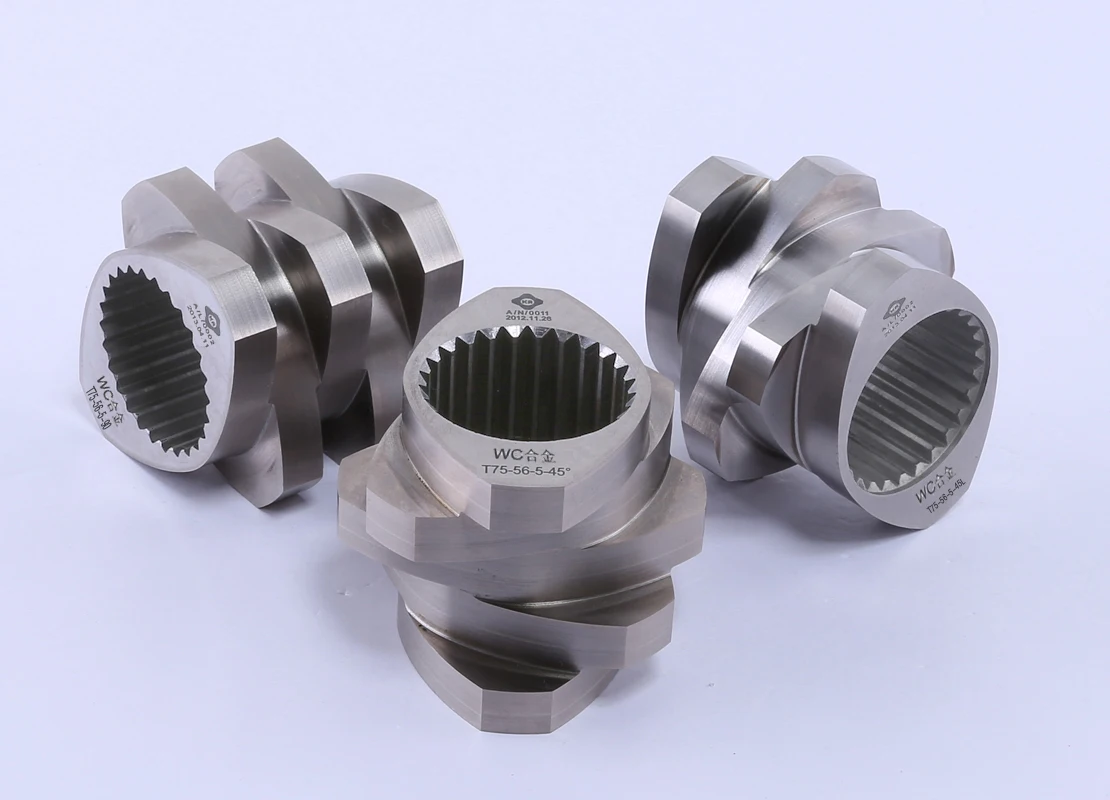

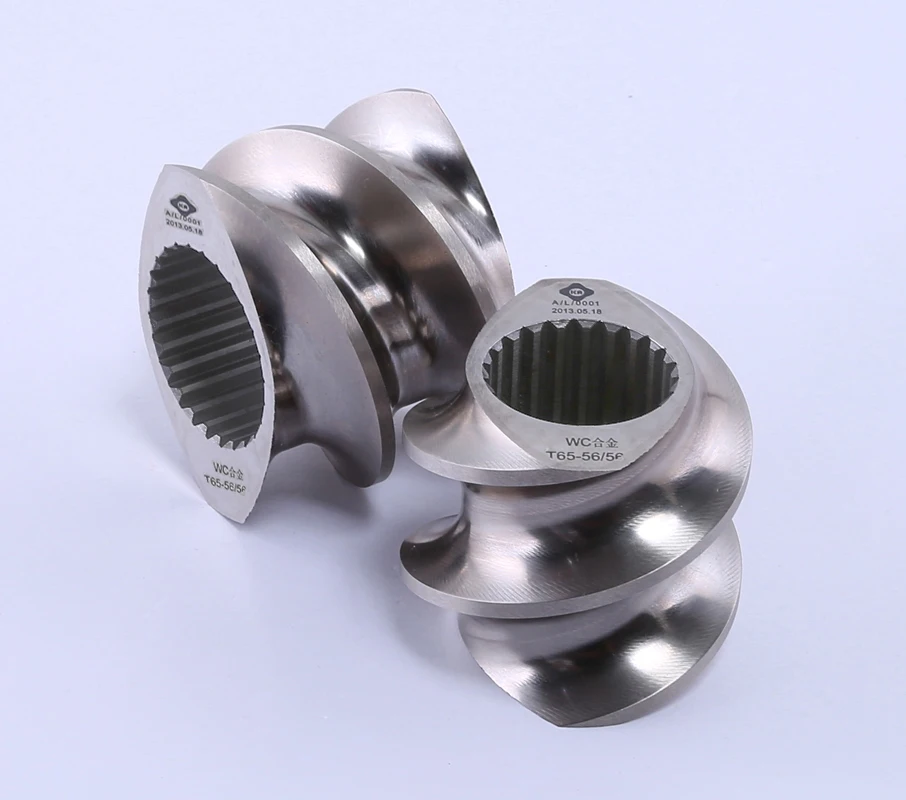

>Screw
Screw Kneading block built on modular principle allows various L/D ratio of screw easily be changed to suit different material. Screw component made of high speed & wear-resisting steel.
Production line
Water ring hot-face pelletizing line
Othter production line

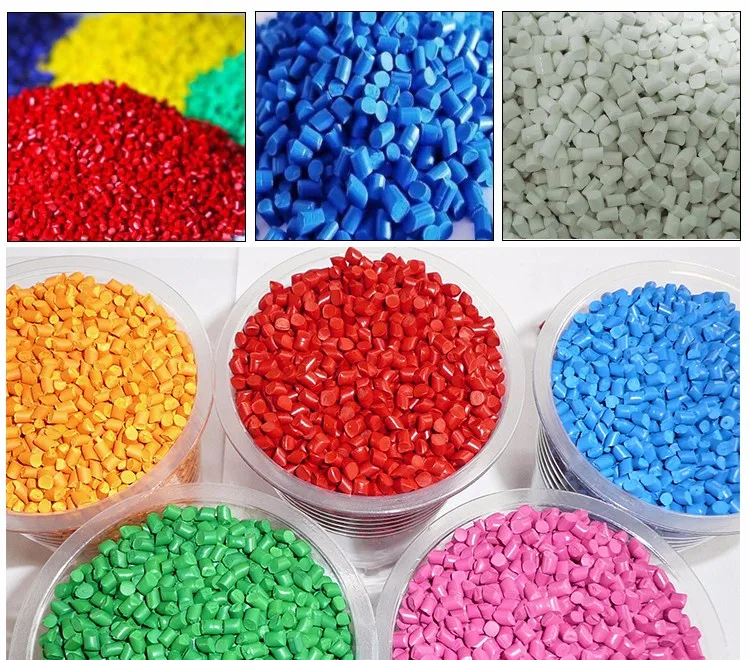

Final product
Company Information
Jiangsu Meizlon Machinery Co.,Ltd, which specialized in twin screw extruder over 20 years. Covering a construction area of 18000m³ and begining with a workshop of 2000m³, owns a professional thread-grinder, CNC boring machine, over 80 modern machine-tools. Our company have been certified by ISO9001, CE, TUV etc.
Meizlon products consist of MTE,MTG and MTX series twin screw extruder, series MS single screw extruder and MSS, MTS two stage extruder ranging from 20mm to 133mm. These products are widely used in chemical industry such as high filler plastics, modified plastics, special plastics etc.
Having been exported to over 20 countries and regions such as the Canada, Japan, Vietnam, Russia, South korea, Romania, Iran, Argentina, Taiwan etc. and trust from international customers.
Our Services
Pre-sales service:
• Introducing in detail features and application of the products to customer
• Selecting rconomical and practical machine&equipment for customer
• Providing operation data of the related machine&equipment
• Providing means of trial performance for customer
Sales service:
• Recommending engineering conditions required for installation of the machine&equipment
• Communication in time the manufacturing progress of the machine with user
• Providing assistance in technical conditions,screw combination and barrel disposition needed for product
After-sales service:
• Providing on-the-spot technical assistance in installation,commissioning and training
• Filling in detail customer's information
• Providing long-term maintenance service and spare parts
• Giving technical support to customer for developing new product
• Providing free maintenance for a year
Packaging & Shipping
We have different shipping options available for your choice and by ship(cheapest shipping)
FAQ
Q1: Are you a factory or trading company?
A: We are factory in Nanjing ,with export license and we have done export business over 20 years professional.
Q2:Where is your factory located? How can I visit there?
A:Factory add:NO.18,feiying Road,Binjiang Development Zone,Jiangning,Nanjing,China , Around 1 hour from Shanghai to Nanjing by high speed train.Warmly welcome to visit us!
Q3: Is your product can be assured ?
A: Our machine passed ISO9001:2001, has CE certificate by SGS, TUV.
Q4:If we show you our layout of factory, can you help to design the whole process line?
A :Yes, our experienced engineers and technical employee can help you to arrange the layout and installation of whole process line based on your real situation.
Q5:If we have samples of new products, can you help to analysis and design the machine?
A:Yes, Our technical department can help to analysis, design and test the new products you offered.
