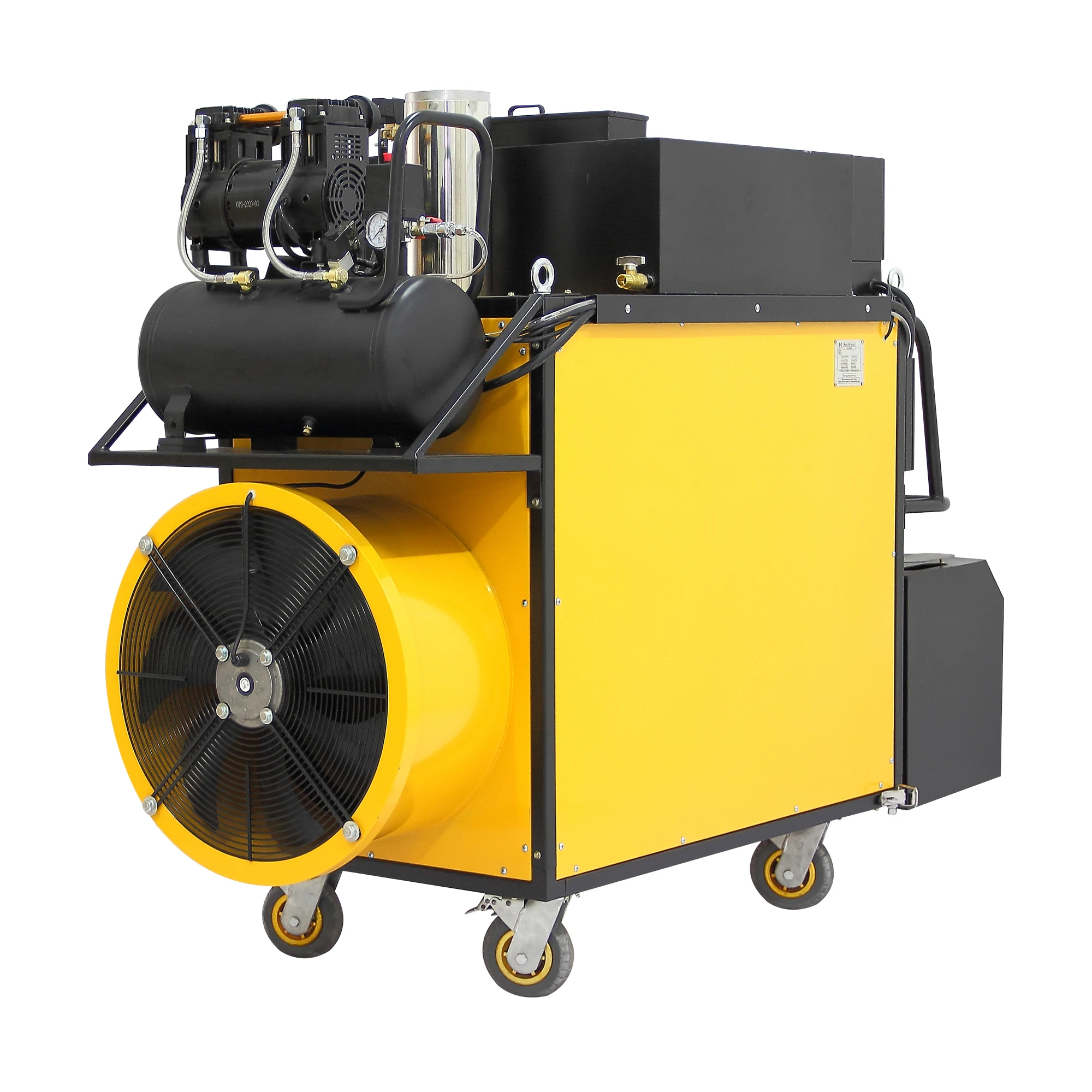

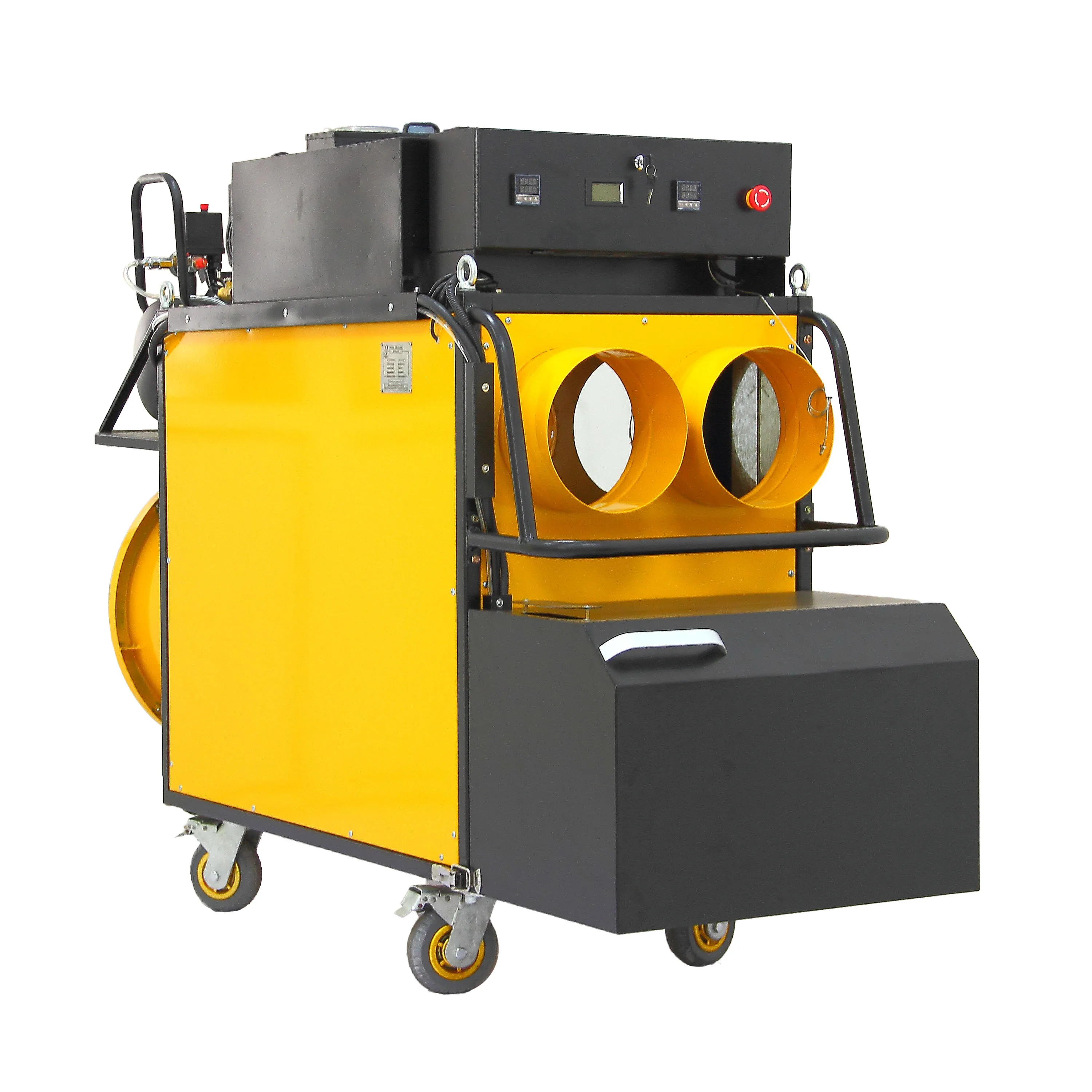

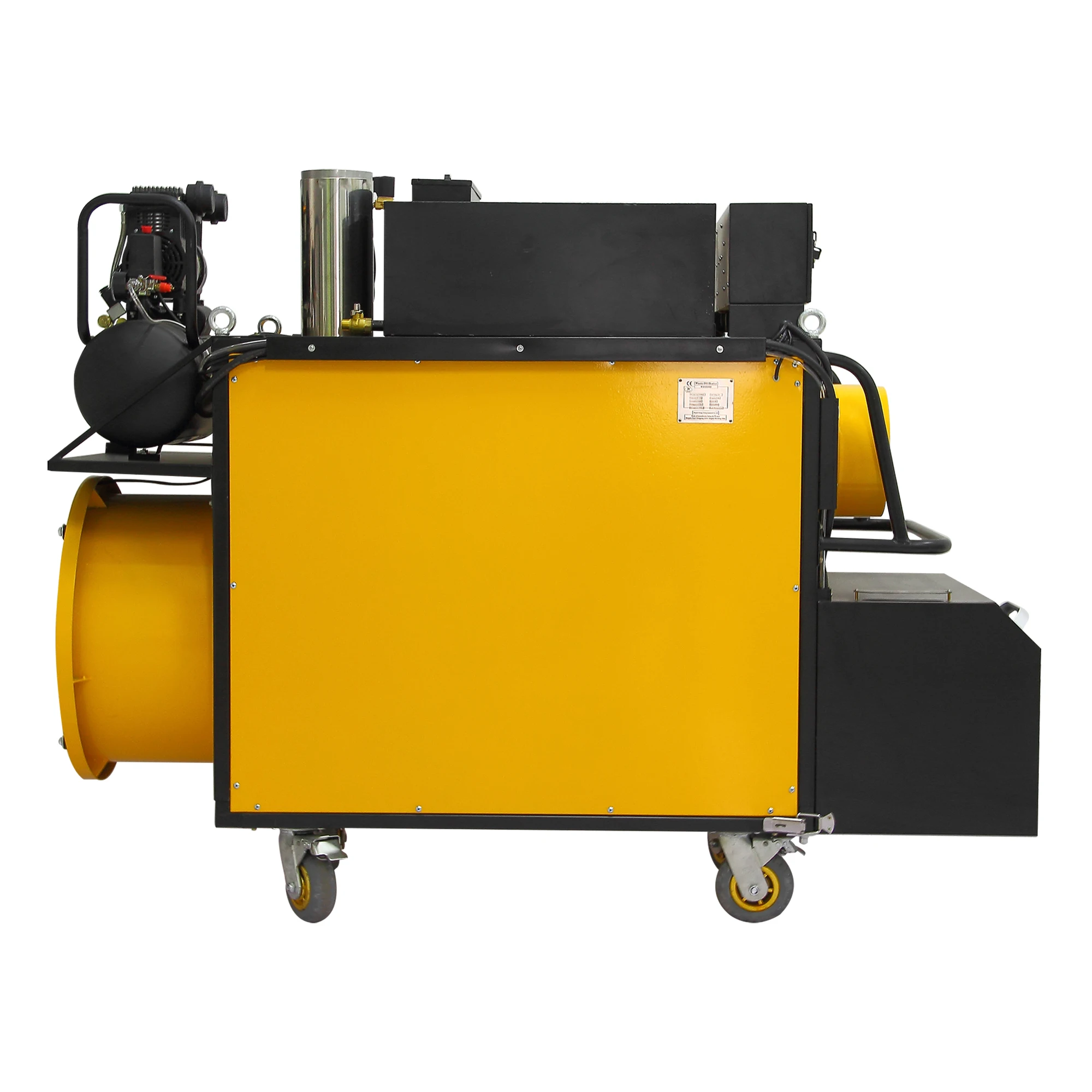

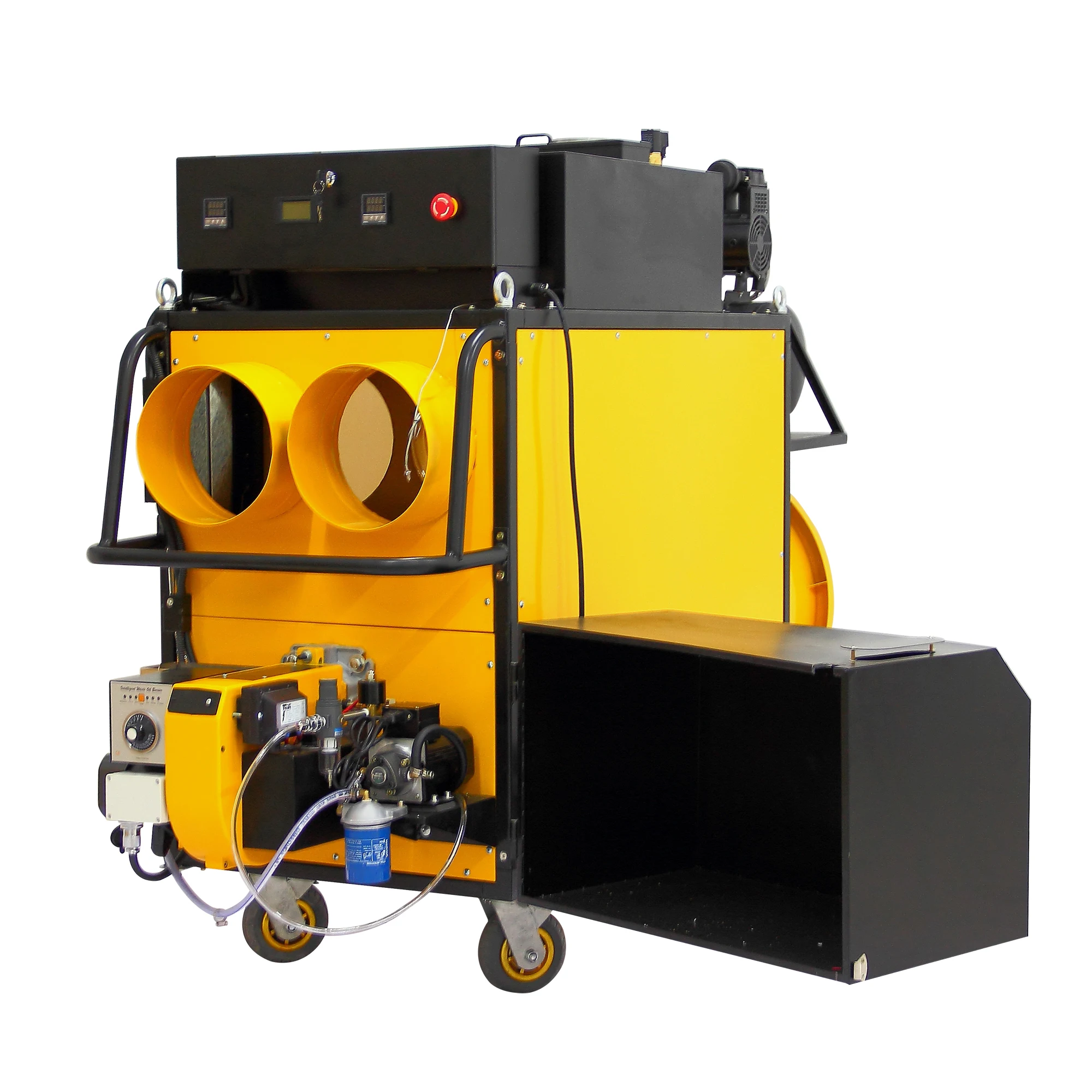

Eco Smart KVH5000 Greenhouse Waste Oil Heater
Eco-Smart KVH5000 Greenhouse Waste Oil Heater
Eco-Smart KVH5000 Greenhouse Waste Oil Heater
Eco-Smart KVH5000 Greenhouse Waste Oil Heater
Eco-Smart KVH5000 Greenhouse Waste Oil Heater
Eco-Smart KVH5000 Greenhouse Waste Oil Heater
Eco-Smart KVH5000 Greenhouse Waste Oil Heater

Eco Smart KVH5000 Greenhouse Waste Oil Heater

Share on (60197329408):


Price:$2,500.00 - $2,600.00

Quantity:


Product Overview

Description



KVH5000 Oil Heater Details




Item
KVH5000 Oil Heater
Heat Supply Area
600-800sq.m (6000-8000sq.ft)
Size(LxWxH)
185x90x127cm
N.W
244kg
Heat Exchanger
304 ss combustion chamber
Draught Fan System
one 600mm(dia) YWF
Oil Consumption
6-8L/H
Output Power
80-120KW
Max.Output Heat
100,000Kcal/H(400,000Btu/H)
Air Output
12000m3/h
Air Output Exit Amount
2x250(dia)
Fan Motor
880w
Chimney Diameter
140mm
Power Supply
220V 50HZ or 110V 60HZ
Working Pressure
0.05bar
Must work with external air compressor,smallest capacity is 90L/min
Fuel
all kinds of liquid oil
Application
Indoor: such as greenhouse, poultry farm, factory
Outdoor: such as tunnel, stadium, snow melt, warm airplane engine


Available Fuel List
1) Waste car/engine oil from the car, truck, garage as well as motor oil, hydraulic oil
2) #2-#5 fuel oil
3) Vegetable oils, such as palm oil, soybean oil, used cooking oil from the restaurant as well as animal fat oil
4) mixed oil
5) diesel oil, light oil


Product Feature

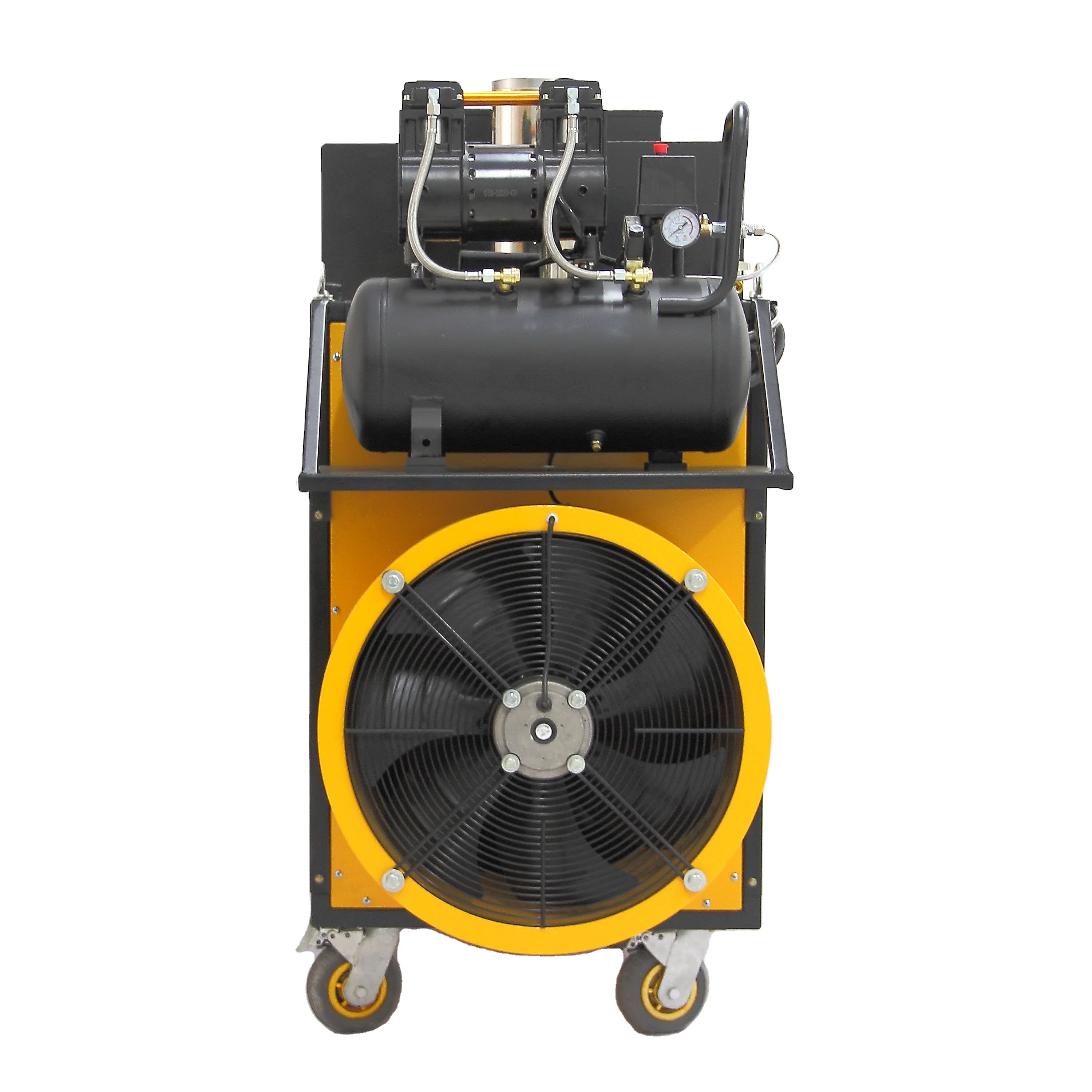

Strong & Protective Fan System
The fan sucks in cold air, via the inside heat exchanger, blows out warm/hot air.

The fan also functions as the heat exchanger's protector. It keeps sucking in cold air until the exchanger's temperature drops to the setting.



Suck in cold air
blow out hot air





Original Heat Exchanger
The inside exchanger's material is 304 stainless steel; wholly sealed- safe and durable; the reference service time is five years.

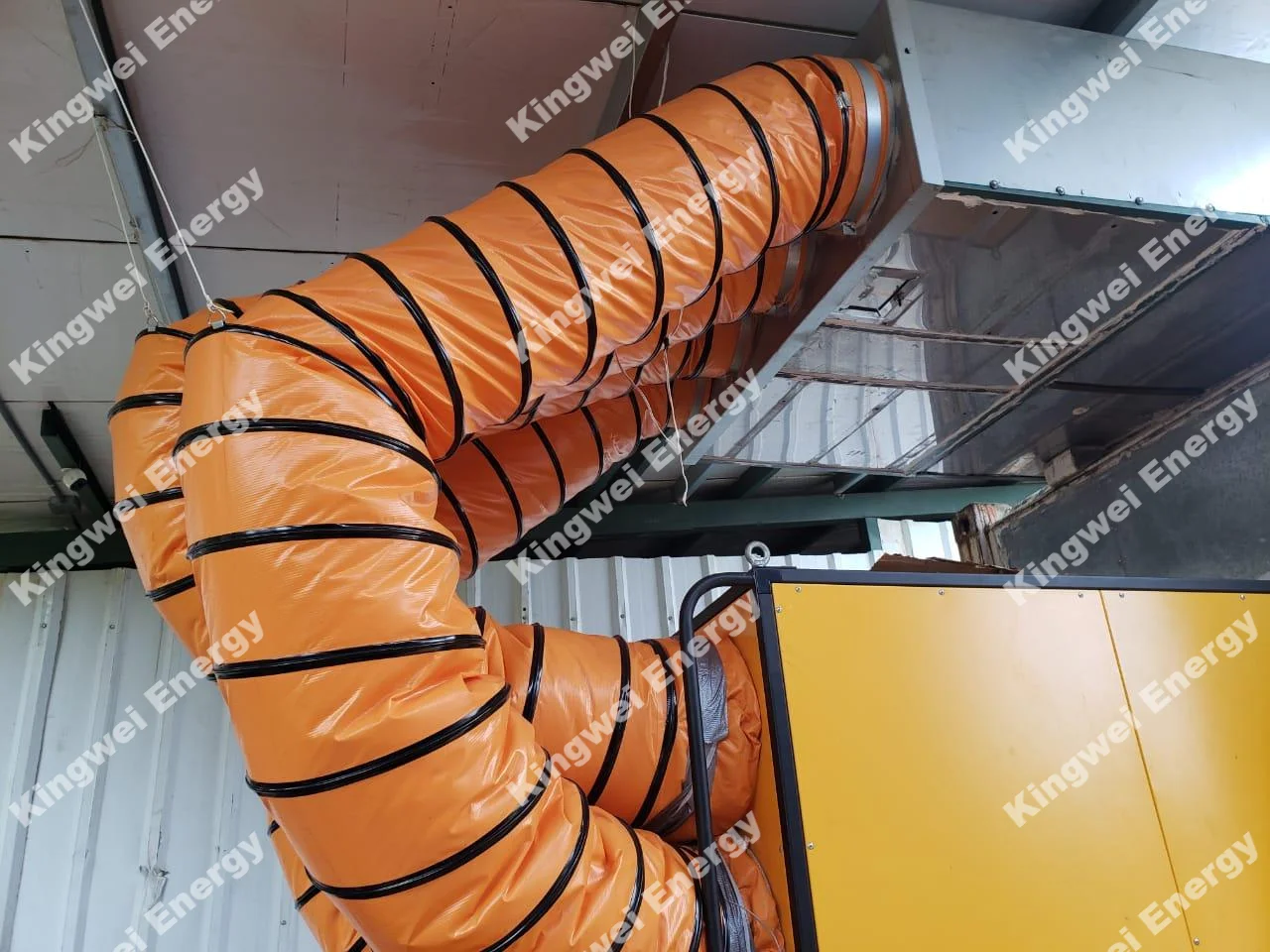

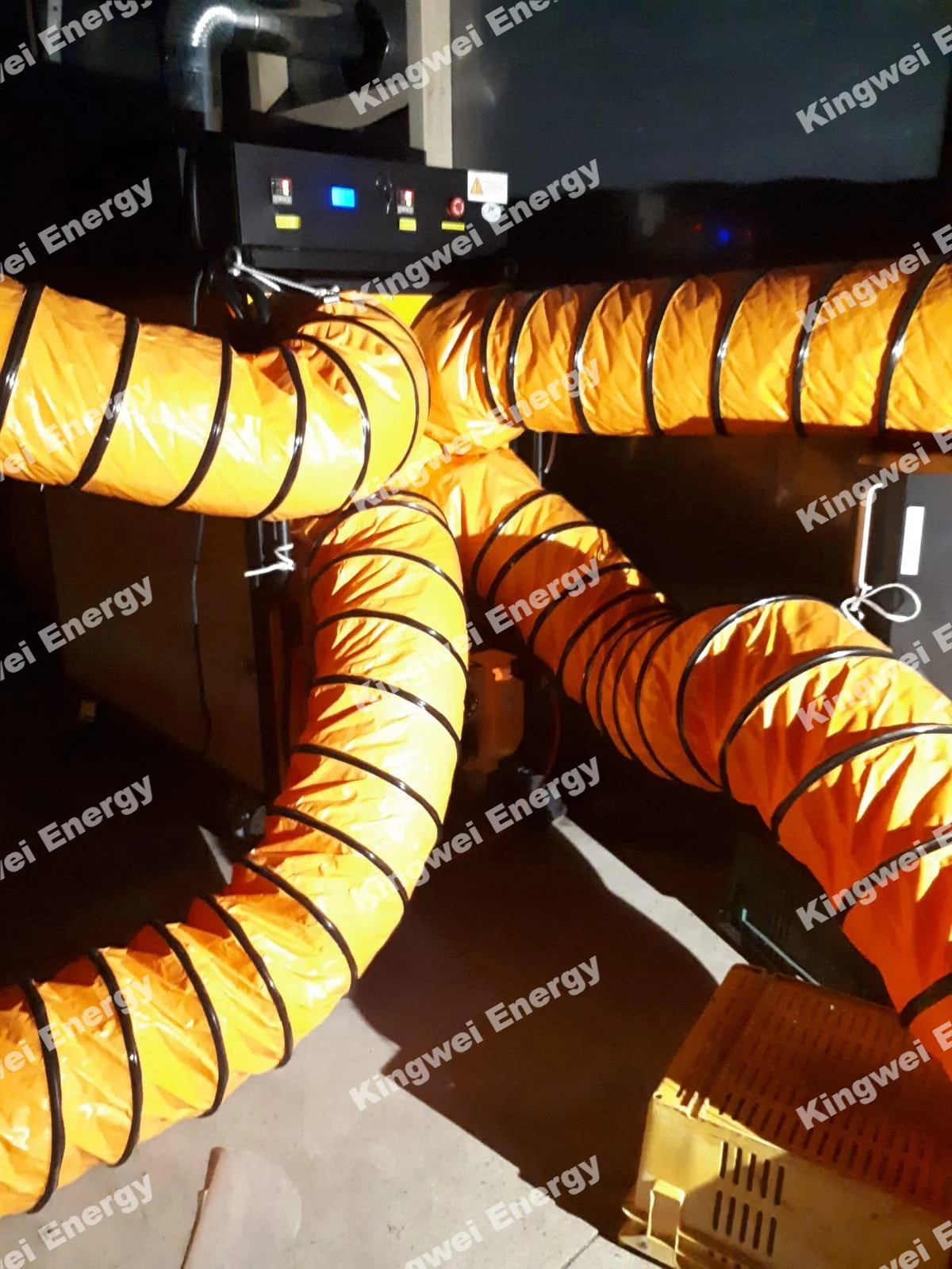

Long-Distance Heat Transfer
Two-pieces air hoses come with model KVH5000 heater. Each air hose is three-meter.







Waste Oil System
Integrated waste oil system- oil storage & heating tank, pump & filter system, burner, deodorization device are already on the heater.
Less oil consumption: KVH5000 heater consumes 6-7 Liter oil per hour.





Air Compressor System
Each working period uses 2 bar compressed air, which takes one minute thirty seconds—thirty seconds to raise compressed air from 5 to 7 bar, the left one minutes for burner's consumption. After compressed air reduces to 5bar, the air compressor starts to work again.

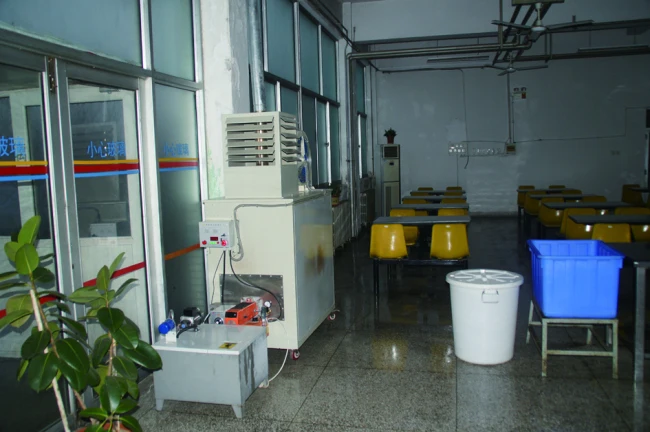

Installation Example


Our waste oil heater has many applications,can be used both indoor and outdoor.Such as garage,workshop,factory,poultry house,greenhouse,drying kiln,tunnel,stadium,snow melt,warm airplane engine etc.

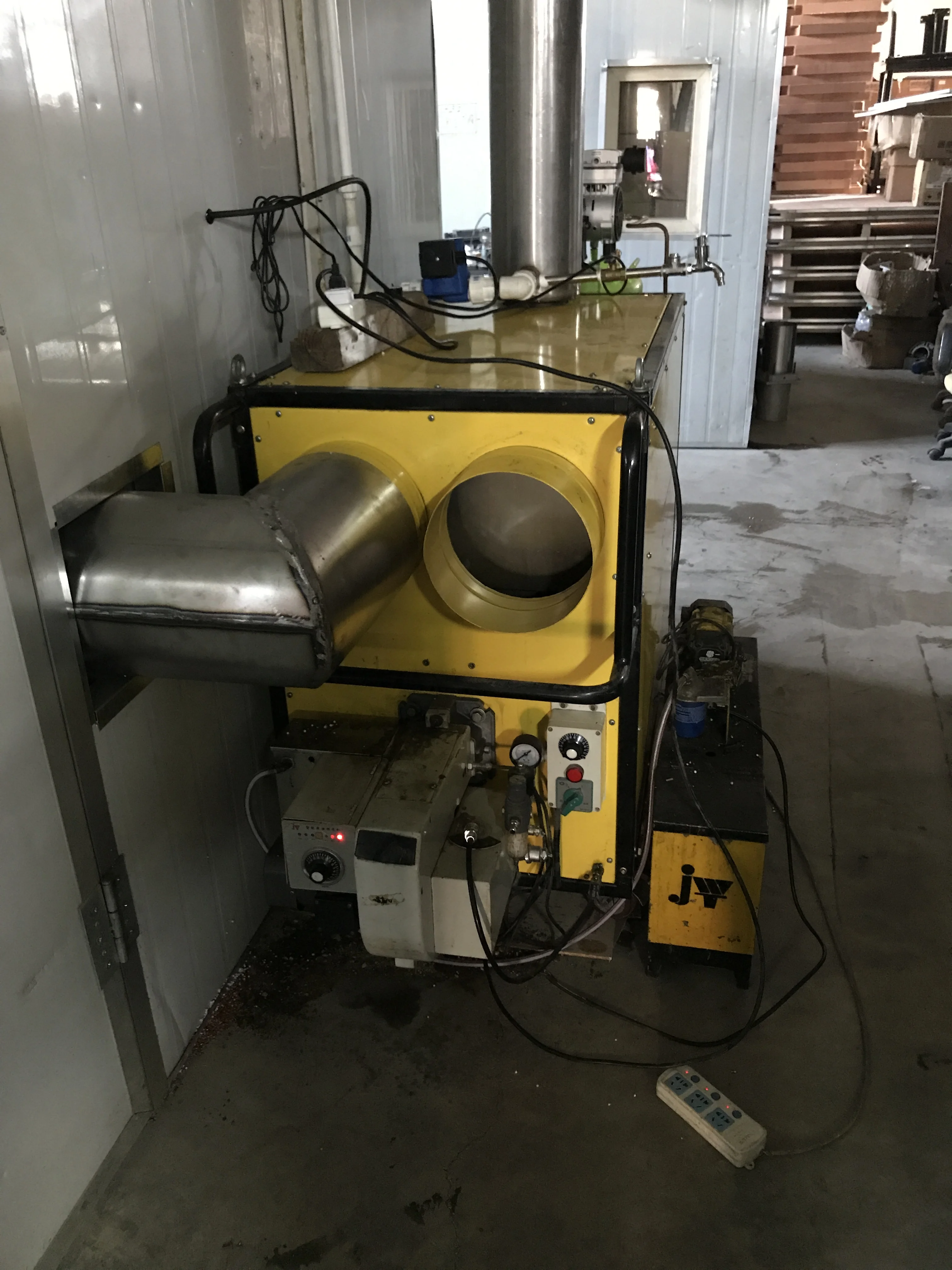

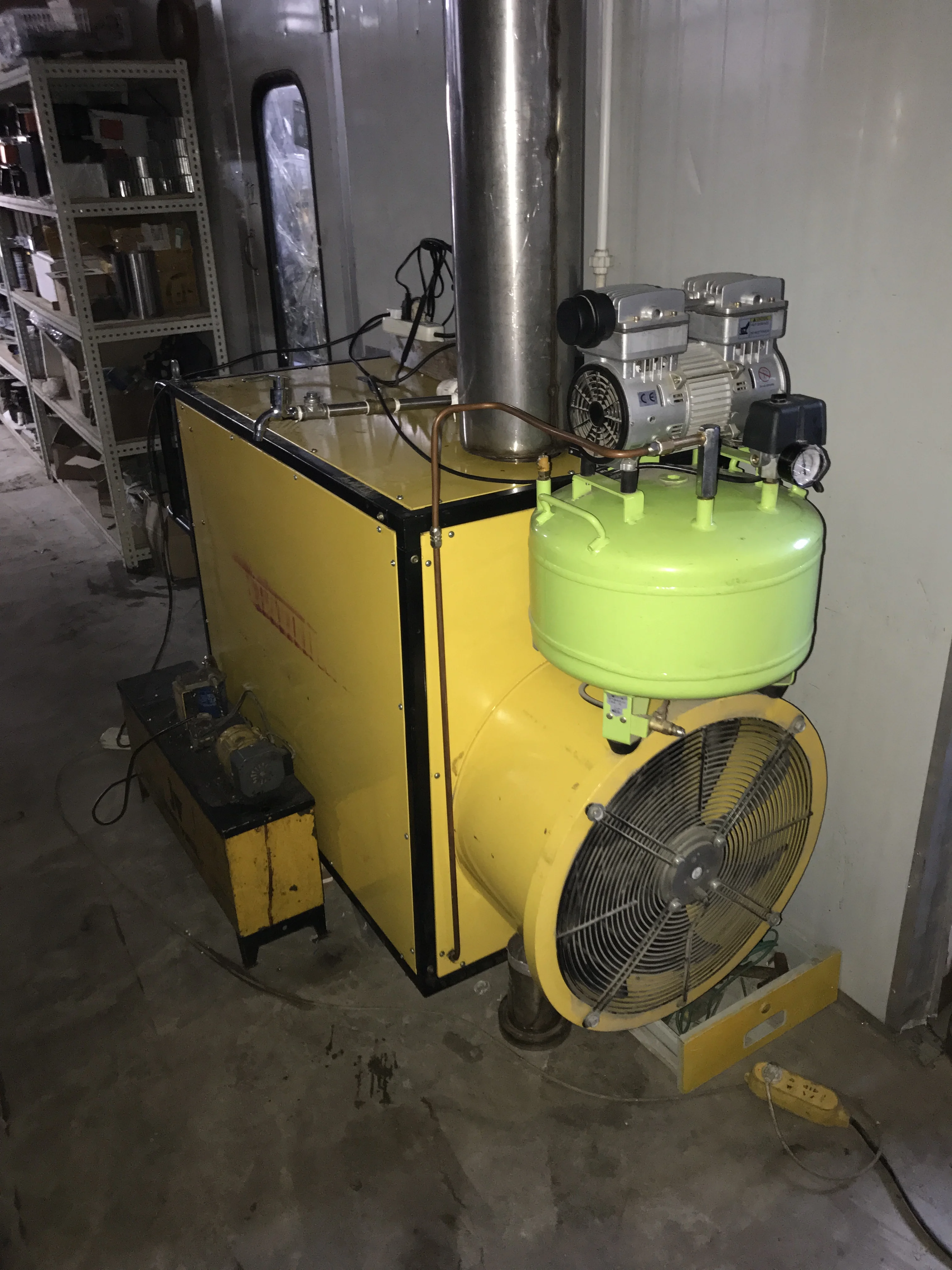

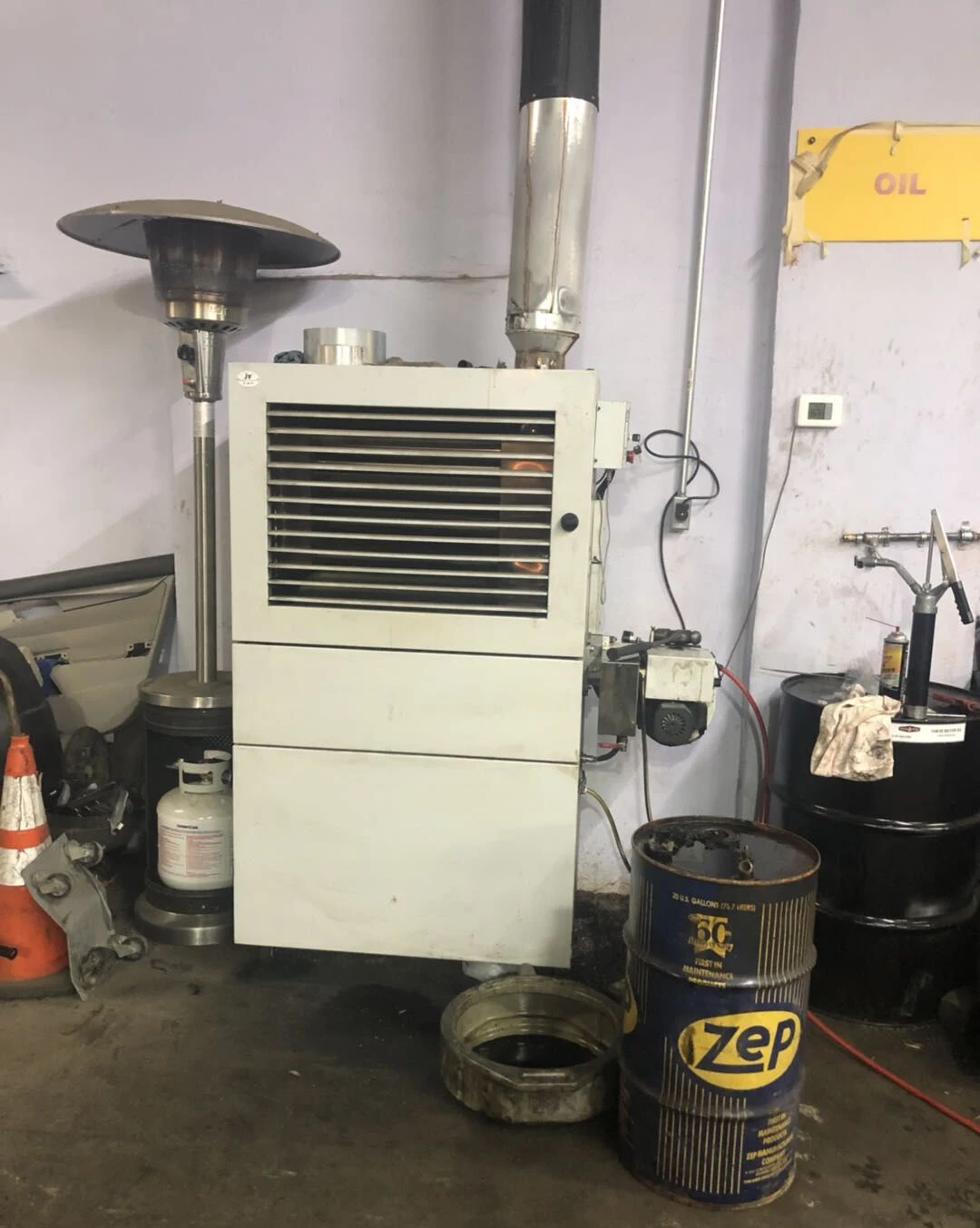

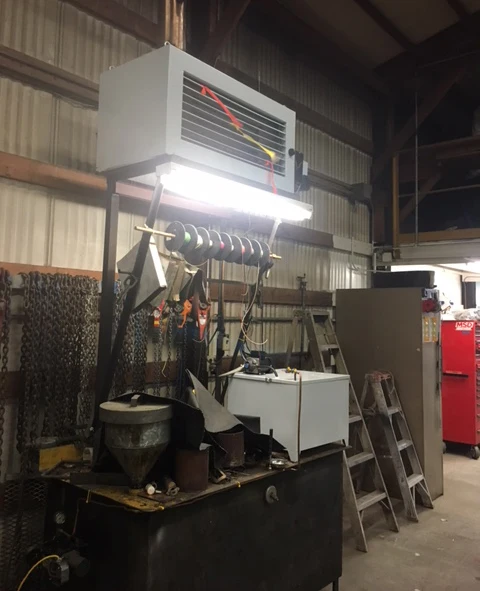

Workshop Installation

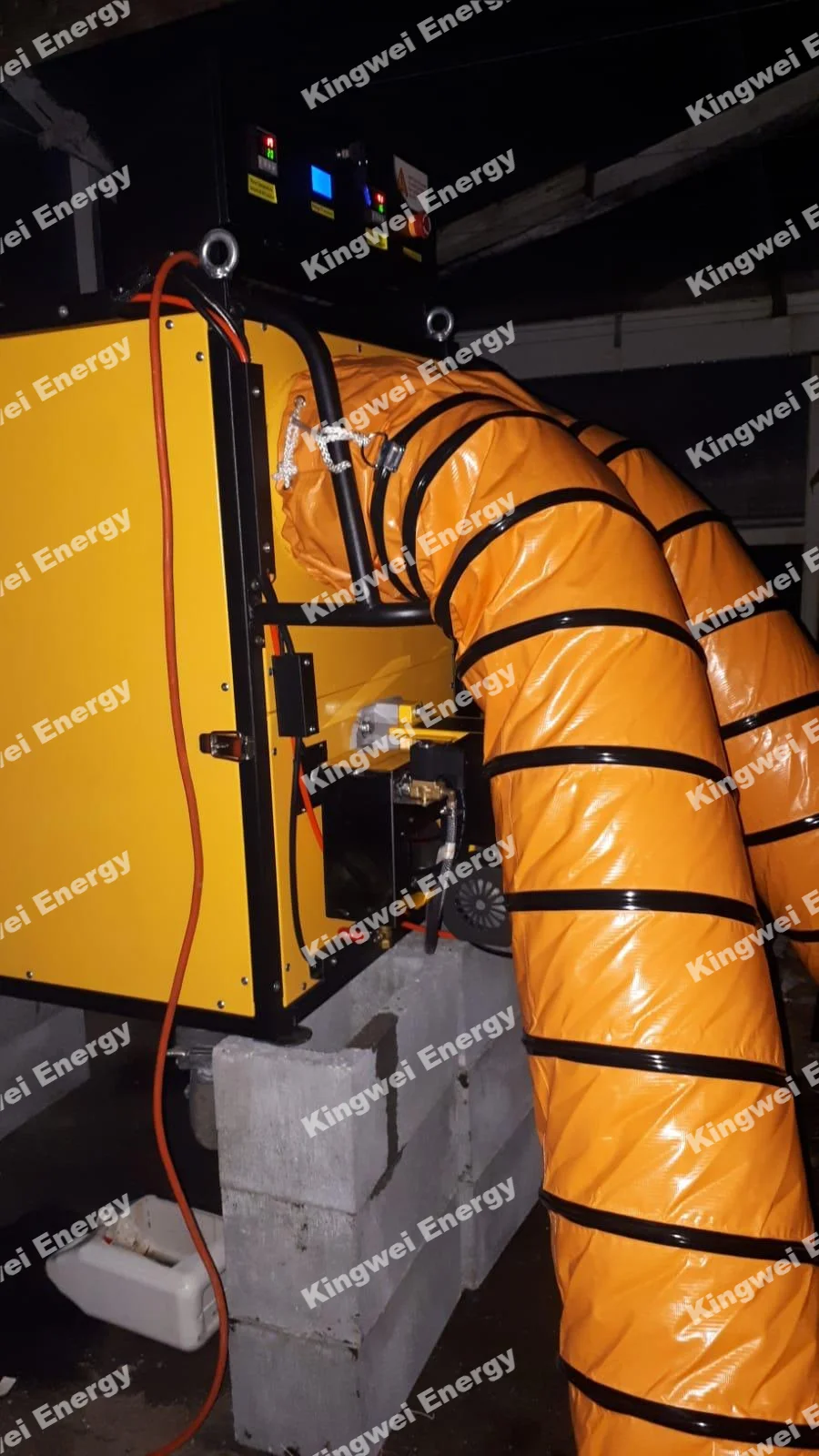

Farm Installation

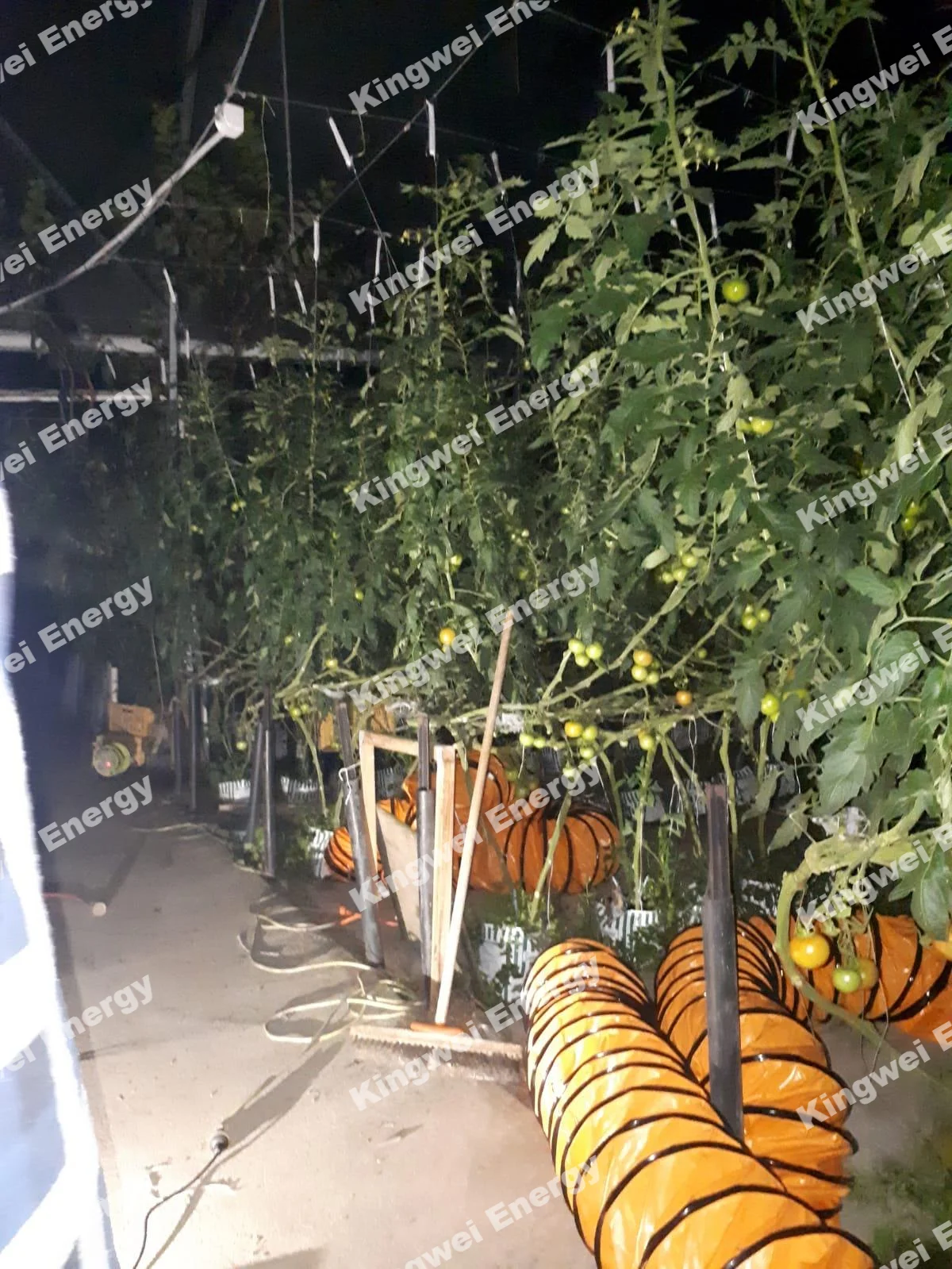

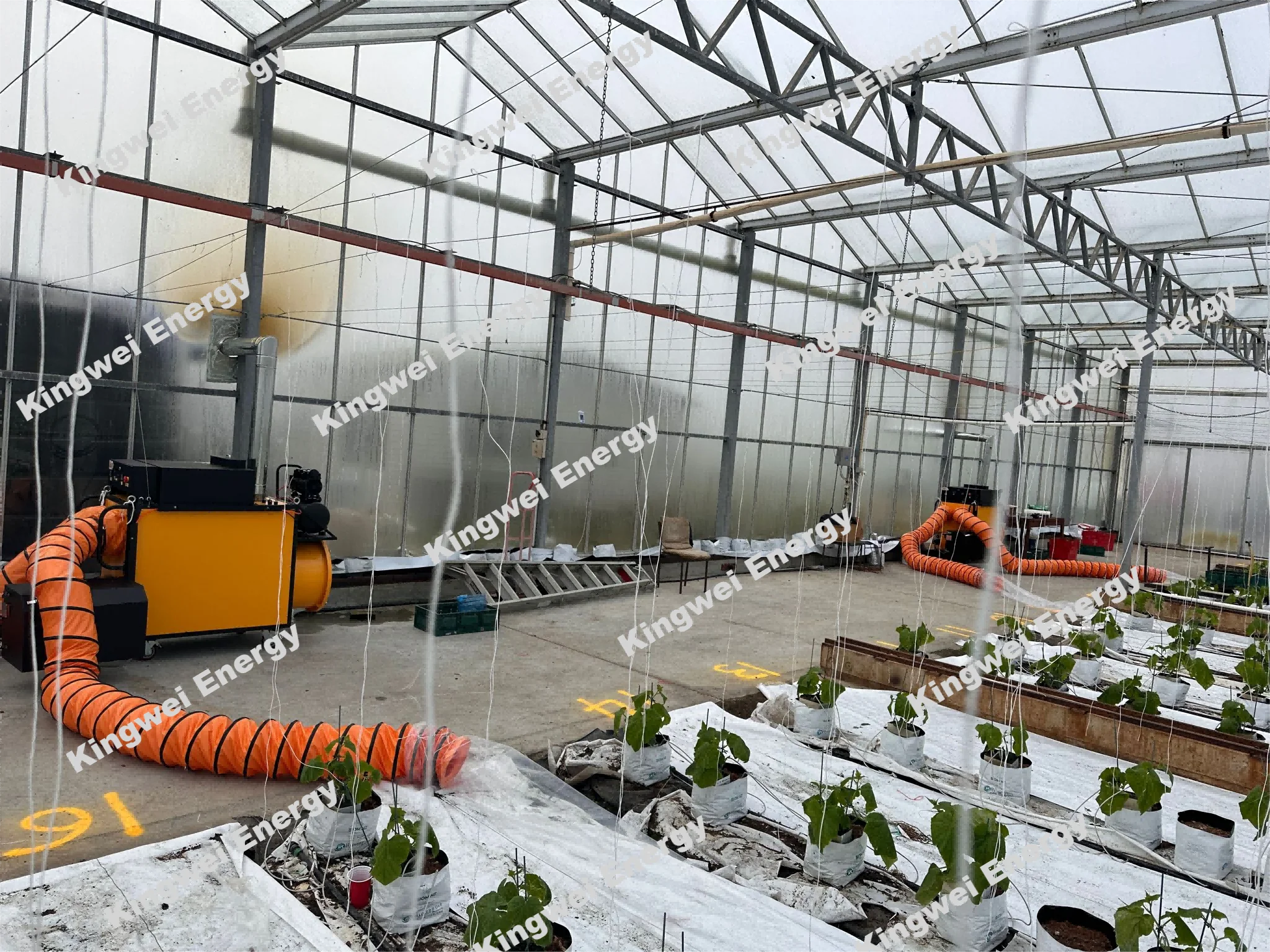

Greenhouse Installation

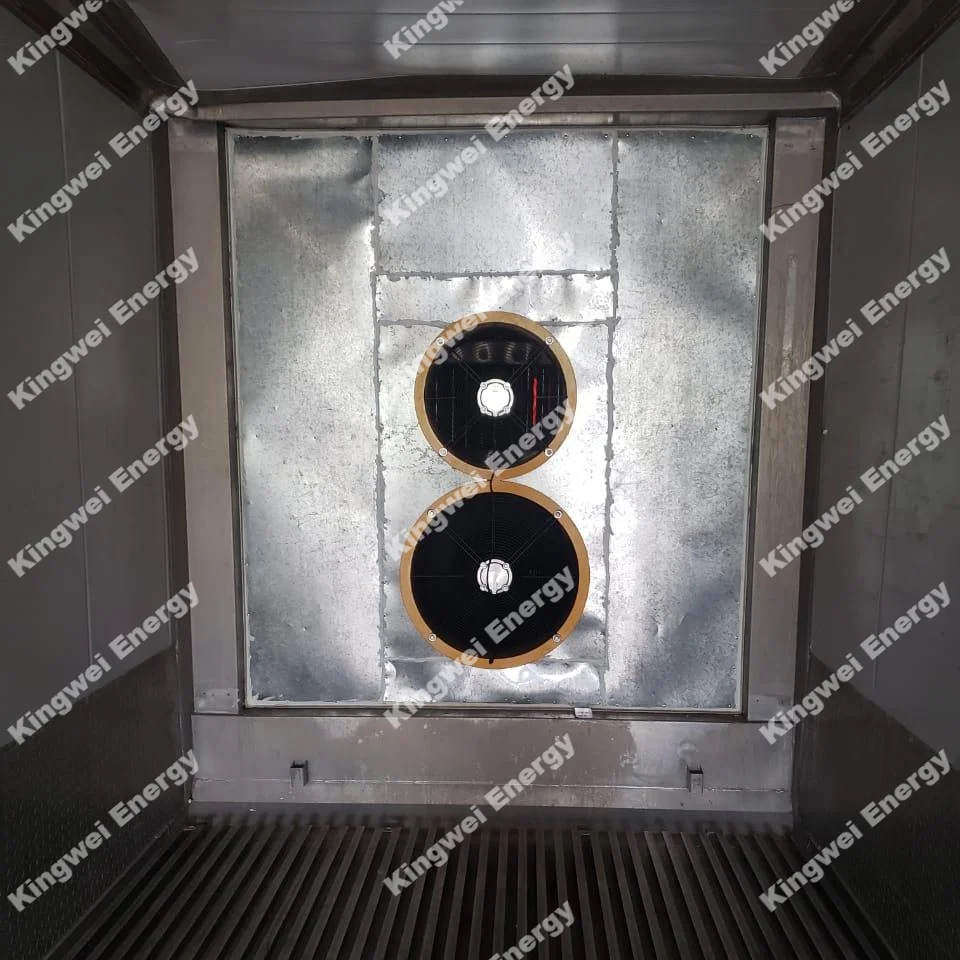

Drying Installation






Model Comparison


Model
Max.Output Heat
Heater Size
Reference Heating Supply Area
Oil Storage Tank
Air Compressor
Small Portable Waste Oil Heater
KVH600
120 000Btu/h
109x62x105cm
below 200sq.m
x
✓
Waste Oil Heater Hanging Type
KVH800

120 000Btu/h
80x50x50cm
below 200sq.m
external 54L oil tank

Option
KVH1000
200 000Btu/h
110x55x55cm
200-400sq.m
external 100L oil storage tank

Portable Waste Oil Heater For Garage
KVH2000
400 000Btu/h
95x56x174cm
600-800sq.m
Inside 100L oil storage tank

Option
Waste Oil Heater Specially For Greenhouse & Chicken House
KVH5000
400 000Btu/h
185x90x127
cm
600-800sq.m

Inside 100L oil storage tank

Deodorizing box

Air hoses


✓
KVH6000
400 000Btu/h
(upgrade chamber)
203x85x183
cm
800-1000sq.m
*Inside 100L oil storage tank *Portable,wheel&braker installed *Can be installed both indoor & outdoor
*greenhouse temperature
readable
*Minimum adjustment temperature is 1C *Adjustment temperature range:0-100C
*Air duct,heat resistant to 100C
Big Power Waste Oil Heater
KVH8000
800000Btu/h
218x100x198
cm
1000-1600sq.m
External 230L oil storage tank

Deodorizing box

Air hoses


✓

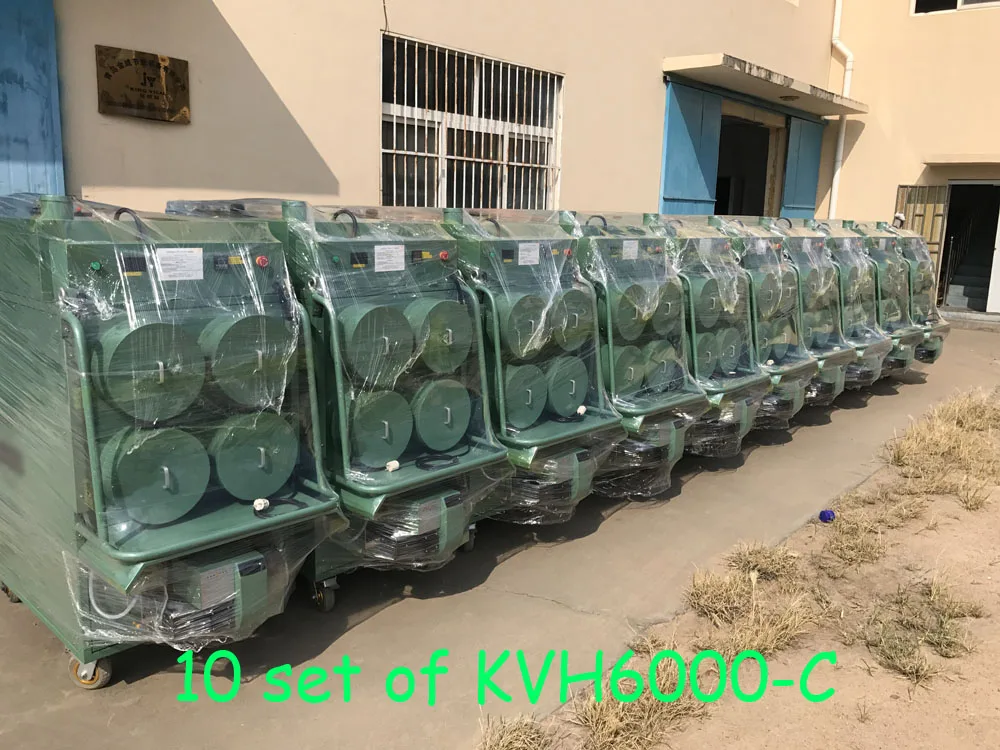

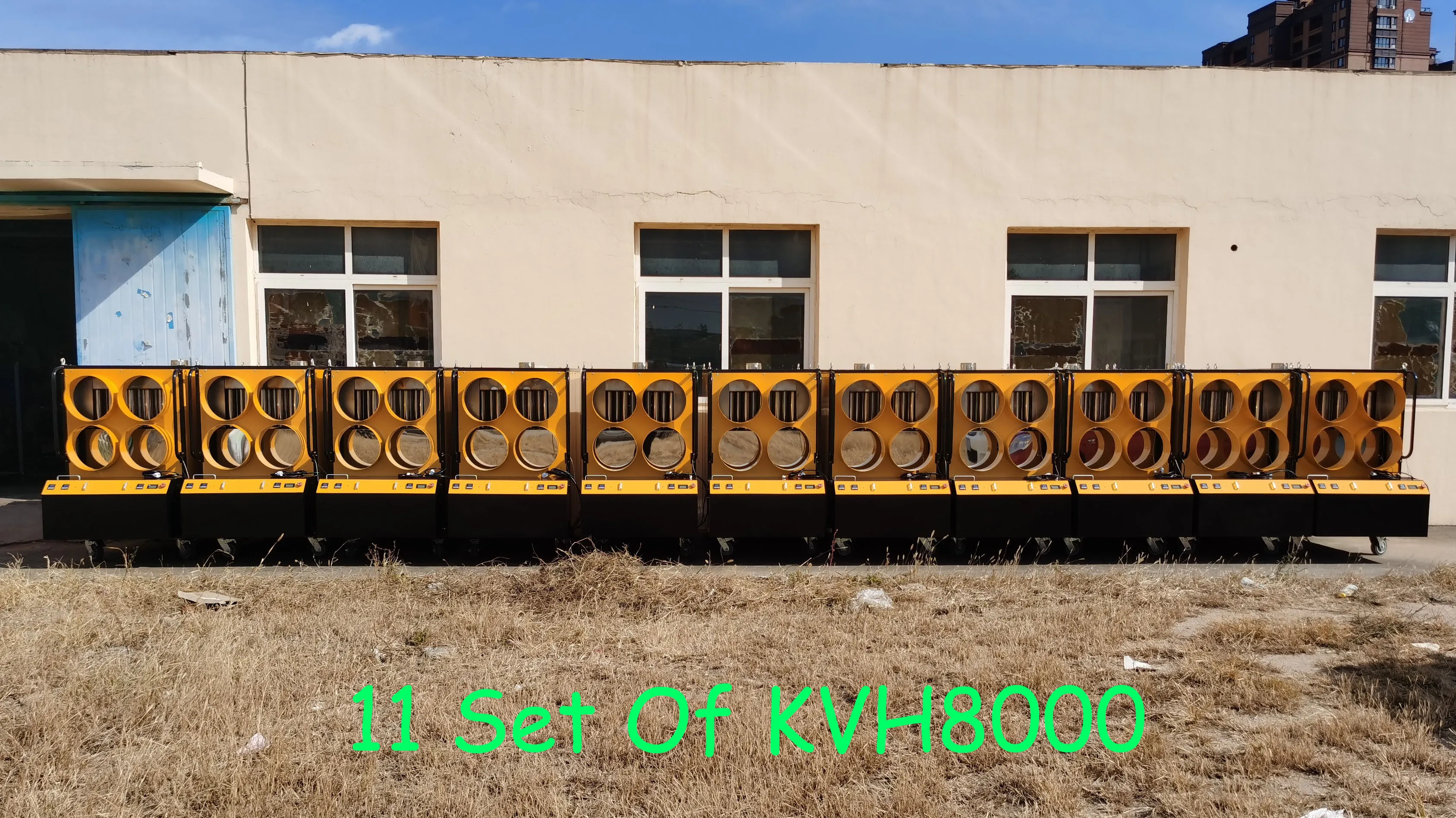

Order Display






One Package Service


Machine Tool Workshop
Foundry Workshop
Finished Casing Frame


Assemble By Handwork
Burner's Fire Test,Troubleshoot
Heater's Programme Test


Transport
●By express,such as dhl
●By air
●By sea
●By land
After-Sale Service
●spare parts for life time
●online support
●one year quality warranty
Refund Guarantee
●Transcation via alibaba trade assurance order.if we fail to product quality and delivery time,alibaba will pay your loss.
