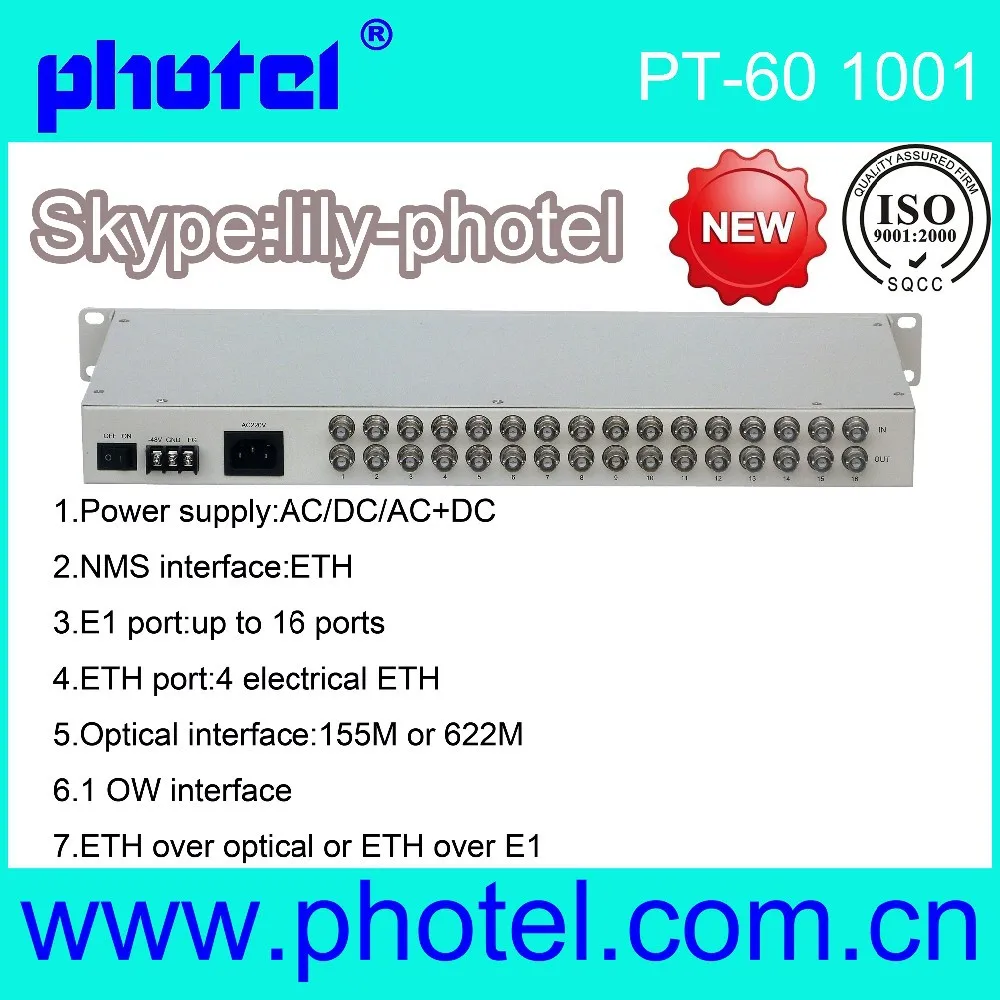

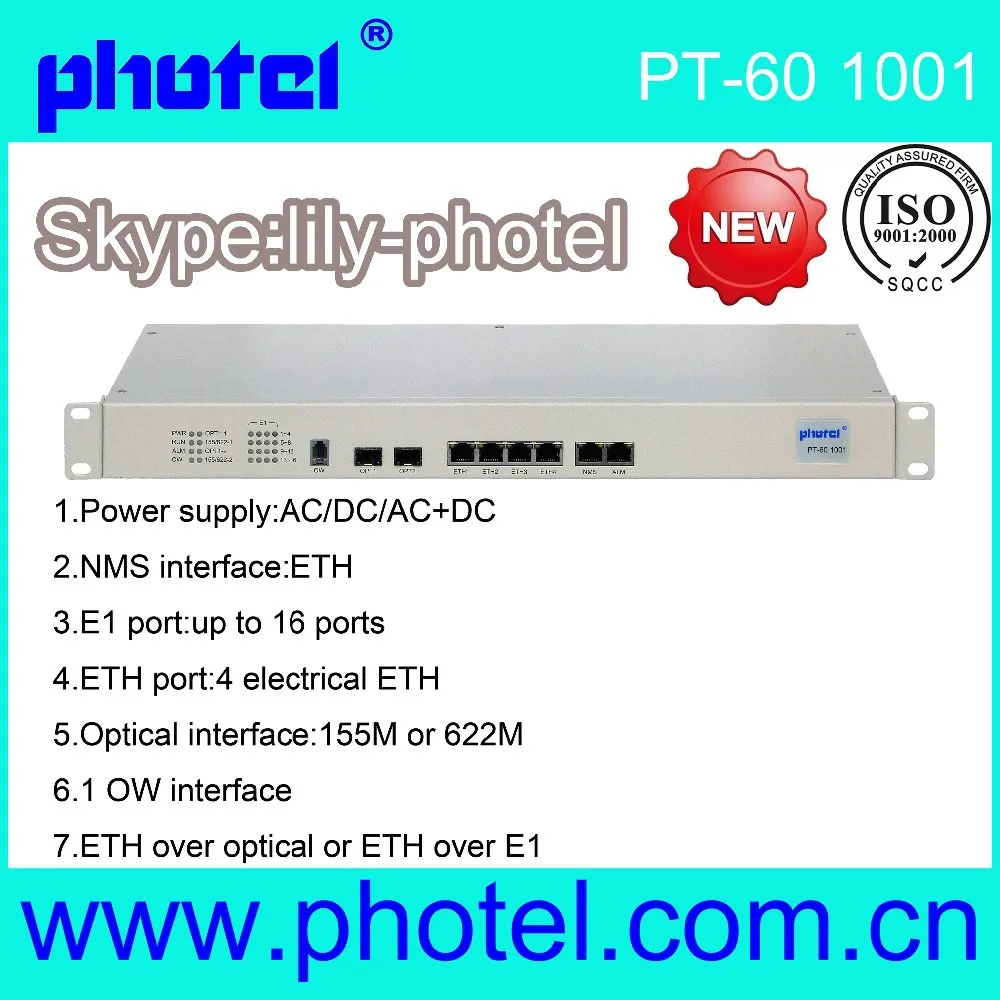

PT-60 1001 is a newly-developed optical fiber transmission equipment by Photel company based on SDH technology. It can designed as a STM-1/STM-4 level optical terminal with two 155Mb/s/622Mb/s optical interfaces to provide an ultra-compact, cost-effective and flexible multi-service platform.PT-60 1001can be used not only as an add-drop multiplexer (ADM), but also as a termination multiplexer(TM).
It manages to satisfy not only users’ needs for broadband,narrowband and other fiber optical transmission/access services, but also users’ needs for larger capacity and more reliable communication protection. It also provides succinct and faultless network management function which would carry out equipment configurating,fault-finding, data collecting and real-time monitoring on network performance. This item also features all of itscomponents of industrial grade, comprehensive EMC and interface protection design.
Features
Standard 19-inch 1U chassis structure, easy to install.
220VAC/- 48VDC double power supply.
Two STM-1/STM-4 optical interfaces(SFP) with 1+1 channel protection.(Either one fails, the other will back it up)
Provide up to 4 Ethernet networks with physical isolation.
Provide 16 E1s
Support networking mode: point to point, chain type, tree type, star type, ring type etc
In compliance with the ITU-T G.813 standards.
Specifications
Optical interface
Rate
155Mbps±4.6ppm
Adaptive fiber
Single/multi-mode
Consumption
-15 ~ -8dBm
Wavelength
1310nm/1550nm
Physical connector
SFP
Sensitivity
Better than -32dBm
Transmitting range
40km or further(with optical module)
E1 interface
Rate
2048Kbps
Code
HDB3
Comply with
ITU-T G.703 standard
Impedance
75Ω/120Ω
Frame structure
PCM30/31
signaling
Inbound Signaling
Channels
Up to 16
Ethernet interface
Rate
N × 2.048Mbps(N≤50)
Duplex
Full/Half auto-negotiation
Physical connector
RJ-45
Comply with
IEEE802.3
Power Supply
Input voltage
Standard value -48VDC or 220VAC
Voltage range
-36VDC~-72VDC,176VAC~264VAC
Power consumption
<10W
Operation Environment
Working temperature
-10°C ~ +50°C
Working humidity
<=90%(no condensation)
Application
