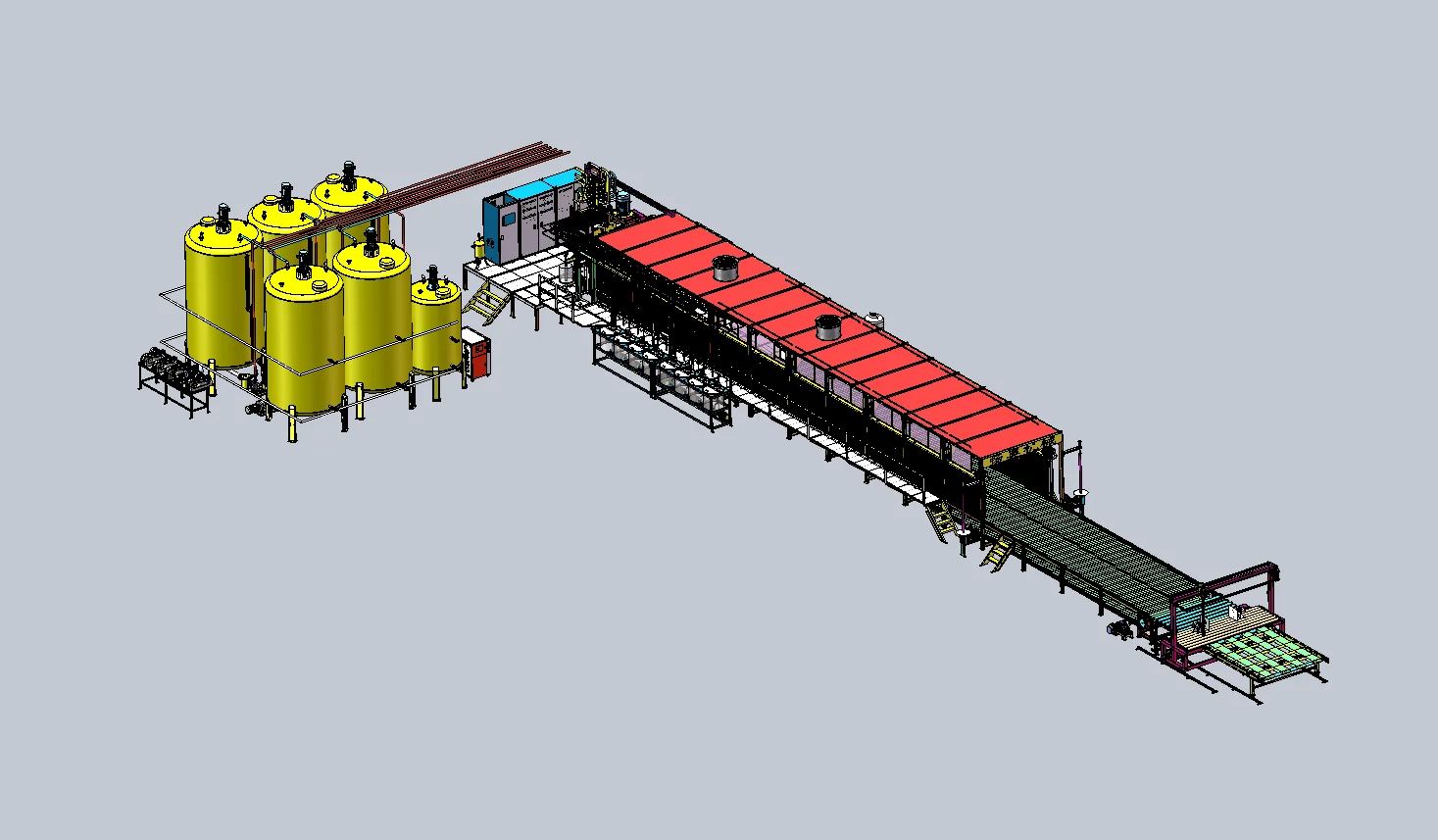

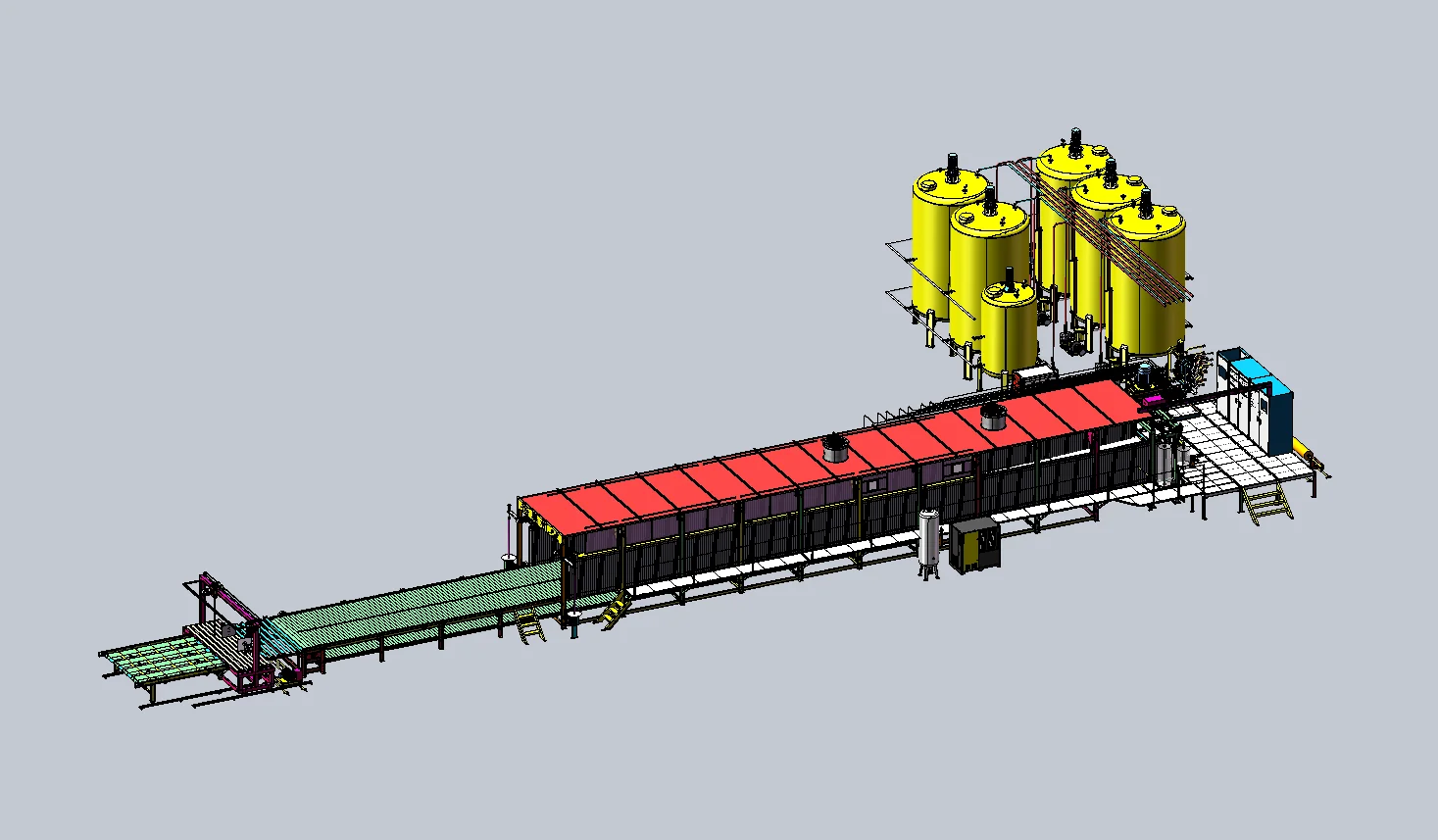

Automatic Mattress Foam Making Machine Line
- Category: >>>
- Supplier: Dongguan Yangao Machinery Co. Ltd.
Share on (60197365392):
Product Overview
Description
Mattress Foam Making Machine Manufacturer
Product Description
This is the polyurethane foam machine can make the foam for mattress and sofa and also for shoes memory foam.
It is automatic PLC control and save the formular in the PLC then you can just pressure one button foaming begin. With one experience engineer and together with 9 to 10 workers then you can start the machines.
Machine Main Specifiactions:
Max.Output Capacity: | 200~350kg/min(Continuous Type) |
Mixer Total Power: | 37kw |
Max.Mixing Speed: | 2500~6000r/min |
Foaming Type: | Trough & Sprayer |
Standard Material Q.T.Y.: |
13 Groups. |
Foaming Size: | W2300mm*H1300mm(Width Adjustable) |

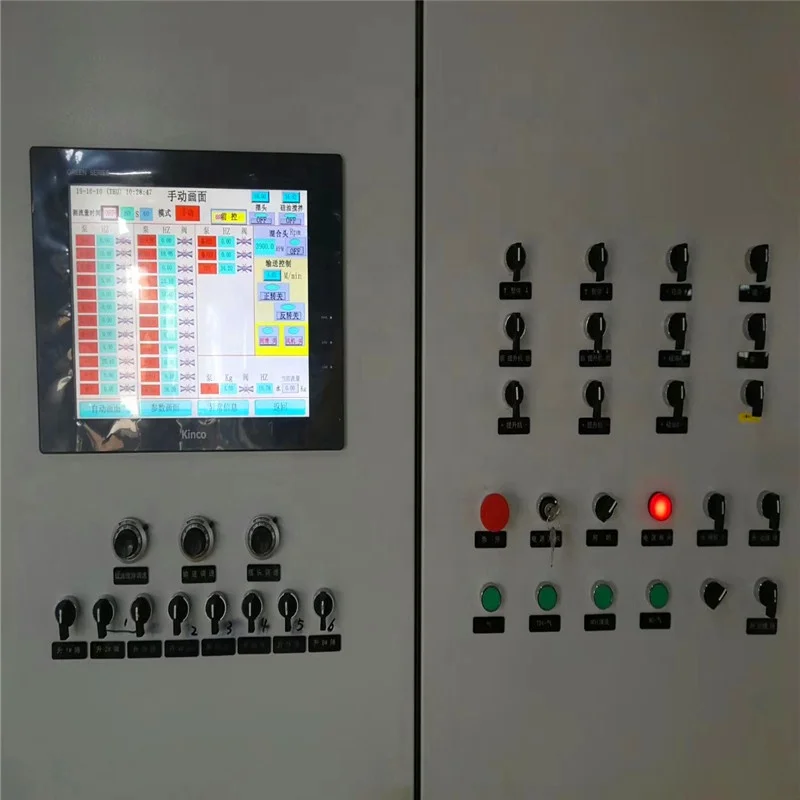

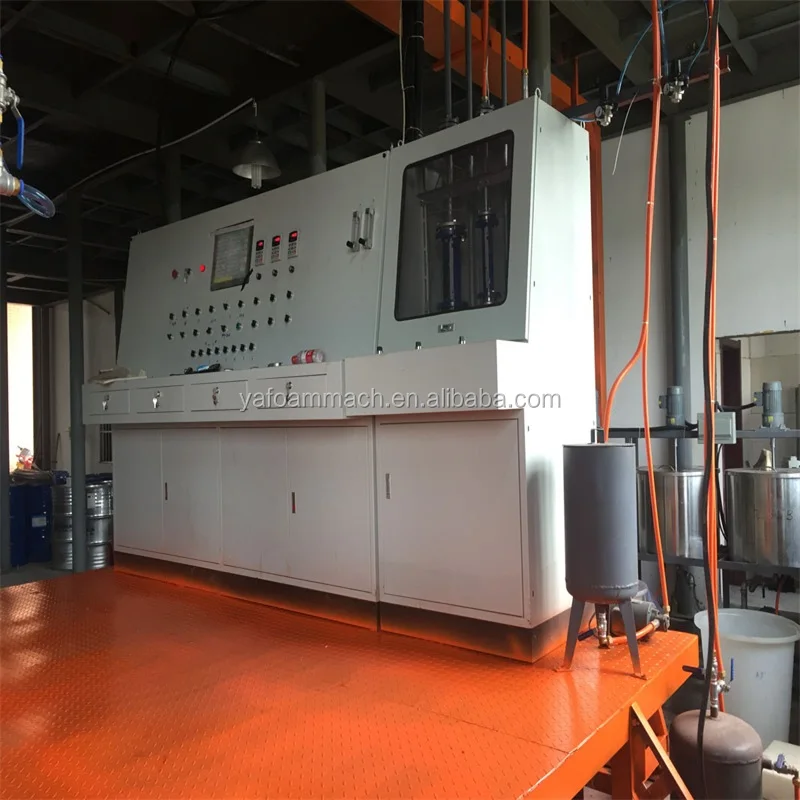

Control System: | PLC Digital Touch Screen |
PPG Tank: | 5Ton*1Set. |
POP Tank: | 5Ton*1Set. |
TDI Tank: | 5Ton*1Set. |
MC Tank: | 2Ton*1Set. |
Caco3 Tanks | 5Ton*1Set |
T-9/Amine/Color 1ABCD/ Silicone /Water Tanks | 180L*8Sets |

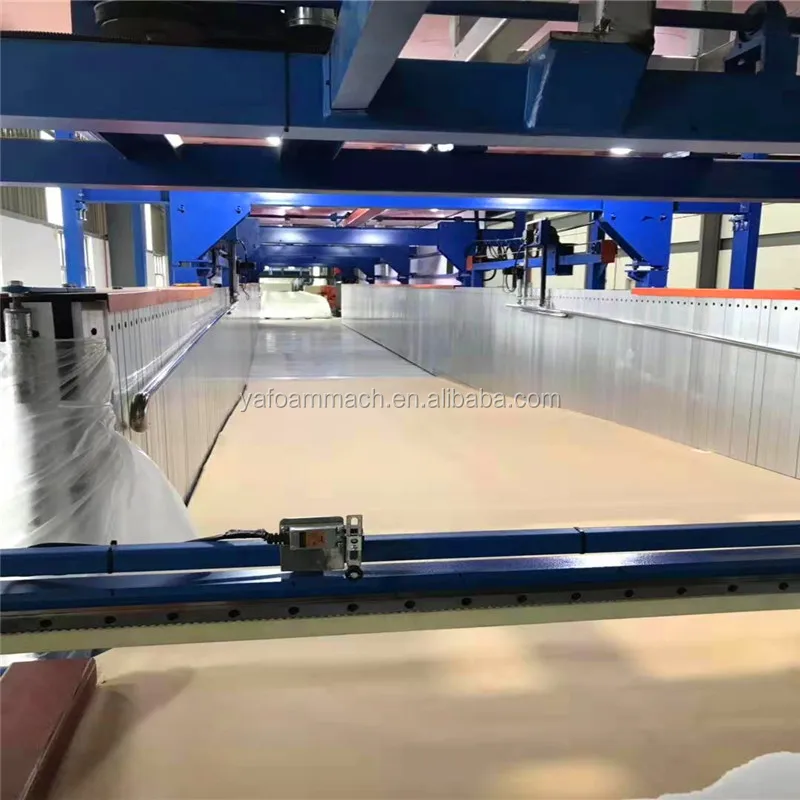

Side Wall Size: | L16m*H1200mm |
Fallplate: | L8.5m*W0.98~2.4m(Adjustable) |

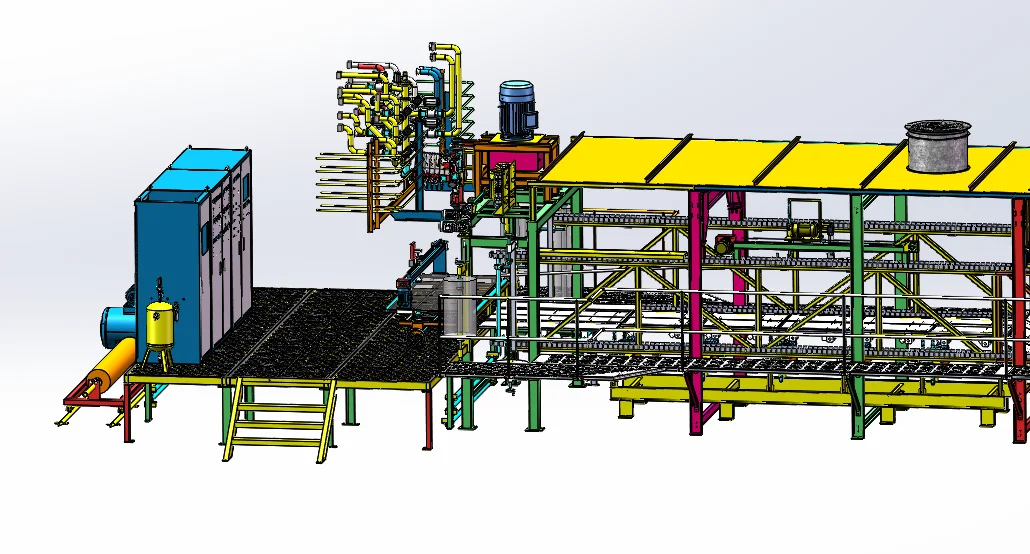

Foaming Platform: | L2000mm*W3000mm*H700mm |
Conveyor Line: | L16.9m |
Side/Bottom Paper Feed & Rewind System: | 2Sets. |
Walkway: | W500mm*L15m |
Air Valves | U.S. Standard |
Chiller(Both Cooling & Heating System): |
1Set*1.5HP |
R.S.Pulling System: |
1Set. |
Foaming Density Range: |
8~150kg/Cubicmeter. |

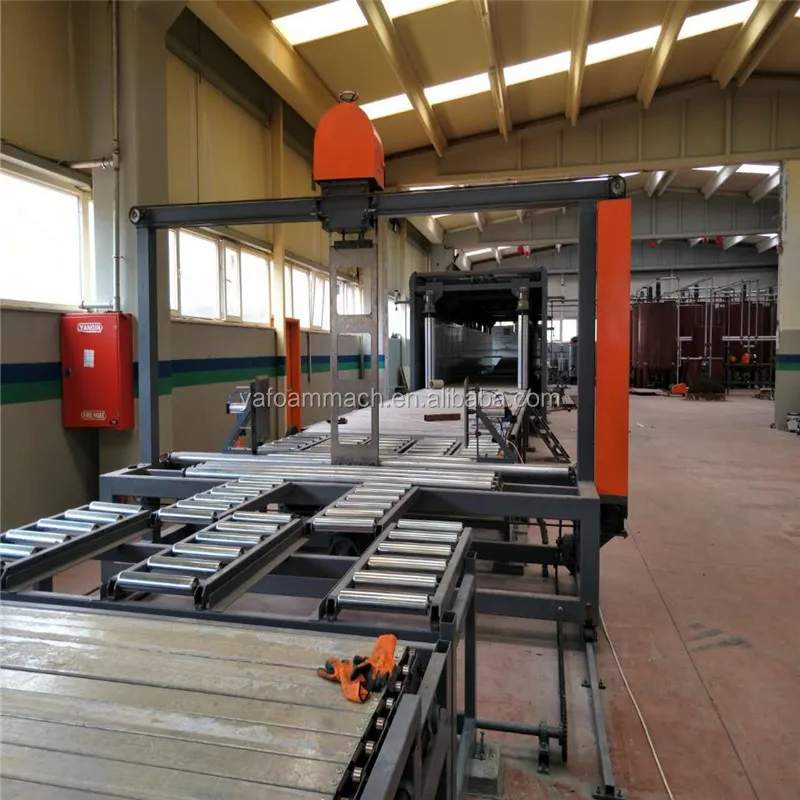

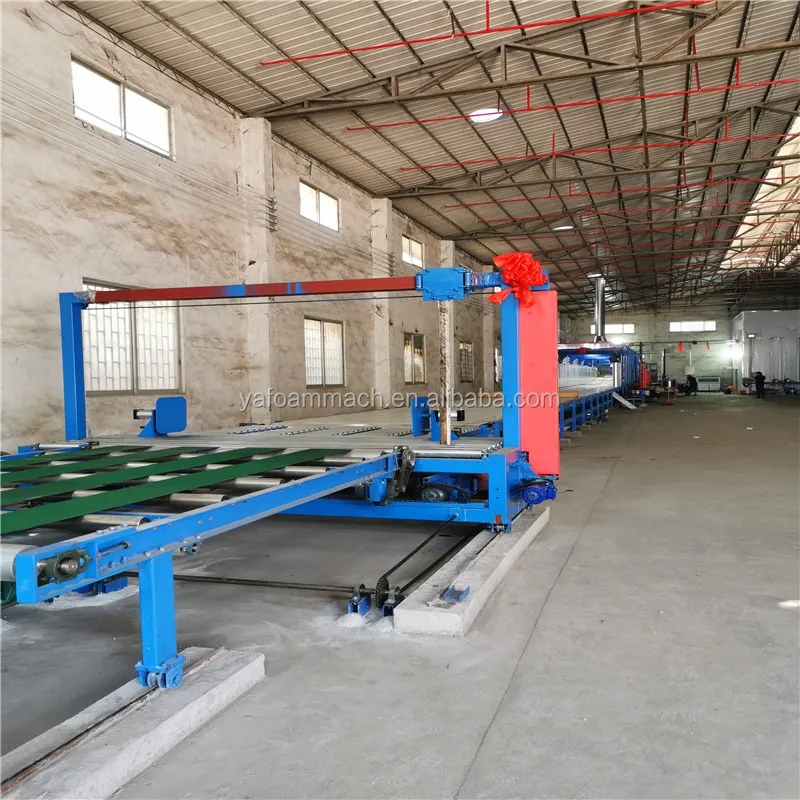

Match With Block Cutter: | 1Set. |
Total Motor Power: | Approx 125kw. |
Machine N.W.: |
Approx 30 Ton |
Floor Space Required: | L45m*W5m*H4.5m. |
Company Information
Dongguan YangAo Machinery Co., Ltd
We are the foam machine manufacturer located in Dongguan city Guandong province. We are specilized in making the horizontal continously foam making machine and all kinds of foam cutting machines. We also have our own foam factory with the R&D team keep update the foaming technology.They make the high density foam and memory foam and own its brand name “ MSJ “ products sales well all over the worlds.
Packaging & Shipping
The machine was in naked packing and some small parts will be put into the wooden case or inside the material tanks to save the freight cost.
The standard Foam machine automatic continuously foam making machines will need three containers only.
Our Services
1.We are the foam machine manufacurer who also have the foam factory so we have our own R&D team keep update the machines technology and all kinds of foaming formular and all kinds of foam chemicals.
2.We will send technicans to the buyer factory to help to install the machine then the electronic engineer connecting the cable after that the foaming manager will come and testing the machines.
3.After the machine testing we will also offer one year warranty after one yeary will provided long time after sale service.
4. We will also provided the operation manual and all kinds of instructions about the machines
5.We can also help to recommed the best foaming engineer in China to help to train the customer in customer factory.
Our customers
Our machine sells well in and out of China have an excellent reptation.
FAQ
1. We have the RS pulling systerm to make the foam top more flat to reduce the cost.
2. We are choosing the UK technology of the mixing head make the foam quality good enough.
3. We also have the CACO3 mixing tanks that can be add abt 100% powder in the foaming.
4. We can also offer you the best price of the raw material that can the foam.
