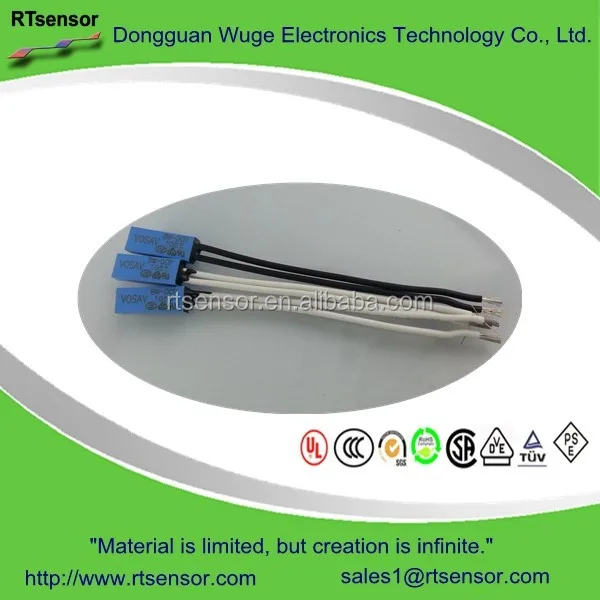

Embedded Skin Temperature kada kdt 200 Defrost Disc Bimetal Type Thermostat
- Category: >>>
- Supplier: Dongguan Wuge Electronics Technology Co. Ltd.
Share on (60197406911):
Product Overview
Description
Embedded Skin Temperature kada kdt 200 Defrost Disc Bimetal Type Thermostat
Product Dimension
Plastic Shell Size: 3.9mm×7.2mm×15.0mm
Metal shell size : 3.2mm×6.8mm×15.5mm
Appearance
Thermal protector of shell can not have burrs, crack, deformation, the phenomenon such as corrosion;
Logo should be correct, correct, clear, durable resistance to wipe;U thermal protector of shell can not have burrs, crack, deformation, the phenomenon such as corrosion;
Logo should be correct, correct, clear, durable resistance to wipe;
Electrical Performances
Rated current: AC250V / 5A AC115V / 8A
Maximum short-circuit current : DC 12V 100A
Minimum using current : DC 5V 10 mA
Action Temperature
Action temperature (OFF) : + / - 5 ℃
Reset temperature (ON) : 45 + 15 ℃
ON - OFF differences : more than 15 ℃
Temperature characteristic Table
Part number | Action temp. (℃) | Reset temp. (℃) | Part number | Action temp. (℃) | Reset temp. (℃) |
BW-DCM(P)-50℃ | 50±5 | 30±8 | BW-DCM(P)-105℃ | 105±5 | 70±15 |
BW-DCM(P)-55℃ | 55±5 | 35±10 | BW-DCM(P)-110℃ | 110±5 | 75±15 |
BW-DCM(P)-60℃ | 60±5 | 40±10 | BW-DCM(P)-115℃ | 115±5 | 75±15 |
BW-DCM(P)-65℃ | 65±5 | 45±10 | BW-DCM(P)-120℃ | 120±5 | 80±15 |
BW-DCM(P)-70℃ | 70±5 | 45±15 | BW-DCM(P)-125℃ | 125±5 | 85±15 |
BW-DCM(P)-75℃ | 75±5 | 50±15 | BW-DCM(P)-130℃ | 130±5 | 90±15 |
BW-DCM(P)-80℃ | 80±5 | 55±15 | BW-DCM-135℃ | 135±5 | 95±15 |
BW-DCM(P)-85℃ | 85±5 | 55±15 | BW-DCM-140℃ | 140±5 | 100±15 |
BW-DCM(P)-90℃ | 90±5 | 60±15 | BW-DCM-145℃ | 145±5 | 105±15 |
BW-DCM(P)-95℃ | 95±5 | 65±15 | BW-DCM-150℃ | 150±5 | 110±15 |
BW-DCM(P)-100℃ | 100±5 | 65±15 | Special specifications can customize according to customer's requirements | ||
Bimetal Type Thermostat Related product we supplying
Bimetal Type Thermostat Description
RTsensor's bimetal disc welded in a steel can provides excellent thermal sensitivity and maximum protection properties.
Special Features of Bimetal Type Thermostat :
Miniature size
Positive make and break with snap-action disc
Repeatable temperature performance over life
Gasketed case suitable for most impregnation processes
Current and temperature sensitivity for maximum design flexibility and application
Substitute SENSATA 17AM
Temperature Ratings of Bimetal Type Thermostat:
Temperature range: 55-150C
Tolerance:±5
Bimetal Type Thermosta Application :
Vacuum cleaner
Dynamical battery
Air compressor
DC motor
Heating appliance
HID ballasts
Solenoids
1)Lighting Protection
Bimetal Type Thermosta is the world leader for protection in lighting applications. Offering extremely high reliability and performance at an economical cost, the 17AME protector is ideal for fluorescent lighting ballasts, HID ballasts, recessed lighting fixtures, and other lighting products that require protection against overheating.
2)Electrical and Thermal Protection
RTsensor’s 17AME is one of the lowest cost, most versatile protection devices on the market. This compact device combines temperature and current into a package designed to protect electric motors, transformers, recessed lighting, fluorescent ballasts, and battery packs. It is available in a wide variety of wire lead configurations, which can be customized for ease of installation.
The 17AME series of protectors offers rechargeable battery-pack protection with Wuge® dual–function over temperature as well as short circuit bimetal protectors that are self–resetting.
The 17AME series are typically used for protecting battery charger outputs and high-current battery packs (ie. Military, UPS). The 17AME can handle up to 16VDC and 20 amps under certain conditions and is available with a wide variety of open temperatures and short circuit sensitivities.
3)Motor Protection
The universal 17AME series motor protector is our most popular product, and though it is slightly larger than the 8MM it has a contact rating of up to 22 amps.
Certifications of Lighting Motor 17AME Thermal Protector :
UL&CUL:
CQC:
VDE:
CB:
17AME Thermal Protector Our customers
Our services
1. Small order quantity accepttable
2. Customise available
3. High quality & competitive price
4. Timely delivery : 7-10 workdays
5. Payment: T/T & Paypal etc.
6. Trade terms: FOB,EXW,CIF,CFR,CPT
Company Information
Dongguan Wuge Electronics Technology Co., Ltd was founded by a group of enthusiastic technicians and sales force who have abundant experience in thermistor & temperature sensor & 17AME thermal protector and highly motivated to serve customers.
Our goal in pursuing best and perfect that make us achieve continuous progress. And we are striving for professional hermistor
and temperature sensor manufacturer, customer-oriented and service- minded made us became customers’ preferred anufacturer.As one high-tech enterprises, we own independent R&D and manufacturing ,specializing in research, development,production and sell of thermistor and temperature sensor. Our advanced technology, innovative management idea and mechanism effectively ensured product performances steady and reliable. Compared with similar products at
home and abroad, our conventional performance indexes have reached advanced level.
At present , our main products including : NTC temperature sensor, glass encapsulation type NTC thermistor series, SMD NTC
thermistor series, high precision AT type thermistor (epoxy encapsulation). Widely used in household appliances (heat pump, air conditioners, refrigerators, electric heaters, electric kettles, washing machines, microwave oven, electric water heater, solar water heaters, water dispenser, rice cooker, induction cooker, bread machine, dishwasher, weather forecasting, etc.), industrial equipments (wet machine, boiler, automatic control equipment, instruments and meters, etc.), automotive, medical equipments, computer, energy-saving lamps, power panels, energy-saving power supply, communications equipment, high/medium/low temperature humidity field.
FAQ:
Q: What’s info we should provide for RFQ ?
A: Product specification : size,color ,electrical rating.temperature.quantity.etc. More is better !
Q : Sample available or not ?
A: Yes,of course. Some free samples would be provided but you would bear freight cost .
Q: Can you print our design logo on product ?
A: Yes, OEM/ODM supportable.
Q: Do you accept mall order or trial order ?
A: Yes
Q: What’s your payment terms ?
A: T/T , Western Union , Paypal , Cash .
Q: What’s your lead time ?
A: In general, 7-10 workdays to ensure quality !
Q: Could you help arrange shipment ?
A: Yes, we can offer you logistic services : Express/Air/Sea
