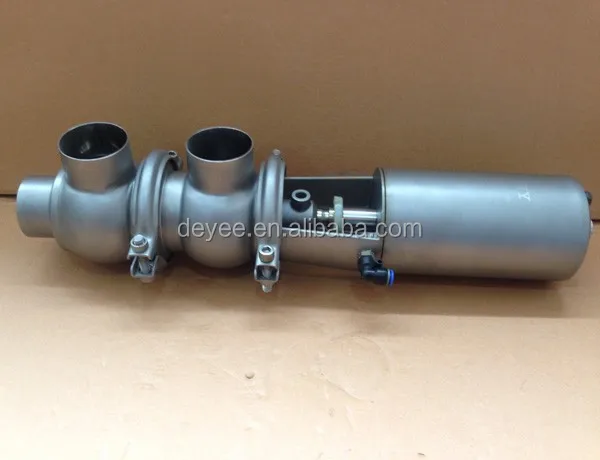

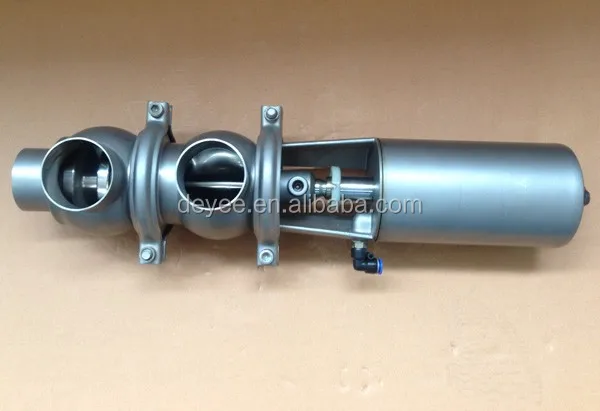

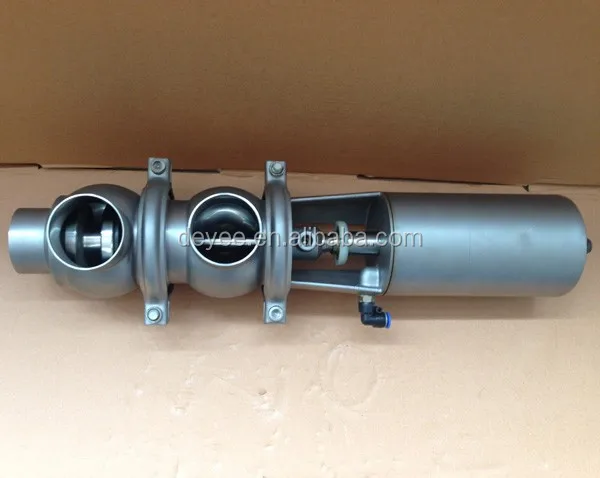

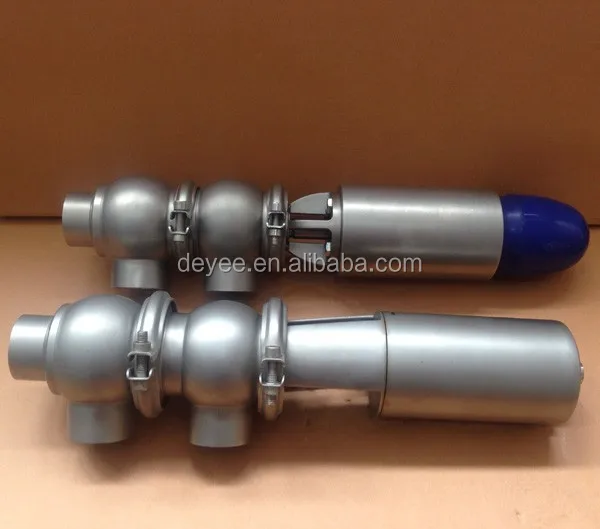

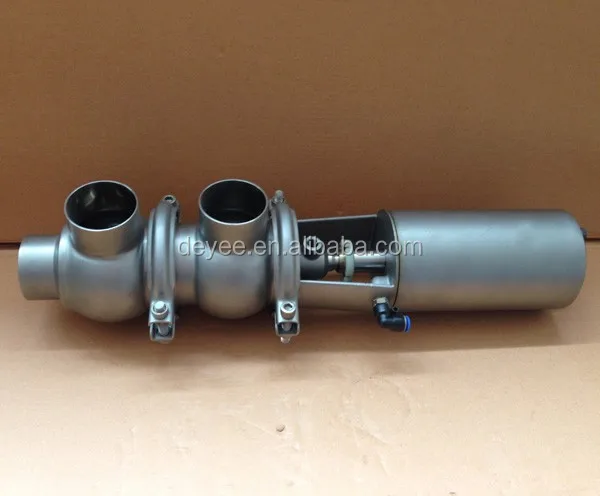

DN65 Stainless Steel SS304 Food Grade Pneumatic Change Over Valves

Applications

Sanitary reversing valve has very flexible design which meets sanitary requirements, and is mainly used in pipeline systems without contaminant or mixture. As a modern and widely used valve, it is mainly used in the wine brewing, dairy, beverage, and pharmaceutical industries.

Operating Principle

Sanitary reversing valve is remotely operated by means of compressed air or manual. By controlling the relative position of valve plug, it makes the valve open or closed (shut-off type), or changes the flow direction of media.Sanitary reversing valve can

be installed with smart controller.

Technical Specification

1. Size available: 1/2"~4",DN10~DN100


2. Max. working pressure:147psi (10bar)


3. Control air pressure:70 ~ 116psi (5 ~ 8bar)


4. Working temperature range:EPDM:-20 ~ 135°C


5. Sterilization temperature:150°C, Max. 20 min


6. Pneumatic connection: R1/8" (BSP)


7. End connections: butt welded, sanitary clamp, threaded, flange


8. Standard:DIN, 3A, SMS, RJT, IDF or others upon request.


9. Finish: <32Ra (<0.8um); Other finishes available upon request.

Standard Design

1. forged spherical body


2. Compact design


3. 360 degree orientation


4. Mix-proof design, the bodies can be with different diameters.


5. Over-pressure protection design preventing the pressure fluctuate to 30bar


6. Easy disassembly


7. Seat lift type and cavity spray type available



Packing&Shipping information and pictures of DN65 Stainless Steel SS304 Food Grade Pneumatic Change Over Valves

Port: Shanghai Port or Ningbo Port,China

MOQ: 1Set

Supply ability: 1,000 pieces/month

Payment terms: T/T,Western Union, Paypal, L/C

Packaging:  Shrink wrapped-in seaworthy wooden cased

Delivery time: depends on quantity

Shipping mode:By sea,by air,by express

We specializes in sanitary valves,pipe fittings and pumps,which is applied for milk,food,beer,

pharmaceutical and other fields.We can quote you favourable price&high quality&best after-sale services.Welcome to any enquiry and visit our factory.

1. High-quality + competitive price + fast delivery + 10years quality guarantee


2. Wide excellent experiences with after-sale service


3. Every process will be checked by responsible QC which insures every product's quality


4. High-quality stainless steel with reasonable price


5. Professional packing teams which keep every packing safely


6. Trial order can be done in one week


7. Samples can be provided as your requirements
