FCC /CE approval! RF2401F20 - 400m 20dBm 2.4GHz wireless module nrf24l01 2.4g rf module





Product Description



RF2401F20 Module is a high integrated wireless module,which worked in 2.4GHz of ISM band. RF2401F20 adopts Nordic’s RF chip nRF24L01+ and high efficiency RF amplifier.The feature of high data rate (maximum 2Mbps ), good sensitivity( -102 dBm) and high output power ( +20dBm ) but low harmonicand low unexpected radiation extend the range and improve thelink performance.



*This module got CE, FCC, ICID certificate. If you need document, please contact us!

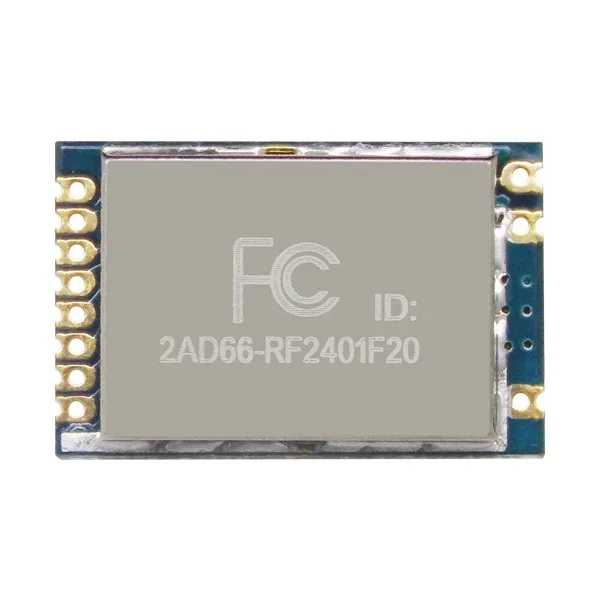

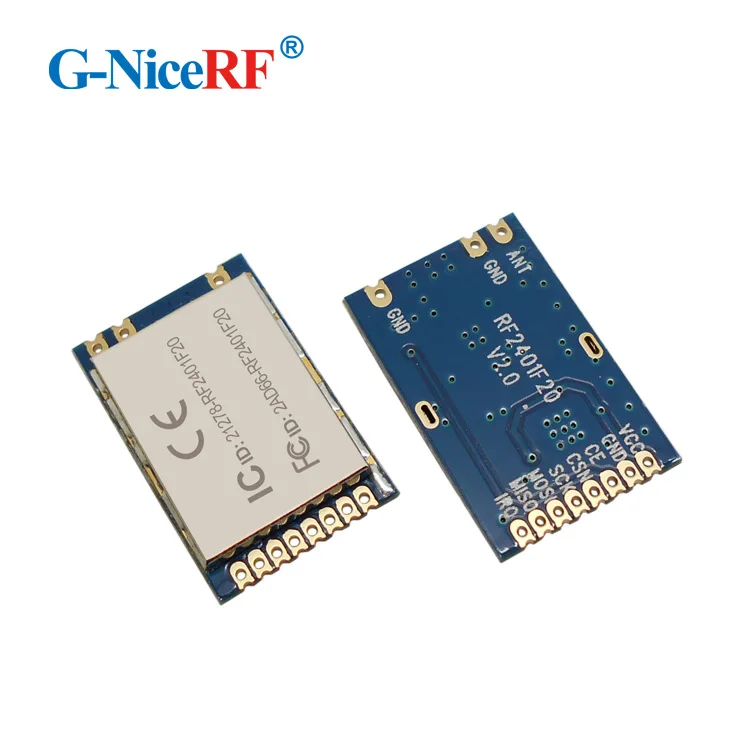

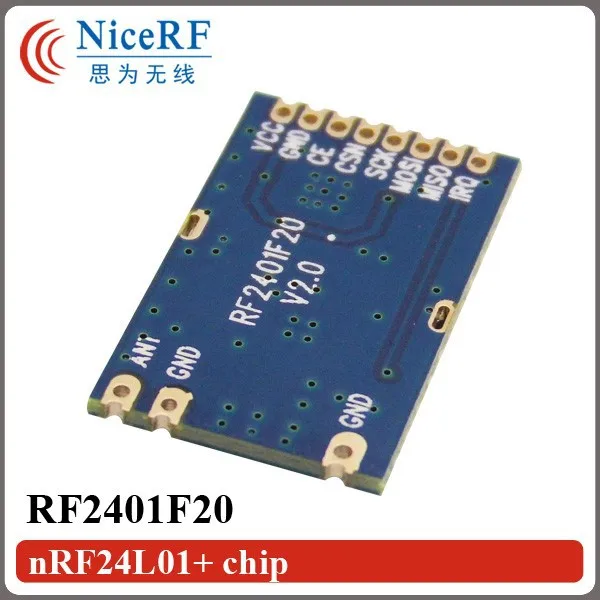

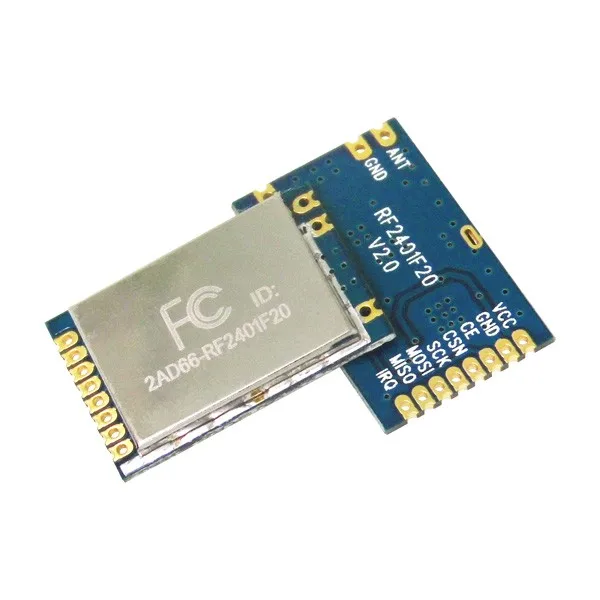

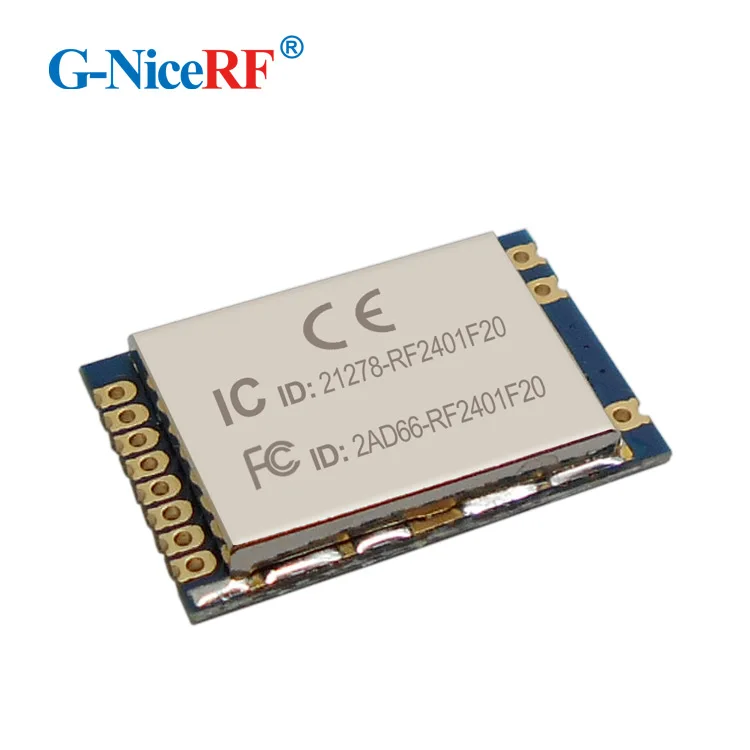

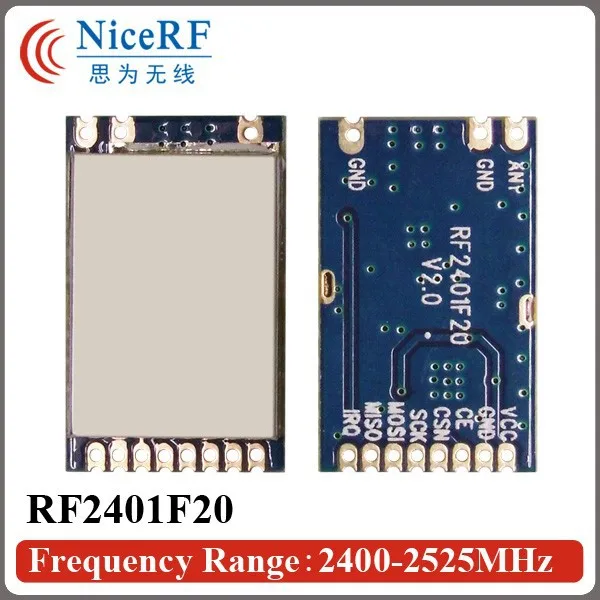

RF2401F20-1 (2).jpgRF2401F20-2 (2).jpgRF2401F20-7.jpg

Features:

  • Frequency Range: 2400-2525MHZ
  • Maximum power output: 20dBm
  • Sensitivity up to: -102dBm@250Kpbs
  • Data rate: 250K,1Mpbs,2Mpbs
  • GFSK Modulation, 126 Channel
  • FIFO: 32bytes
  • Ultra low power off mode
  • Support functions of frequency hopping
  • Internal integrated voltage regulator
  • operating voltage range: 1.9-3.6 V
  • operating temperature range: -40~+85°C




Application:

  • Remote control
  • Remote meter reading
  • Smart Home
  • Personal data record
  • Toy control
  • Tire Pressure Monitoring
  • Healthmonitoring
  • Tag reader



Schematic:




Electrical Characteristics :

*Below parameters is measured at 3V

Item number: RF2401F20
Parameter Min. Type. Max. Unit Conditions
Operation conditions
Operating voltage range1.93.33.6V
Operating temperature range-40 85℃
Current consumption
RX Current  23.524mA
TX Current 135150mA@20dBm
Sleep Current  <1 uA
RF parameters
Frequency range2400 2525MHZ
Modulation rate250 2000KbpsGFSK
Output power range4 20dBmPower 0=5dBm,3=20dBm
Maximum output power18.520 dBm
RX sensitivity-100-102 dBm@data=250kbps

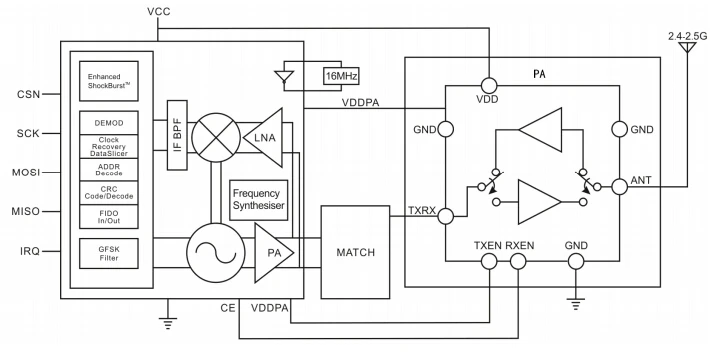

Typical application circuit :
RF2401F20-Typical application circuit.jpg




Pins Configuration  :

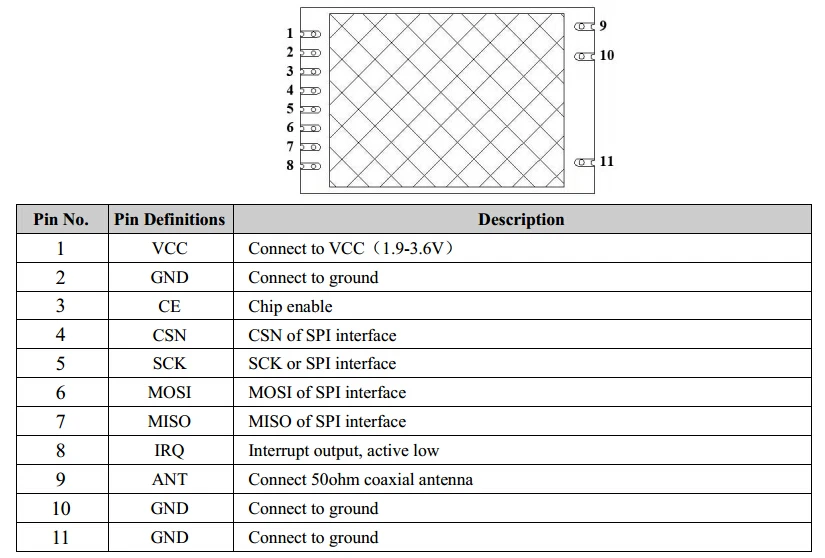

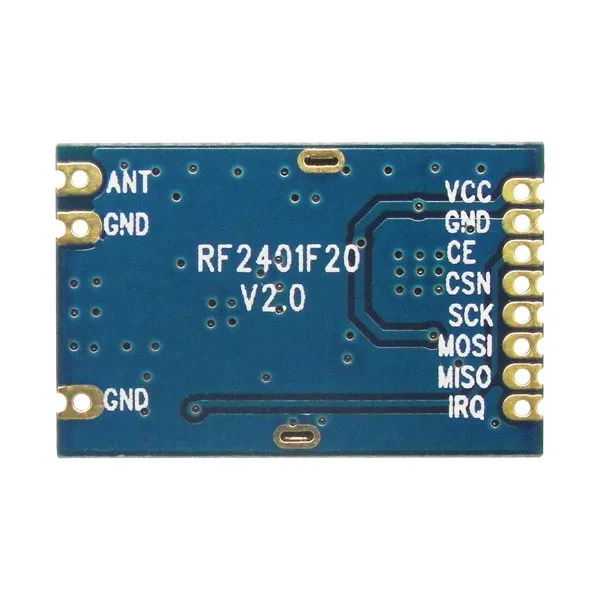

RF2401F20-Pins Configuration.jpg





Mechanical Dimension :

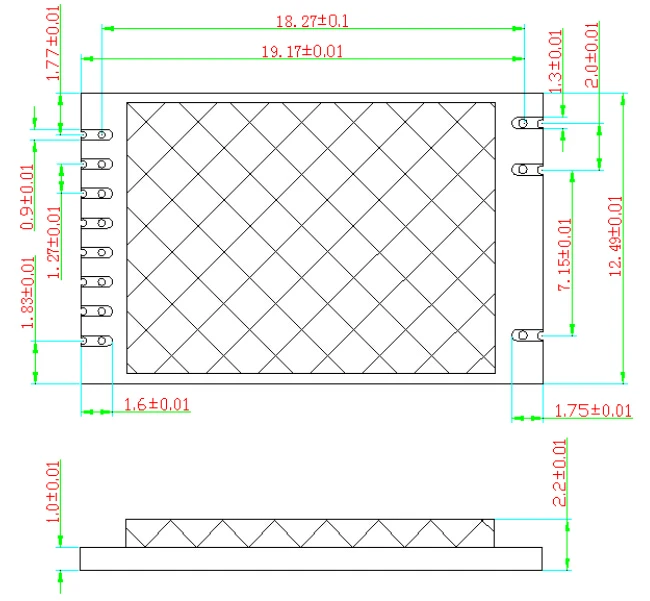

RF2401F20-Mechanical Dimension.jpg







Appendix:

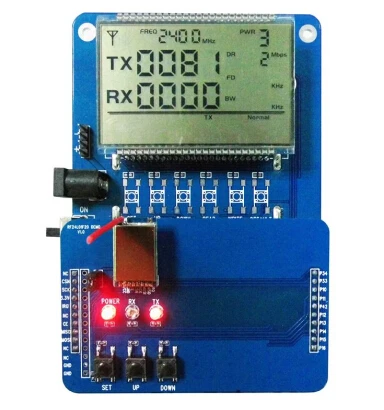

The module is equipped with a standard DEMO board for customer to debug the program and test distance.




Users can set the parameters of the RF module such as working mode /frequency / transmitter power / transmission
data rate through the buttons, and measure the wireless communication distance.
