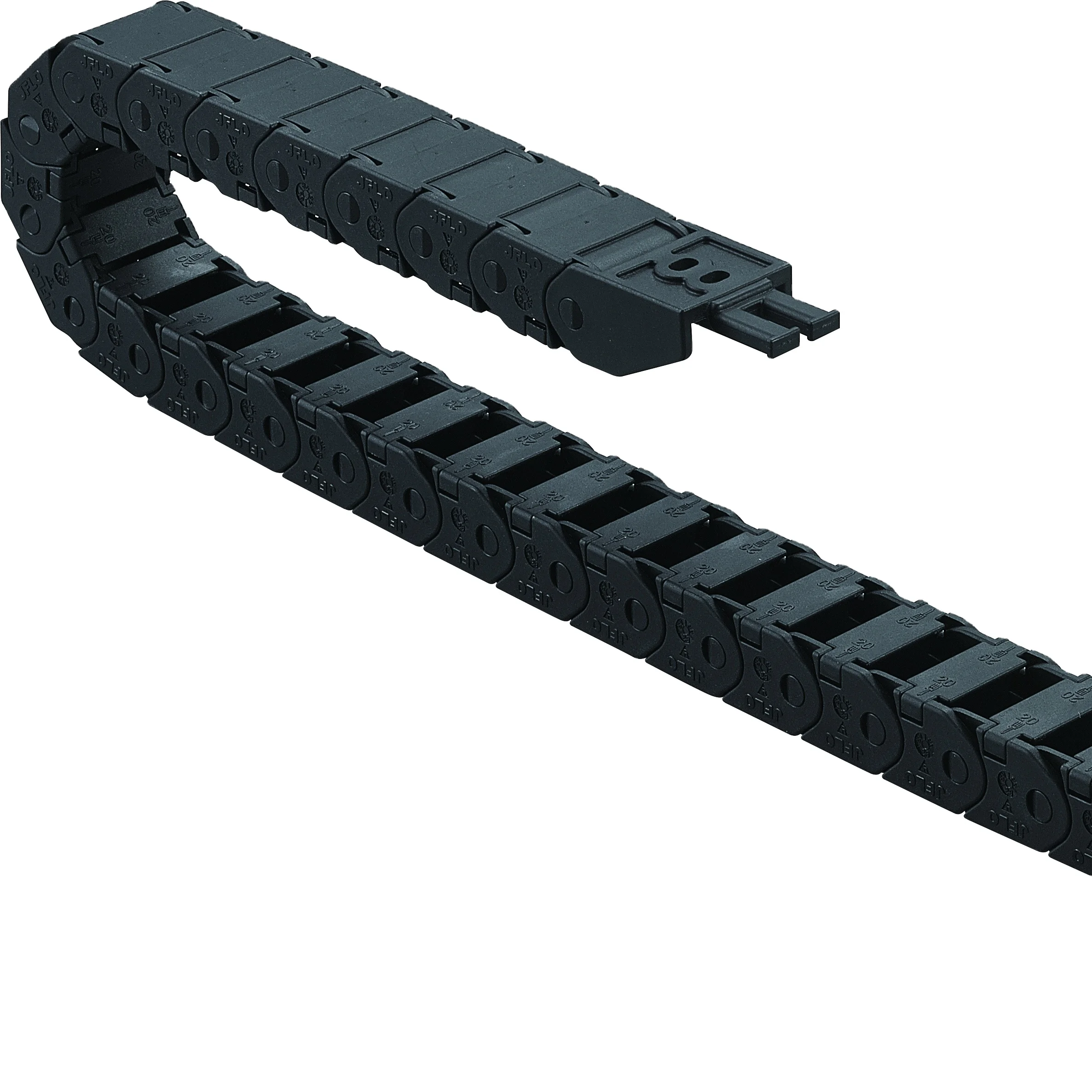

semi closed interior opening plastic carrier chain conveyors machine drag chain(J15BFSeries )
semi-closed interior opening plastic carrier chain conveyors machine drag chain(J15BFSeries )
semi-closed interior opening plastic carrier chain conveyors machine drag chain(J15BFSeries )
semi-closed interior opening plastic carrier chain conveyors machine drag chain(J15BFSeries )
semi-closed interior opening plastic carrier chain conveyors machine drag chain(J15BFSeries )

semi closed interior opening plastic carrier chain conveyors machine drag chain(J15BFSeries )

Share on (60197942206):


Price:

Quantity:


Product Overview

Description









P/N#
Hi
Bi
Ha
Ba
Bending Radius
Bracket P/N #
J15BF.1.15N
15
15
20
23
R28
J15BF.1.15N-XJT
J15BF.1.20N
15
20
20
28
R28  R38
J15BF.1.20N-XJT
J15BF.1.30N
15
30
20
38
R28  R38  R48
J15BF.1.30N-XJT
J15BF.1.40N
15
40
20
48
R28 R38 R48
J15BF.1.40N-XJT
J15BF.1.50N
15
50
20
58
R28 R38 R48
J15BF.1.50N-XJT
BASIC TECHNICAL DATA
PITCH=20MM, PER METER=50 LINKS, LENGTH OF CHAIN=S/2+K, S=Stroke
Main Body details and Separate Shim( Vertical Shim) Pictures are as below.
The unit price shown are not including bracket or any shims.
If you need further more information about Horizon Shim or others, please feel free to contact with us by mail.








Company Profile

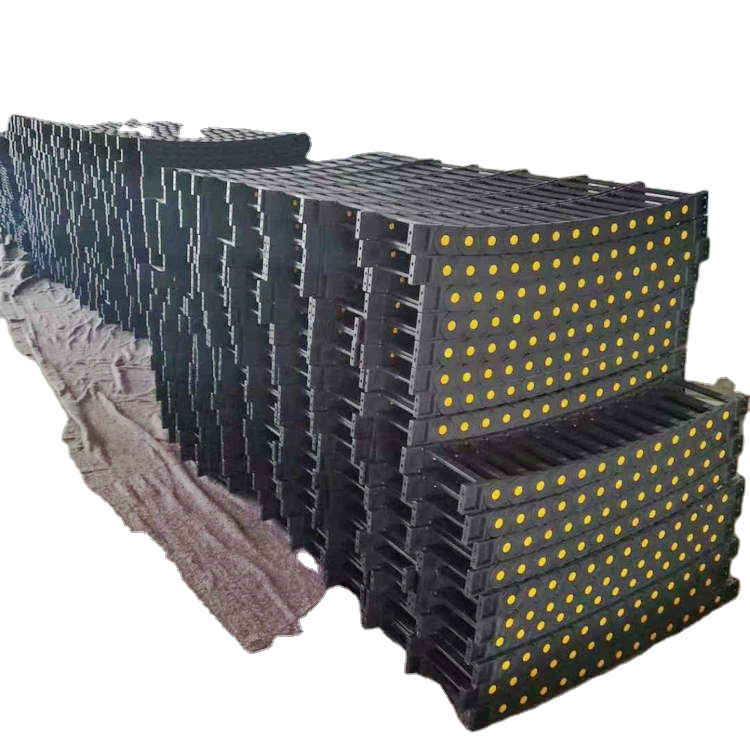

Packing & Warehouse




Recommend Products




FAQ




1. How to select the size of the products?
For the cable drag chain, please inform us the Hi(inner height)*Bi(inner width) and bending radius, and also length is required. Also if possible, please inform us the objects(machines) you are used for, so that we will suggest the most suitable for you.

2. What is the main material of the products?
Our cable drag chain is made by PA66,coolant hose is made by POM( Dupont), and for bellows cover can be made by many different material functionally.

3. How long is your delivery?
Our mainly products are on stock, we can provide 3-7days fast delivery.
