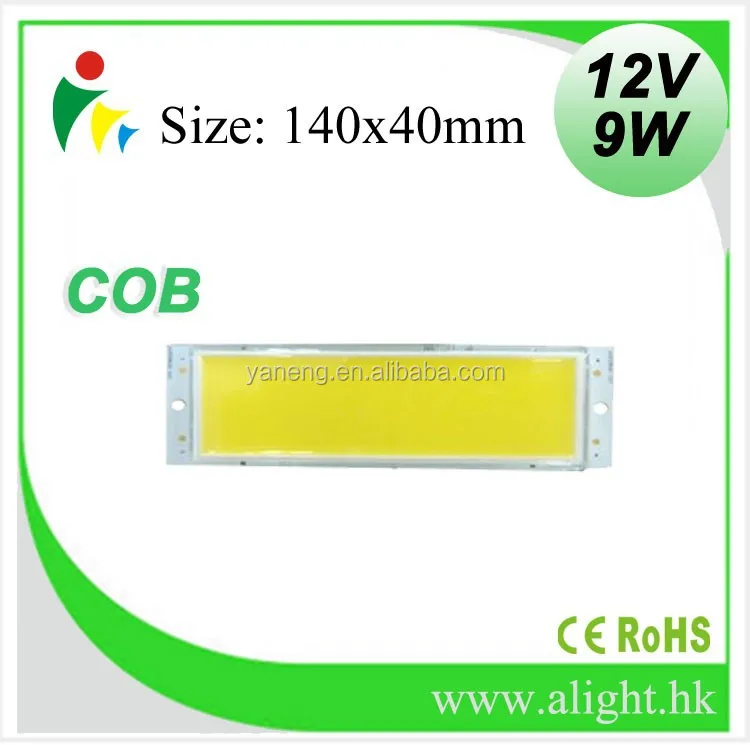

Alight driverless ac cob led module led chip provides 9w hight power square led cob for commercial lighting
Product Description
l Device Selection Guid
Part No.
Chip
Lens color
Material
Emitting color
ARE125T80N-12V
InGaN
White
Yellow Diffused
l Parameter
item no

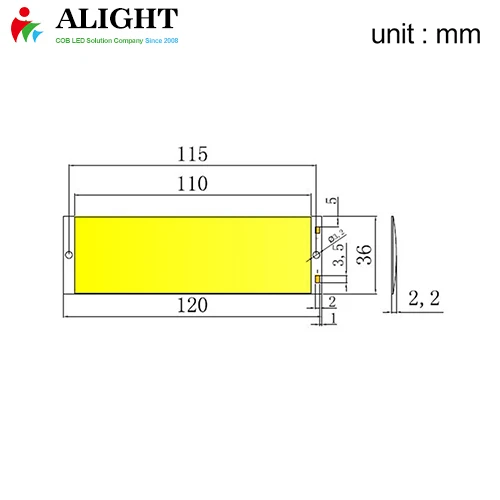

lighting area(mm)
pcb type
lighting source type
color temperature range(K)
ARE125T80N-12V
118.5×31.5
Aluminum
upper lighting
2700~8000
l Optical Characteristics
Symbol
Parameter
Min
Type
Max
Unit
If
Operating current
-
660
-
mA
Vf
Forward Voltage
11.2
12
13.2
V
Φ
Luminous Intensity
1000
1200
-
Lm
Tc
Color temperature
2700
6500
-
K
Ra
color rendering index
70
85
-
l Absolute maximum ratings
Symbol
Parameter
Min
Type
Max
Unit
P
power dissipation
-
9
-
W
To
junction temperature
-40
-
65
℃
Tstg
storage temperature range
-40
-
85
℃
Rth
thermal resistance
-
0.5
-
℃/W
Note: the condition of the test result data in the diagram above is Tc=25 degree ,the product of Light Panel with color temperature is 5000k.
About Alight COB LED:
Specification:
* Waltage: 1W-100W be available.
* Apply low constant current driver, Voltage:3V DC-66V DC
* Color Temperature:2700k--8000k
* Light Color: white/red/green/blue(RGB) for each item.
* Light characteristic: very uniform, durative, stedy, no glare, no sharp dot lights, no double images, handsome looks, very suitable for indoor lighting
* Shape and Size: long, round, square and any other shape and size according to your application.
* Encapsulation Technology and Design Copyrights reserved, passed CE& RoSH and ISO 9001 :2000 certification,
OEM: COB LED light panel size and parameter can be customized according to your product application.
Description The White source color devices are made with InGaN on sapphire White Light Emitting Diode.
Applications LED daylight lamp Reading lamp Street lamp LED backlight Indoor and Outdoor commercial lighting Decorative and Entertainment lighting
Industrial use, printing machines
1. Marine Lights: 2. Indoor lighting (LED table lamp): 3. Outdoor Lighting (LED street and Flood light)
COB Test effect: (Soft, no glare, no sharp dot lights )
