All sun EM5511 3in1 Digital Multimeter Voltmeter Ammeter Ohmmeter DC AC EMF Multimeter Automotive Tester
- Category: >>>
- Supplier: Zhangzhou Eastern Intelligent Meter Co. Ltd.
Share on (60198071166):
Product Overview
Description
Product Description

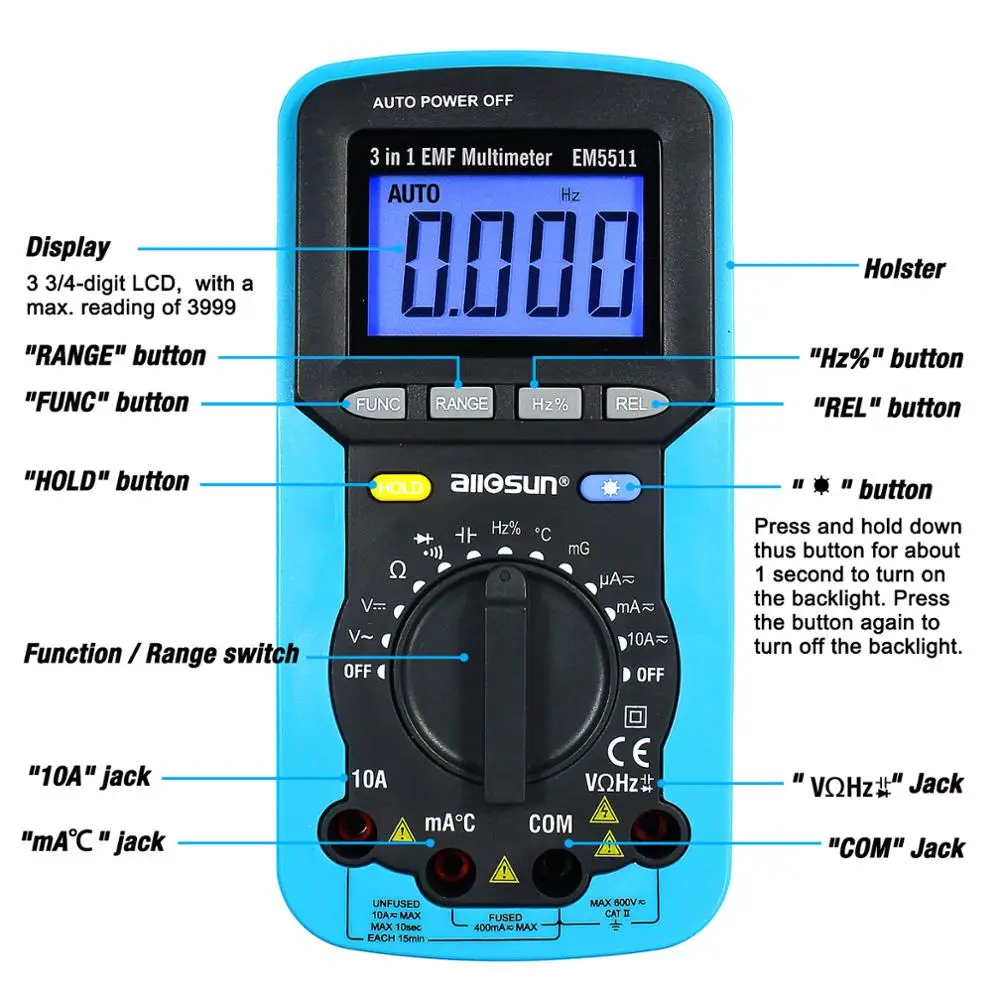

FEATURE
1) High-performance

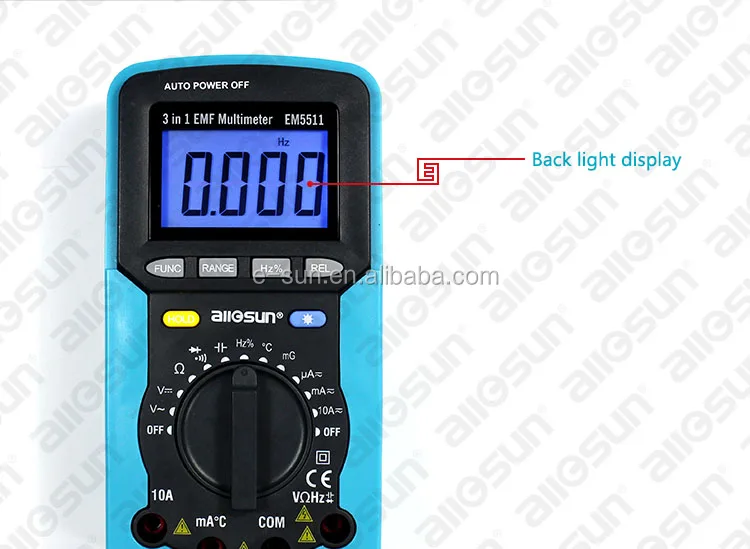

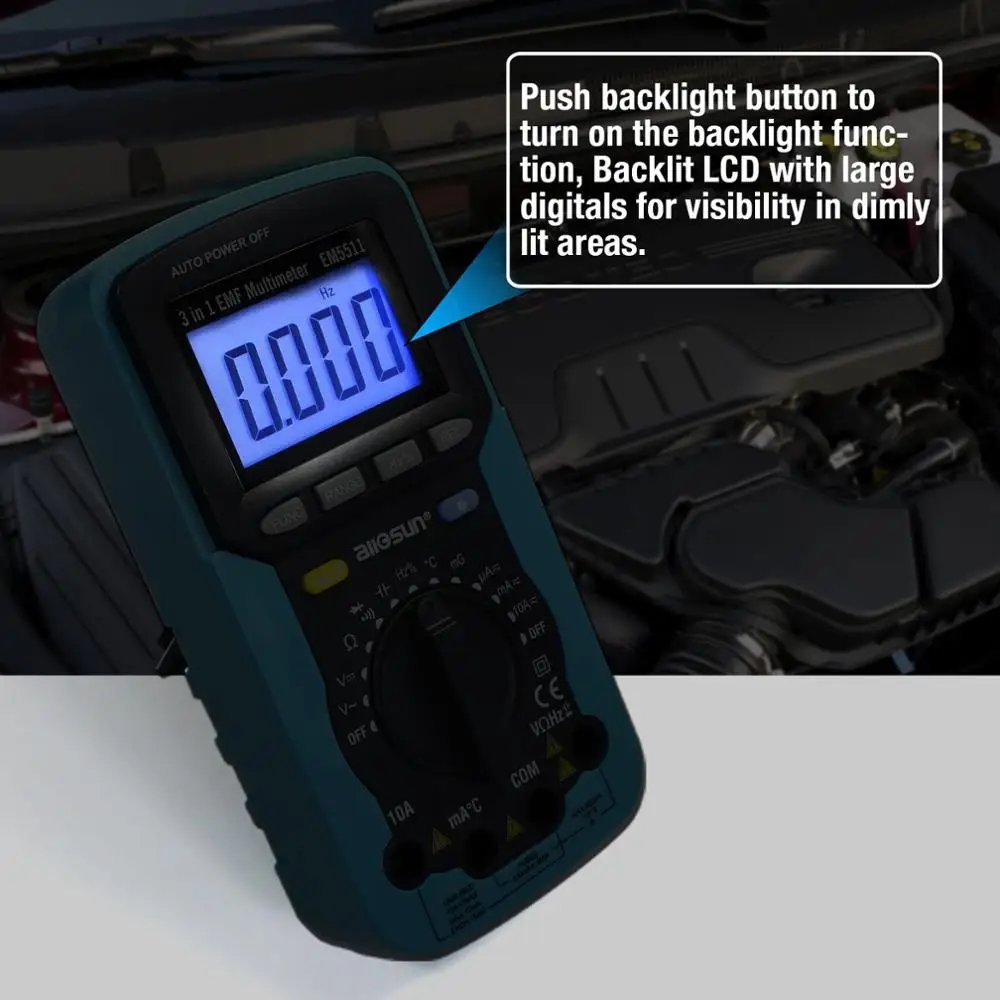

2) Display: 3 3/4-backlight LCD display, max.reading of 3999 3) Data-hold mode
4) Auto polarity indication
5) Manual range and autorange mode
6) Auto/manual power-off
7) Relative mode
8) Overload protection: "OL" shown on the LCD
9) Low battery indication

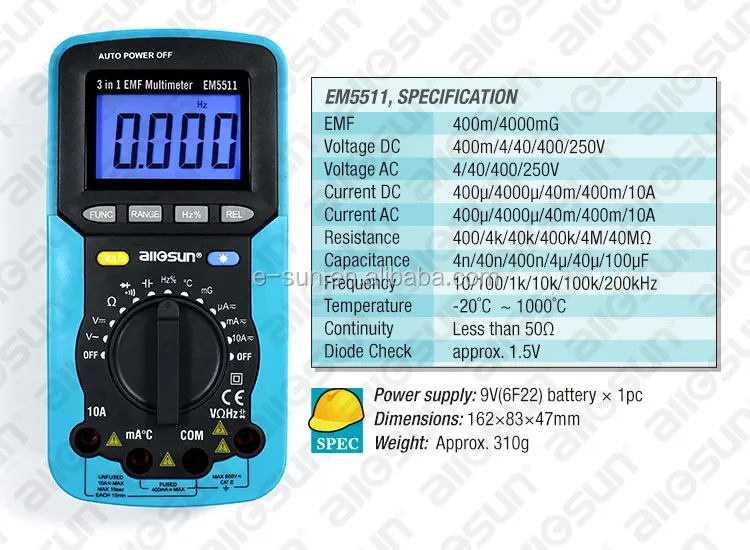

SPECIFICATION
> Negative Polarity Indiaction: "-" displayed automatically
> Sampling Rate: 2-3 times/sec
> Operating Temperature: 0-40 degree C,<75%RH
> Storage Temperature: -30-60 degree C,<85%RH
> Operating Altitude: 0 to 2000 meters
> Battery: 9V,6F22 or equivalent

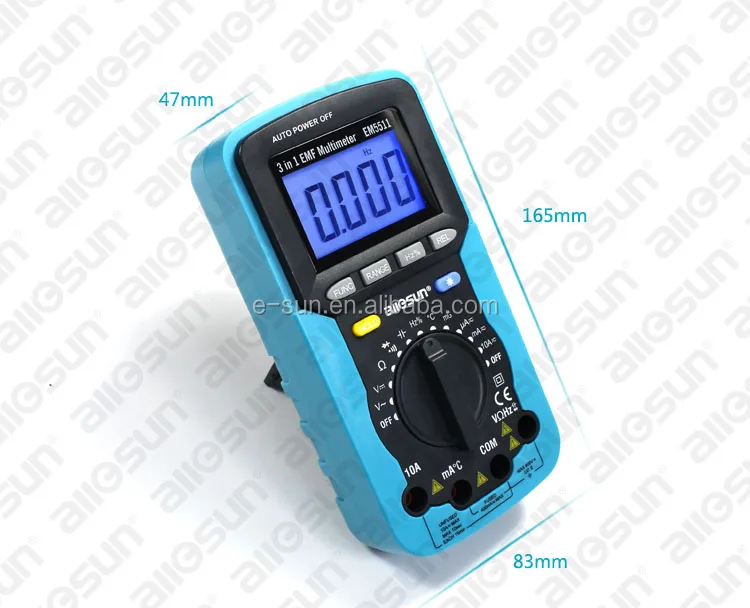

> Dimensions: 162x83x47mm
> Weight: about 310g (including battery and the holster)
ACCESSORIES
Test Lead; Temperature probe; Battery; Users Manual; Holster

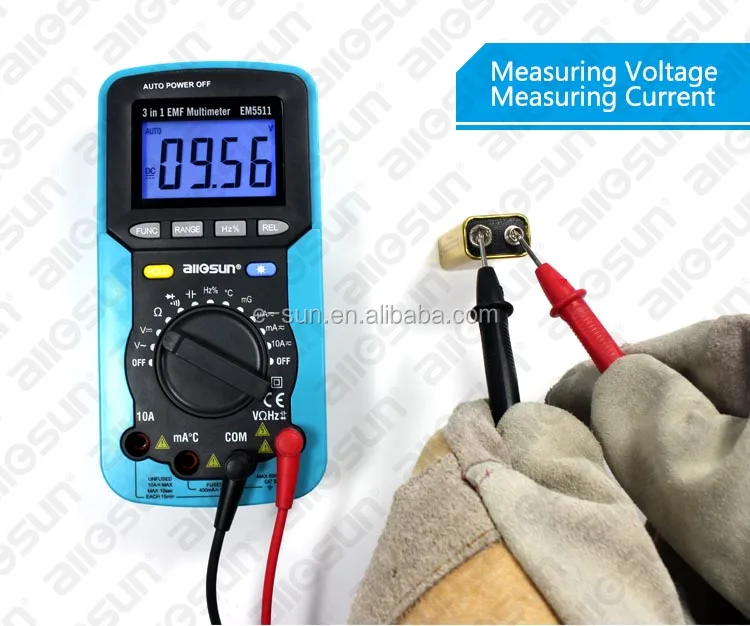

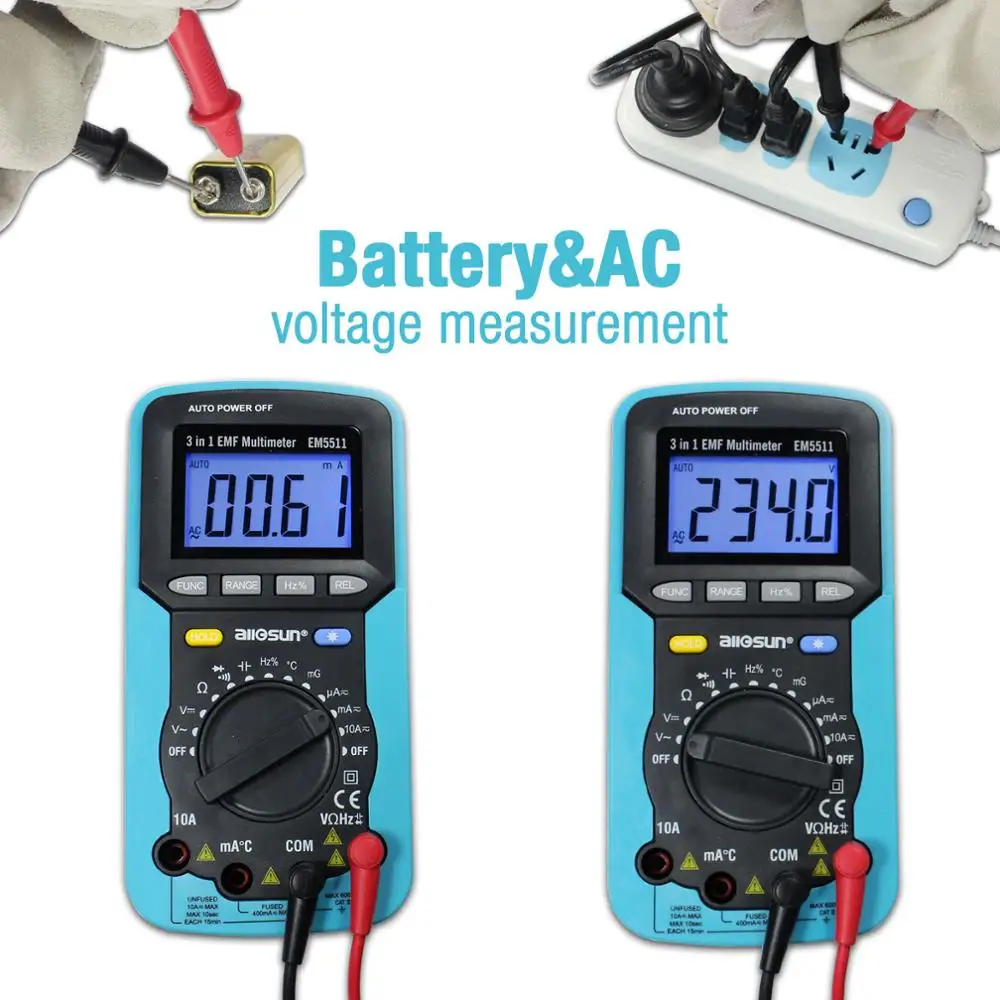

DC Voltage:
Range | Resolution | Accuracy |
400mV | 0.1mV | ±(1.0%+5) |
4V | 1mV |
±(0.8%+3) |
40V | 10mV | |
400V | 100mV | |
250V | 1V | ±(1.0%+5) |
Input Impedance:the 400mV range:>1000MΩ
the other ranges:10MΩ
Max.Permitted Input:250V DC or AC
AC Voltage
Range | Resolution | Accuracy |
4V | 1mV |
±(1.0%+5)
|
40V | 10mV | |
400V | 100mV | |
250V | 1V | ±(1.2%+5) |
Input Impedance: 10MΩ
Max.Permitted Input:250V DC or AC
Frequency Range:40Hz ~400Hz
Response:Average,calibrated in rms of sine wave.
DC Current
Range | Resolution | Accuracy |
400 uA | 0.1 uA |
±(1.2%+3)
|
4000 uA | 1 uA | |
40 mA | 10 uA | |
400 mA | 100 uA | |
4 A | 1 mA | ±(1.8%+3) |
10 A | 10 mA | ±(2.0%+5) |
Overload Protection:
For”mA”jack inputs:Fuse,500Ma/250V,fast action,
For”10A”jack inputs:Fuse,10A/250V,fast action
Max.Input Current:10A(For inputs>5A:
measurement duration<10secs,interval>15minutes)
Max.Voltage Drop:400Mv
AC Current
Range | Resolution | Accuracy |
400uA | 0.1uA |
±(1.2%+3)
|
4000 uA | 1 uA | |
40mA | 10 uA | |
400mA | 100 uA | |
4A | 1mA | ±(1.8%+3) |
10A | 10mA | ±(2.0%+5) |
Overload Protection:
For "mA degree C" jack inputs: Fuse, 500Ma/250V, fast action
For "10A" jack inputs: Fuse, 10A/250V, fast action
Max. Input Current: 10A(For inputs>5A: measurement duration <10secs, interval >15minutes)
Max. Voltage Drop: 400MV
Frequency Range: 40Hz~400Hz
Response: Average, calibrated in rms of sine wave.

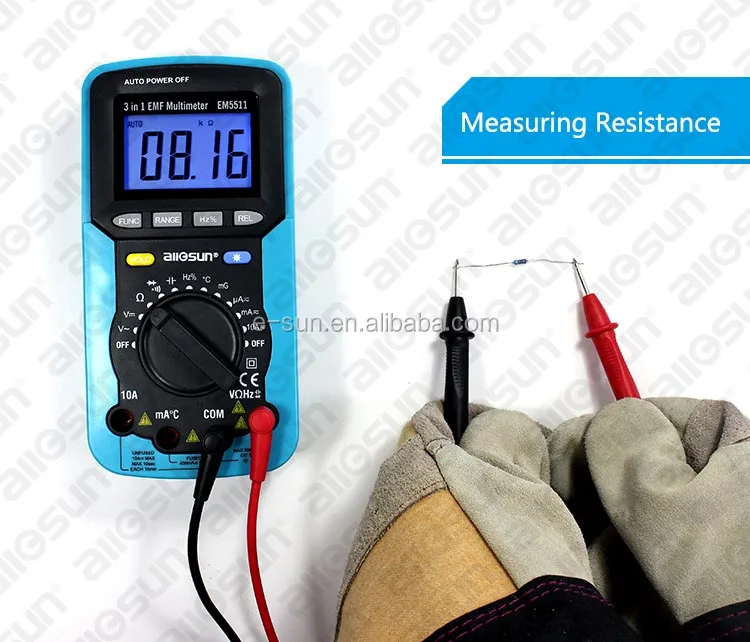

RESISTANCE
Range | Resolution | Accuracy |
400 Ω | 0.1 Ω | ±(1.0%+5) |
4 kΩ | 1 Ω |
±(1.0%+3)
|
40 kΩ | 10 Ω | |
400 kΩ | 100Ω | |
4 MΩ | 1 kΩ | |
40 MΩ | 10 kΩ | ±(2.0%+5) |
Overload Protection: 250V DC/AC
Open Circuit Voltage: about 0.25V
FREQUENCY
Range | Resolution | Accuracy |
10Hz | 0.01Hz | ±(1.0%+3) |
100Hz | 0.1Hz |
±(0.8%+3) |
1kHz | 1 Hz | |
10kHz | 10 Hz | |
100kHz | 100 Hz | ±(1.0%+3) |
200kHz | 1kHz | |
>200kHz |
| Not specified |
Input voltage:1 Vrms~20 Vrms
Overload Protection:250VDC/AC

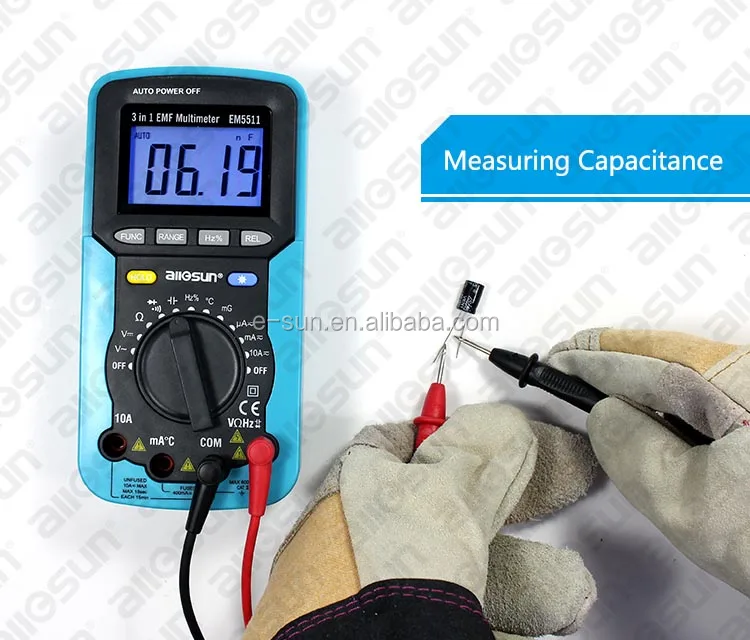

CAPACITANCE(use Relative mode)
Range | Resolution | Accuracy |
4 nF | 0.001nF | ±(4.0%+5) |
40 nF | 0.01 nF | |
400 nF | 0.1 nF | |
4 uF | 1 nF | |
40 uF | 10 nF | |
100 uF | 100 nF | ±(8.0%+5) |
Overload Protection: 250V DC/AC

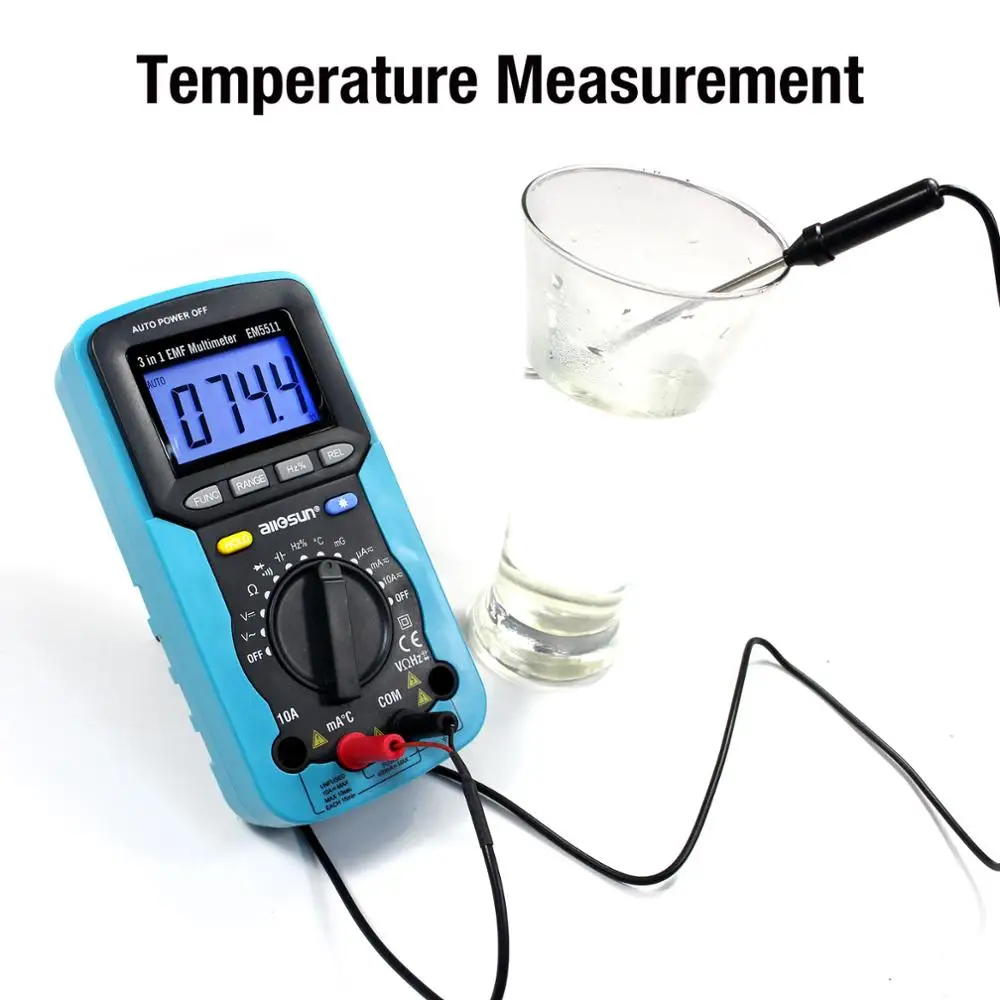

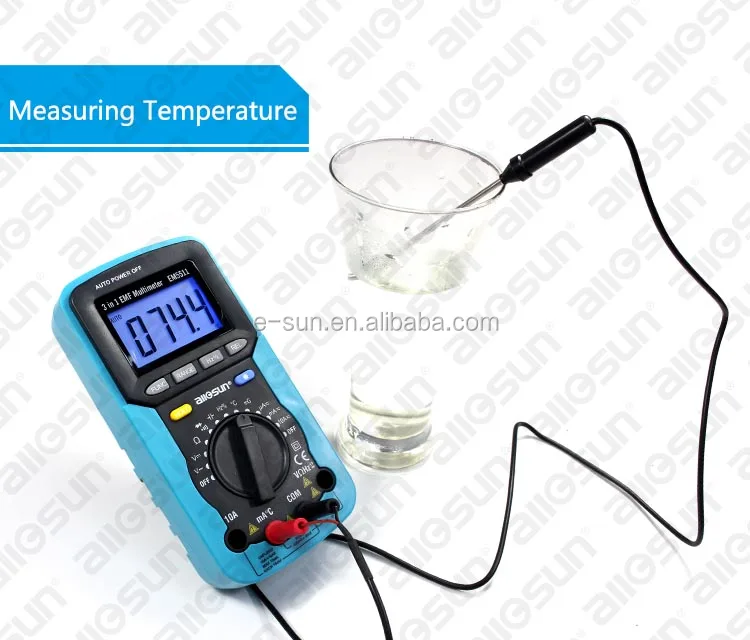

TEMPERATURE
Range | Resolution | Accuracy |
-20℃~400℃ | 0.01℃ | ±1.5% ±3℃ |
400℃~1000℃ | 1℃ | ±2.0% ±3℃ |
Overload Protection: Fuse, 500Ma/250V, fast action
DUTY CYCLE
Range | Resolution | Accuracy |
5%~95% | 0.1% | 1Hz~10kHz:±(2.0%+5) |
>10kHz: not specified |
Input Voltage: 3Vp-p~10Vp-p
Overload Protection: 250V DC/AC

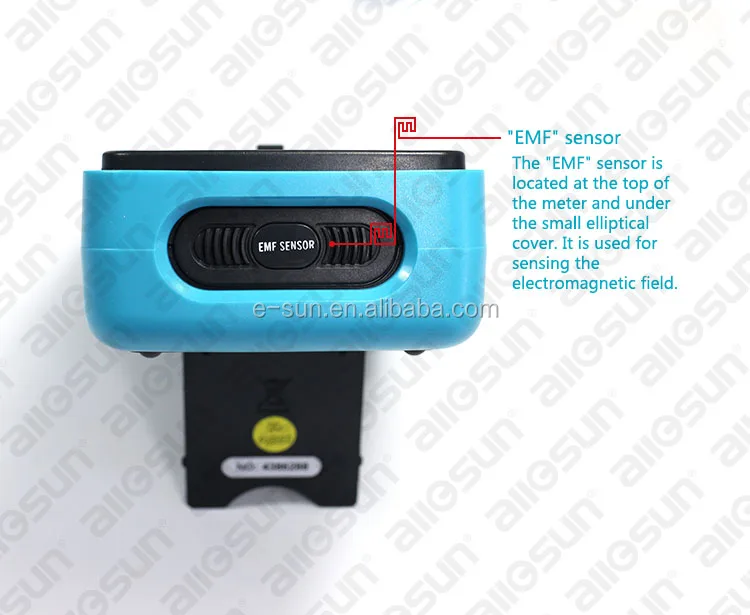

ELECTROMAGNETIC RADIATION
Range | Resolution | Accuracy |
400mG | 0.1mG | 1Hz~10kHz:±(2.0%+5) |
4000mG | 1mG | ±(5%+3) at 50Hz/60Hz |
Frequency Scope:40~400Hz(Single axis measurements only)
1 Tesla=1000Gauss; 1Gauss=1000 Milligauss
