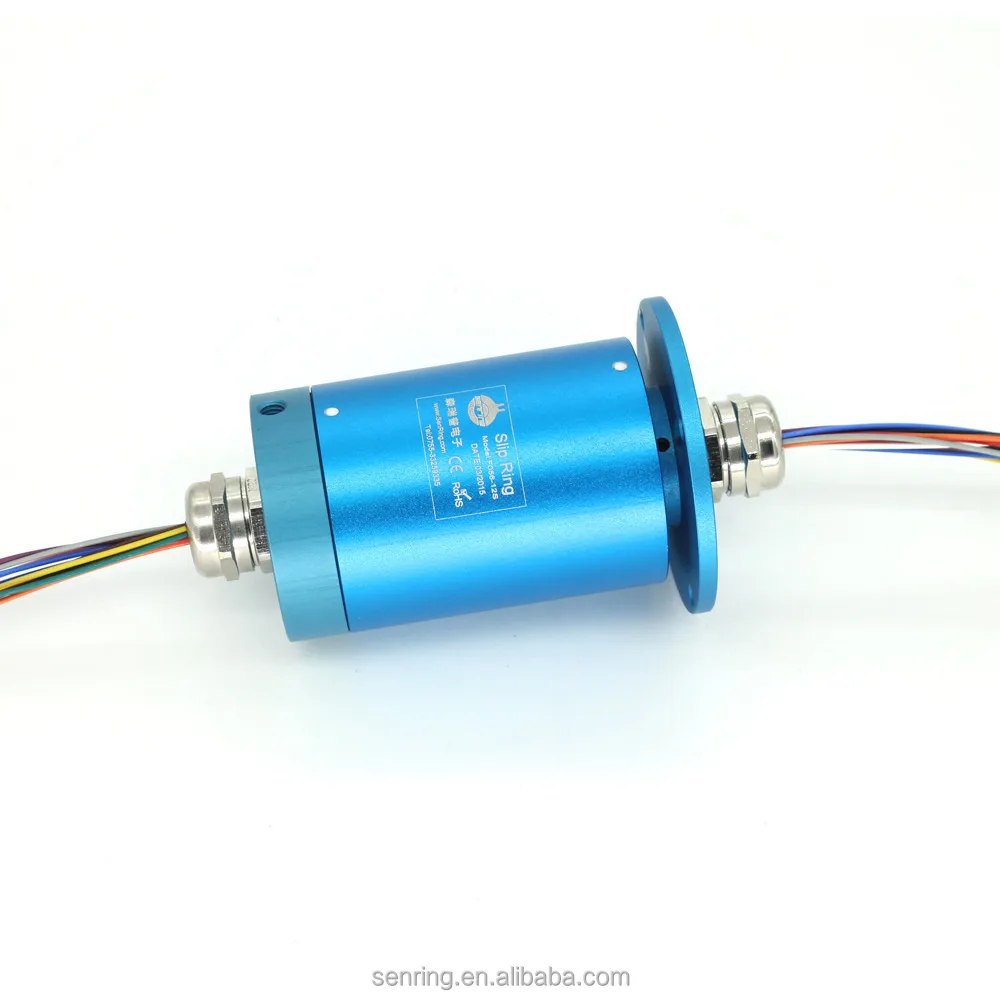

Customized waterproof slip ring with 12 wires each 2A of OD 56mm
- Category: >>>
- Supplier: Shenzhen Senring Electronics Co. Ltd.
Share on (60198096394):
Product Overview
Description

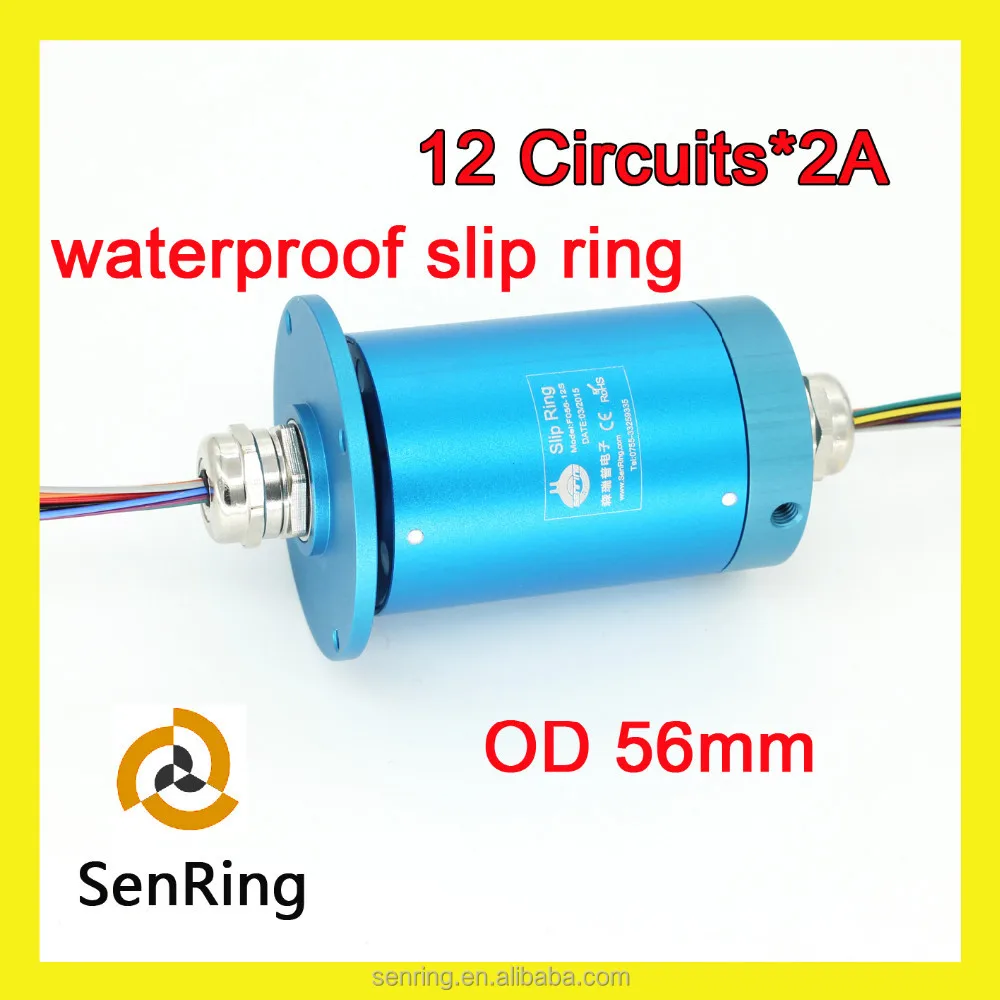

Waterproof slip ring with OD 56mm , 12 circuits each 2A
drawing
| Technical Data | |||
| Circuits No | 12( Pls refer to below table) | Current | signal 2A per circuit |
| Voltage | 440 VDC/VAC | Max speed | 300RPM |
| Housing material | Aluminum alloy | Torque | 0.1N.m;+0.03N.m/6 circuits |
| Working life | >80millions revolutions(depends on working speed,environment) | Contact material | Precious metal:gold-gold |
| Electrical Noise | <10mΩ @6VDC,50mA,5RPM | Contact Resistance | <20mΩ(AWG16#,300mm) |
| Dielectric Strength | 800VDC@50Hz,10s | Lead wire Spec | UL Teflon@Awg22(5A),Awg16 |
| Insulation Resistance | 1000MΩ@600VDC,10s | Lead wire length | 300mm |
| Work Temperature | -40°C to 85°C | IP grade | IP65 |
| Mechanical vibration | MIL-SID-810E | Work Humidity | 10% to 85% RH |
Material
| RoHS compliant | CE certificate | YES |
