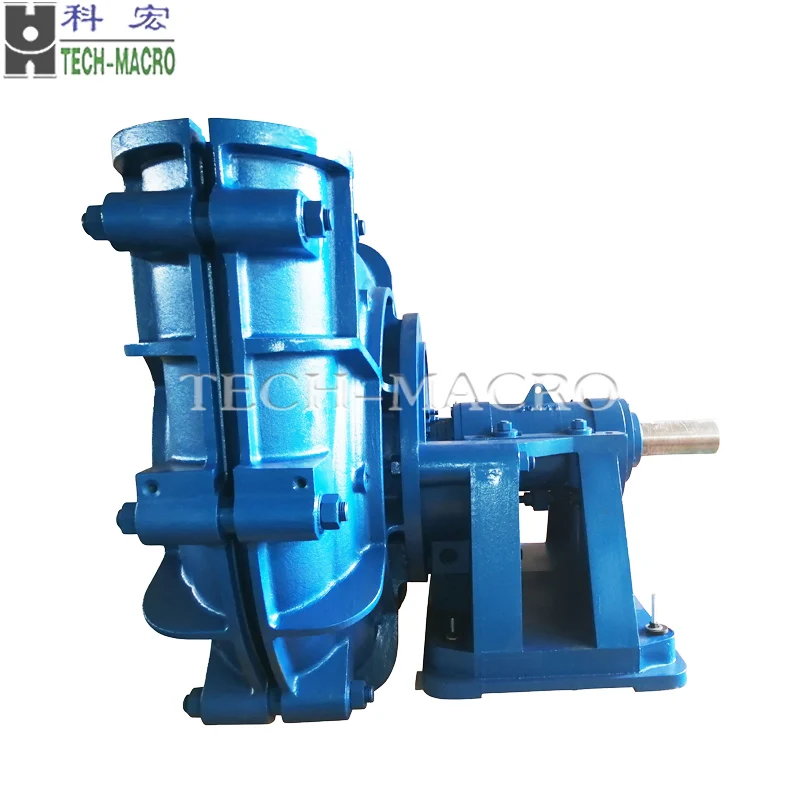

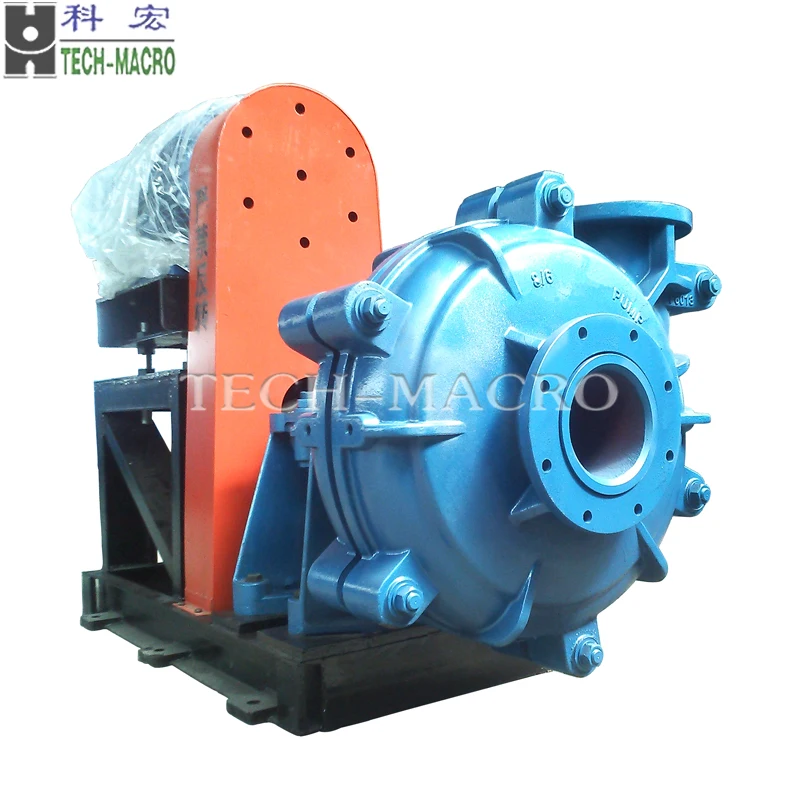

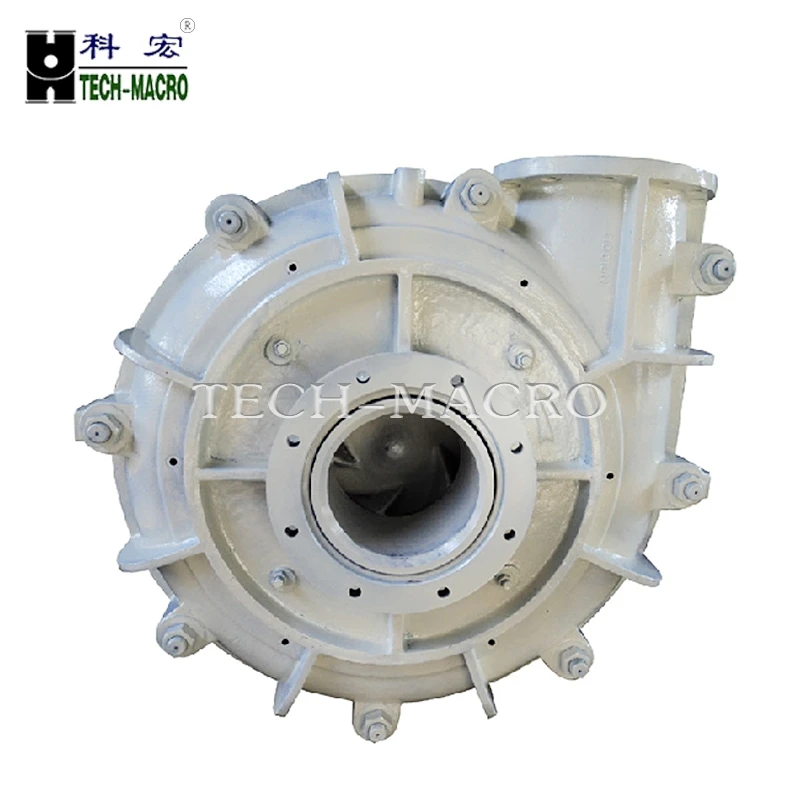

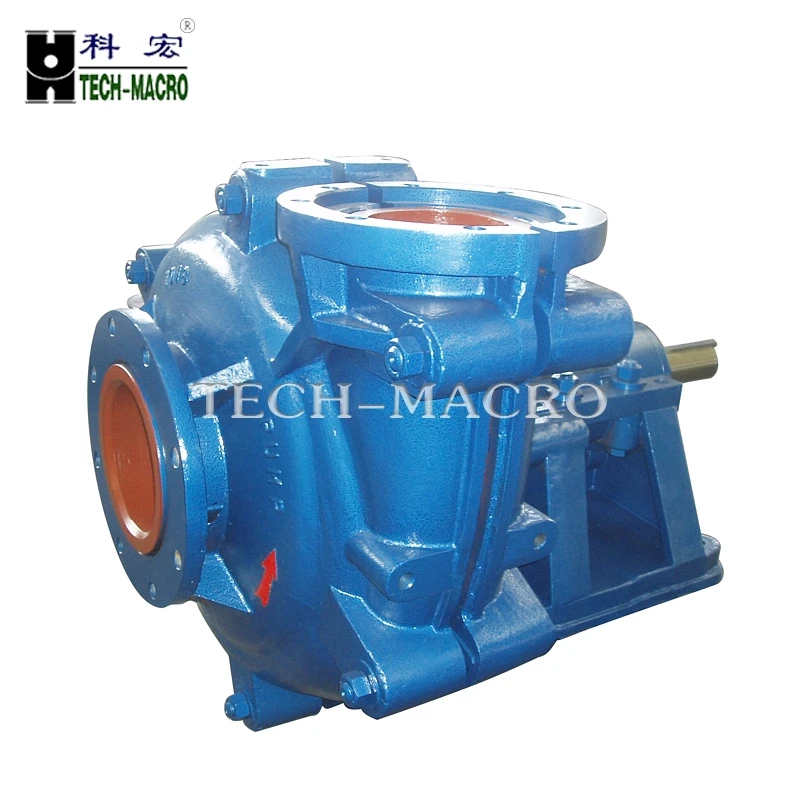

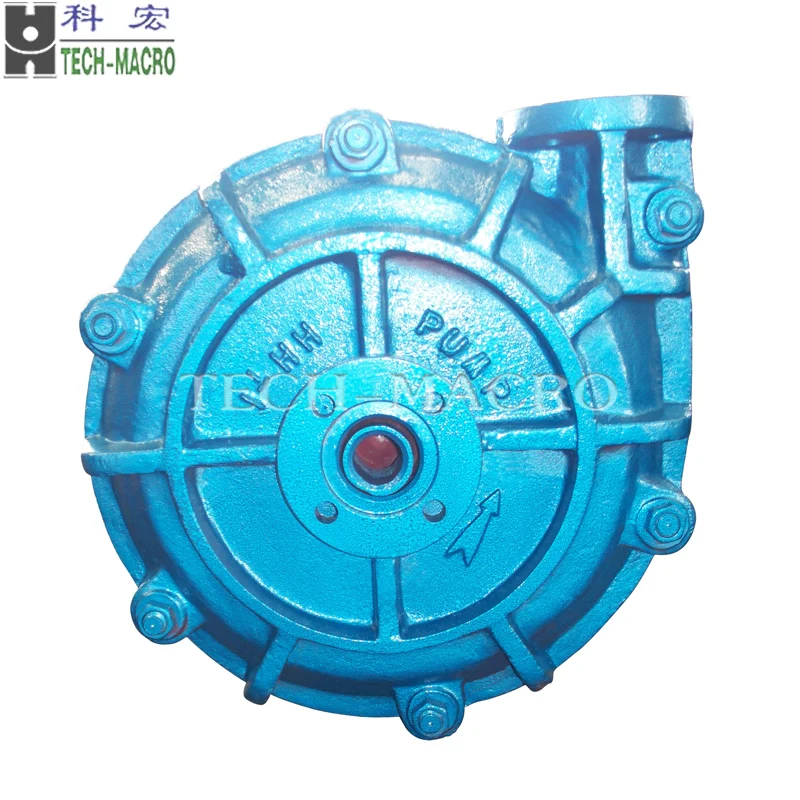

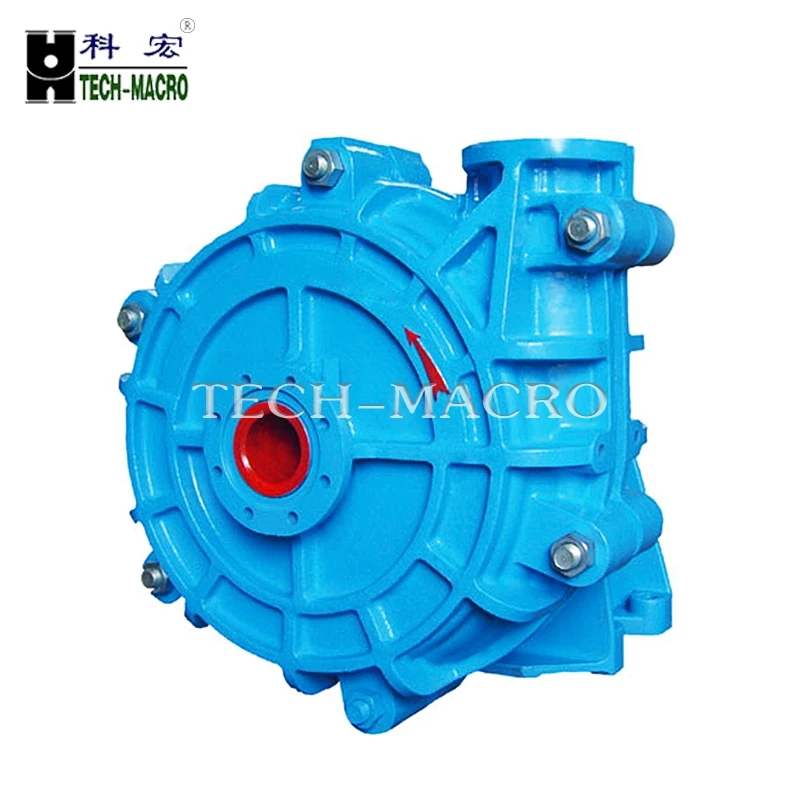

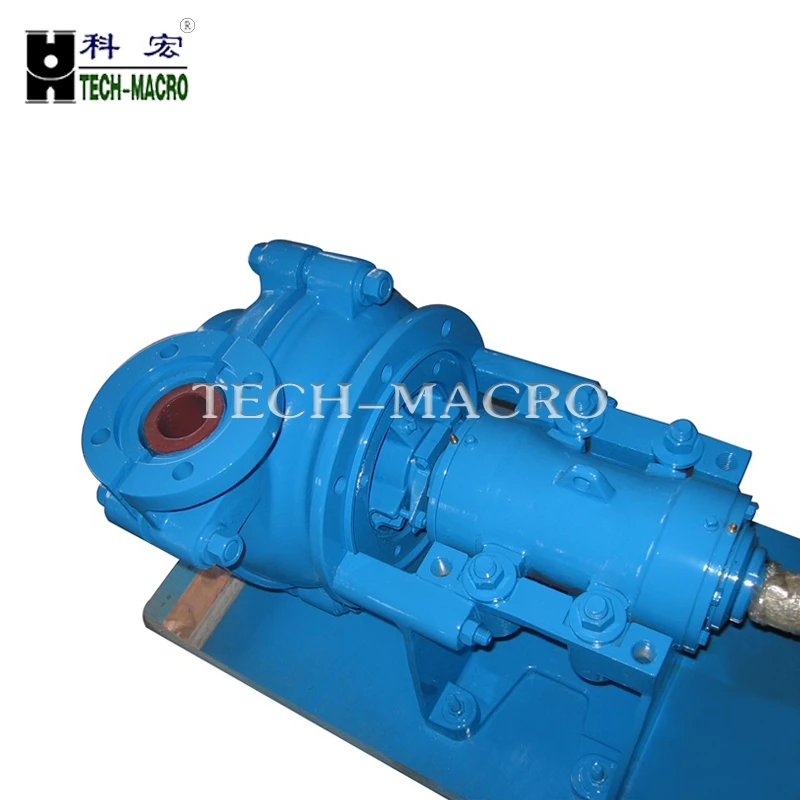

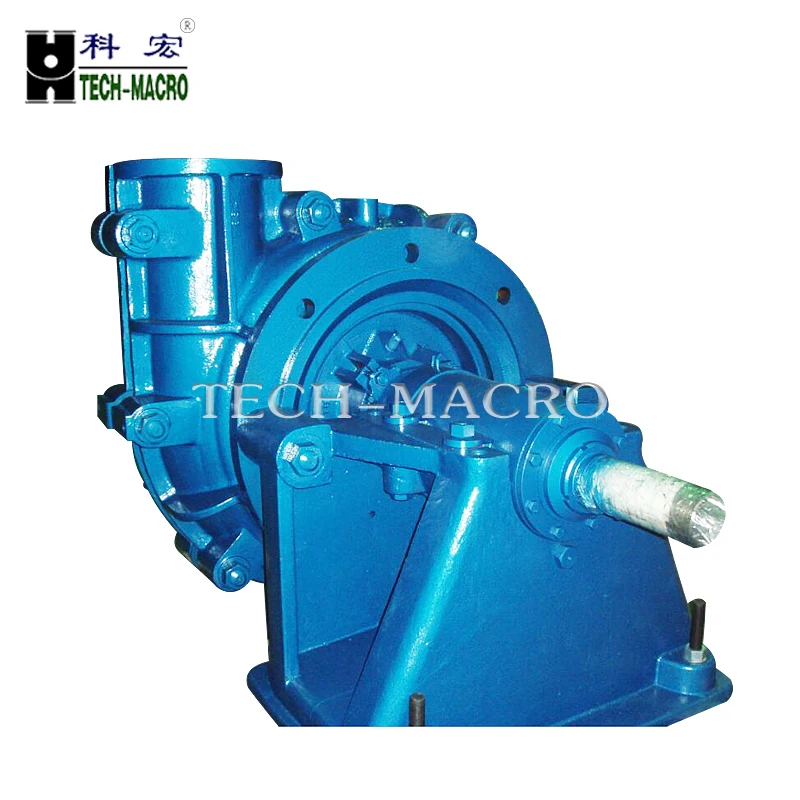

Double case heavy duty horizontal slurry pump for mining centrifugal pump manufacturers

Product Overview

Description



Double-case heavy duty horizontal petroleum industrial slurry pump for mining centrifugal pump manufacturers





Centrifugal slurry pumps are mainly used to pump high-hardness, strong-corrossion and high concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones and etc.





Detailed Specification:



1. Horizontal, cantilevered, centrifugal, single stage slurry pump



2.Long bearing life: The bearing assembly is with large diameter shaft and short overhang.



3. Wear resistant and anti abrasion wet parts: A05, A07, A33, A49 and rubber etc. They are completely   interchangeable with each other



4. Easily replaceable liners: Liners are bolted to the casing.

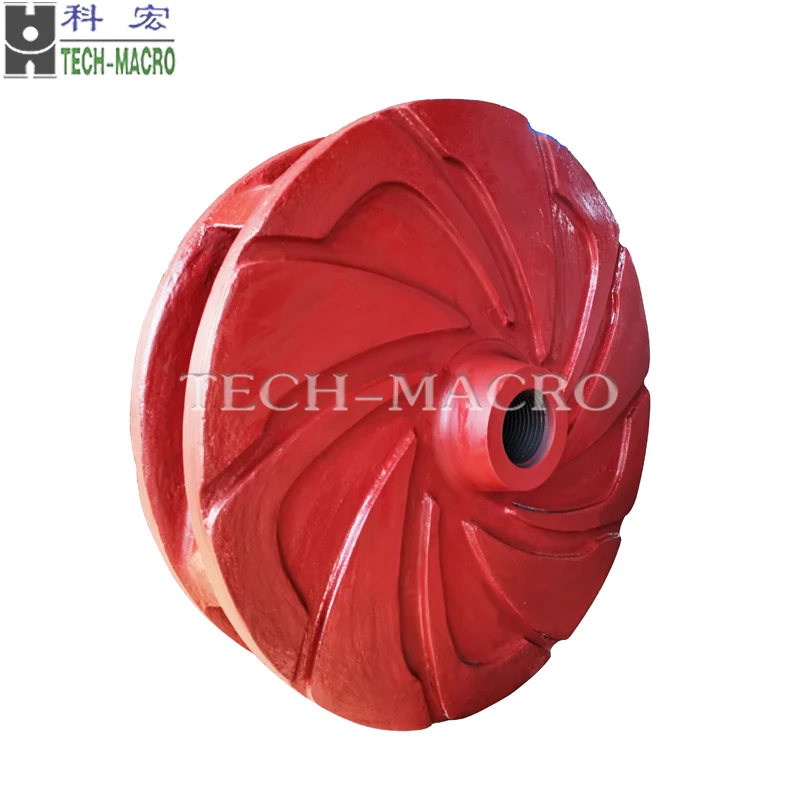

5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.



6 Discharge direction can be positioned at intervals of 45 degrees



7. Simple maintenance throat bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.



8. Sealing type: pcking seal,impeller sealing and mechanical seal.



9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical,         mining, coal, power, building material and other industrial departments.

Specifications

Pump Model	6 / 4 KA-E
Allowable Max.Power	120 kw
Capacity	162 - 360 m³/h
Head	12 - 56 m
Speed	800 - 1550 r/min
Meax.Eff.	65%
NPSH	5 - 8 m
Impeller Diameter	365 mm



Pump Specification

KA pump operating limits:

         ·    Size range (discharge) :    1 inch to 18 inch (25 mm to 450 mm  )

         ·    Capacity:   3.6--6480 m3/h

         ·     Heads(TDH):   4--69 m (13 to 230 feet)

         ·     Max allowable particle size:  Depend on pump model

KAR pump operating limits:

         ·     Size range (discharge) : 1 inch to 18 inch (25 mm to 450 mm  )

         ·      Capacity:   3.6--5760 m3/h

         ·      Heads(TDH): 4--52 m (13 to 170 feet)

         ·      Max allowable particle size: Depend on pump model



Material:

Alloy A05 is a wear resistant white iron that offers excellent performance under erosive conditions. The alloy can be effectively used in a wide range of slurry types. The high wear resistance of alloy A05 is provided by the presence of hard carbides within its microstructure. Alloy A05 is particularly suited to applications where mild corrosion resistance, as well as erosion resistance is required.

A07 Is Martensitic white iron with moderate erosion resistance.

Alloy A49 is a corrosion resistant white iron suitable for low pH corrosion duties, where erosive wear is also a problem. The alloy is particularly suitable for Flu Gas Desulphurisation (FGD) and other corrosive applications, where the pH is less than 4. The alloy can also be used in other mildly acidic environments. A49 has an erosion resistance similar to that of Ni-Hard 1.

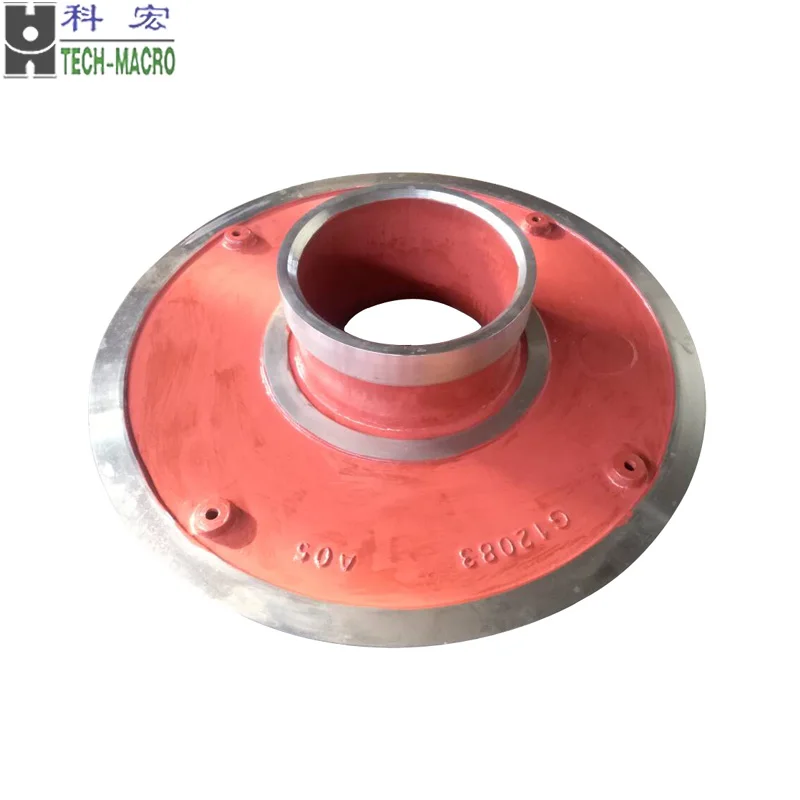

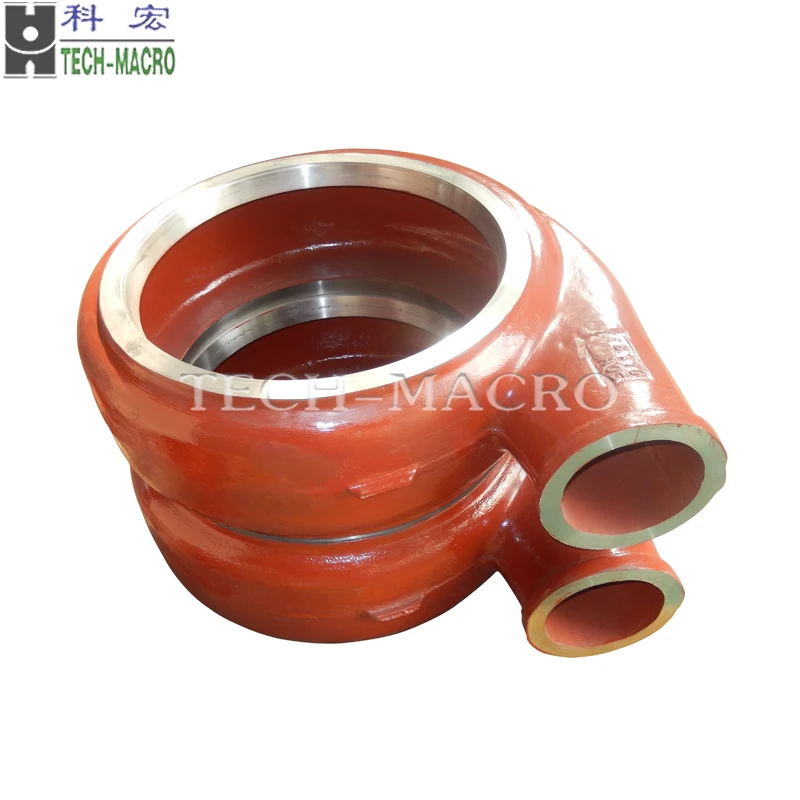

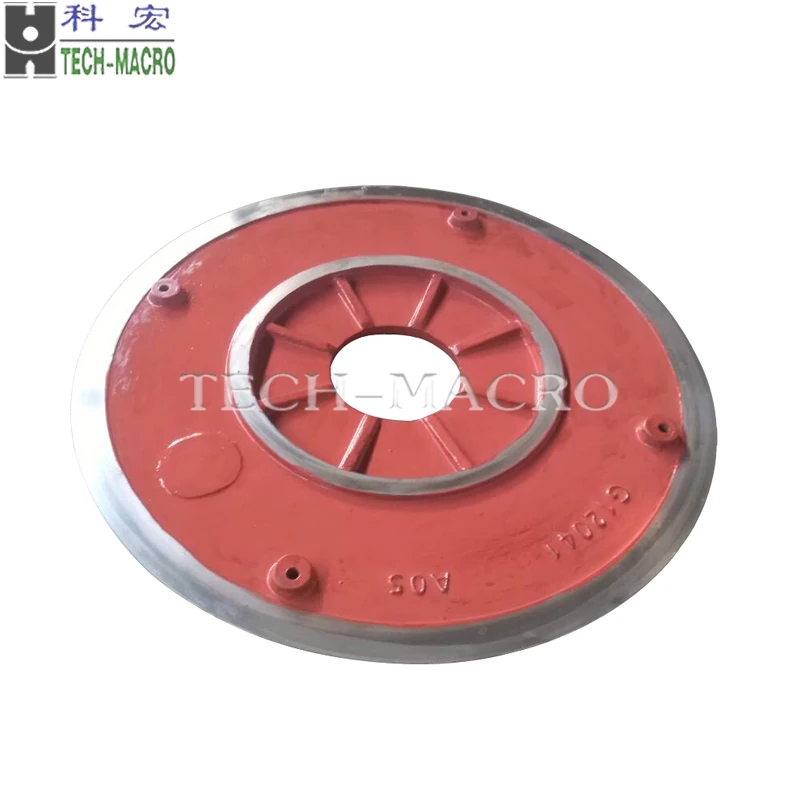

Spare parts:
