X6332Z Milling and Drilling Machine with dro
Product Description
X6332Z Milling and Drilling Machine with dro
Feature:
1. Rectangular table guideways with high stability
2. Hardened and ground table surface
3. Automatic feeds on X, Y axis, motorized lifting and lowering of table on Z axis
4. Headstock swivels ±45 °
Main specification
X6332Z Milling and Drilling Machine with dro
specification | unit | X6332Z |
TABLE : |
|
|
Table size | mm | 1320X320 |
T slot no./width/distance | no | 5/14/63 |
Max. load of Table | kg | 300 |
machining range : |
|
|
table Longitudinal travel(manual/auto) | mm | 800/750 |
table Cross travel (manual/auto) | mm | 300 |
table Vertical travel(manual/auto) | mm | 400 |
MAIN SPINDLE : |
|
|
Spindle taper |
| ISO40 |
spindle speed /step -- Vertical | rpm | 90-2000/8 |
--Horizontal | rpm | 40-1300/12 |
Max.drilling dia. | mm | 30 |
Max.end milling width | mm | 125 |
Max. vertical milling Dia. | mm | 25 |
Max.tapping dia. | mm | 10(steel) |
quill travel | mm | 120 |
swivel angle of headstock | degree | ±45º |
vertical spindle axis to column surface | mm | 200-780 |
vertical spindle nose to table surface | mm | 150-550 |
horizontal spindle axis to table surface | mm | 0-350 |
horizontal spindle axis to ram bottom | mm | 175 |
ram travel | mm | 400 |
FEEDS : |
|
|
Longitudinal/cross feed | mm / min | 20-360/8steps |
Vertical/step | mm/min | 422/1step |
Longitudinal/cross rapid speed | mm / min | 1200 |
Rapid Traverse vertical | mm/min | 422 |
automatic spindle feed |
| 0.08/0.15/0.25 |
POWER : |
|
|
main motor | kW | 2.2 |
(X/Y/Z) feed motor | kW | 0.55(X/Y),0.75(Z) |
coolant motor | kW | 0.04 |
others |
|
|
package dimension | cm | 180X182X225 1pc/case |
|
| 226X182X225 2pcs/case |
overall dimension | cm | 171x172x233 |
N/W,G/W | kg | 2000/2200 |
X6332Z Milling and Drilling Machine with dro

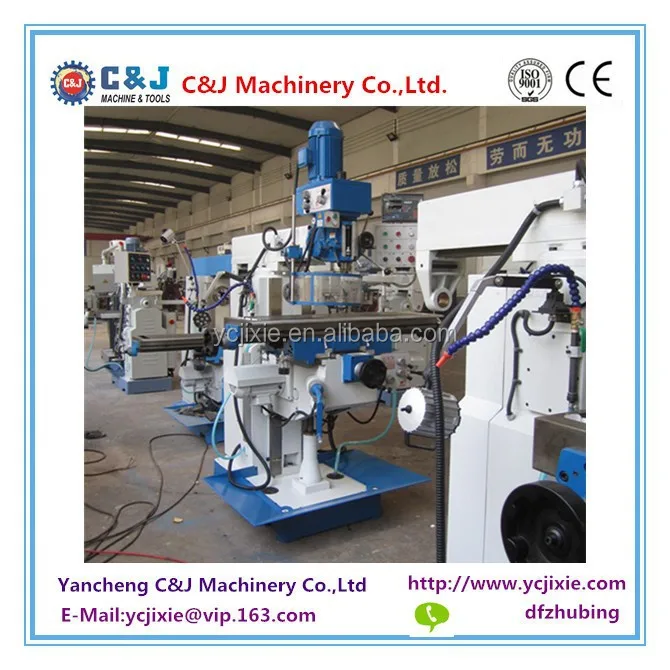

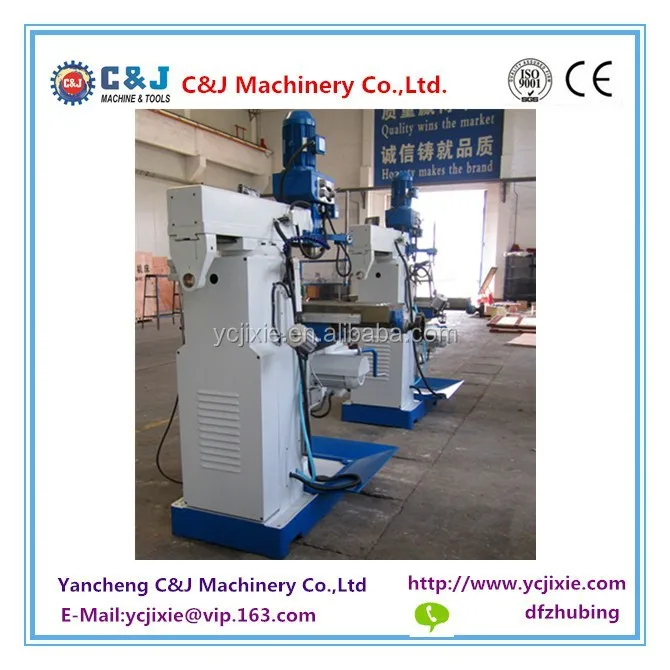

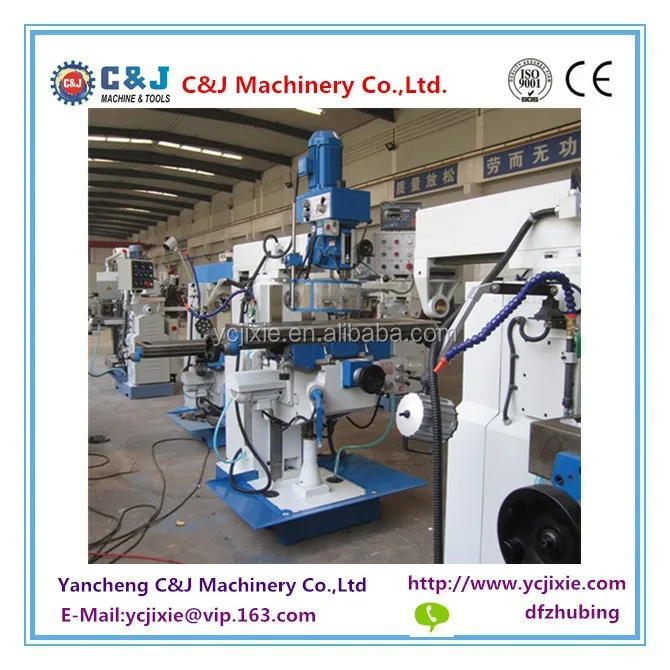

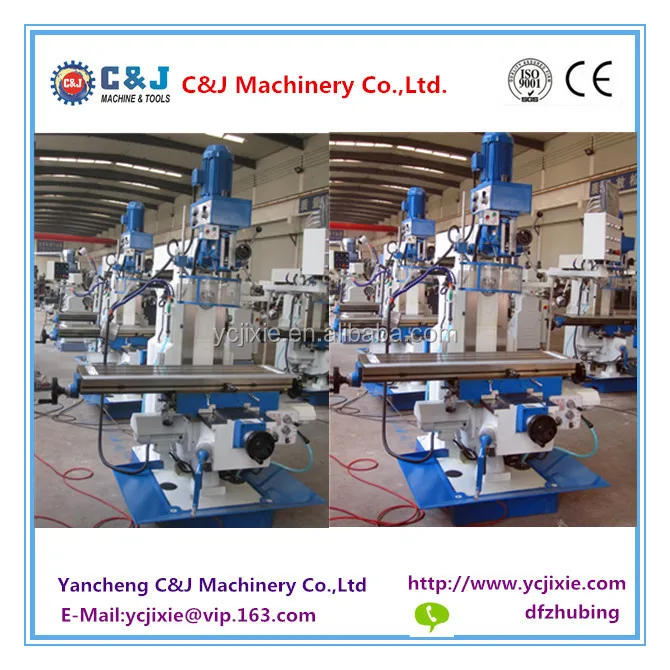

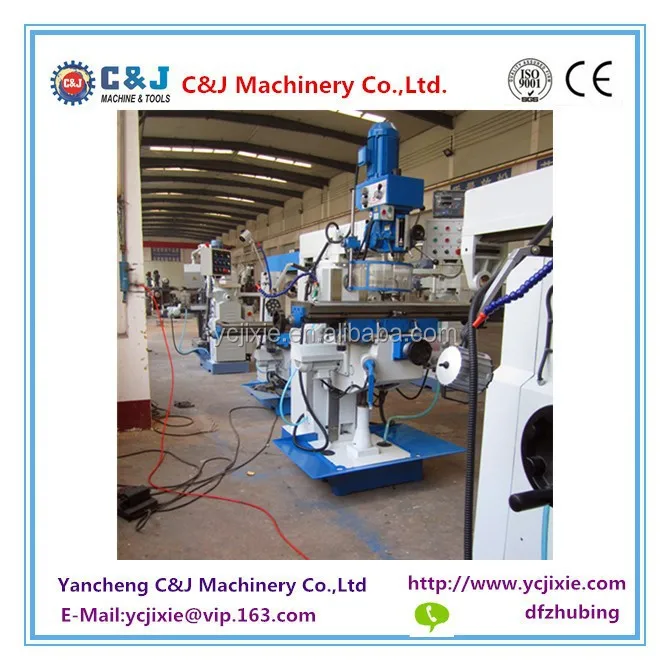

Machine photo:
