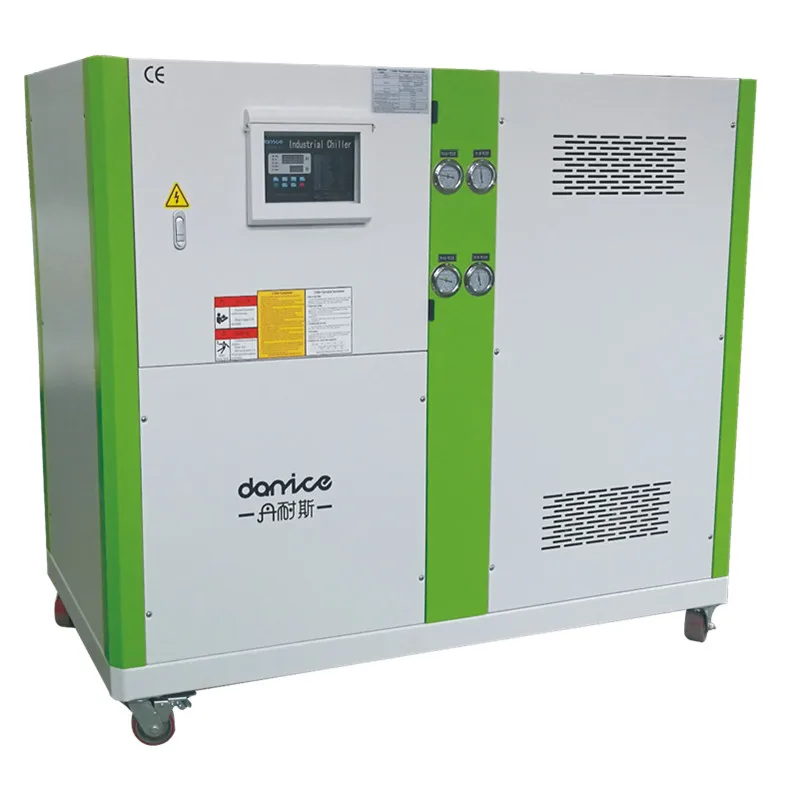

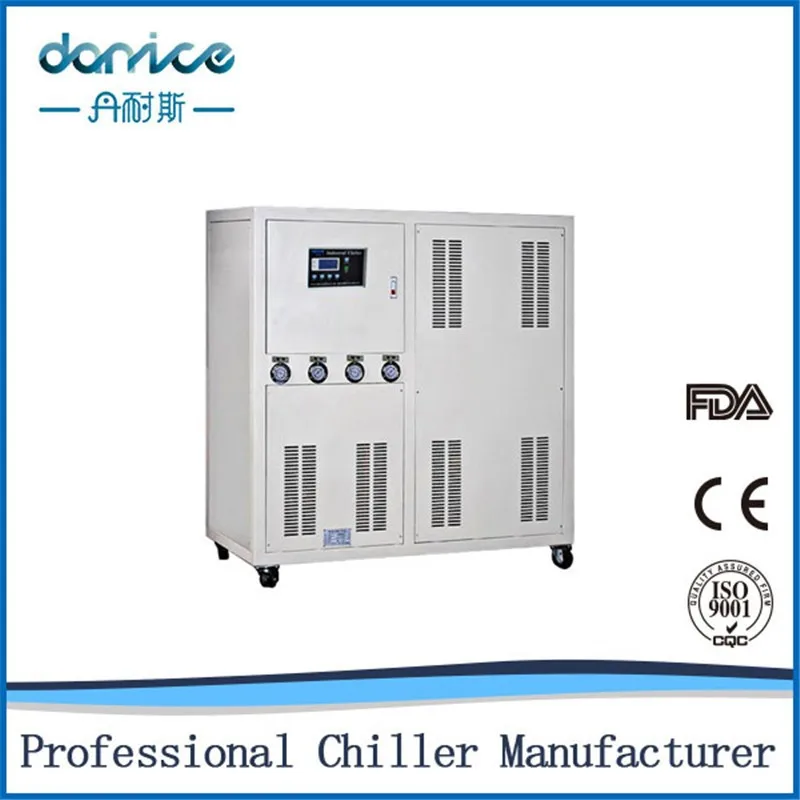

China CE certification hot sales minamoto pump 12hp water chiller 10 ton price
Product Description
1.Cooling capacity:32680kcal/h(38kw)
2.R22,R134a,R407c,R404a refrigerant are all available,our standard chiller refrigerant is R22,if you need other environmental refrigerant R407c,134a,pls kindly let us know
3.The water chiller shall be used with the cooling tower, no matter what the ambient temperature is ,the refrigeration efficiency could remain the best
4.SANYO,COPELAND,DANFOS famous hermeticscroll compressor,Refrigeration valves and international brands
5.Our water cooled chillers can be made for 9KW to
197KW cooling capacity for different customers' requirements, the watercooled chiller with the cooling water tower for cooling.
6.We are industrial chillers manufacturer, but we also welcome OEM.
Model
DNC-12WD
nominal cooling capacity
kcal/h
50HZ/60HZ
32580/39216
Kw
50HZ/60HZ
38/45.6
Max power consumption
kw
11.9
Full load
Amp
28.9
power source
3PH- 380V/415V-50HZ/60NZ
3PH-200V/220V-50HZ/60NZ
refrigerant
type
R22/R407c/134a/404A/410A
control
Capillary/external balance
of thermal expansion valve
compressor
type
hermetic scroll
power
kw
5.2×2
condenser
type
Shell and tube
Cooling water flow
m3/h
8.3
Inlet & outlet diameter(BSP)
Inch
1-1/2
evaporator
type
Tank coil/
Dry shell and tube /Stainless steel plate evaporate
Tank volume
L
200
coolant flow
m3/h
6.53
inlet and outlet connection(BSP)
inch
2
Pump
Power
Kw
1.5
Max flow rate
m3/h
13.5
Max head
M
25
safety devices
Compressor overheating protection,over-current protection,high and low
sequence/phase loss protection,low level protection,frost protection
dimension
mm
1250*680*1380
weight
kg
330
Notes:1.Cooling capacity is based on:chiller water inlet and outlet water temperature of
12℃/7℃,the cooling water inlet and outlet water temperature of 30℃/35℃
2.Scope of work:chilled water temperature range:5℃to35℃;chiller water out of the watertemperature:3℃to8℃
The cooling temperature is not higher than 35℃ environment
The above can be customized according to customer requirements to produce
Sales Process
Workshop
Packaging & Shipping
CE Certification
Exhibition
FAQ
Q
Are you a factory or trading company?
A
We are a factory. Our factory is located in Building D, Tongfu Handa Innovation Park, no.10 Jiangfu Road, Jiangshi Community, Gongming Town, Guangming New District, Shenzhen.
Q
What about the guarantee?
A W W
With a one-year warranty, you can provide overseas service.
Q
What can I get the price?
A
We usually quote within 24 hours after receiving your inquiry. If you are in urgent need of this price, please tell us in your email, we will give priority to your inquiry.
Q
What are your delivery terms?
A
Honestly, it depends on the order quantity and the season you place the order.
