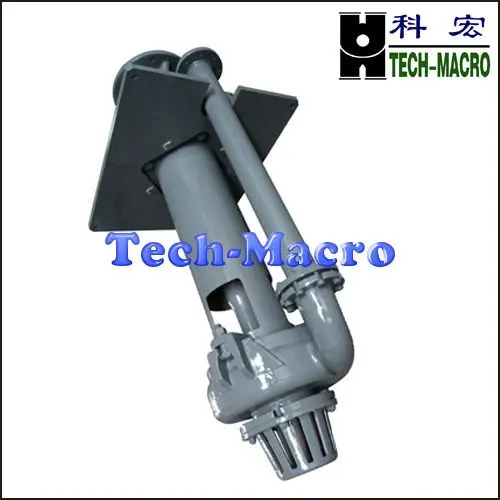

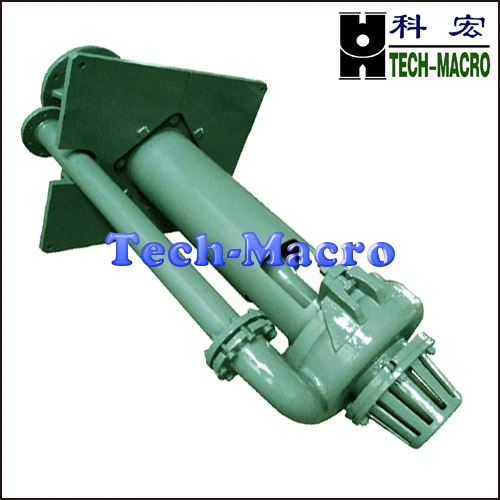

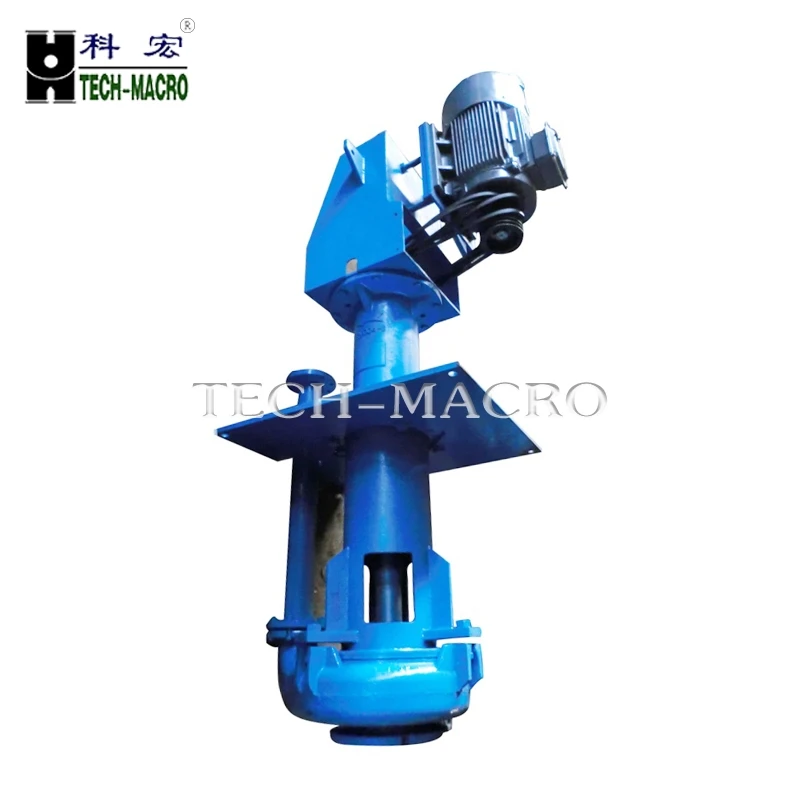

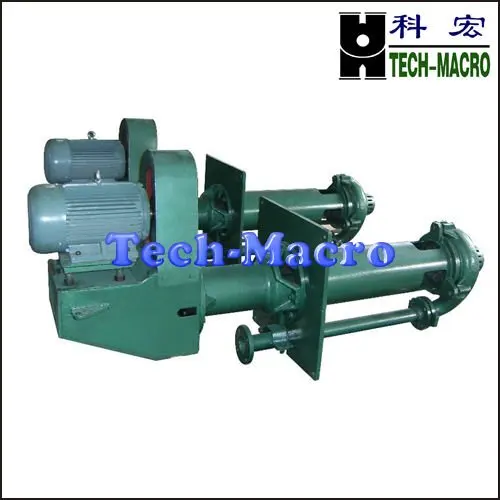

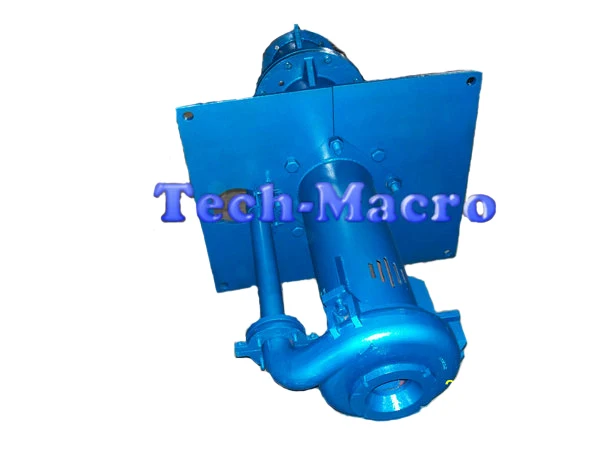

Metal lined corrosive vertical sump pump, submersible centrifugal pump for mineral processing
- Category: >>>
- Supplier: Shijiazhuang Tech-Macro Pump Industry Co. Ltd.
Share on (60198795352):
Product Overview
Description
Metal lined corrosive vertical sump pump, submersible centrifugal pump for mineral processing
Description: ZJL Series slurry pump is single-stage, single-suction centrifugal slurry pump. Various design of pump speed and versions making the pump running under optimum operating conditions, long service life, high operating efficiency, and can meet a wide variety of harsh conditons.
Optional types of shaft seals, oil lubrication, direct couplings driven type.
Pump discharge can be postioned to 8 directions at intervals of 45 degrees.
Application:
Most pumping applications, no shaft seal,easy to fix and cost less.

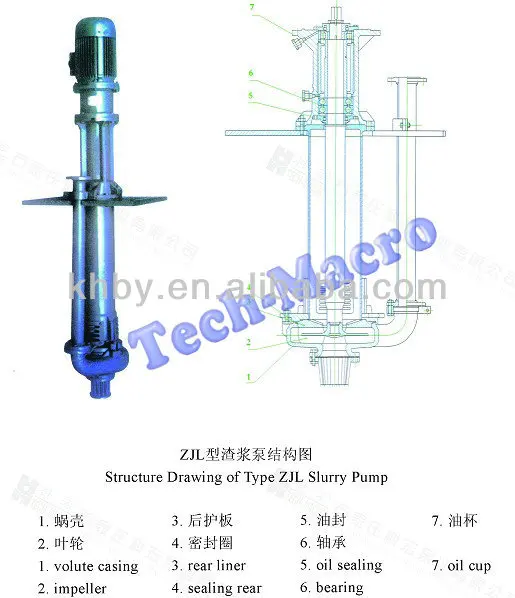

Structure Features:
1. Single casing vertical slurry pump
2. Wet ends are made of abrasive resistant hard metal or rubber
3. No shaft Seal
4. Grease Lubrication
Brief Introduction:
The ZJL vertical Sump Pumps is ideal for a variety of submerged suction pumping applications.
These pumps operate well in a variety of sump conditions, and also can be readily applied on floating dewatering or other floating pump platforms.
As a true cantilevered pump, the vertical slurry pump does not have submerged bearing or seals, thus, eliminating theprimary failure mechanism for similarly fielded pump lines.
|

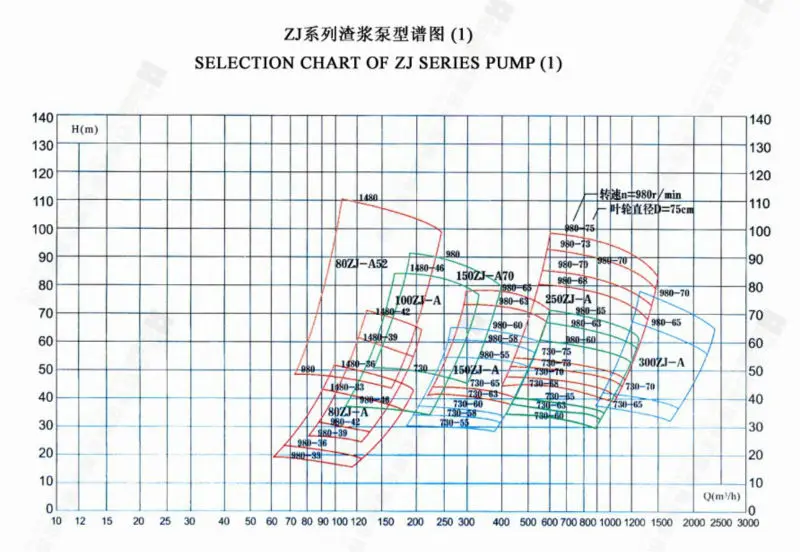

Type
|
Allowable max. Power of motor(kw)
|
Clear Water Performance |
||
|
Q Capacity(m3/h) |
Head (m) |
|||
|
150ZJL-50 |
55 |
121-350 |
12.3-24 |
|
|
150ZJL-35 |
37 |
99-364 |
3.0-17.9 |
|
|
100ZJIL-34 |
45 |
74-293 |
5.5-36.8 |
|
|
80ZJL-36 |
45 |
50-201 |
7.3-45.5 |
|
|
65ZJL-30 |
18.5 |
18-98 |
5.9-34.7 |
|
|
50ZJL-20 |
4 |
8-38 |
1.4-10.7 |
|
|
40ZJL-B25 |
4 |
4.9-22.9 |
4.0-21.5 |
|
|
40ZJL-A21 |
4 |
4.6-25.9 |
3.3-17.0 |
|
Material R&D and Application
We have accomplished a great deal of achievements in the research of materials and developed successively lots of materials resistant to abrasion and corrosion well used in a diverse of working conditions. We are committed to do the research & development and application of new materials.
Ceramic Material
Tech-Macro has successfully developed the latest generation of nonmetallic composite ceramic material which is more profitable and used for special pumps resistant to abrasion and corrosion such as slurry pump, desulfurization pump. This material features at energy saving, environmental protection, and could be operated at room temperature, repair waste parts at the working site, short maintenance period reducing maintenance time. It is wildly used in the industries such as navigation and spaceflight, mineral processing, chemical, mechanical equipment, power generation, cement, non-ferrous metals manufacturing etc.
High Chrome Cast Iron &Natural Rubber
The advanced high-Cr white cast iron material is specially developed and designed for FGD(Flue Gas Desulfurization) desulfurizer. It shows a performance combined anti-corrosion of duplex stainless steel and anti-corrosion of high-Cr white cast iron which make it have significant wear &corrosion resistance in the FGD process.
Natural rubber is a type of polymer material and is high elastic and heat resistant. Its wear resistant and corrosive resistant performance is much better than that of metal material. Moreover, low cost makes it widely used in the desulfurization system.
