Excavator Attachments Small Hole Soil Drilling Machine For Soil Investigation

Product Overview

Description

Excavator Attachments Small Hole Soil Drilling Machine For Soil Investigation

Raymond earth auger is a kind of post hole attachments which is mainly used in skid steer loaders, mini loaders, mini excavators, backhoe loaders, telescopic handler, wheel Loader and other machinery.

It usually applicated in exploration and research,groundsource heat pumps,Fence,landscaping,tree planting,Well boring,foundation piles,screw pile installation,pole and mast installations,road signage,

 Applicaticon:

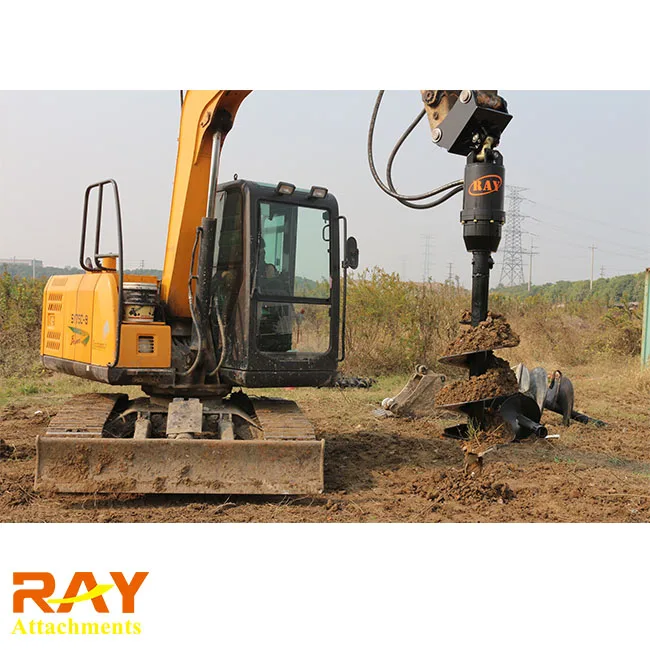

Construction Site:

Specification:

Model	Oil Folw		Max Torque		Pressure		Rotary Speed	Carrier	Oil Hose	Drill Dia.
	gal./min	I/min	Lbf·Ft	N·M	Psi	Bar	Rpm	T	Inch	mm
REA2000	6-14	23-53	2537	1871	3000	205	40-92	1-2.5	1/2	100-400
REA2500	8-16	30-61	3297	2432	3000	205	40-82	1.5-3	1/2	100-500
REA3000	8-16	30-61	3900	2877	3500	240	40-81	2-3.5	1/2	100-600
REA3500	8-18	30-68	4900	3614	3500	240	32-72	2.5-4.5	1/2	100-750
REA4500	10-20	38-76	5719	4218	3500	240	32-64	3-5	1/2	100-900
REA5000	10-20	38-76	6855	5056	3500	240	29-58	4.5-7	1/2	150-600
REA5500	12-22	45-83	8012	5910	3500	240	28-50	5-7	1/2	150-750
REA6000	12-28	45-106	8338	6150	3500	240	34-80	6-8	3/4	150-900
REA7000	16-32	61-121	9397	6931	3500	240	37-72	7-10	3/4	150-900
REA8000	16-36	61-136	10911	8048	3500	240	29-64	8-12	3/4	150-900
REA10000	18-36	70-136	14612	10778	3500	240	26-45	10-13	3/4	150-900
REA12000	21-37	80-140	16236	11976	3500	240	22-43	13-17	1	150-900
REA15000	21-40	80-151	20399	15046	3500	240	20-39	13-17	1	150-1200
REA20000	21-45	80-170	25812	19039	3500	240	17-34	13-20	1	150-1200
REA25000	24-48	90-180	33825	24949	3500	240	16-30	15-23	1	150-1200
REA50000	26-74	100-280	68052	50195	400	280	11-30	21-50	1	300-2400



Model	Drill Depth in Soil Texture (Reference Data)/M
	Soft	Medium	Hard
REA2000	1.2-2.2	1.1-2	1-1.8
REA2500	1.5-2.5	1.4-2.3	1.3-2.1
REA3000	1.8-3	1.6-2.7	1.4-2.4
REA3500	1.8-3	1.6-2.7	1.4-2.4
REA4500	1.5-4	1.4-3.6	1.3-3.2
REA5000	3-4	3.7-3.6	2.4-3.2
REA5500	2.5-5	2.3-4.5	2.1-4.1
REA6000	3-6	2.7-5.4	2.4-4.9
REA7000	4.5-7.5	4.1-6.8	3.7-6.1
REA8000	4.5-7.5	4.1-6.8	3.7-6.1
REA10000	4.5-7.5	4.1-6.8	3.7-6.1
REA12000	4.5-7.5	4.1-6.8	3.7-6.1
REA15000	4.5-7.5	4.1-6.8	3.7-6.1
REA20000	5.5-8.5	5-7.7	4.5-7
REA25000	6-9	5.5-8	5-7.5
REA50000	4.8-12	4.3-11	4-10



 How to choose the right model?

1.The weight of your excavator/tractor/ Backhoe/Skid Steer loader?

Model of Excavator	Weight of excavator	Model of Earth Auger
Cat226B	2.6T	REA2500,REA3000
Cat279C	4.5T	REA5500,REA5000
PC100	10T	REA8000
PC320	23.7T	REA20000,REA25000

2.Diameter and the Depth of hole to be drilled?

Diameter	Depth
From 100mm to 1200mm	We can Provide the extension shaft

3.Ground type to be drilled?

Earth Teeth and Pilot	Tungsten Teeth and Pilot	Rock Teeth and Pilot
Soil,Clay	Sandy soil,Gravel Soil	Rock and Pitch



Aslo, these details just help you know our products quickly. Please feel free to contact with me ,that's my duty and honor to help you find the appropriate product

 Details:

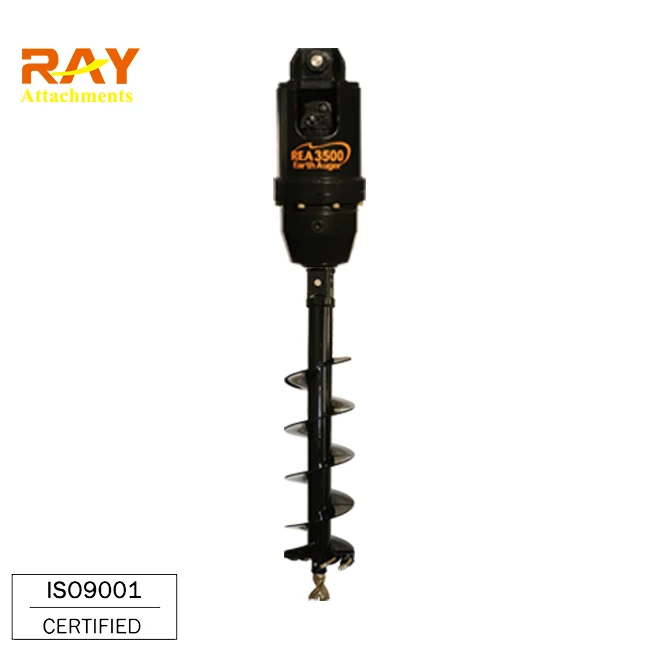

1. Auger Drive



1. Rugged shell (Q345B)

2. Professional modeling design

3. High-performance motor (E.T.N,  USA)

4. High-precision planetary gear

5. 18 months' Warranty

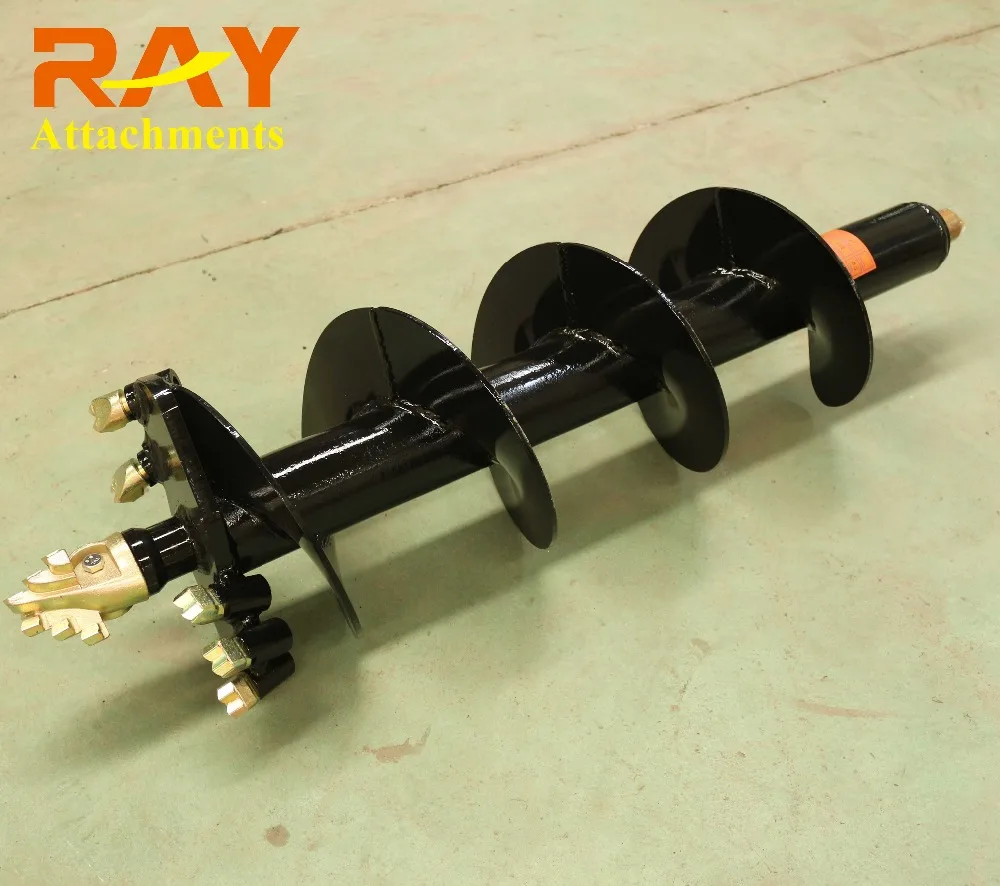

2. Auger Drill

We can also provide extension shaft for deeper depth.

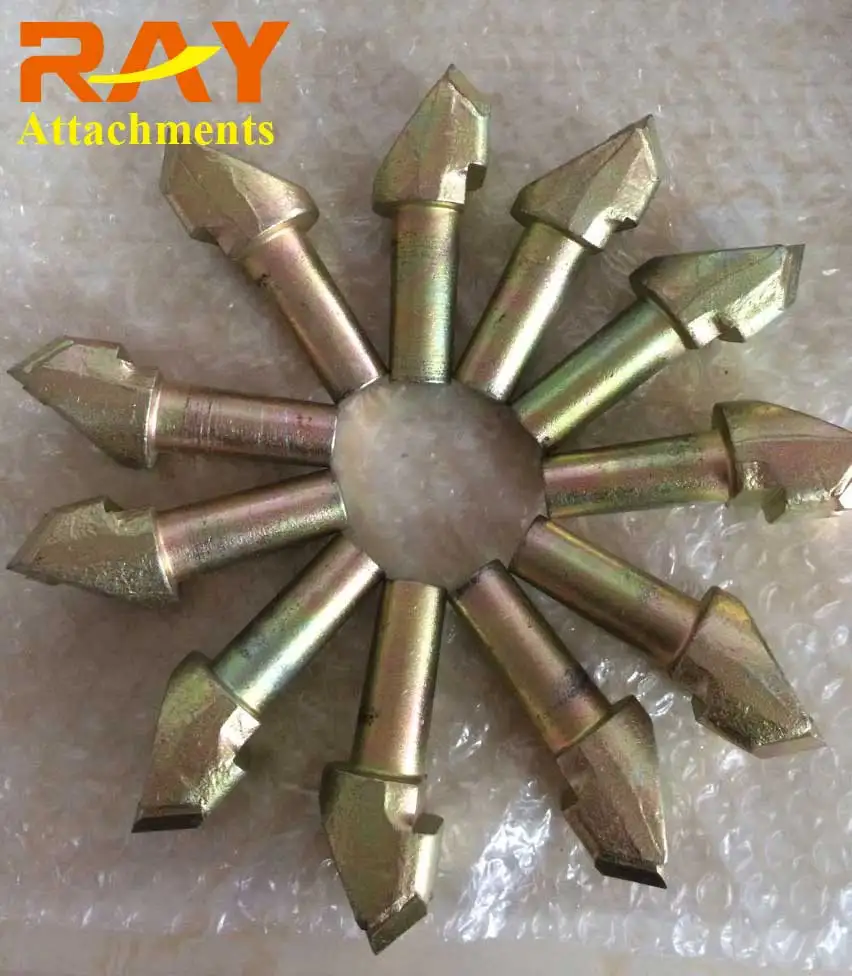

3.Auger Teeth and Pilot:

Feedbacks:
