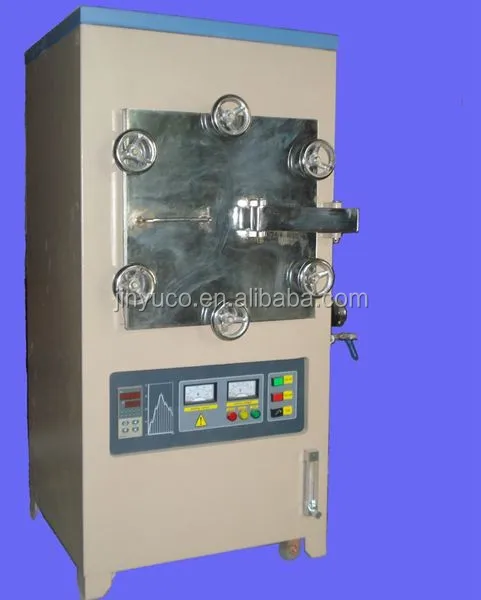

1200C Protective Atmosphere Industrial Furnace with Nitrogen, Argon

1200C Nitrogen Atmosphere Furnace is designed for material synthesis under controlled inert gas Atmosphere up to 1200 ºC. The atmosphere furnace consists of high quality Alumina fiber brick and Ni-Cr Resistance Wire, as well as vacuum sealed steel case.

It is an ideal tool for preparing new materials which requires a heat treatment under inert gas.

Atmosphere Furnace Structure:

1)     High quality Alumina fiber inner insulator and double layer steel outer layer with air cooling fan to keep case temperature below 55C(energy saving 40% and weight lighter about 30% than old furnace )

2)     Double layers steel casing with fan cooling, to ensure the surface of furnace below 50C

3)     Gas inlet and venting port are installed for using at oxygen or inert gas riches Atmospheres

4)     Built in Pressure gauge, vacuum valves and two gas flowmeters

Atmosphere Furnace Specifications:

Atmosphere Furnace Features:

1) High quality super Ni-Cr Resistance Wire serve as heating element and can be heated up to 1200°C.

2) High purity and reflective Al2O3 ceramic fiber board with ZrO2 Liner coating for max energy saving.

3) Energy saving 1400 grade fibrous alumina insulation.

4) Double layer steel case with air cooling to ensure low surface temperature.

5) Effective heated chamber: 300x300x400mm.

6) Built in precision digital temperature controller is 51segments programmable to control heating rate, cooling rate and dwell time.

7) The furnace temperature is controlled by precision SCR (Silicon Controlled Rectifier) digital controller with accuracy +/-1°C and 51 segments programmable up to 1200°C.

Atmosphere Furnace Standard Sizes:

Note: Other sizes can be customizable.

Atmosphere Furnace Operation Notes:

1)     For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min.

2)     Cooling rate shall also not exceed 10 °C /min.

3)     This furnace lacks vacuum sealing, toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision.

4)     Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.

Package:

Polyfoam Filled, Wooden Box Outside.

Shipping:

We could supply you the follow shipping way for your choice:

--By DHL/Fedex (Door to door, Home delivery service)

--By Air to your nearest Airport

--By Sea to your nearest Seaport

--By the sellers’ shipping agent

1. Any inquiries will be replied professionally within 24hours.

2. High quality, long working life, reasonable & competitive price.

3. Fast delivery and competitive freight.

4. Payment methods: T/T, Western Union, MoneyGram and L/C.

5. Excellent after –sale service, one year limited warranty.

Dengfeng Jinyu Thermoelectric Material Co.,Ltd is a high-tech enterprise through ISO 9001: 2000 quality management system certification, and our factory got the honor of environmental protection.

Our leading products include all kinds of SiC heating elements,MoSi2 heating elements, resistance heating elements, muffle furnace, tube furnace, atmosphere furnace, vacuum furnace, drying oven, molybdenum products, tungsten products, silicon carbide products, alumina ceramic products, zirconia ceramic products, quartz tubes, ceramic fiber products and so on.

You can select our products that meet your demands. If you have special request, please let us know without any hesitation, we are looking forward to provide you good service and reasonable price.

Q1. Are you a manufacturer?

Yes, we make kinds of high temperature laboratory heat treatment furnaces for years.

Q2. How to get a quotation?

Generally, we need to know the furnace type, the temperature and the working room size you need. If you have no specific idea, let us know your test request. We would try our best to recommend a suitable item to you.

Q3. A little vacuum is realizable?

If you need some vacuum level, another item we have is suitable for you.

Q4. How long does it take to get the goods?

Normally 15-25 working days.

Q5. Do you inspect the finished products?

Yes, every step of production and finished products will be carried out inspection by QC department before shipping.

Q6. How to transport the products?

By sea, by air and by express is optional depending on the demand of client.

Q7. Why choose us?

1. We are a manufacturer so that we have the punctual delivery time.

2. One sales representative serves you from inquiry to products shipped out. Communicate directly and conveniently.

3. Professional R&D team.

4. Strict QC.

5. Smooth shipping.

6. Rich experience. We always do OEM services. Our customers are all over the world like USA, UK, Russia, Korea, Southeast Asia, etc. so that we are quite experienced.

7. Certificate: All our products are CE approval.

8. Fast reply: Our team will respond your requests within 8-working-hour.

Q8. The end user has more request to this furnace, is it ok? what's the minimum order quantity?

We provide the customizing service. In consideration of the limited need of end use, the MOQ is just 1set.

OEM and ODM are available for us. Please contact us freely.
