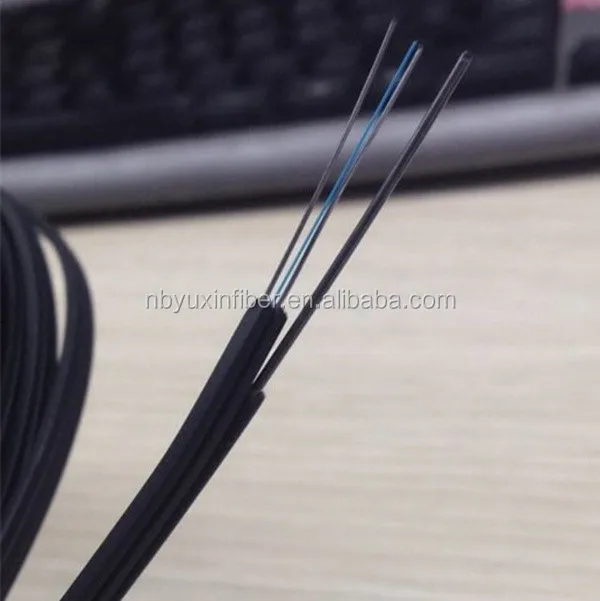

Frp Ftth Drop Indoor/Outdoor Fiber Optic Cable From Factory

Price:RUB 2.29 - RUB 4.57

Quantity:

Frp Ftth Drop Indoor/Outdoor Fiber Optic Cable From Factory

Introduction:

1.Special low-band-sensitivity fiber provides high bondwidth and excellent communication transmission property;

2.Two parallel strength members ensure good performance of crush resistance to protect the fiber;

3.Simple structure.light weight and high practicability;

4.Novel flute design,easily strip and splice,simplify the installation and maintenance;

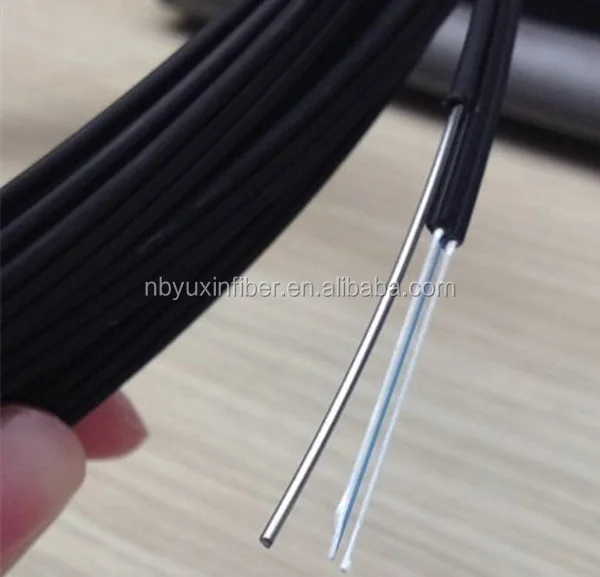

5.Single steel wire as the additional strength member ensures good performance of tensile strength.

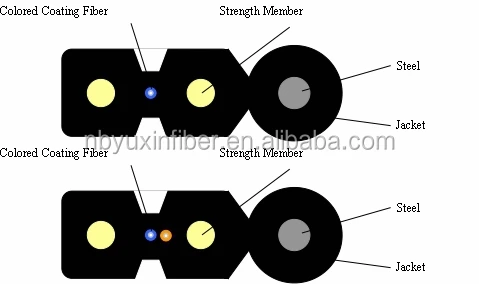

Structure:

Fiber Parameters:

No.	Items			Unit	Specification
					G.657A1
1	Mode Field Diameter		1310nm	μm	9.0±0.4
			1550nm	μm	10.1±0.5
2	Cladding Diameter			μm	124.8±0.7
3	Cladding Non-Circularity			%	≤0.7
4	Core-Cladding Concentricity Error			μm	≤0.5
5	Coating Diameter			μm	245±5
6	Coating Non-Circularity			%	≤6.0
7	Cladding-Coating Concentricity Error			μm	≤12.0
8	Cable Cutoff Wavelength			nm	λcc≤1260
9	Attenuation(max.)		1310nm	dB/km	≤0.35
			1550nm	dB/km	≤0.21
10	Macro-Bending Loss	1turn×10mm radius @1550nm		dB	≤0.75
		1turn×10mm radius @1625nm		dB	≤1.5

Cable Parameters:

Mechanical and Environmental Characteristics:

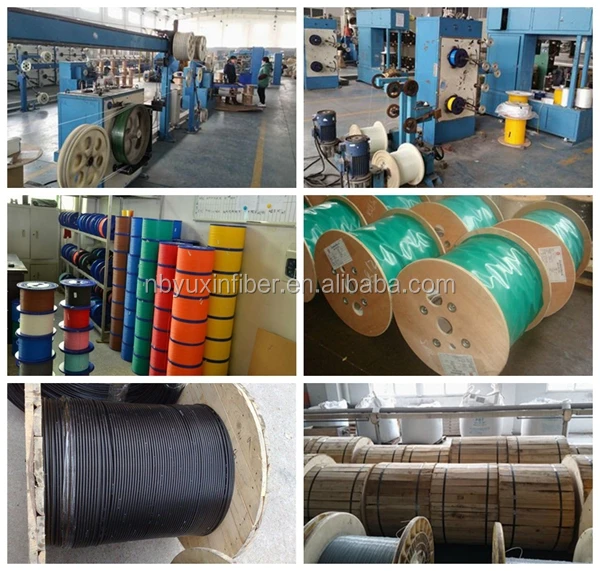

About Us:
