Specification:
Outside Size (mm) | 7000x5560x3500 (Lx W x H) | |||
Inside Size (mm) | 6900x4000x2800 (L x W x H) | |||

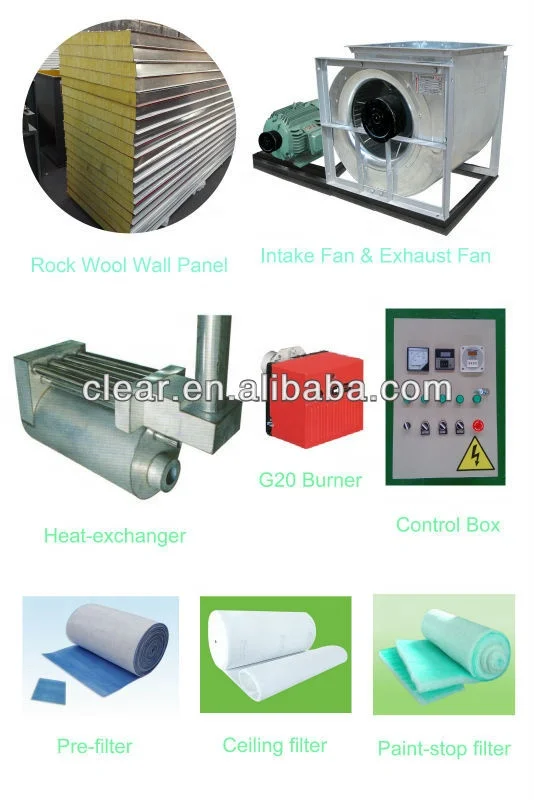

Wall panel | Rock wool colorful steel skin boards,50 mm thick, 0.4 mm steel, compound construction, anti-flame and heat-insulation, handiwork door, galvanized steel roof panel | |||
Basement | Two grids & three embossed plates, galvanized steel sheet construction, two Ramps, | |||

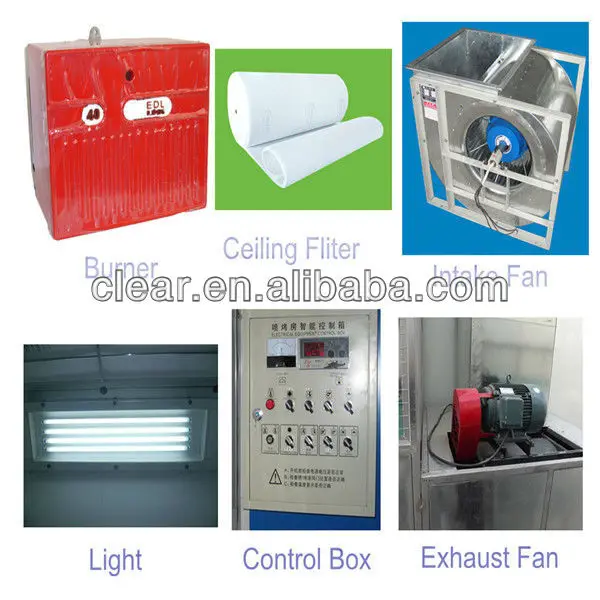

Air Circulation System | Inlet Fan | Blower capacity: 25,000 m3/h | Outlet Fan
| Blower capacity: 25,000 m3/h |
Power: 7.5 kw/set | Power: 7.5kw/set | |||
Quantity: 1 set | Quantity: 1 set | |||
Air volume: 25,000 m3/h; Air speed: 0.35m/s, Air recycling times:280 times/h | ||||
Purification System | Dual-filtering structure, The primary filter can capture granules larger than 10 μm. Ceiling filter capture granules bigger than 5μm. The whole purification system has capacity of large volume of Dust. Its Filtering Rate Reaches 98%. TSP≤1.4mg/m3 | |||
Heating system | Riello Brand G20 diesel burner, 200000Kcal/h, SUS304 stainless steel heating exchanger, argon arc welding; max temp:80°C, heating time: 4-6 min (20-60°C), fuel consumption:4-5 kg/vehicle | |||

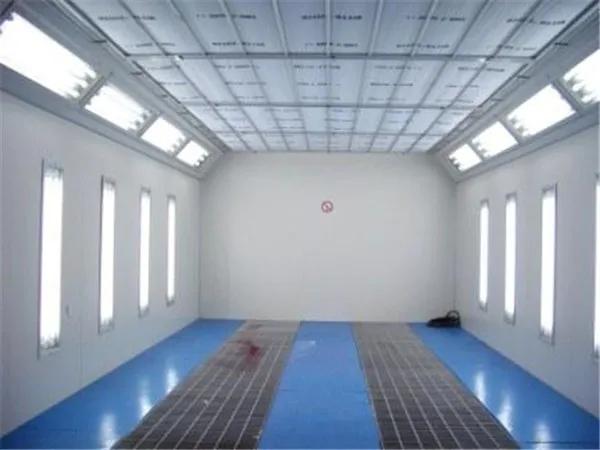

Lighting System | Ceiling Light: 32pcs 36w Philips Lamp; Bottom Light: 16pcs 36w Philips Lamp, 900 Lux | |||
Control system | Micro-computer programmed controlling, spray & baking switch, light switch, emergency stop, breakdown alarm | |||
Environmental System | Multi-lagers fiberglass filter, active carbon | |||
Optional | Propane or Natural gas heater,Full grids, EPS wall panel, PLC control panel | |||
REMARK | Spray booths could be customized upon request as we are Manufacturer. | |||
