Огнеупорный кирпич с высоким содержанием алюминия, SK36 SK38, высокий глиноземный кирпич, высокий алюминиевый кирпич

Product Overview

Description

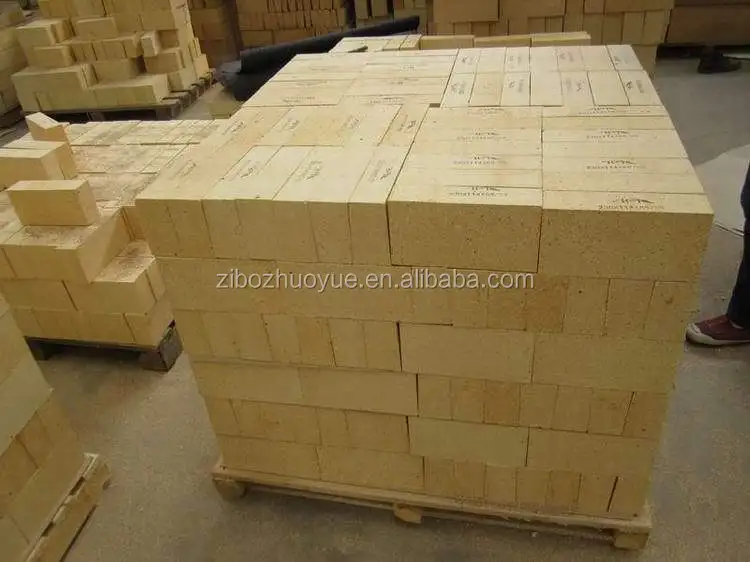

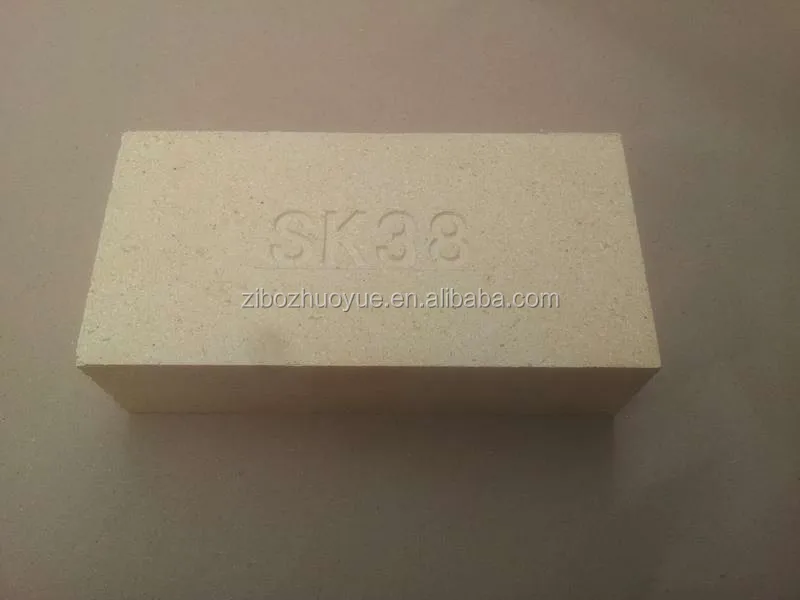

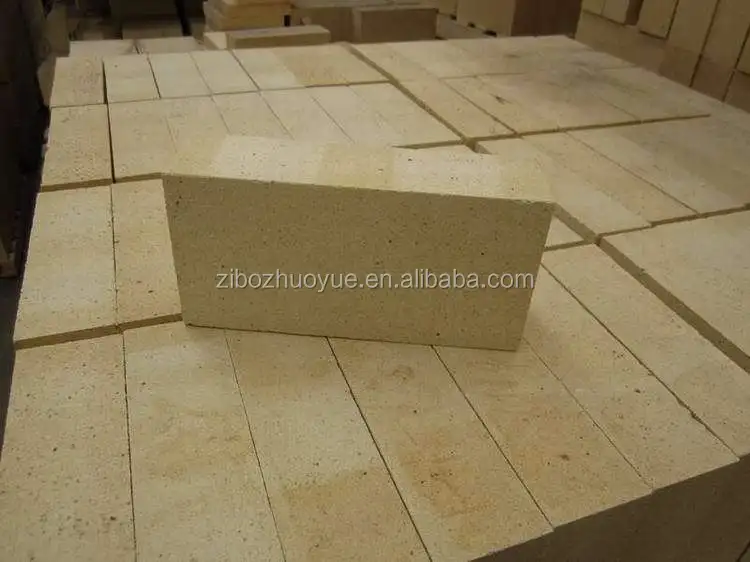

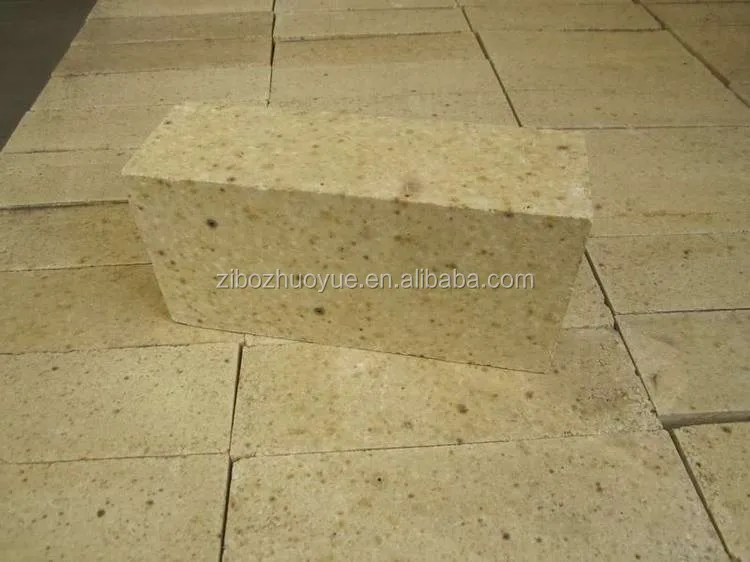

High alumina fire brick,SK36 SK38 high alumina brick,High aluminum brick

Features:

1. High refractoriness.

2. Good spalling resistance and wear resistance.

3. Good corrosion resistance.

4. Good thermal shock resistance.

5. High mechanical strength.

6. High-temperature creep rate is low.

Physical and chemical index:

Item/Grade	Fire clay brick				High alumina brick
	SK-30	SK-32	SK-34	SK-35	SK-36	SK-37	SK-38	SK-40
AL2O3 % (≥)	30	35	38	45	55	65	70	82
Fe2O3 % (≤)	2.5	2.5	2.0	2.0	2.0	2.0	2.0	2.0
Refractoriness(SK)	30	32	34	35	36	37	38	40
Refractoriness under load, 0.2MPa, °C (≥)	1250	1350	1370	1420	1450	1480	1530	1600
Apparent porosity (%)	22-26	20-24	20-22	18-20	20-23	20-23	20-22	18-20
Bulk density (g/cm³)	1.9-2.0	1.95-2.1	2.1-2.2	2.15-2.22	2.25-2.4	2.3-2.5	2.4-2.6	2.5-2.7
Cold crushing strength ,MPa (≥)	20	25	30	40	45	50	60	70



Common sizes:

Straight type	Arch type	Wedge type
L×W×H (mm) 230×114×65 230×114×75 230×114×32 220×110×60 220×110×50 220×110×40 220×110×30	L×W×H/h (mm) 230×114×65/55 230×114×65/45 230×114×65/59 220×110×65/50 220×110×75/65 220×110×60/40	L×W×H/h (mm) 230×114×65/55 230×114×65/45 220×110×75/65 220×110×60/40
Other sizes according to customer requiremen



Application:

High alumina brick is widely used in Blast furnaces, Hot Blast Stove, Steel ladle lining, Reheating furnace, Cement kiln, Tunnel kiln,Boiler, Coke oven, Waste incinerators ,Carbon furnace, Glass kiln , Steel smelting furnace and various kiln lining and thermotechnical equipment, etc.

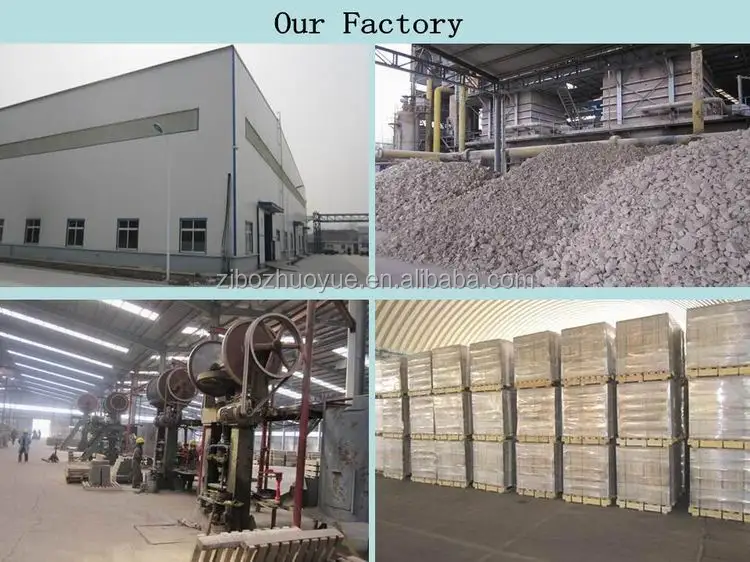

About our company:

Our company is the specialized manufacturer and exporter of refractory materials and insulation materials in China. Our products mainly include Fire clay brick,High alumina brick,Insulation brick,Refractory castable,Refractory raw materials,Primarily export to East Asia, Southeast Asia, Europe, The americas, Middle East, Australia and Africa etc.
