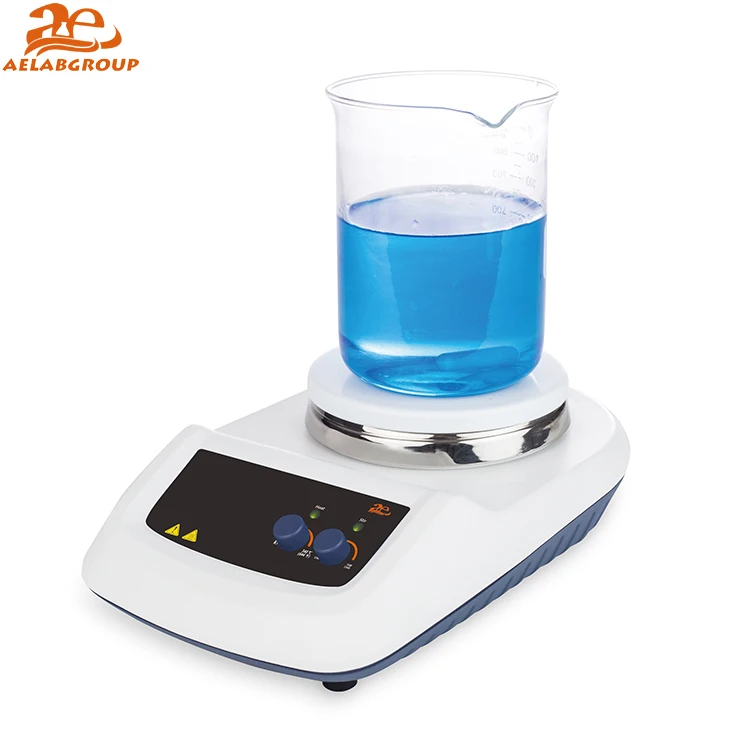

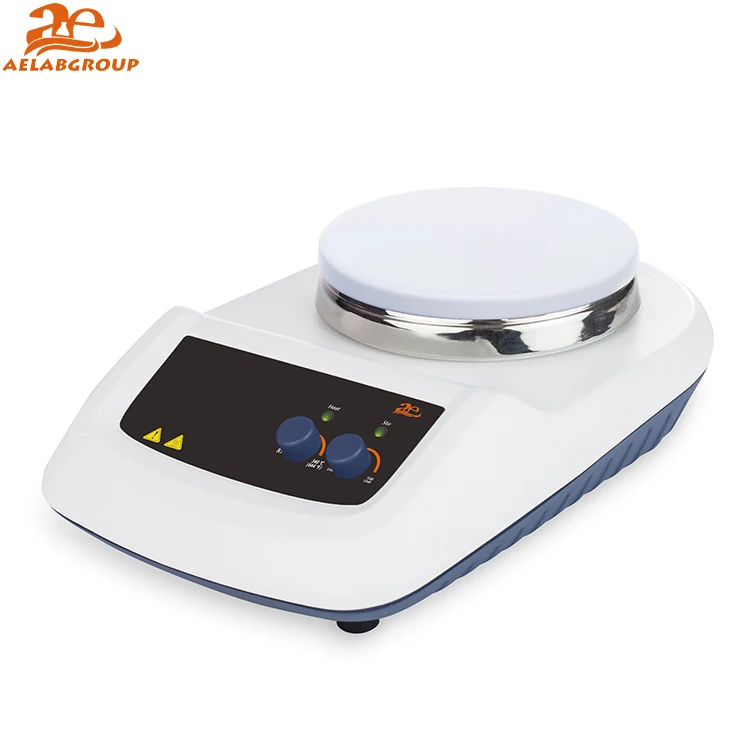

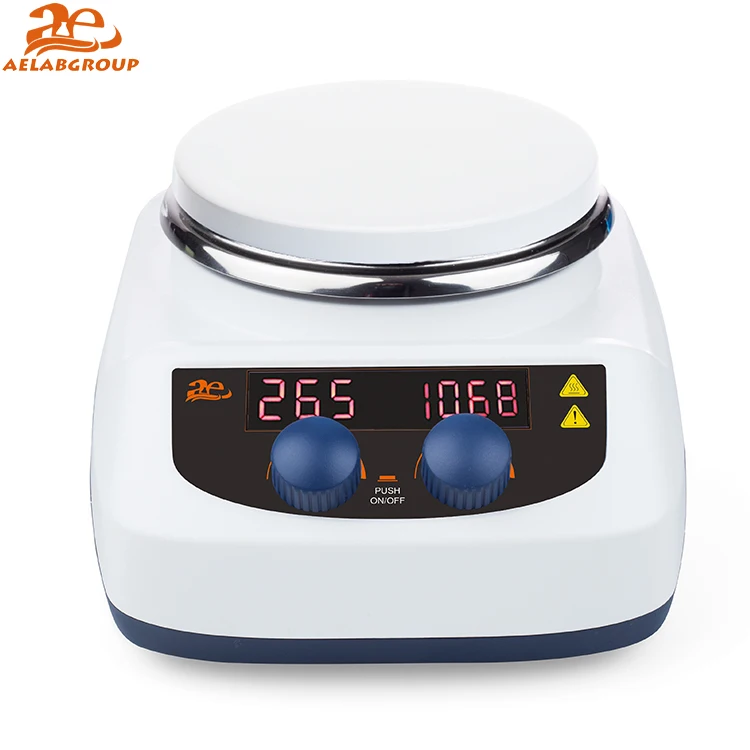

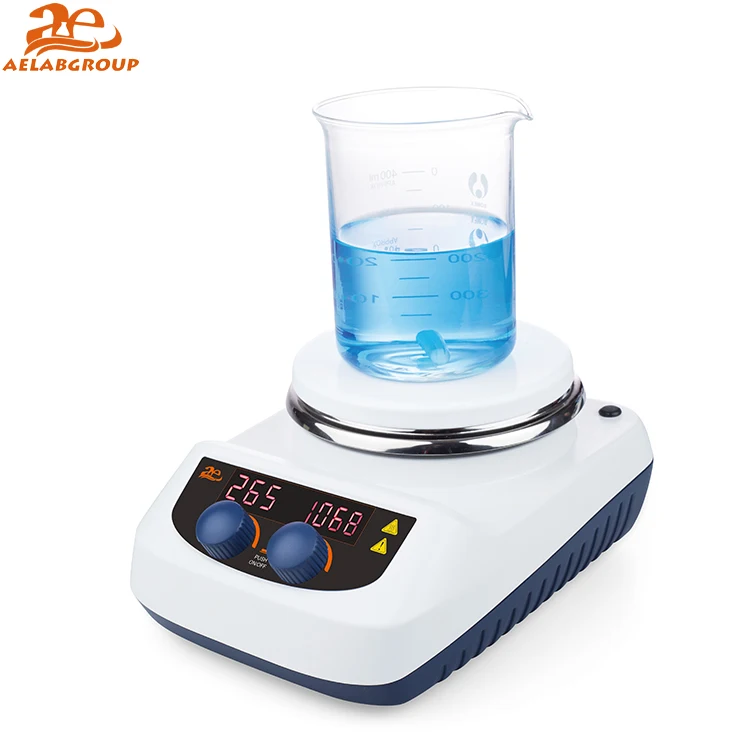

AELAB Laboratory Electric Nano Technology Hot Plate Magnetic Stirrer
- Category: Laboratory Heating Equipments >>>
- Supplier: AELAB GUANGZHOU CO. LTD
Share on (60199666202):
Product Overview
Description
Product Description

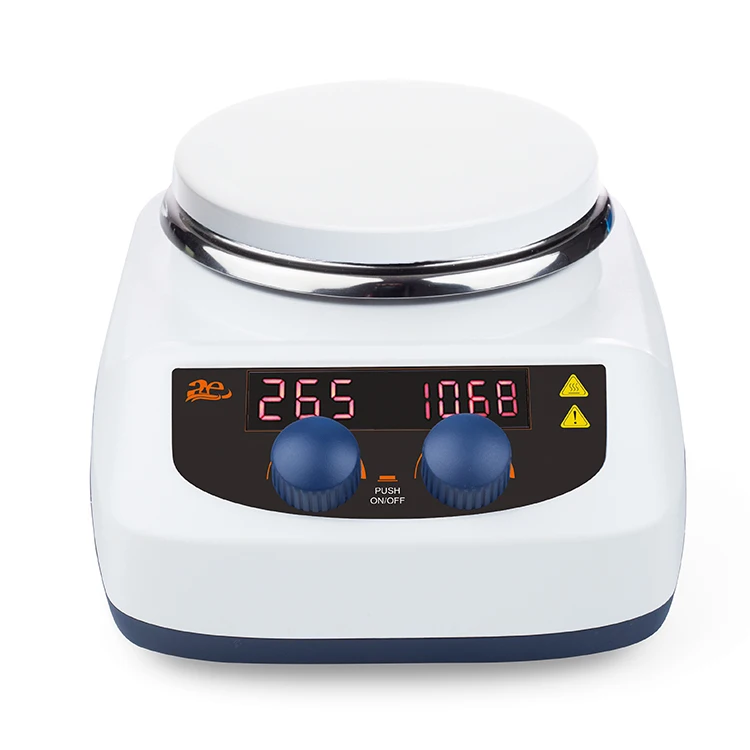

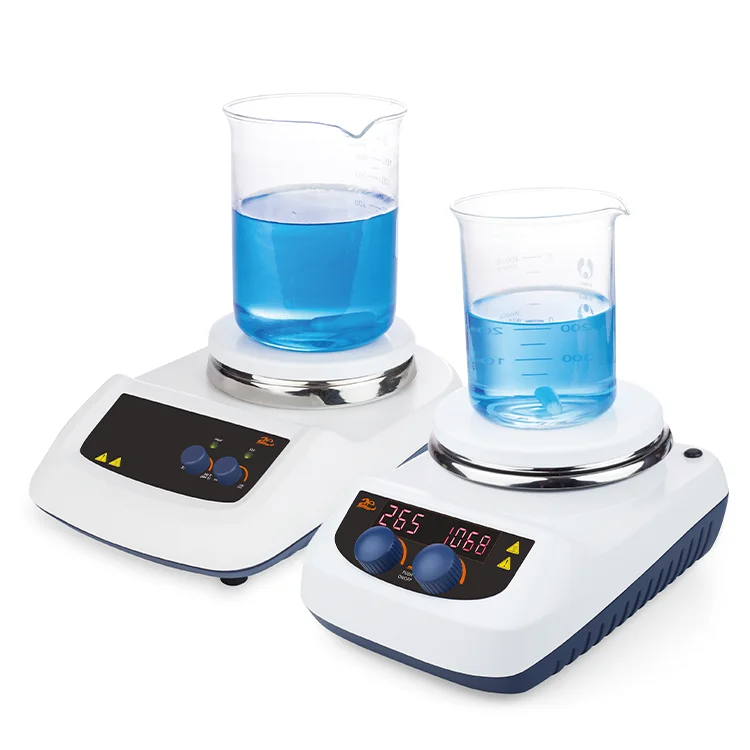

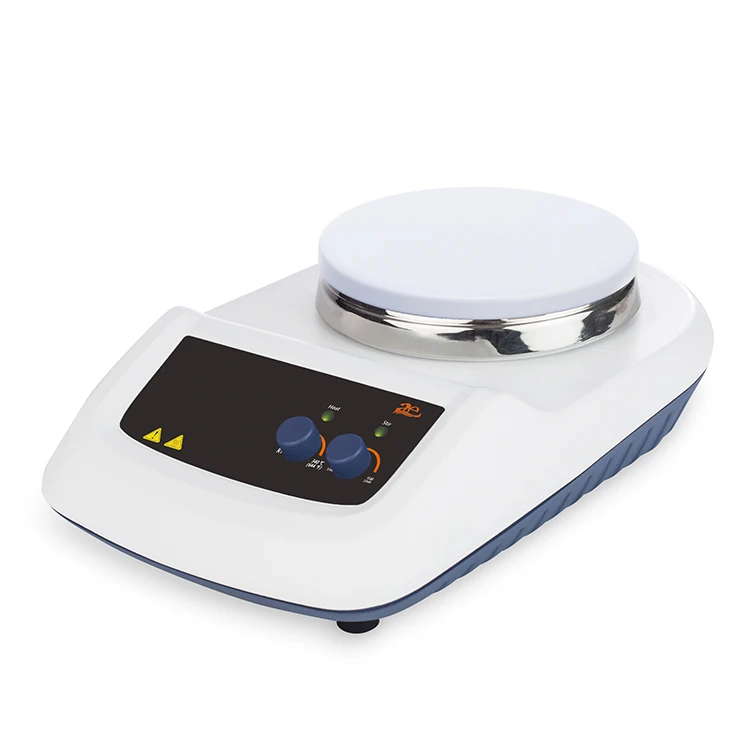

Hotplate Magnetic stirrer
ASC-201
ASC-202

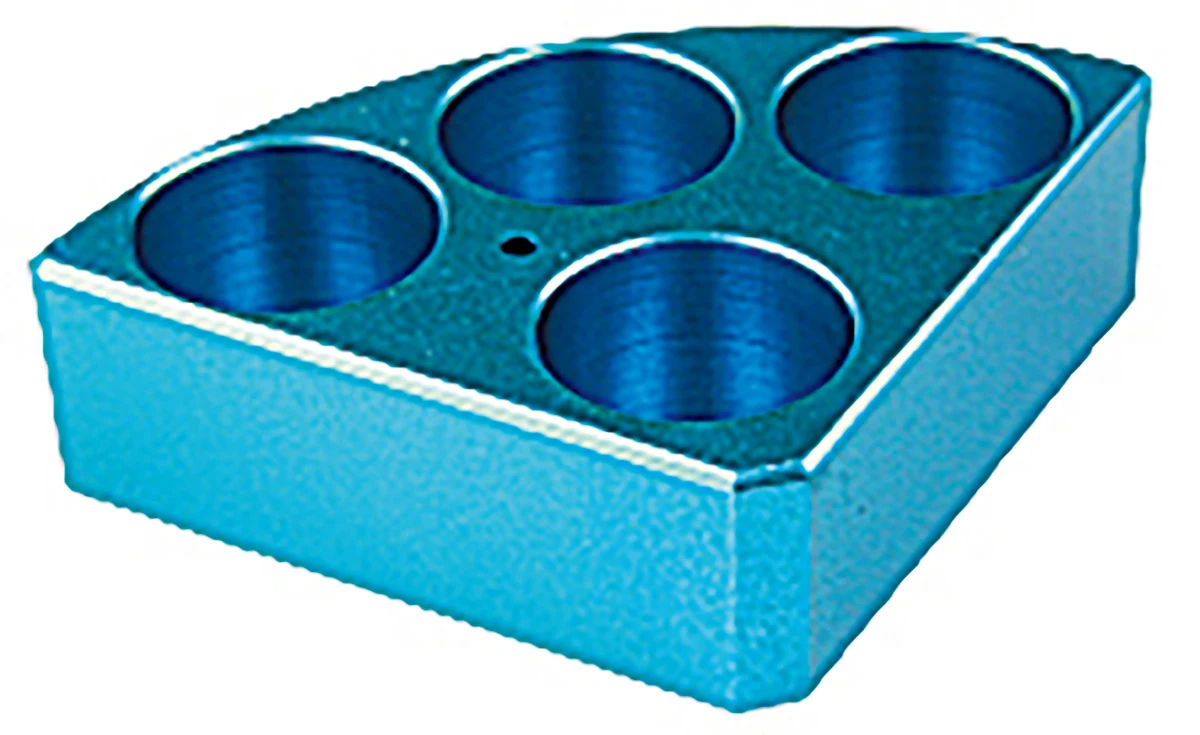

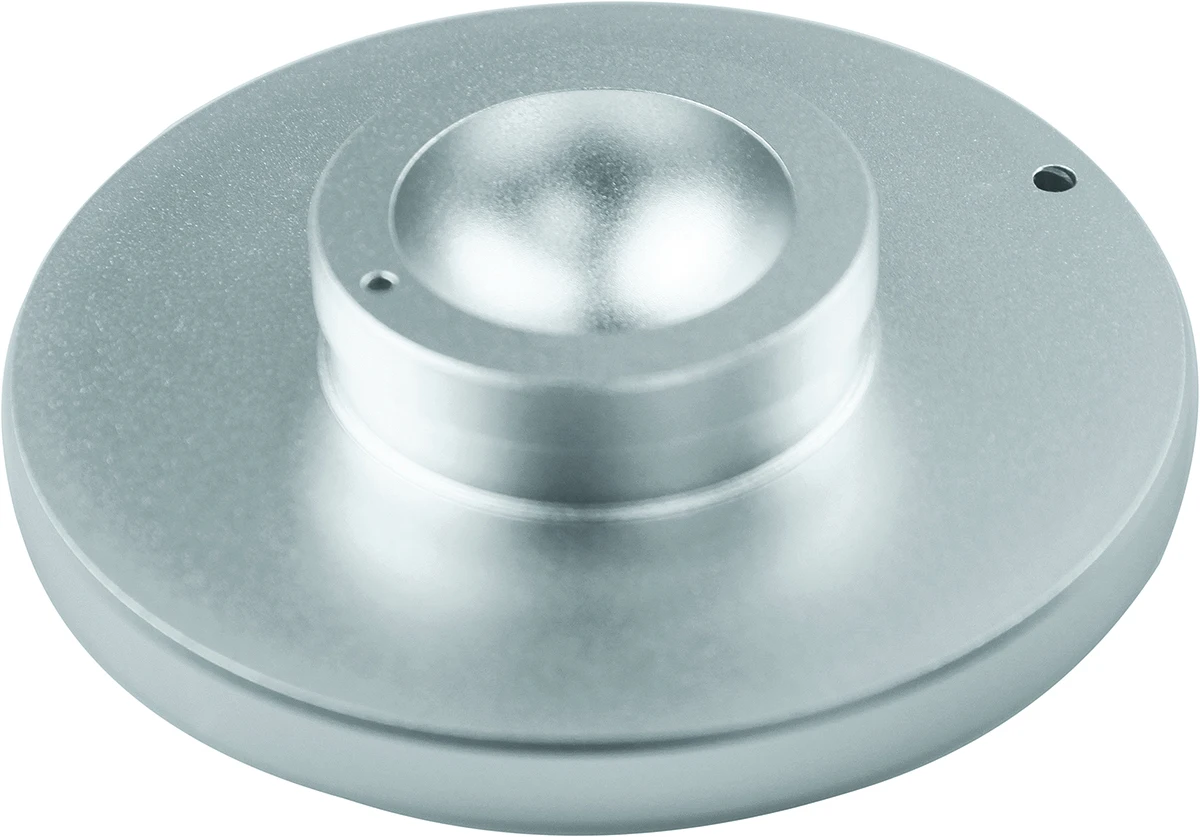

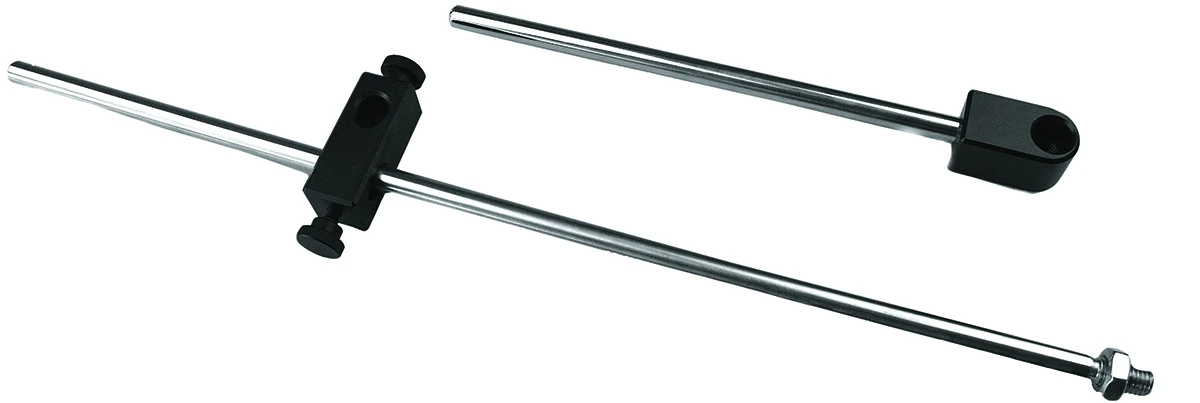

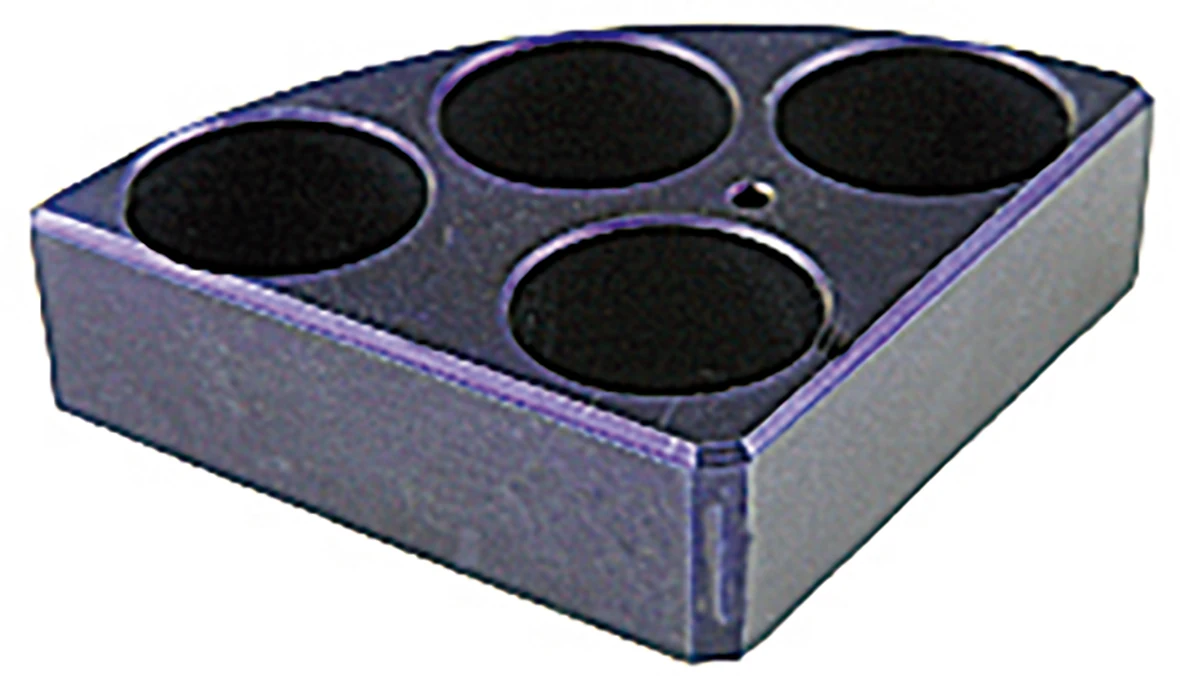

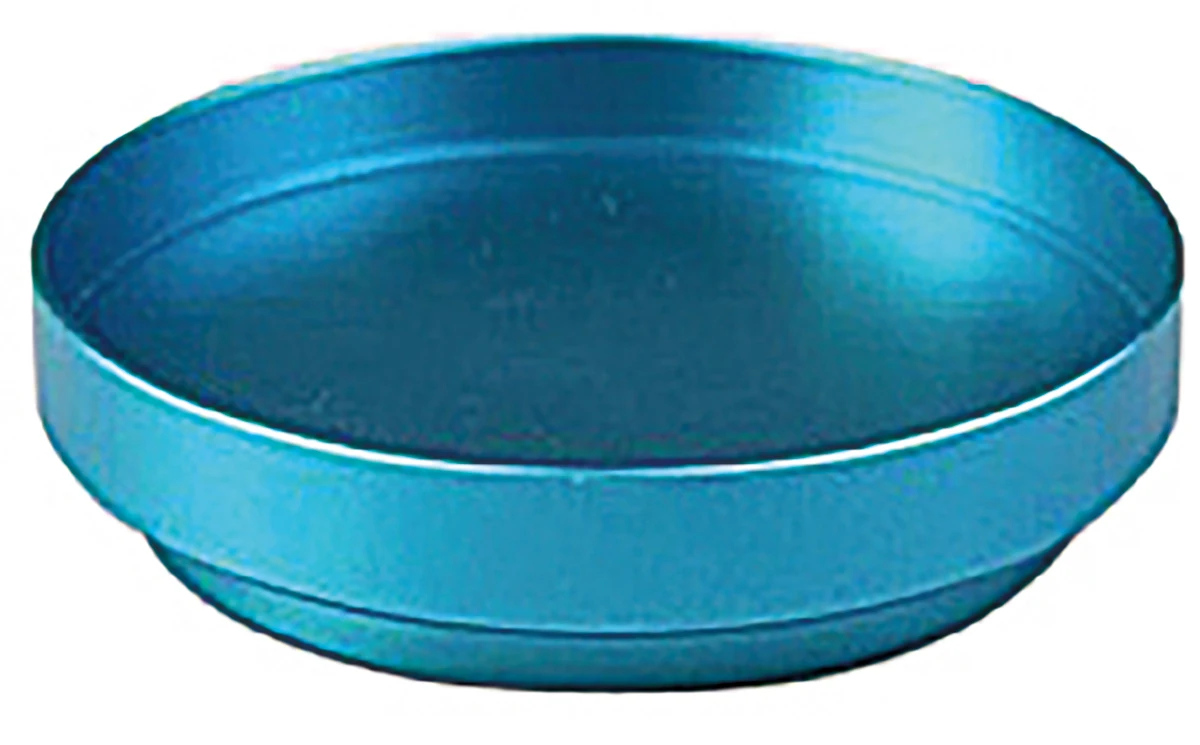

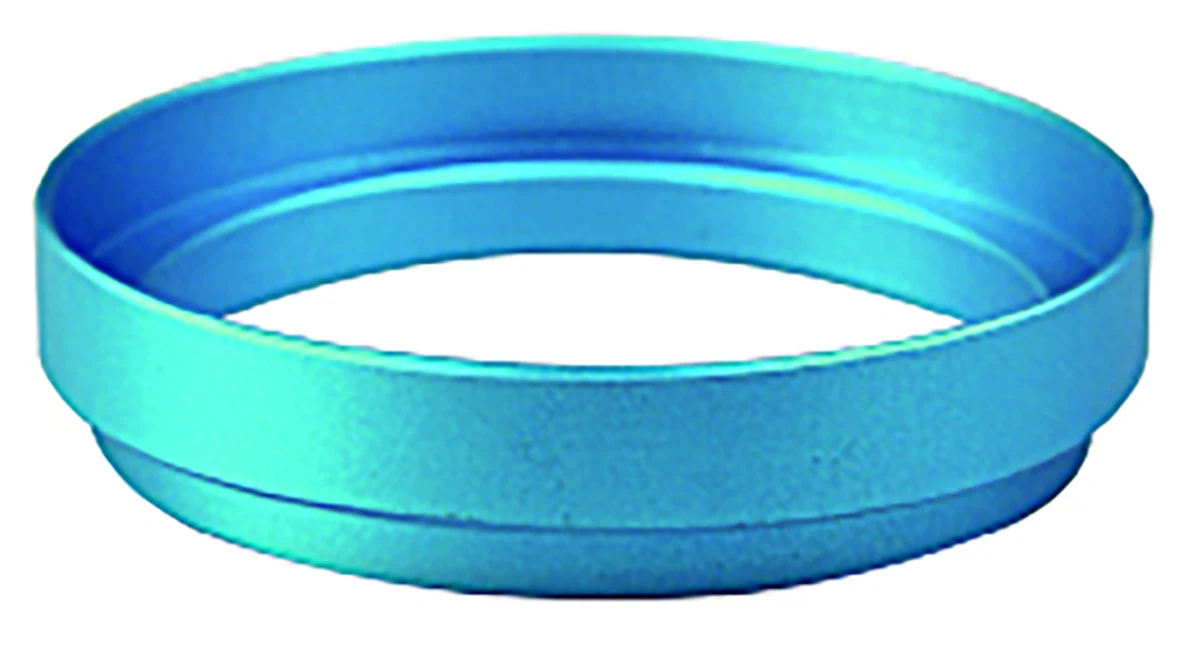

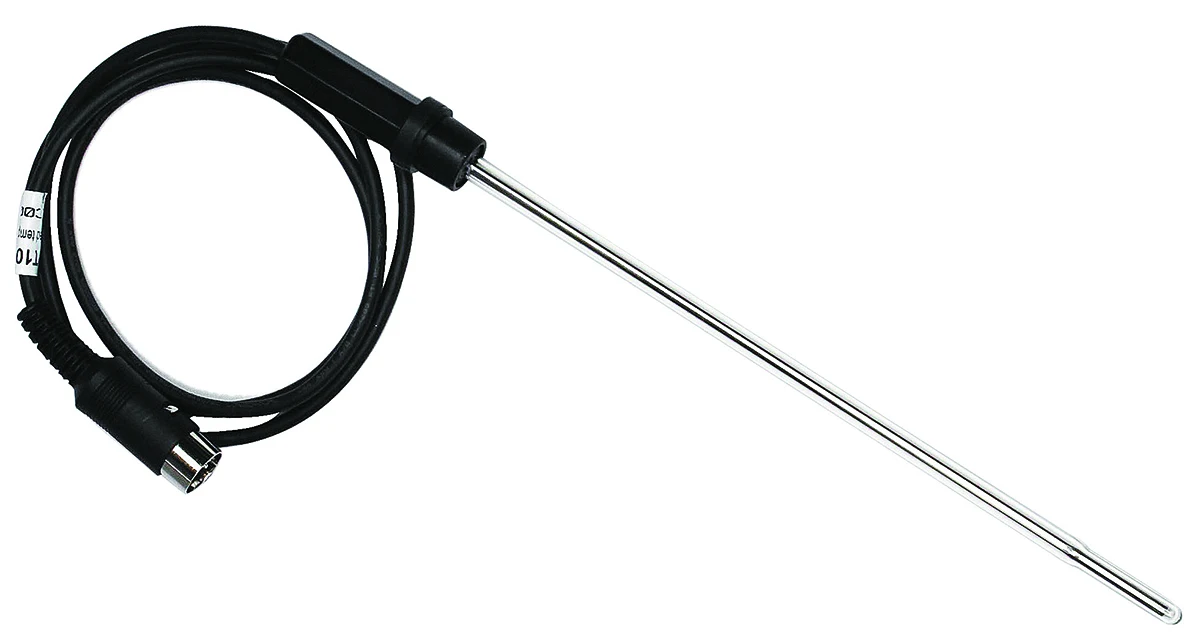

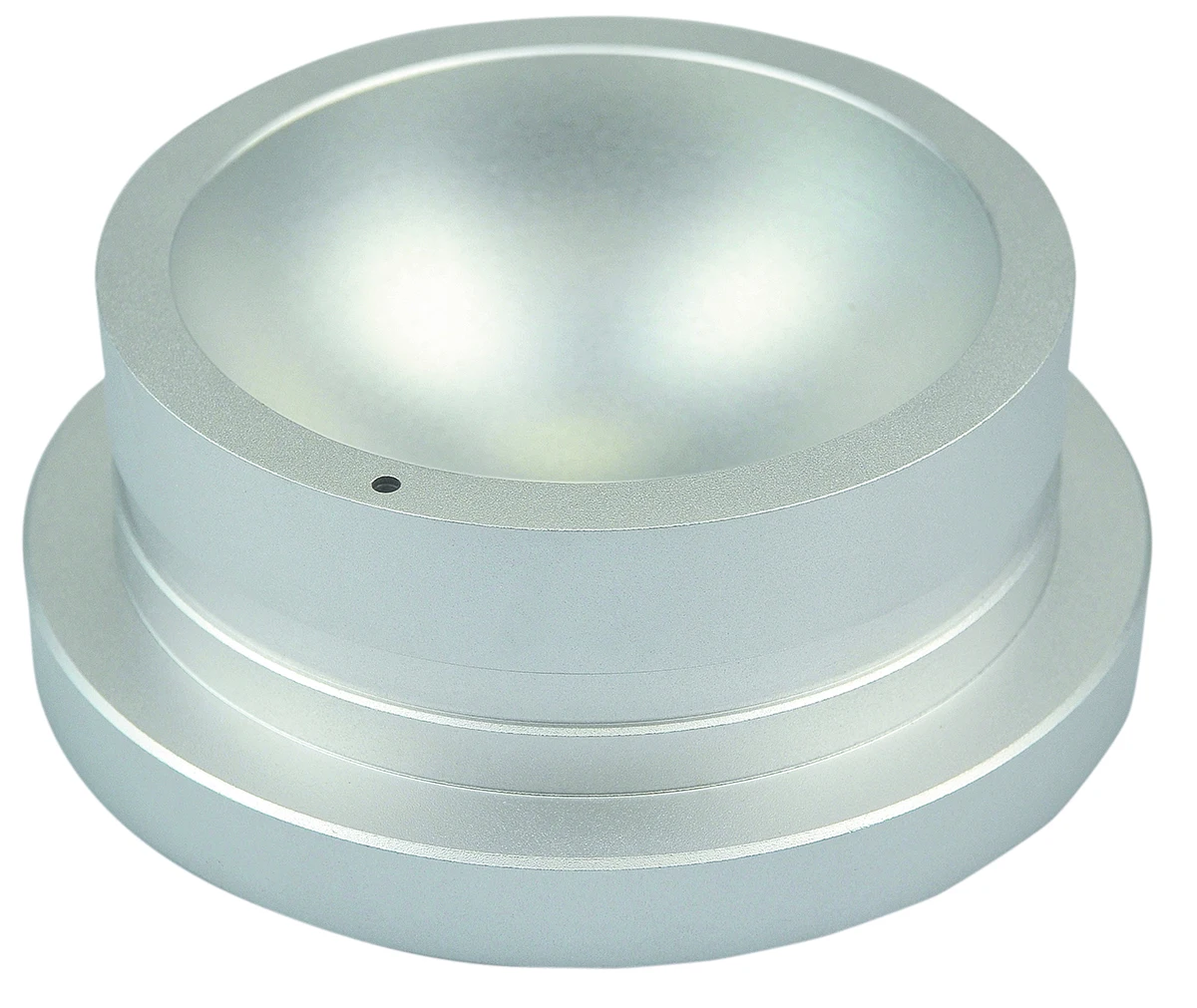

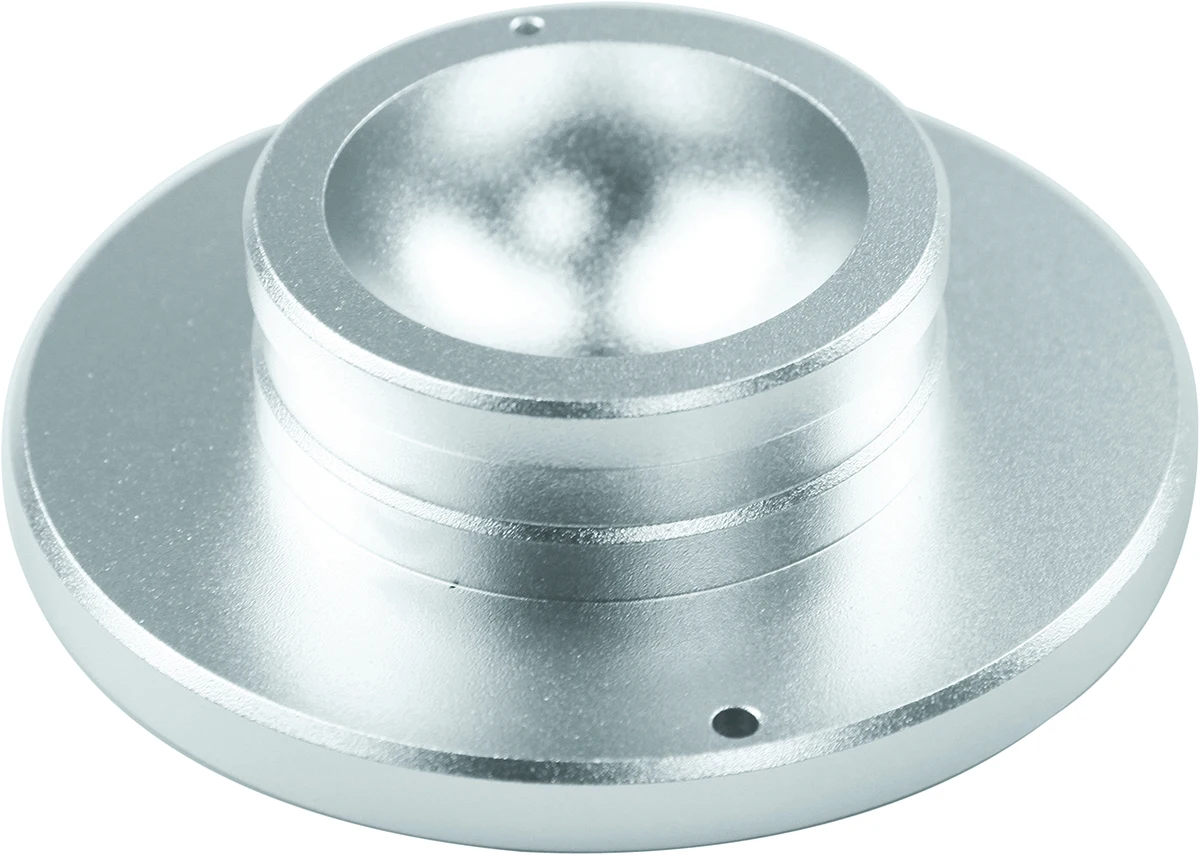

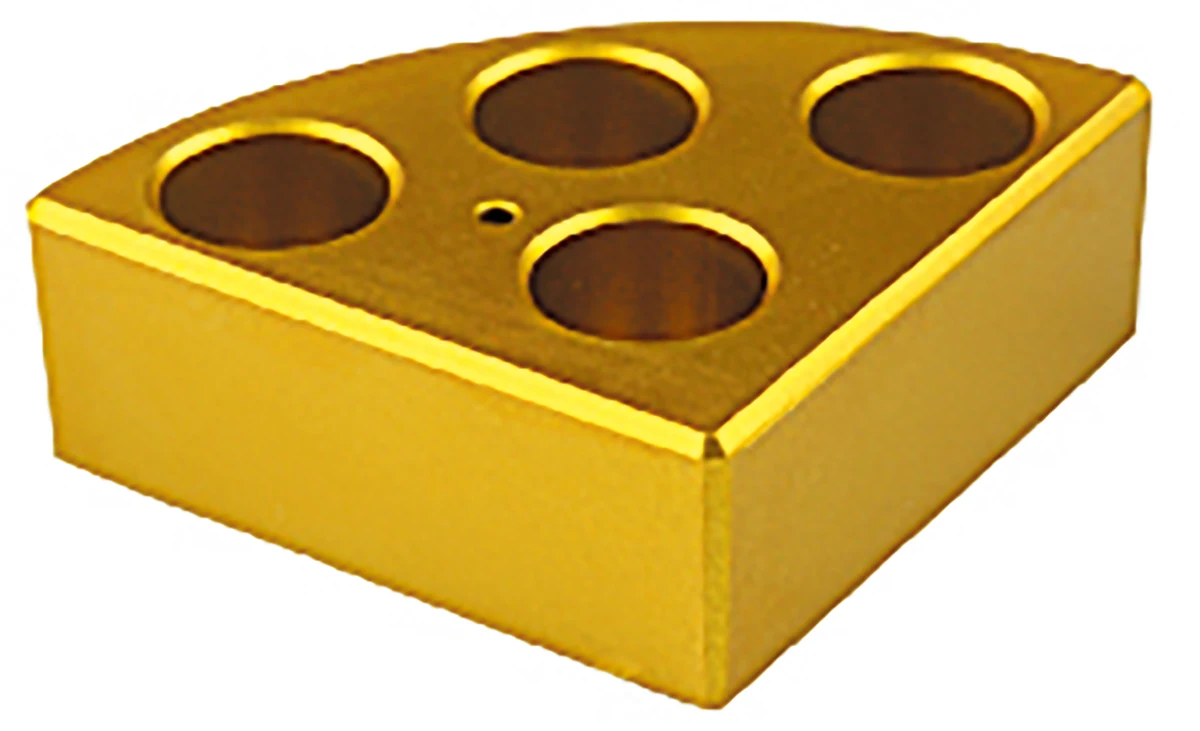

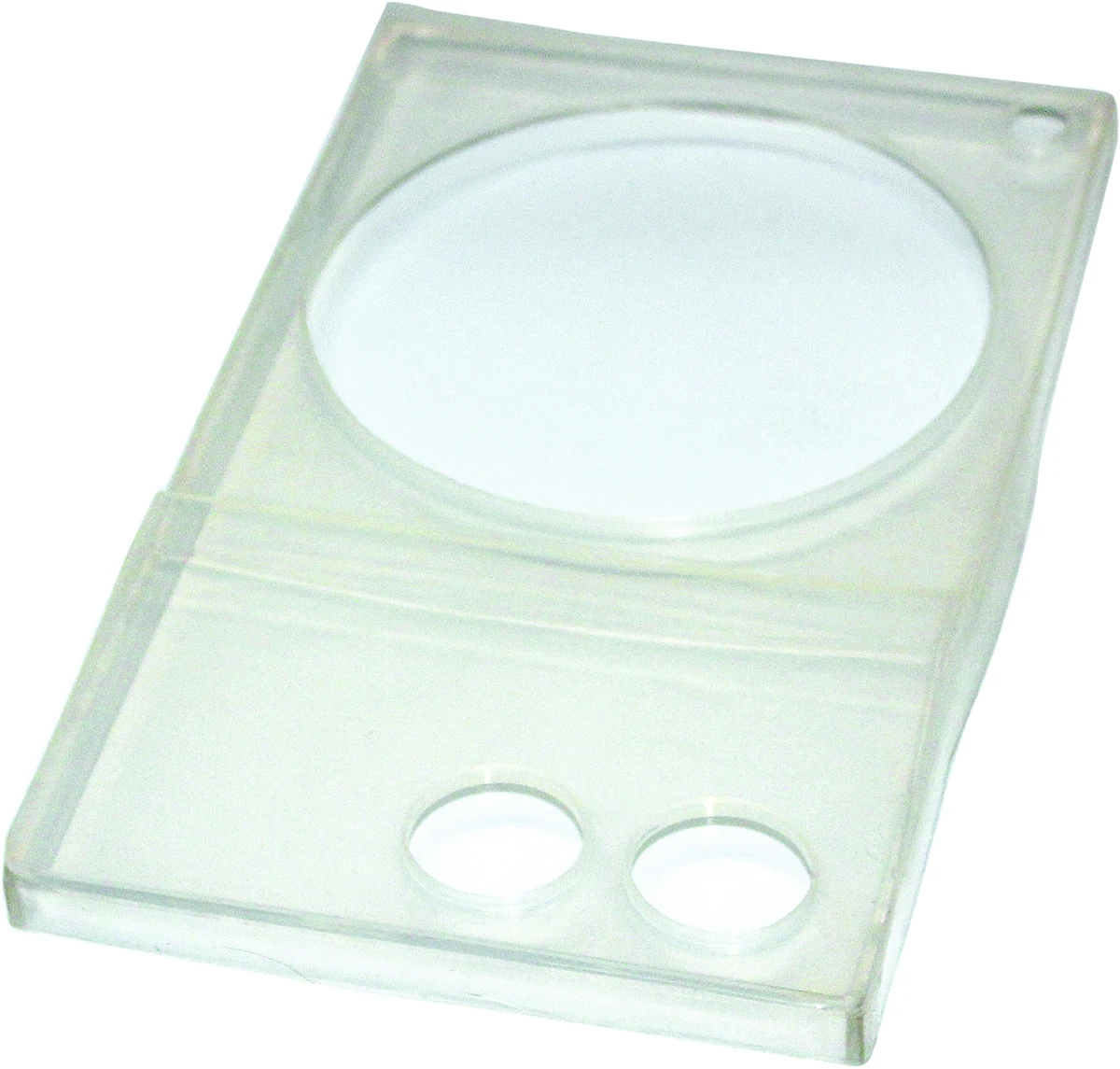

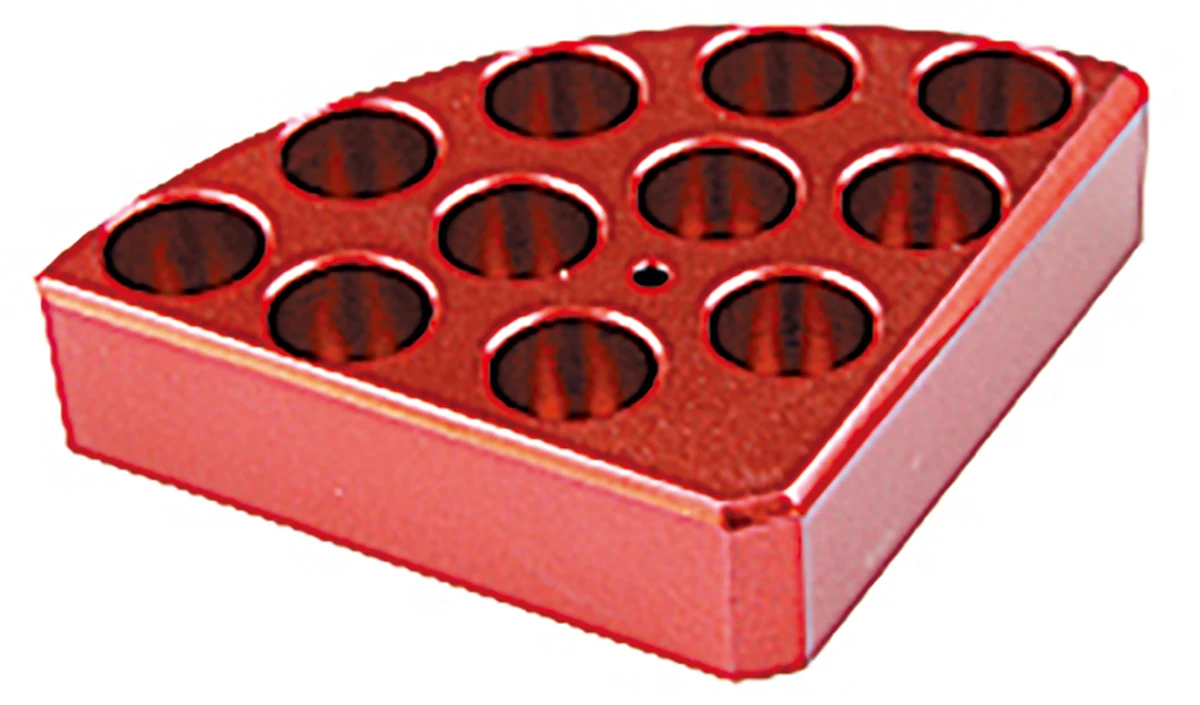

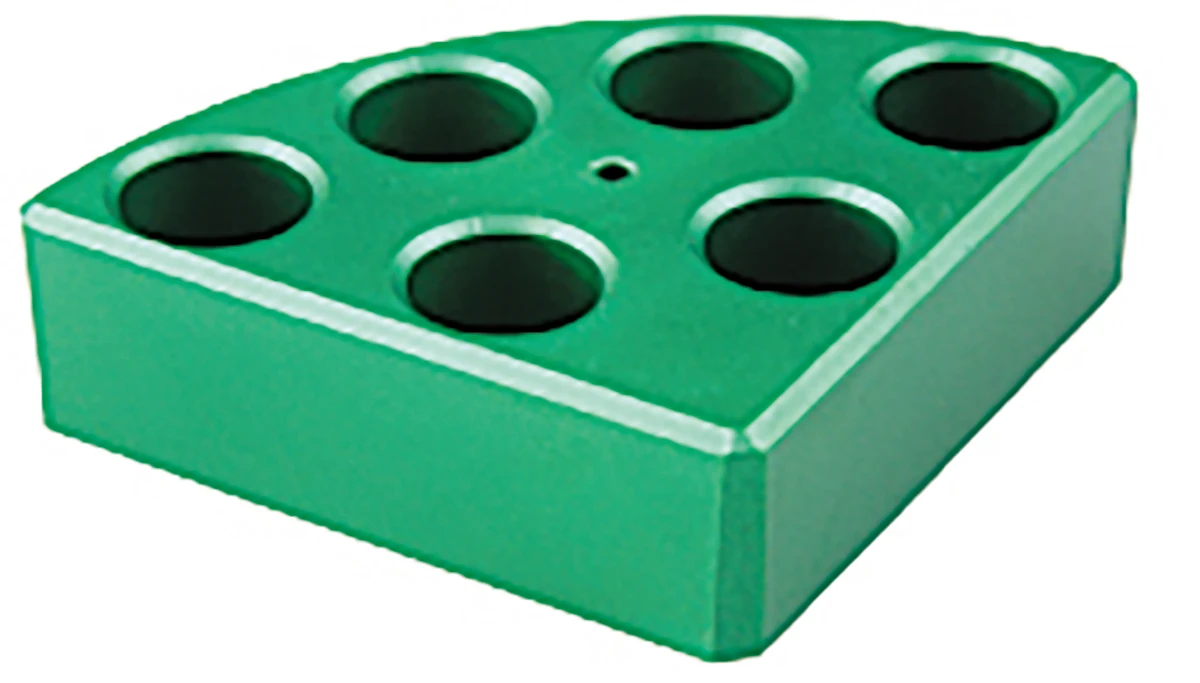

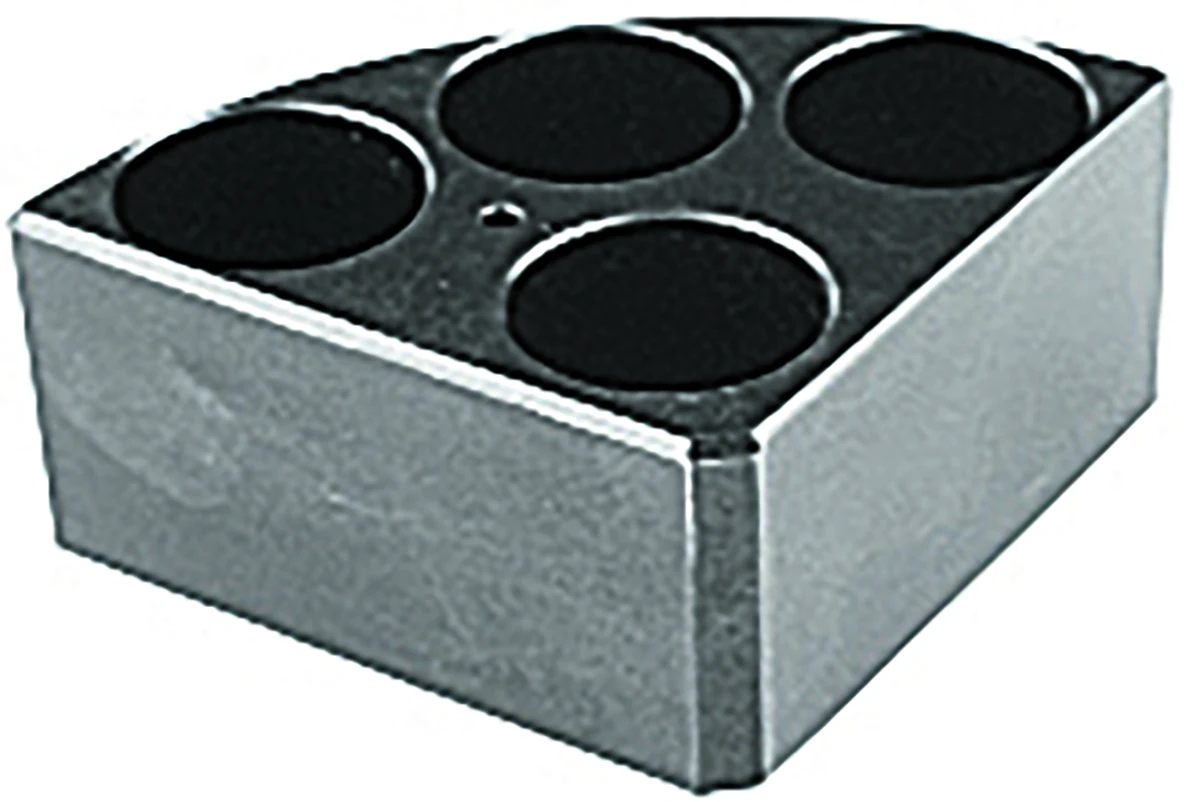

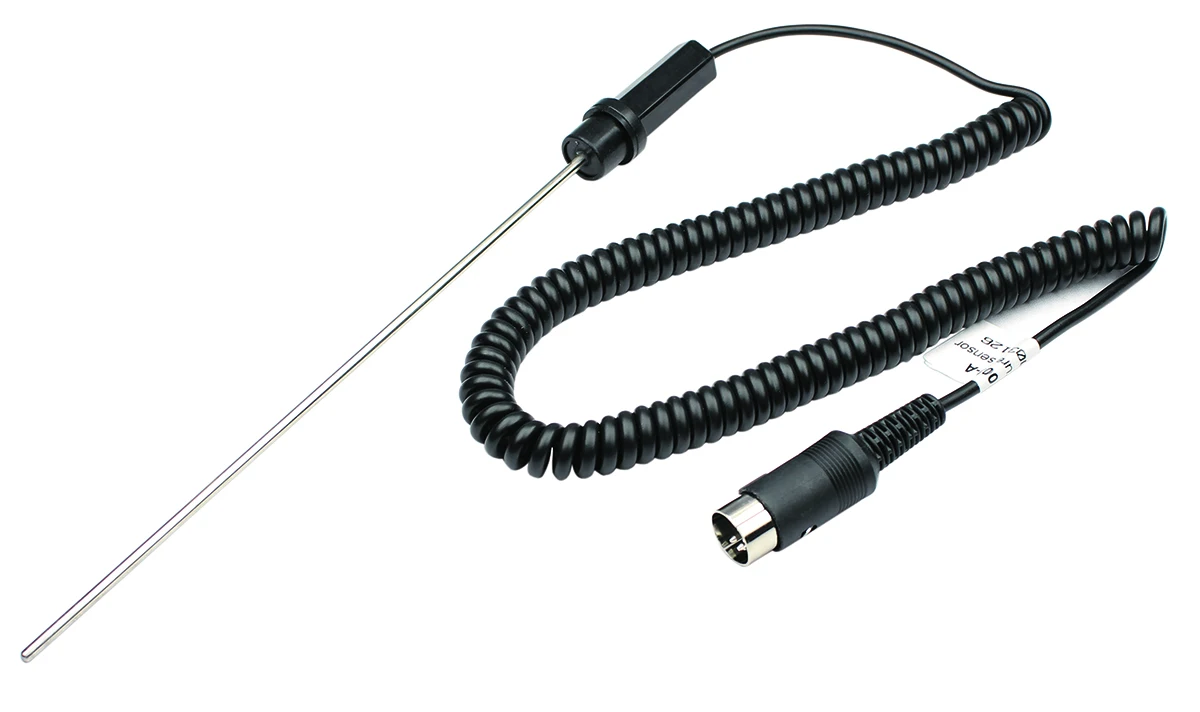

Accessories
Features & Specification
Technical Specifications:
Model | ASC-201 | ASC-202 | |
Type | Stirrer | Hotplate Stirrer | |
Work plate dimension | φ135mm(7 inch) | φ135mm(8 inch) | |
Work plate material | stainless steel cover with ceramic | stainless steel cover with ceramic | |
Motor type | Brushless DC motor | Brushless DC motor | |
Motor rating input | 18W | 5W | |
Motor rating output | 10W | 3W | |
Power | 550W | 515W | |
Heating output | 500W | 500W | |
Voltage | 100-120/200-240V 50/60Hz | 100-120/200-240V 50/60Hz | |
Stirring positions | 1 | 1 | |
Max. stirring quantity[H2O] | 20L | 3L | |
Max. magnetic bar[length] | 80mm | 50mm | |
Speed range | 0-1500rpm | 200-1500rpm | |
Speed display | Scale | LED | |
Temperature display | Scale | LED | |
Heating temperature range | Room temp.-340°C, increment 1°C | Room temp.-280, increment 1°C | |
Temperature control accuracy | --- | ±1°C(<100°C) ±1%(>100°C) | |
Temperature display accuracy | ±0.5°C | ±1°C | |
"Hot" warning | - | 50°C | |
Data connector | - | RS232 | |
Protection class | IP42 | IP21 | |
Dimension[WxDxH] | 160×280×85mm | ||
Timer function | --- | --- | |
Weight | 2.8kg | 2.8kg | |
Permissible ambient | 5-40°C, 80%RH | 5-40°C, 80%RH | |
Recommend Products
Packing & Shipping

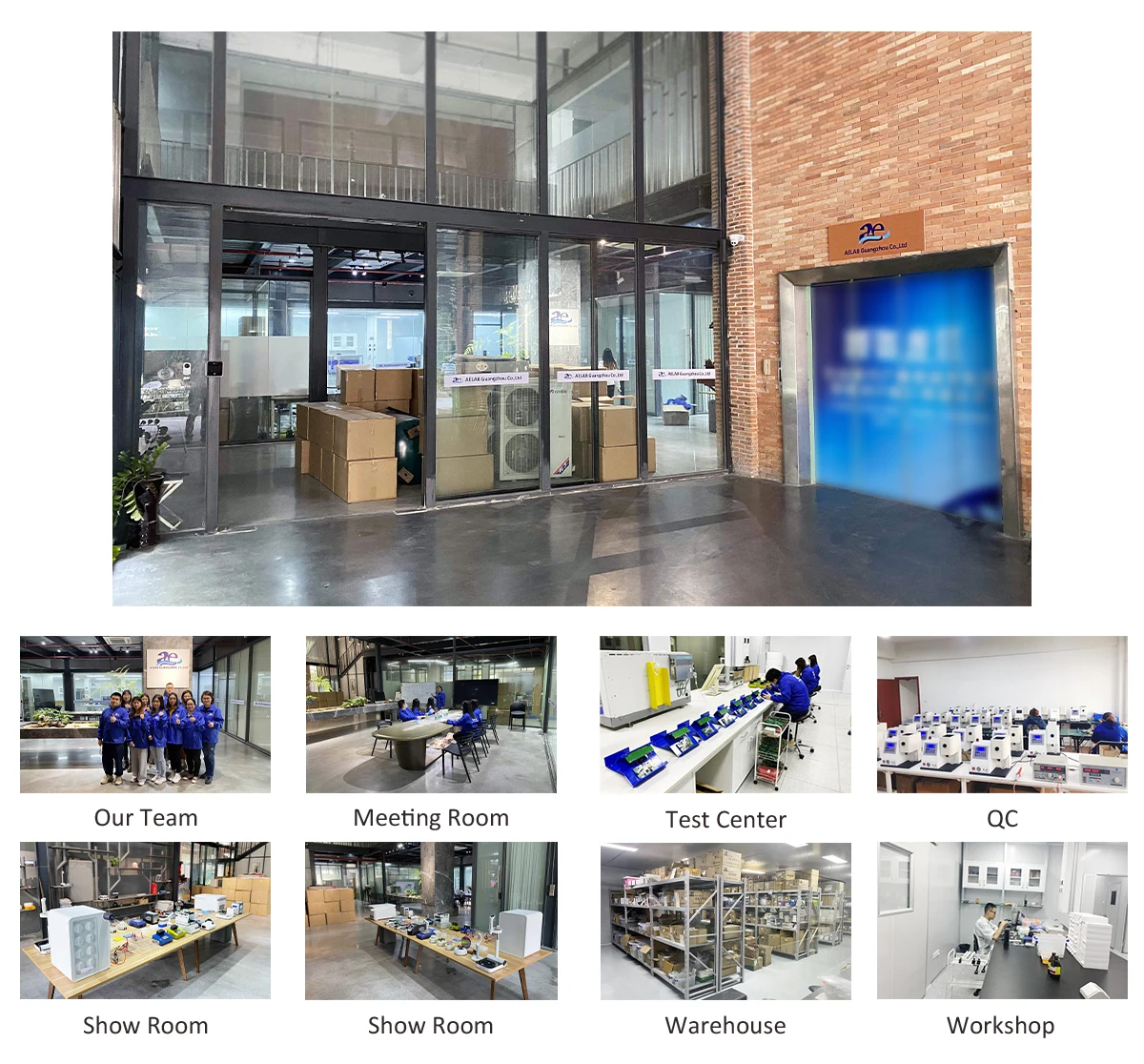

Company Information
AELAB GUANGZHOU CO.,LTD is a company that has many of manufacturing and selling wide range of science & laboratory instruments. The main product include liquid handing, nucleic acid and protein analysis instruments, general instruments, cleaning machines. Over 15 years international sales experience and already provide service over 100 countries. We are able to provide installation,debugging, training service onsite. For general machines we are providing online training service or telephone call training service to distributors. The machine basic information and brochure customers can download from our website directly.
Please do not hesitate, AELAB products are worth a try! Welcome to join us!
FAQ
Q: How about the warranty for your products?
Q: Can you do OEM?
A: Yes, we can do OEM/ODM as you required.
Q: Can you offer the technical support, online or site training or other
A: All of our products have 1-2 year warranty. During the guarantee period, if there are any problem with our instrument, we will help you to solve it by sending pictures, videos or free spare parts until things get fixed. Out of guarantee, we will also help you solve the problem,but not including send free spare parts to your country.
Q: Can you do OEM?
A: Yes, we can do OEM/ODM as you required.
Q: Can you offer the technical support, online or site training or other
A: We will offer technical support like operating manual, operating videos to support or provided training material of the detailed products you are interested in. If you have chance to come to Guangzhou, welcome to our office, we have samples here, and we can show you how to operate them.
