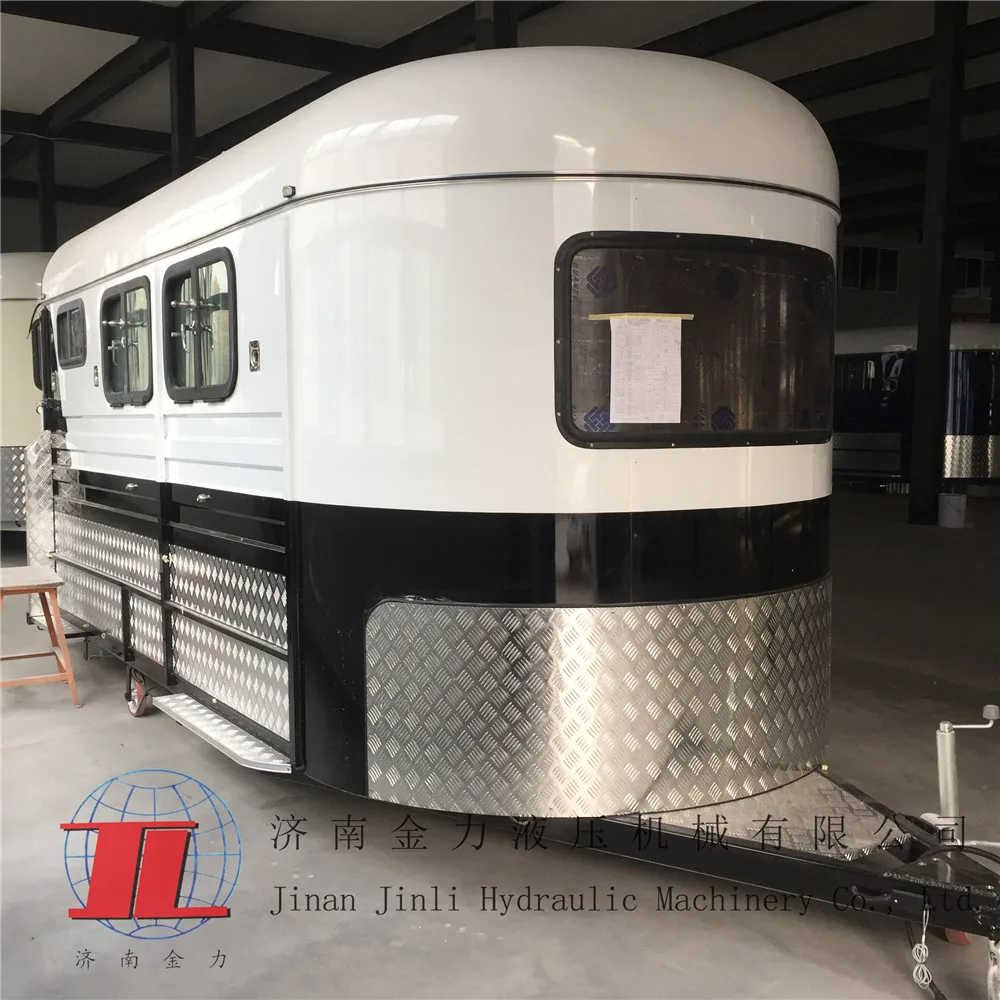

3HAL S, 3hal horse floats china adr

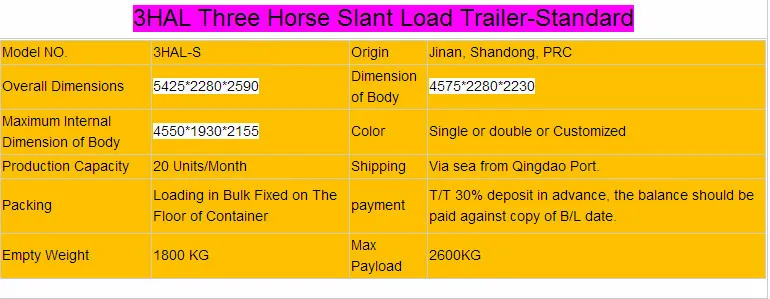

MODEL:3HAL- S

1.TRAILER MATERIALS

1 CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm)

2 FRAME MATERIAL double hot dip galvanized RHS(2.5mm)

3 BODY PANEL galvanized (1.2mm)

4 ROOF special molded FRP 4575*1980

5 NUTS & BOLTS stainless steel

2.WHEELS & TYRES

2.1 WHEEL RIM 14' aluminium alloy rims

2.2 TYRES 185R14C

2.3 SPARE WHEEL one

3.AXLES & SUSPENSIONS

3.1 AXLES two special trailer axles

3.2 LEAF SPRINGS roll rocker tandem spring suspension 6 plates

3.3 BRAKE SYSTEM single axle electric brake

4.WINDOWS & DOORS

4.1 FRONT WINDOW 1220*610

4.2 SIDE WINDOWS 2 pop-up rectangle windows,3 sliding diamond windows

4.3 VENTS double sash casement vent

4.4 SIZE OF SIDE DOOR 1755*615

4.5 REAR UPPER DOOR 2020*1065

4.6 RAMP DOOR 2020*1210

4.7 REAR UPPER & RAMP DOOR STRUT high-intensity anti-rust strut

4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges

5.DRAWBAR

5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium

5.2 DRAWBAR SAFETY CHAIN two

5.3 BRACING WHEEL one

6.LIGHTS & RETRO REFLECTORS

6.1 TRAILER PLUGS square 7 wick plug

6.2 SIDE LAMPS 6

6.3 REAR LAMPS LED group

6.4 REAR LAMPS STAND aluminium

6.5 RETRO REFLECTORS 6
