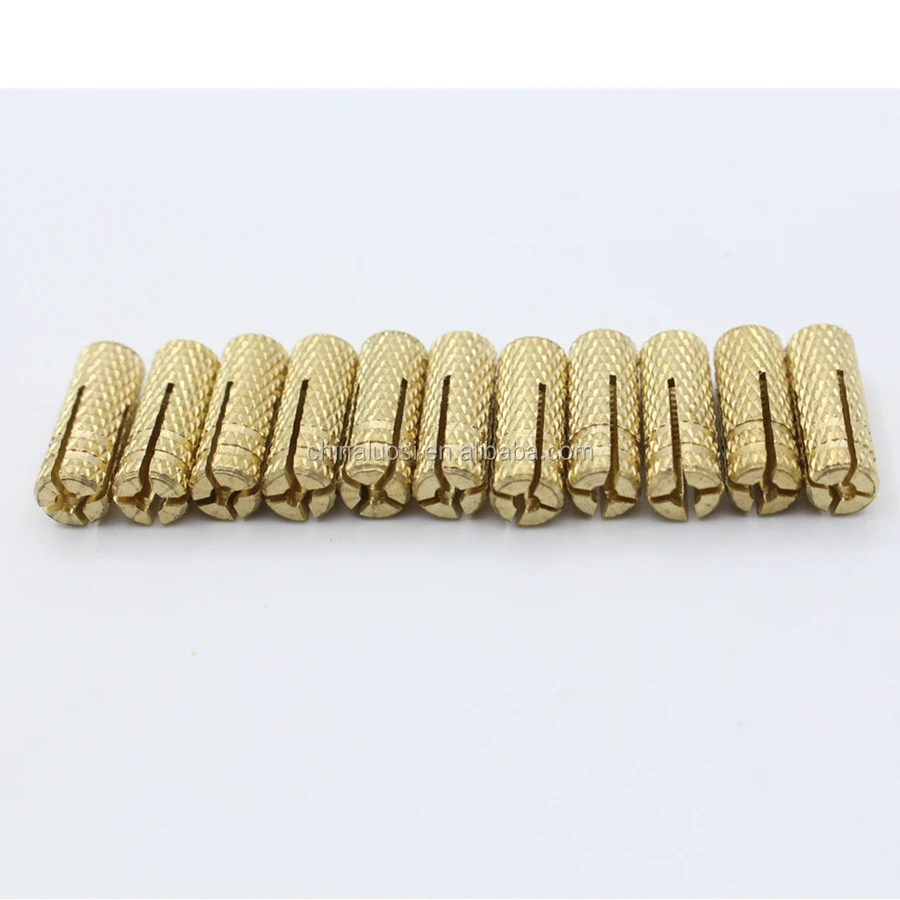

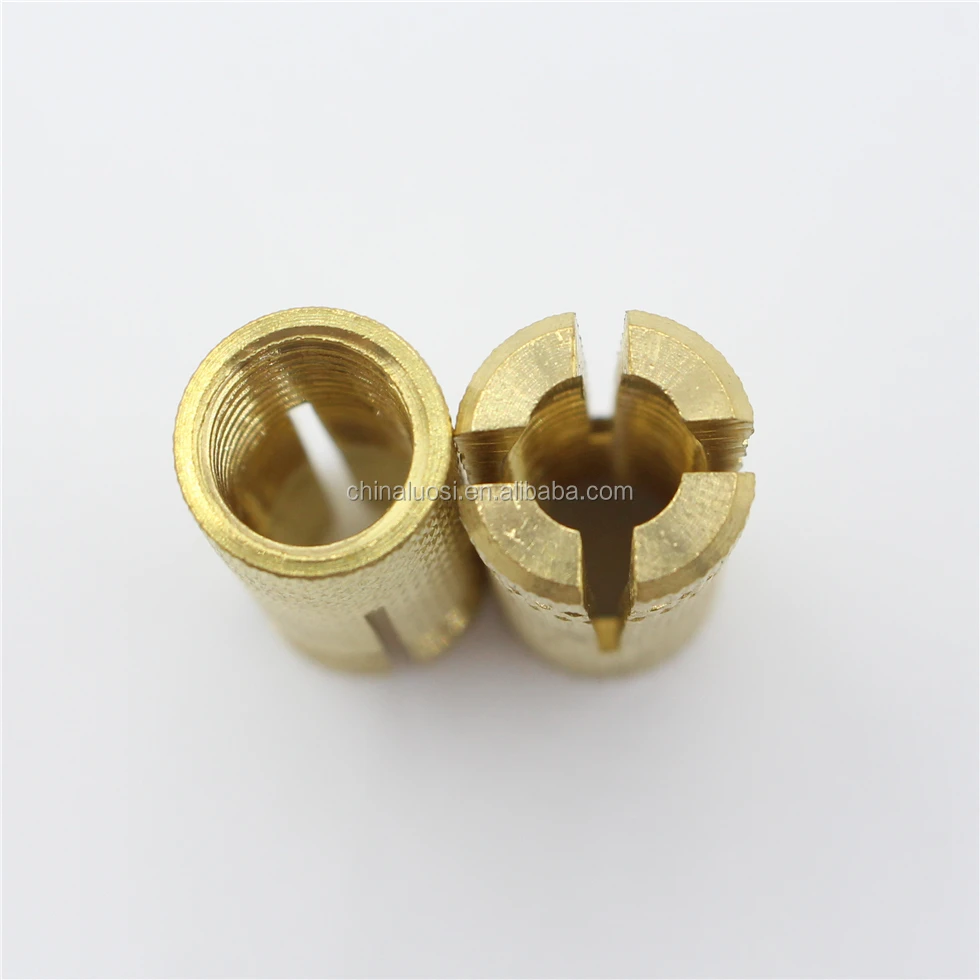

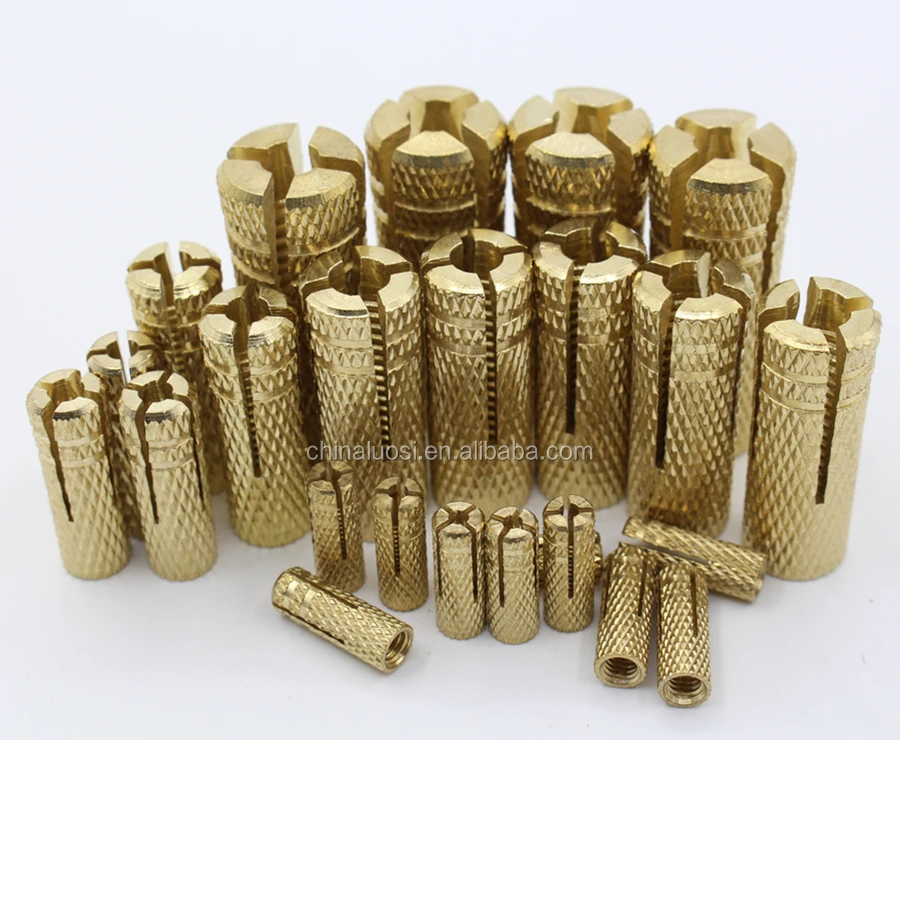

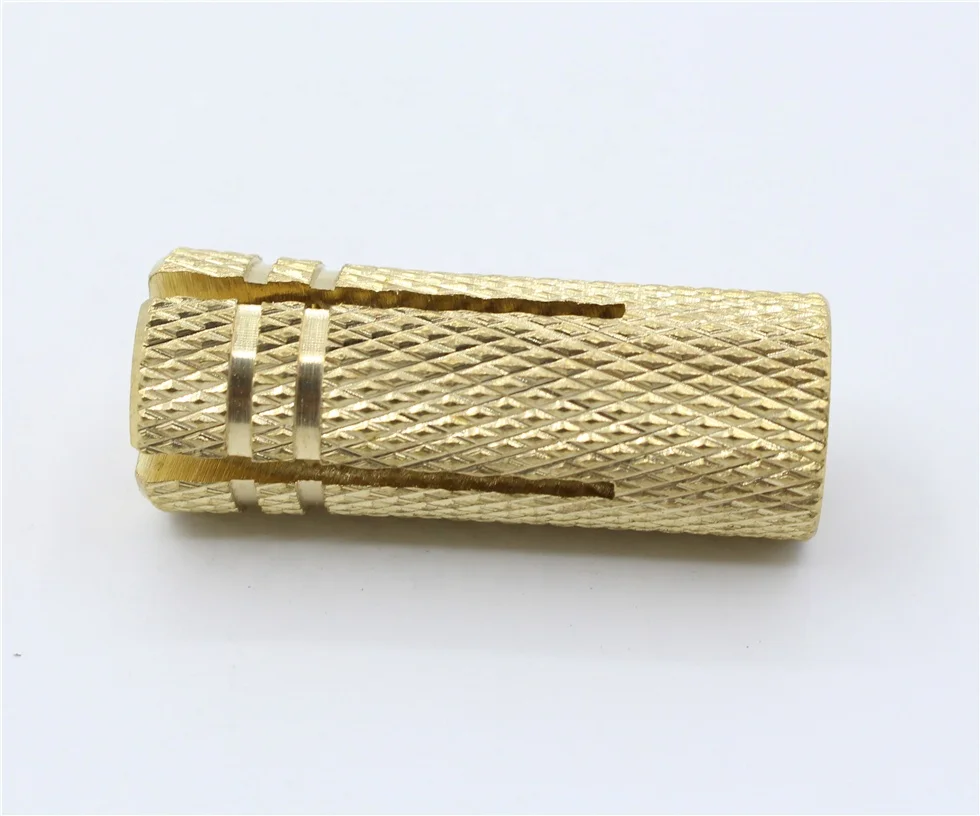

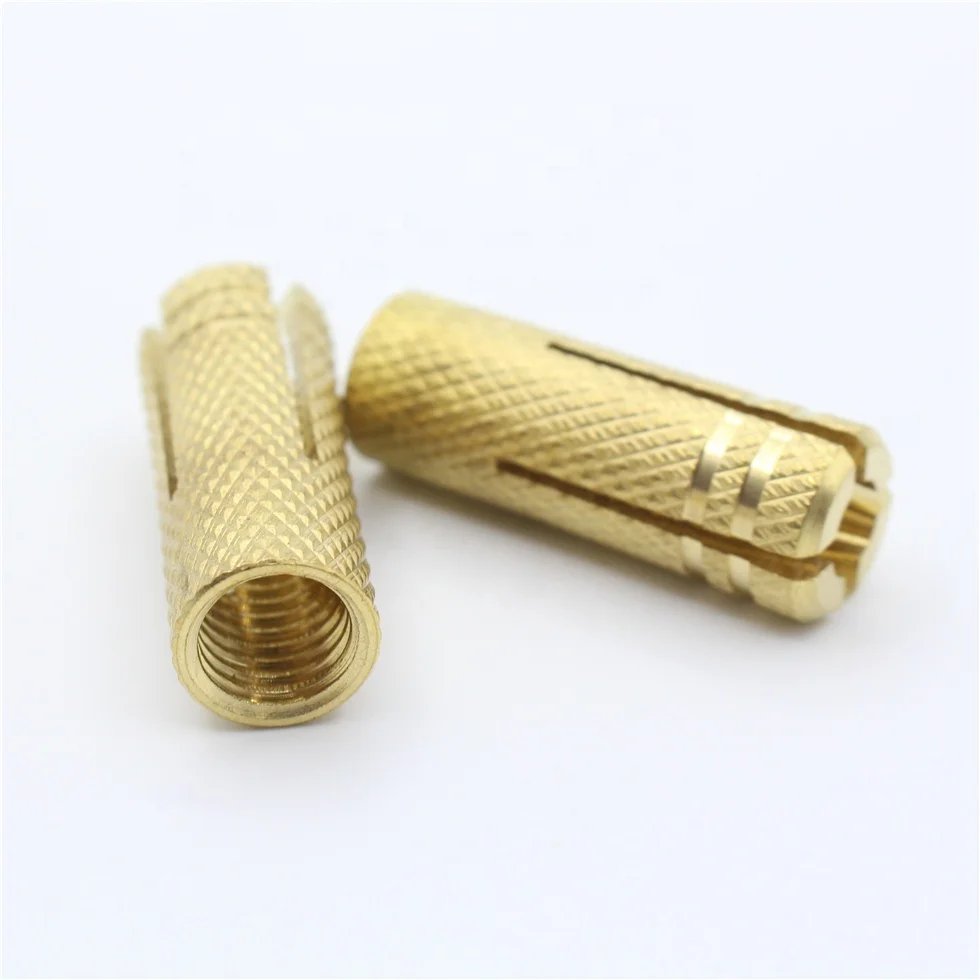

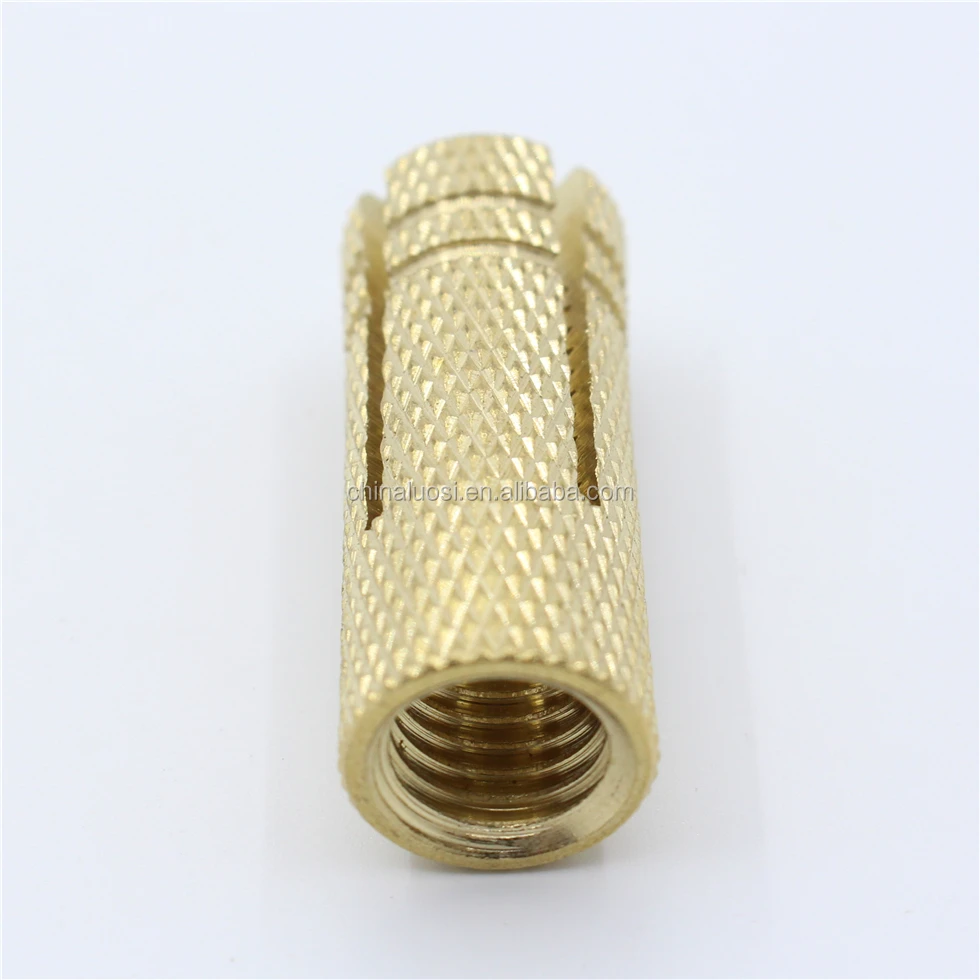

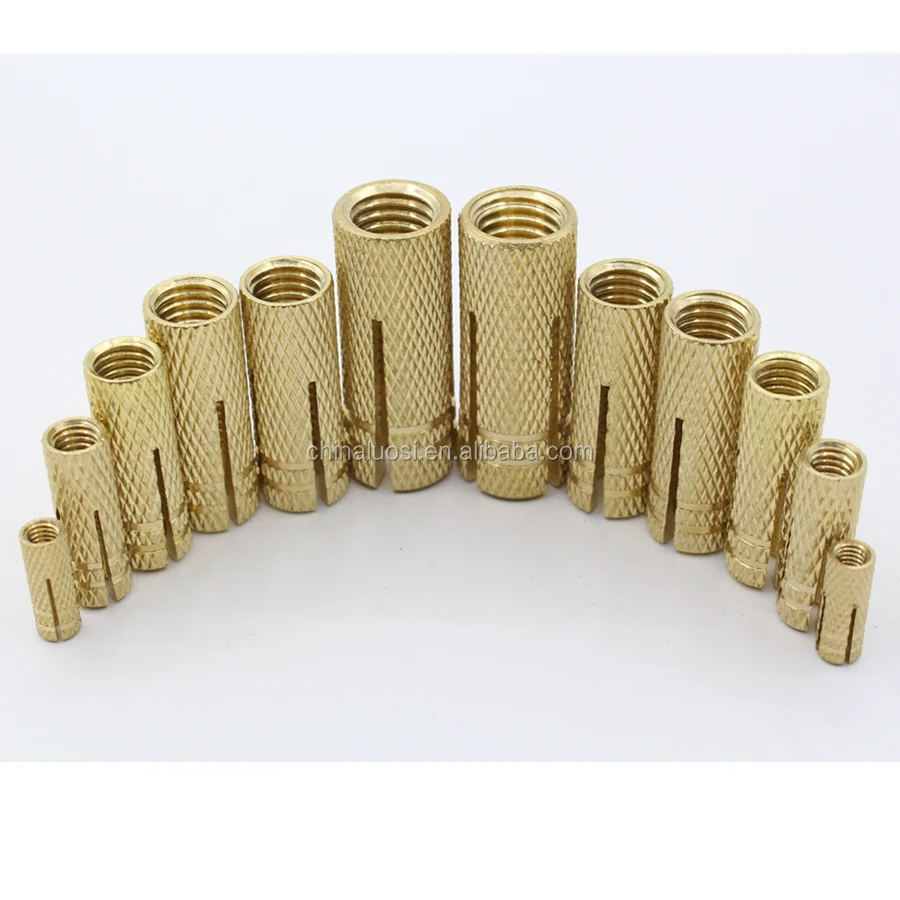

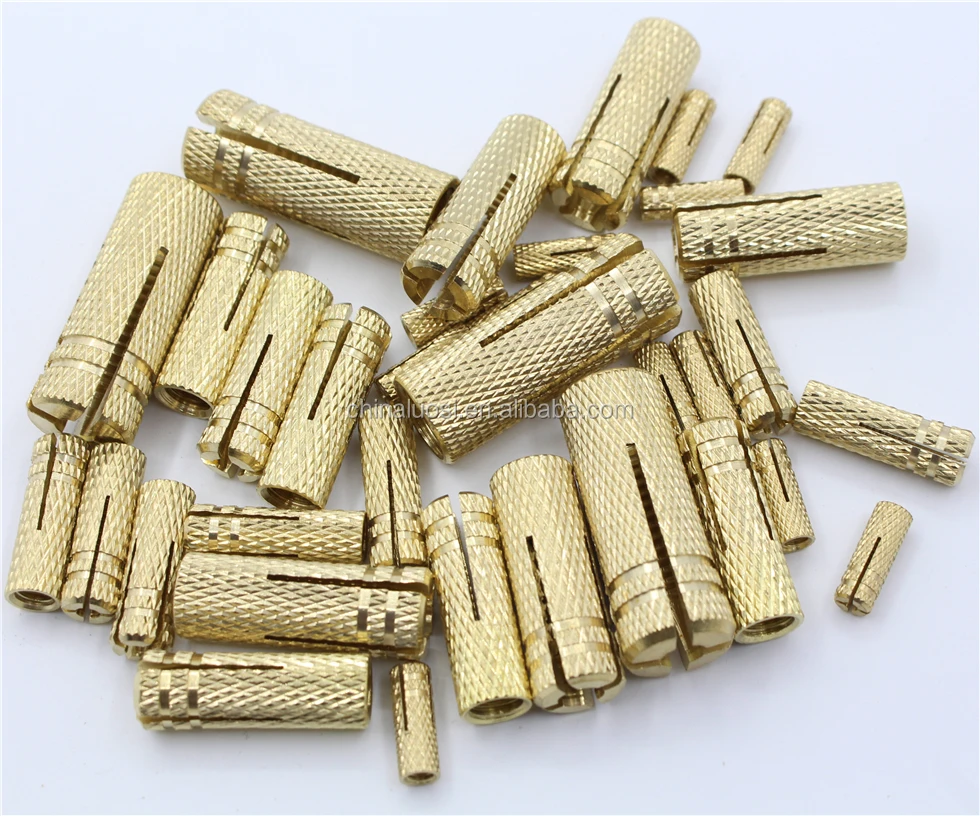

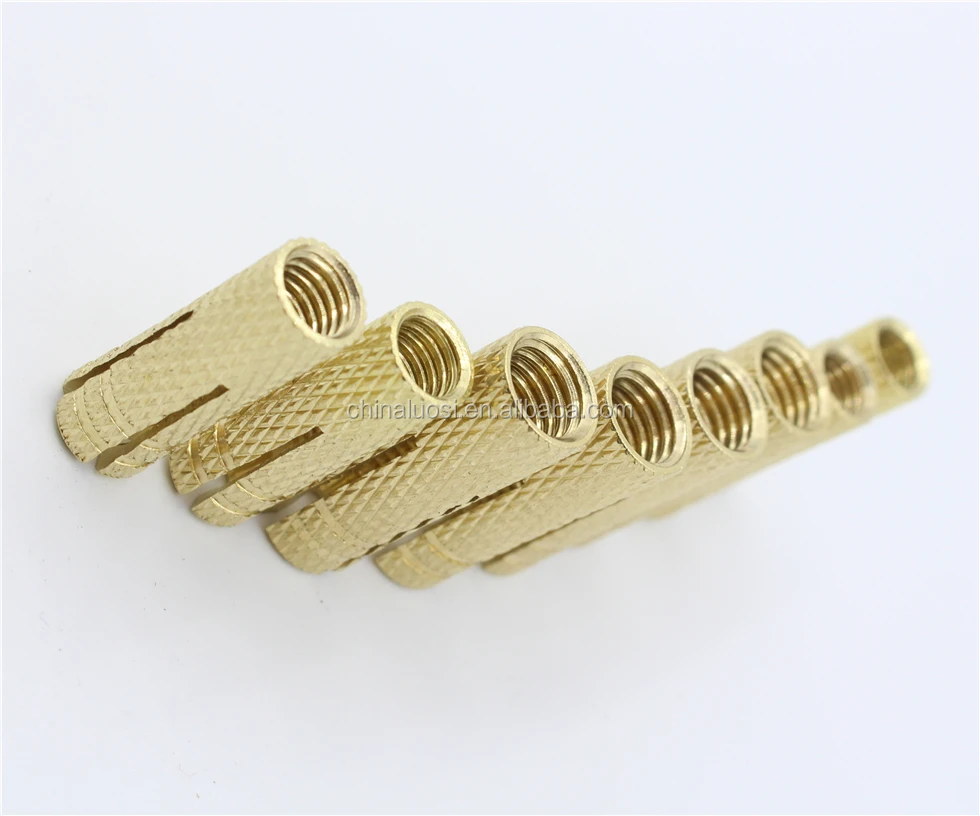

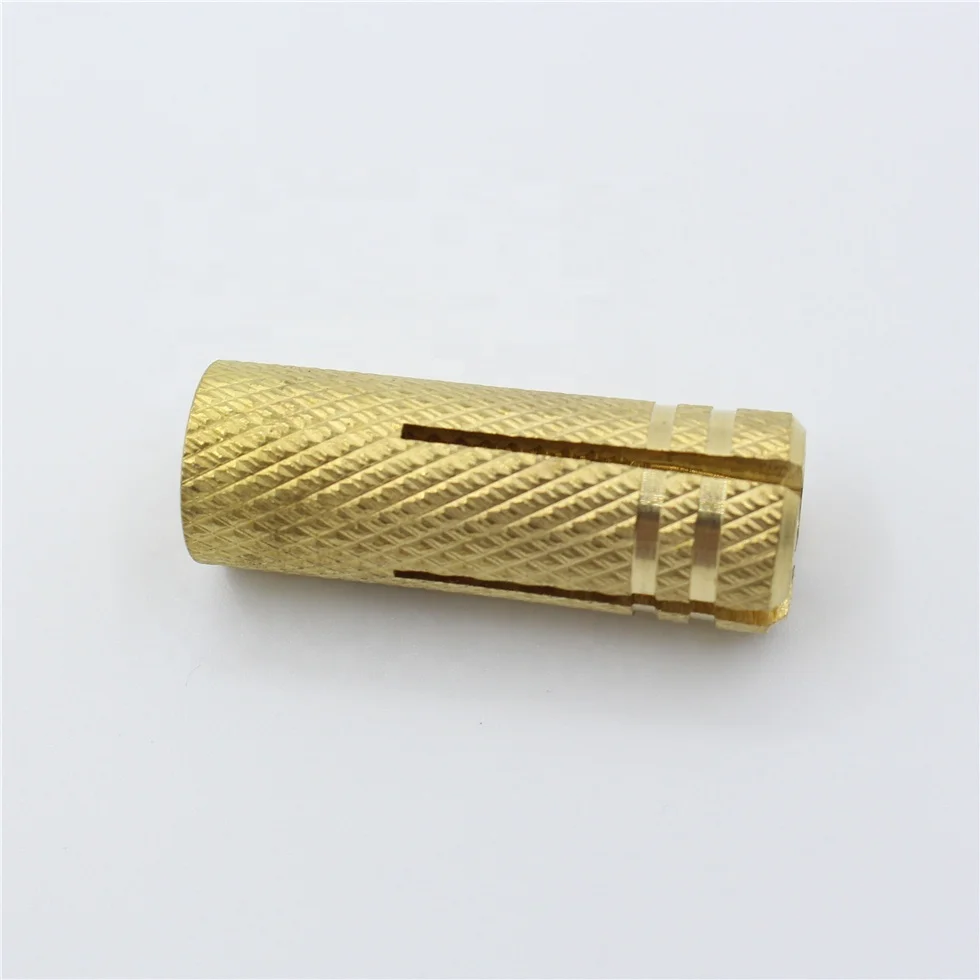

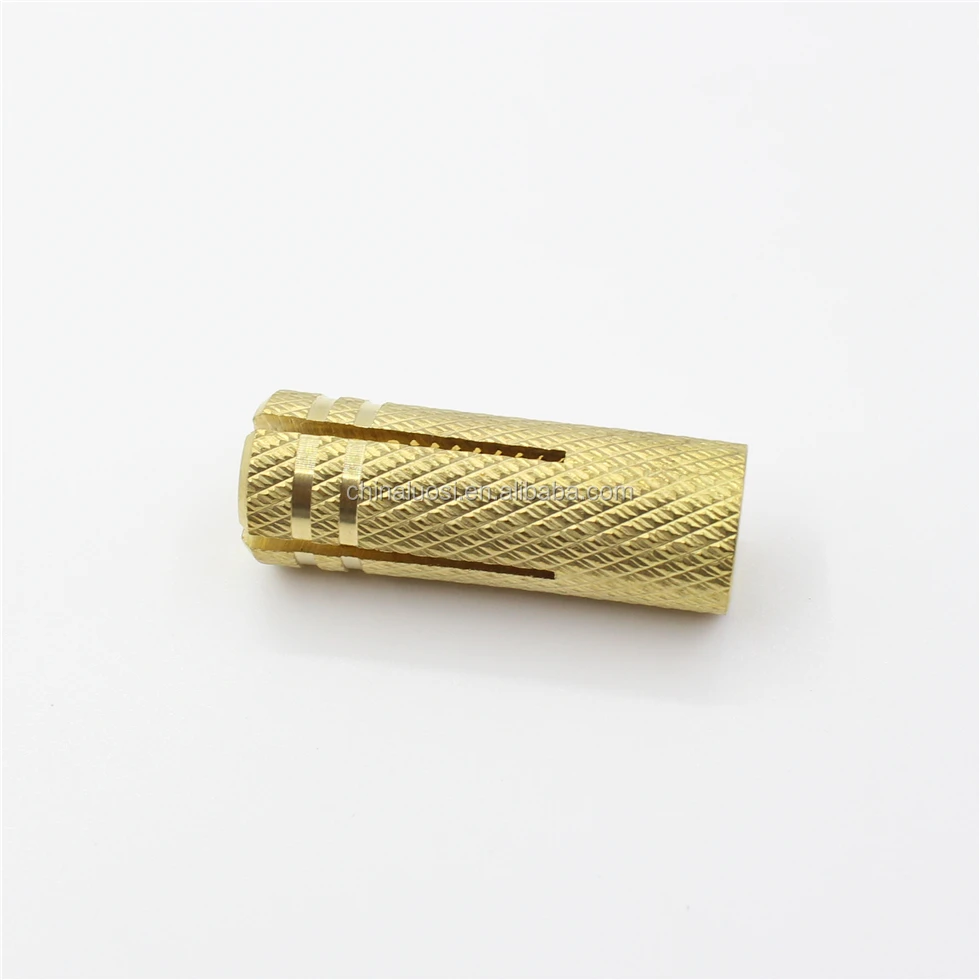

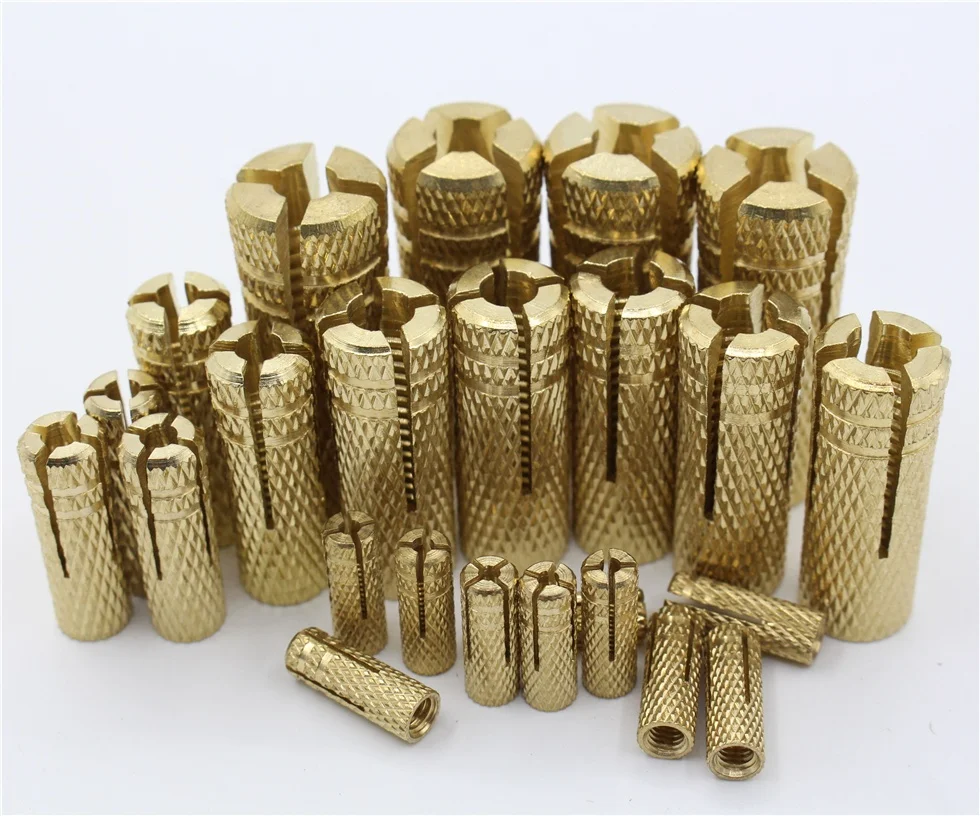

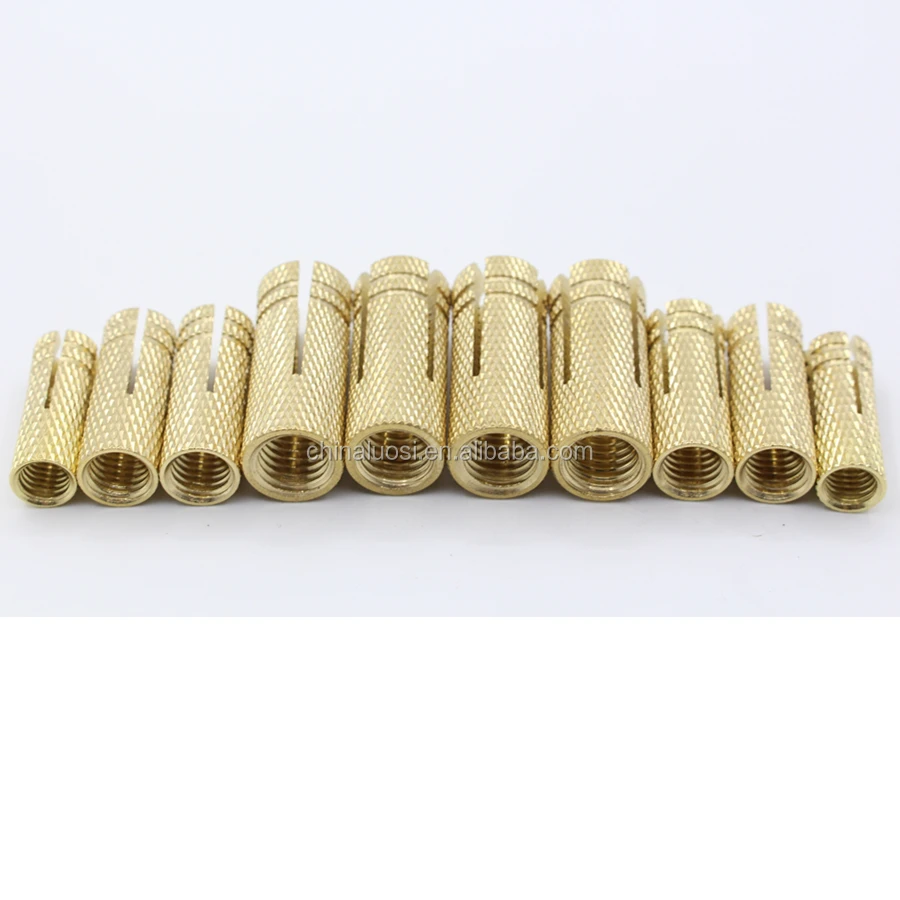

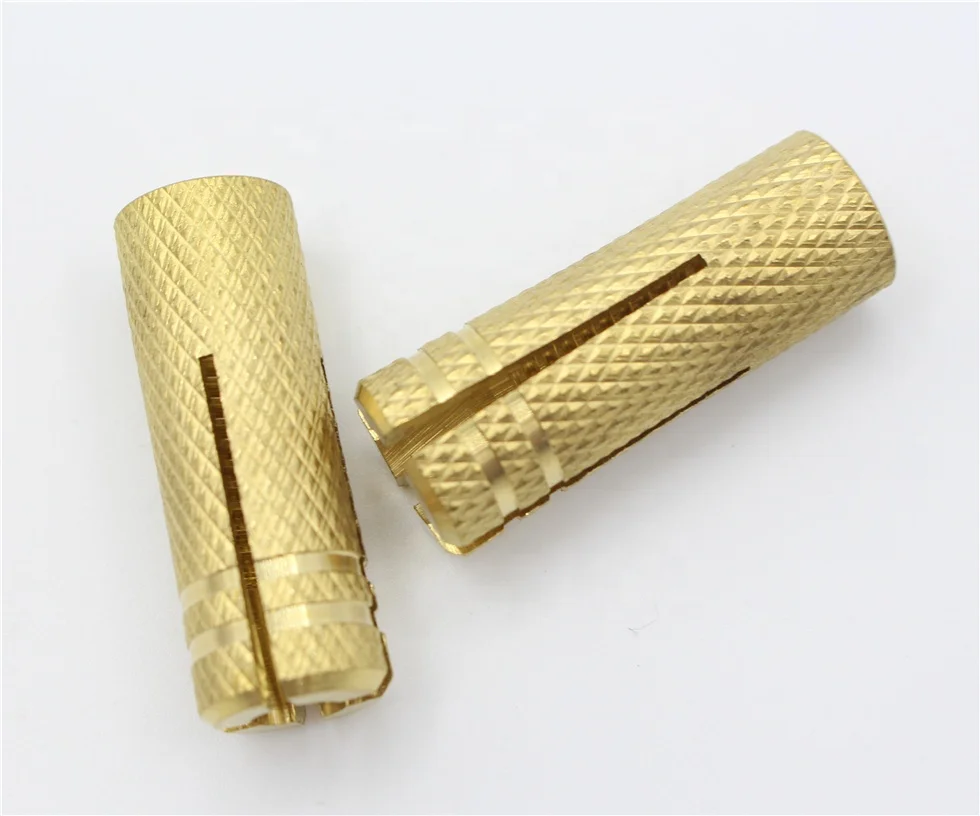

good quality brass drop in anchor with knurled surface
- Category: >>>
- Supplier: Cixi Jingeng Fastener Co. Ltd.
Share on (60200038137):
Product Overview
Description
Company Information
| Item | Description |
| Company name | CIXI JINGENG FASTENER CO.,LTD |
| Main products | wedge anchor, tie wire wedge anchor, sleeve anchor,drop in anchor, hollow wall anchor, ceiling anchor, heavy duty anchor, zamac single/double expansion anchor, zamac lag shield screw, zamac express anchor;
drywall screw, chipboard screw, self drilling /self tapping screw, wood screw, concrete screw, blind rivet. |
| Advantage | Good quality, Competitive price, Timely delivery, High level service |
| Our slogan | Quality is the soul of our service. With us your money in safe, your business in safe. |
| Contact | Lisa Wen |
| Telephone | 0086-574-63814965 |
| Fax | 0086-574-63814956 |
| Mobile phone | 0-13396694980 |
| Address | Room 302,Unit 1,Building 28,Mingbei Community,Sanbei street,Cixi,Zhejiang,China. |
Drop in anchor
Product Description
1. Product name: drop in anchor, concrete drop in anchor, drop in, female anchors, thunder drop, multi-set concrete anchors.
2. Material: carbon steel, stainless steel
3. Finish treatment: white zinc plated, yellow zinc plated.
4. Size: both metric and inch sizes are available, metric from M6-M20,inch from 1/4---3/4
A Drop-In anchor consists of a zinc plated steel tubular expansion shield and a solid, cone-shaped expander plug. The expander plug is case hardened and tempered to prevent galling and binding during expansion. The shield has four equally spaced slots for a portion of its length and the bottom part may be knurled. The shield also has a smooth, flangeless top that allows for either flush or countersunk installation. The bottom lip of the shield is tapered to allow maximum depth and holding power.
Application
Light to heavy-duty into solid concrete. Sometimes used with threaded rod.
Technical data:
Thread Size(A) | Anchor Dia.(B) | Thread Depth | Anchor Length (C) | Pull out Load (Kgs) | Qty.Per Box/Ctn | Weight Kgs/ |
1/4-20 | 3/8" | 1/2" | 1" | 1000 | 100/2000 | 11.0 |
3/8-16 | 1/2" | 5/8" | 1-9/16" | 2000 | 50/1000 | 28.0 |
1/2-13 | 5/8" | 3/4" | 2" | 3200 | 50/500 | 54.0 |
5/8-11 | 7/8" | 7/8" | 2-1/2" | 5400 | 25/200 | 141.0 |
3/4-10 | 1" | 1-1/4" | 3-1/8" | 7000 | 25/150 | 227.0 |
M6 (W1/4) | 8.0 | 10 | 25 | 950 | 100/2000 | 6.3 |
M8 (W5/16) | 10.0 | 14 | 30 | 1350 | 100/2000 | 12.5 |
M10 (W3/8) | 12.0 | 15 | 40 | 1950 | 50/1000 | 25.0 |
M12 (W1/2) | 16.0 | 20 | 50 | 2900 | 50/500 | 51.0 |
M16 (W5/8) | 20.0 | 25 | 65 | 4850 | 25/200 | 112.0 |
M20 (W3/4) | 25.0 | 35 | 80 | 5900 | 25/150 | 235.0 |
Installation
Packaging & Shipping
White box (neutral packing) ---Craft paper carton---Free fumigation wood pallet or plywood pallet. We could also make packing as customer’s requirement.
Transportation
Our Services
1.Your inquiry will be replied at the first time.
2.All question will be solved patiently.
3.We will provide competitive prices with best quality.
4.Either before or after order confirmed, we will try our best to promiss our best service.
FAQ
What is a drop-in anchor?
Drop-in anchors are concrete fasteners designed for use in solid concrete only. Once the fastener is set, it becomes permanent.
When should I use one?
If you need to permanently fasten something to concrete (not brick or block), this is a great choice.
How does it work?
The anchor sets in the concrete when the internal expander plug is pushed into the bottom of the anchor with a drop-in anchor-setting tool. The plug causes the anchor to expand in the hole and is kept in place by friction.
How many parts does it have?
It consists of two parts: the expander plug and the anchor body. The expander plug and anchor body come preassembled and ready for installation.
How strong is it?
The strength depends on several factors: the size of the anchor, the depth of the hole that the anchor is placed into, and the strength of the concrete.
Does this anchor come with a bolt?
No, it does not come with a bolt because every application requires different lengths and head styles of bolts
What size of hole should be drilled?
This anchor requires a masonry bit that is equal to the outside diameter of the anchor.
What size of hole should be drilled?
This anchor requires a masonry bit that is equal to the outside diameter of the anchor.
Do I need to clean out the hole before installation?
Yes. A properly cleaned hole in the concrete is critical.
Do I have to use a setting tool?
Yes, a drop-in setting tool must be for proper installation.
Does installation require epoxy?
No, it does not require any epoxy. Epoxy should not be used.
Can I install the anchor below the surface of the concrete?
Yes. The anchor can be installed below the surface of the concrete, as long as the setting tool is long enough to properly set the anchor. In many applications, embedding the anchor deeper results in better holding values.
How far apart should the anchors be installed into the concrete?
The minimum spacing between anchors in concrete must be equal to ten anchor diameters
Why do some anchors have bumps on the sides of the anchor?
Some manufacturers make the anchor with ridges on its sides while other manufacturers choose not to add ridges
What other names are used?
Drop-in anchors are sold under a variety of names, including: drop-in, female anchor, hdi, Hilti drop-in anchor, concrete drop-in anchor, sup-r-drop, HDI anchor, lip drop-in anchor, HDI-L anchor, HDI-P anchor, thunder drop, multi-set, concrete anchor, mini drop-in, and coil thread drop-in
